Technical Mock Test CE (SSC JE)- 9 - Civil Engineering (CE)

An internal focussing type surveying telescope, may be focussed by the movement of

Subtense bar is an instrument used for

For a simple circular curve, which one of the following gives the correct relation between the radius, R and degree of curve D, for 20 m arc length ?

Lacey's regime scour depth is given by

Where q is discharge per unit width and f is silt factor.

According to Lacey's theory, the silt supporting eddies are generated from

For water bound macadam roads in localities of heavy rainfall, the recommended value of camber is

The ruling design speed on a National Highway in plain as per IRC recommendations is

The most suitable equipment for compacting clayey soils is a

The approximate proportion of dry cement mortar required for brickwork is

As per I.S. Code of Practice, concrete should be cured at

While testing the compressive strength of cement concrete, the correct standard conditions (viz. temperature, age, humidity and size of the specimen) to be maintained as per I.S. are

One of the main demerits in using the lime mortar is that it

Which one of the following is not requirement in concrete mix - design?

Consider the following statements:

Fiber saturation point in wood is reached when

1. Free water is removed.

2. Cell water is removed.

3. Shrinkage of wood is rapid

4. Strength gain is rapidWhich of these statements are correct ?

Cavitation in a pipe is caused when :-

Moody's diagram is drawn between : -

For a two dimensional flow, the stream function is given by 1/2 = 2xy. The velocity at a point (3, 4) is equal to :-

The pressure rise due to water hammer depends upon :-

Dimension of the kinematic viscosity is :-

The coefficient of discharge, C_d in terms of C_V and C_C is given by (Notations have their usual meaning) :-

Lining of a canal is necessary :-

The purpose of cross regulator in a canal is :-

Which of the following dams of India is an example of arch dam ?

For uniform flow in a rectangular channel which one is correct statement (S_O = bed slope, S_f =energy slope, and S_W = water surface slope):-

The discharge per unit draw down at the well is known as :-

If the sediment size is 0.81 mm the silt factor will be :-

The discharge through a V-notch varies as :-

As per IS code, the minimum grade of concrete for the design of prestressed concrete structureis :-

In a slab, the minimum reinforcement using steel of grade Fe 415 is :-

If nominal shear stress    exceeds the design shear strength of concrete , the shear
reinforcement as per IS-456 will be provided for shear stress equal to :-

Minimum reinforcement in a circular concrete column as pe IS- 456 is :-

Span to effective depth ratio for a continuous beam with steel grade of Fe 415 should not bemore than :-

For assessing strength of a structure for limit state of collapse, the values of partial safety factors for concrete and steel are taken respectively as:-

If a beam fails in bond, its bond strength can be increased most economically by :-

The fixed support in real beam becomes in the conjugate beam as :-

A beam is hinged at end A and fixed at B. If moment M is applied at end A, the momentdeveloped at end B will be:-

Section modulus for hollow circular section of outer diameter 'D' and inner diameter 'd' is :-

For a statically indeterminate pin jointed planeframe, the relation between number of 'm' and number of joints 'J' is expressed as :-

In moment distribution method, the sum of distribution factors of all the members meetingat any joint is always:-

The strain energy stored in a member due to bending moment M is given by :-

Allowable average shear in an un-stiffened web for beams made of steel of grade 250 N/mm² is :-

Normally, the pitch of roof truss with asbestos sheets should not be less than :-

As per IS code, the maximum pitch of rivets in compression flange (thickness 't') of a built up beam is :-

In a plate girder, bending moment is primarily resisted by :-

Factor of safety is the ratio of :-

The load factor applied to dead loads or live loads in the design of steel structures is :-

Westergaard's analysis for stress distribution Mbeneath loaded area is applicable to :

Density Index is the term used to express relative compactness of :-

The permeability of a soil sample depends upon :-

The process by which the soil particles are artificially rearranged into a closer state of contact by mechanical means in order to decrease the porosity, is known as :-

The major loss of hydraulic energy in pipe flow occurs in long pipe due to :-

Notches are used to measure :-

The type of vortex for the flow of water in a wash basin, when it is being emptied through acentral opening , is called :-

A long thin walled cylindrical shell, closed at both ends, is subjected to an internal pressure. The ratio of the hoop stress (circumferential stress) to longitudinal stress developed in the shell is

Match the following two lists:
List-I
a. Infiltration
b. Interflow
c. Evaporation
d. Evaporanspiration
e. Yield of a stream


List-II
1. Quick response flow
2. Annual runoff volume
3. Lysimeter
4. Dalton's Law
5. Groundwater recharge

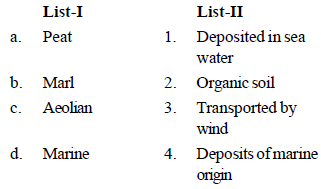

Match the following two lists:

Total degree of static indeterminacy (both internal and external) of the plane frame shownin the figure below is

Principle involved in the relationship between submerged unit weight and saturated weight of a soil is based on

The consistency of a saturated cohesive soil is affected by

Consider the following

A stilling well is not required when the stage measurement is made by employing :

1. Bubble gauge

2. Float gauge recorder

3. Inclined staff gauge

4. Echo depth recordingOf these, the statements

Identify the correct statement:

The direct method of flow measurement include

1. Area-velocity method

2. Dilution technique

3. Flow measuring structures

4. Ultrasonic method

5. Slope-area methodThe correct statements are

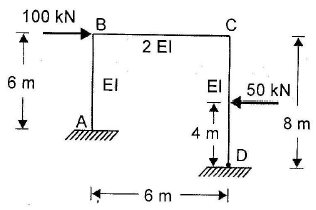

The slope deflection equation at the end B for the member BC of the frame shown in the given
figure will be

An accurate estimate of average rainfall in a particular catchment area can be obtained by -

Inconsistency of rainfall data can be checked by

Pluviometer is used to measure

Consider the following chemical emulsions.

1. Pentadecanol

2. Hexadecanol

3. Octadecanol

4. Kerosene

Which of the above chemical emulsion is/are usedto minimize the loss of water through the process of evaporation ?

The following methods are used for structural analysis :

1. Macaulay method

2. Column analogy method

3. Kani's method

4. Method of sections

Those used for indeterminate structural analysiswould included

Sets of principal stresses acting at any point in a stressed body are given below:

The transverse shear stress acting in abeam of rectangular cross section subjected to a transverse shear load , is

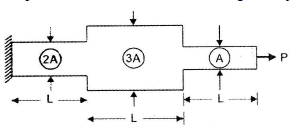

The total elongation of the structural element fixed, at one end, free at the other end, and of varying cross-section as shown in the figure when subjected to a force P at free end is given by

On which of the following factors does activity of a soil depend ?
1. Plasticity

2. Minerals present

3. Clay content

4. Silt content

Select the correct answer using the codes givenbelow :

The Atterberg limits of a clay are 38% , 27% and 24.5%. It's natural water content is 30%.The clay is in the state.

For sand of uniform spherical particles, the void ratio in the densest states is

The following data are given for the laboratory sample

If thickness of the clay specimen is 25 mm, the value of coefficient of volume compressibility is
(in 10^–4 m²/kN)

A prismatic bar ABC is subjected to an axial load of 30 kN; the reactions RA and RC will be

What is range of values of Poisson's ratio for ductile materials ?

The internal molecular attraction of a soil, the cohesion

Which one of the following statements regarding coefficient of consolidation C_V is correct ?

A saturated soil sample has moisture content = 30 % and specific weight = 2.7, considering g_w = 10 KN/m₃, what is the void ratio of sample ?

The amount of gradient is required to be reduced, whenever a horizontal curve and gradient have to be provided together. What is this process known as ?

The compensated gradient provided at the curve of radius 100 m with a ruling gradient of 5% is

Nagpur road plan is based on

Transition curves are provided on the approach to horizontal curves in order to

Match the following
List-I                                            List-II
a. Toughness                               1. Devel
b. Adhesion to bitumen                2. Soundness test
c. Hardness                                  3. Impact test
d. Durability                                  4. Stripping value

Codes:
      a  b  c  d
(A) 3  4  2  1
(B) 3  4  1  2
(C) 2  4  1  3
(D) 3  2  1  4

Minimum width of platform specified is

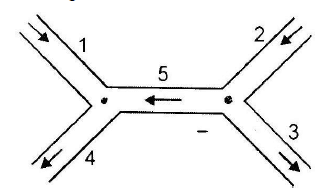

The velocities and corresponding flow areas of the branches labelled 1, 2, 3, 4 and 5 for a pipe system shown in the given figure are given in the following table:

The velocity V₅ would be

a composite consisting of a bar enclosed inside a tube of another material when compressed under a load 'W' as a whole through rigid collars at the end of the bar. The equations of compatibility is given by suffixes 1 and 2 refer to bar and tube respectively.

High turbidity of water can be determined by

Low turbidity of water can be determined by

Efficiency of sedimentation tank for a given discharge can be increased by

Uniformity coefficient of sand is given by

Tests usually employed to determine chlorine residuals in water

(i) orthotolidine test

(ii) starch-iodide test

Natural zerolites are mainly processed from

Sewer lines are designed for a design period of

Plywood has the advantage of

The trunk of tree left after cutting all the branches is known as

Rankine's formula for column is valid when slenderness ratio
