Test: Loss Due to Anchorage Slip - Civil Engineering (CE) MCQ


Test Description

10 Questions MCQ Test RCC & Prestressed Concrete - Test: Loss Due to Anchorage Slip

Test: Loss Due to Anchorage Slip for Civil Engineering (CE) 2024 is part of RCC & Prestressed Concrete preparation. The Test: Loss Due to Anchorage Slip questions and answers have been prepared according to the Civil Engineering (CE) exam syllabus.The Test: Loss Due to Anchorage Slip MCQs are made for Civil Engineering (CE) 2024 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for Test: Loss Due to Anchorage Slip below.
Solutions of Test: Loss Due to Anchorage Slip questions in English are available as part of our RCC & Prestressed Concrete for Civil Engineering (CE) & Test: Loss Due to Anchorage Slip solutions in Hindi for RCC & Prestressed Concrete course. Download more important topics, notes, lectures and mock test series for Civil Engineering (CE) Exam by signing up for free. Attempt Test: Loss Due to Anchorage Slip | 10 questions in 30 minutes | Mock test for Civil Engineering (CE) preparation | Free important questions MCQ to study RCC & Prestressed Concrete for Civil Engineering (CE) Exam | Download free PDF with solutions
Test: Loss Due to Anchorage Slip - Question 1

The frictional and anchorage slip losses are observed is.

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 1

Losses in Prestress members:

  • In prestressed concrete, the most important parameter is the prestressing force.
  • If the prestressing force reduces with time, prestresses also get reduced.
  • Various reductions of the prestressing force are termed as the losses in prestressing.
  • Total loss of prestress consists of those losses which are instantaneous at the transfer stage as well as those which are time-dependent.
  • Loss due to friction and anchorage slip occurs only in the post-tensioned beam.

Important Points

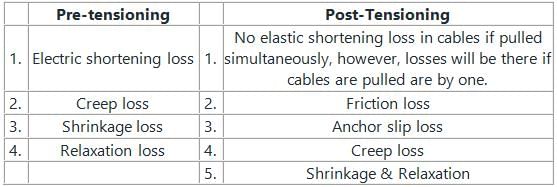

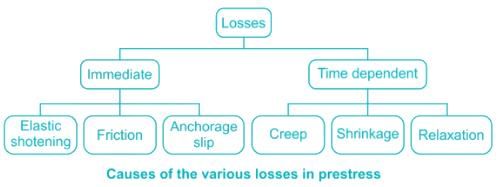

Losses of prestress are as follows:

Test: Loss Due to Anchorage Slip - Question 2

The term anchorage slip means _____

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 2

Anchorage slip is the distance moved by the friction wedges (in post tensioned members) after releasing the jacks at the ends of the member and before the wires get fixed perfectly in wedges, the loss during anchoring which occurs with wedge type grips is normally allowed for on the site by over-extending the tendon in the prestressing operation by the amount of the draw in before anchoring.

1 Crore+ students have signed up on EduRev. Have you? Download the App
Test: Loss Due to Anchorage Slip - Question 3

The anchorage slip is observed in _____

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 3

The anchorage slip is observed in post tensioned members at the time of transfer of prestress to the concrete and the friction wedges employed to grip the wires, slip over a small distance before the wires are firmly housed between the wedges.

Test: Loss Due to Anchorage Slip - Question 4

The percentage loss of pre-stress due to anchorage slip of 3 mm in a concrete beam of length of 30 m which is post-tensioned by a tendon subjected to an initial stress of 1200 N/mm2 and modulus of elasticity equal to 2.1 × 105 N/mm2, is

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 4


Calculation:
Given,
Anchorage slip = 3 mm; Beam length = 30 m; Modulus of Elasticity of steel = 2.1 × 105 N/mm2, initial pre-stress = 1200 N/mm2

∴ Loss in pre-stress = 1.75%

Test: Loss Due to Anchorage Slip - Question 5

The anchorage slip is low in members with ______

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 5

The anchorage slip involves the definite total amount shortening of concrete and hence it is low in members with small spans compared to the members with large spans while prestressing a short member, due care should be taken to allow for the loss of stresses due to anchorage slip, which forms a major portion of total loss.

Test: Loss Due to Anchorage Slip - Question 6

The amount of anchorage slip generally depends upon ______

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 6

The amount of anchorage slip generally depends upon the type of wedge used at the ends and the magnitude of stress in the wires, since the loss of stress is caused by a definite total amount of shortening the percentage loss is higher for short members than for long ones.

Test: Loss Due to Anchorage Slip - Question 7

Which of the following system is similar to loss due to anchorage slip?

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 7

The systems in which tendons are lopped around concrete anchorage blocks, as in the case of Leonhardt-Baur system, loss of stress may take place, the Baur Leonhardt system is included in the third type of anchorages which work under the principle of looping tendon wires at the ends of concrete member, in this method double tendons are wrapped around the end block.

Test: Loss Due to Anchorage Slip - Question 8

In case of long line pre tensioning system, anchorage slip is less than ____

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 8

In case of long line pre tensioning system, anchorage slip is much less in comparison with the length of the tensioned wires and hence it can be ignored for calculation of stresses, slip of anchorages, length of cable, cross-sectional area of the cable, modulus of elasticity, prestressing force in cable are considered.

Test: Loss Due to Anchorage Slip - Question 9

A concrete beam is post tensioned by a cable carrying an initial stress of 1000n/mm2, the slip at the jacking end was end was observed to be 5mm; modulus of elasticity of steel is 210kn/mm2. Estimate the percentage loss of stress due to anchorage if length of beam is 30m?

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 9

Loss of stress due to anchorage slip = (EsΔ/l),
For a 30m long beam, loss of stress = (210×103×5)/(30×1000) = 35n/mm2,
Loss of stress = 35/1000×100 = 3.5%.

Test: Loss Due to Anchorage Slip - Question 10

The loss of stress due to anchorage slip of anchorages is given as __________

Detailed Solution for Test: Loss Due to Anchorage Slip - Question 10

The method used for slip in anchorage by extending tendon is satisfactory provided by overstress does not exceed the prescribed limits of 80-85percent of the ultimate tensile strength of the wire and the magnitude of the loss of stress due to slip in anchorage is computed as
Anchorage slip Δ = PL/AEs, But moment Loss of stress, (Δf)a = P/A,
By considering both equations (Δf)a = EsΔ/l.
