Michael lives 10 km away from where I live. Ahmed lives 5 km away and Susan lives 7 km away from where I live. Arun is farther away than Ahmed but closer than Susan from where I live. From the information provided here, what is one possible distance (in km) at which I live from Arun’s place?

Michael lives 10 km away from where I live. Ahmed lives 5 km away and Susan lives 7km away from where I live Arun is farther away than Ahmed but closer than susan from where I live. From the information provided here, what is one possible distance (in km) at which I live from Arun’s place?

Q. 6 – Q. 10 carry two marks each.

Q. A person moving through a tuberculosis prone zone has a 50% probability of becoming infected. However only 30% of infected people develop the disease. What percentage of people moving through a tuberculosis prone zone remains infected but does not show symptoms of disease?

In a world filled with uncertainty he was glad to have many good friends. He had always assisted them in times of need and was confident that they would reciprocate. However, the events of the last week proved him wrong?
Which of the following inference (s) is/are logically valid and can be inferred from the above passage?
(i) His friends were always asking him to help them
(ii) He felt that when in need of help, his friends would let him down
(iii) He was sure that his friends would help him when in need
(iv) His friends did not help him last week

Leela is older than her cousin Pavithra. Pavithra’s brother Shiva is older than Leela. When Pavithra and Shiva are visiting Leela, all three like to play chess. Pavithra wins often than Leela does.
Which one of the following statements must be TRUE based on the above?

the value of abc is______

P,Q,R and S are working on a project. Q can finish the task in 25 days, working alone for 12 hours a day. R can finish the task in 50 days, working along for 12 hours per day. Q worked 12 hours a day but took sick leave in the beginning for two days. R worked 18 hours a day on all days. What is the ratio of work done by Q and R after 7 days from the start of the project?

Q. 11 – Q. 35 carry one mark each:

Q. The solution to the system of equations is

If f(t) is a function defined for all t > 0, its laplace transform F(s) is defined as

f(z) = u(x,y) + i v(x,y) is an analytic function of complex variable z = x + iy where i = . If u(x,y) = 2 xy, then v(x,y) may be expressed as

Consider a Poisson distribution for the tossing of a biased coin. The mean for this distribution is μ. The standard deviation for this distribution is given by

Solve the equation x = 10 cos (x) using the Newton-Raphson method. The initial guess is x = π/4.
The value of the predicted root after the first iteration, up to second decimal, is __________.

(Important - Enter only the numerical value in the answer)

A rigid ball of weight 100 N is suspended with the help of a string. The ball is pulled by a horizontal force F such that the string makes an angle of 30? with the vertical. The magnitude of force F (in N) is _____

A point mass M is released from rest and slides down a spherical bowl (of radius R ) from a height H as shown in the figure below. The surface of the bowl is smooth (no friction). The velocity of the mass at the bottom of the bowl is

The cross sections of two hollow bars made of the same material are concentric circles as shown in the figure. It is given that r₃ > r₁ and r₄ > r₂, and that the areas of the cross-sections are the same. J₁ and J₂ are the torsional rigidities of the bars on the left and right, respectively. The ratio J₂/J₁ is

A cantilever beam having square cross-section of side a is subjected to an end load. If a is increased by 19%, the tip deflection decreases approximately by

A car is moving on a curved horizontal road of radius 100 m with a speed of 20 m/s. The rotating masses of the engine have an angular speed of 100 rad/s in clockwise direction when viewed from the front of the car. The combined moment of inertia of the rotating masses is 10 kg-m². The magnitude of the gyroscopic moment (in N-m) is_____

A single degree of freedom spring mass system with viscous damping has a spring constant of 10 kN/m. The system is excited by a sinusoidal force of amplitude 100 N. If the damping factor (ratio) is 0.25, the amplitude of steady state oscillation at resonance is ________mm

The spring constant of a helical compression spring DOES NOT depend on

The instantaneous stream-wise velocity of a turbulent flow is given as follows:

The time – average of the fluctuating velocity u' (x,y, z, t)

For a floating body, buoyant force acts at the

A plastic sleeve of outer radius r_o = 1 mm covers a wire (radius r = 0.5 mm) carrying electric current. Thermal conductivity of the plastic is 0.15 W/m-K. The heat transfer coefficient on the outer surface of the sleeve exposed to air is 25 W/m²-K. Due to the addition of the plastic cover, the heat transfer from the wire to the ambient will

Which of the following statements are TRUE with respect to heat and work?
(i) They are boundary phenomena
(ii) They are exact differentials
(iii) They are path functions

Propane (C₃H₈) is burned in an oxygen atmosphere with 10% deficit oxygen with respect to the stoichiometric requirement. Assuming no hydrocarbons in the products, the volume percentage of CO in the products is ____

(Important -  Enter only the numerical value in the answer)

Consider two hydraulic turbines identical specific speed and effective head at the inlet. If the speed
ratio  of the two turbines is 2, then the respective power ratio   _________.

The INCORRECT statement about regeneration in vapor power cycle is that

The “Jominy test” is used to find

Under optimal conditons of the process the temperatures experienced by a copper work piece in fusion welding, brazing and soldering are such that

The part of a gating system which regulates the rate of pouring of molten metal is

The non-traditional machining process that essentially requires vacuum is

In an orthogonal cutting process the tool used has rake angle of zero degree. The measured cutting force and thrust force are 500 N and 250 N, respectively. The coefficient of friction between the tool and the chip is _________

Match the following

Q.36 to 65 (Two marks Questions)

Q. Consider the function f(x) = 2x³ -3x² in the domain [-1, 2]. The global minimum of f(x) is ____

(Important - Enter only the numerical value in the answer)

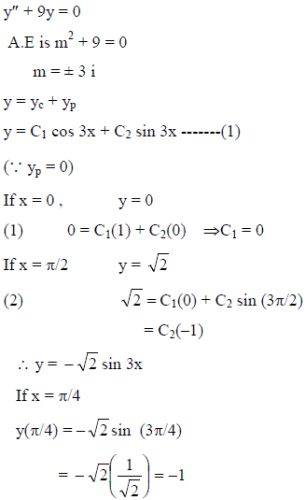

If y = f(x) satisfies the boundary value problem

  is ________.

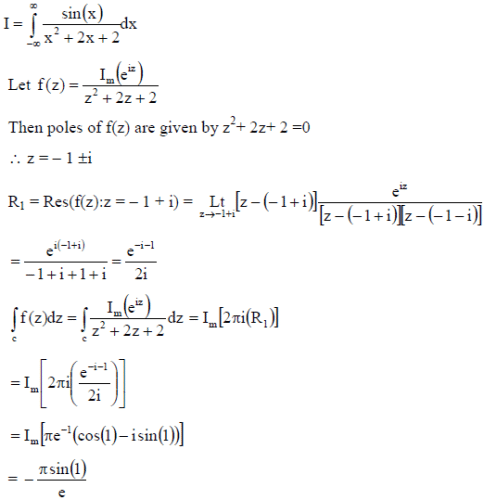

The value of the integral   evaluated using contour integration and the residue theorem is

Gauss-Seidel method is used to solve the following equations (as per the given order).
x₁ + 2x₂ + 3x₃ = 5
2x₁ + 3x₂ + x₃ = 1
3x₁ + 2x₂ + x₃ = 3
Assuming initial guess as x₁ = x₂ = x₃ = 0, the value of x₃ after the first iteration is ________

(Important - Enter only the numerical value in the answer)

A block of mass m rests on an inclined plane and is attached by a string to the wall as shown in the figure. The coefficient of static friction between the plane and the block is 0.25. The string can withstand a maximum force of 20 N. The maximum value of the mass (m) for which the string will not break and the block will be in static equilibrium is ___kg.
Take cosθ = 0.8 and sin θ = 0.6.
Acceleraiton due to gravity g = 10 m/s²

A two – member truss PQR is supporting a load W. The axial forces in members PQ and QR are respectively

A horizontal bar with a constant cross-section is subjected to loading as shown in the figure. The Young’s moduli for the sections AB and BC are 3E and E, respectively.

For the deflection at C to be zero, the ratio P/F is ____

(Important - Enter only the numerical value in the answer)

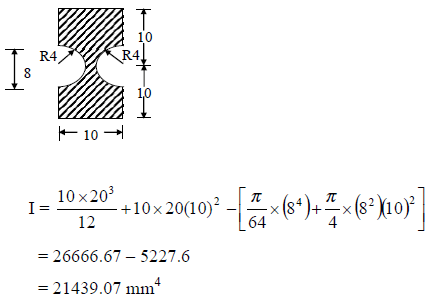

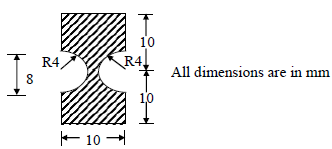

The figure shows cross-section of a beam subjected to bending. The area moment of inertia (in mm⁴) of this cross-section about its base is ________

(Important -  Enter only the numerical value in the answer)

A simply-supported beam of length 3L is subjected to the loading shown in the figure.

It is given that P = 1 N, L = 1 m and Young’s modulus E = 200 GPa. The cross-section is a square with dimension 100 mm. The bending stress (in Pa) at the point A located at the top surface of the beam at a distance of 1.5L from the left end is (Indicate compressive stress by a negative sign and tensile stress by a positive sign).

(Important - Enter only the numerical value in the answer)

A slider crank mechanism with crank radius 200 mm and connecting rod length 800 mm is shown. The crank is rotating at 600 rpm in the counterclockwise direction. In the configuration shown, the crank makes an angle of 90^o with the sliding direction of the slider, and a force of 5 kN is acting on the slider. Neglecting the inertia forces, the turning moment on the crank (in kN-m) is

(Important - Enter only the numerical value in the answer)

In the gear train shown, gear 3 is carried on arm 5. Gear 3 meshes with gear 2 and gear 4. The number of teeth on gear 2,3, and 4 are 60, 20, and 100, respectively. If gear 2 is fixed and gear 4 rotates with an angular velocity of 100 rpm in the counterclockwise direction, the angular speed of arm 5 (in rpm) is

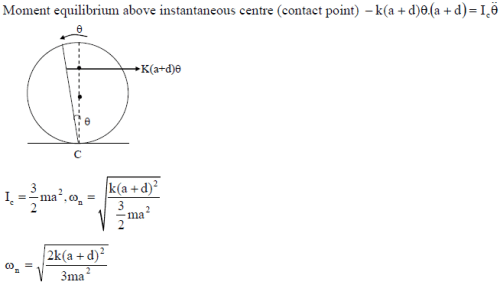

A solid disc with radius a is connected to a spring at a point d above center of the disc. The other end of the spring is fixed to the vertical wall. The disc is free to roll without slipping on the ground. The mass of the disc is M and the spring constant is K. The polar moment of inertia for the disc about its centere is

The natural frequency of this system in rad/s is given by

The principal stresses at a point inside a solid object are σ₁ = 100 MPa, σ₂ = 100 MPa and σ₃ = 0 MPa. The yield strength of the material is 200 MPa. The factor of safety calculated using Tresca (maximum shear stress) theory is n_T and the factor of safety calculated using von Mises (maximum distortional energy) theory is n_v. Which one of the following relations is TRUE?

An inverted U-tube manometer is used to measure the pressure difference between two pipes A and B, as shown in the figure. Pipe A is carrying oil (Specific gravity = 0.8) and Pipe B is carrying water. The densities of air and water are 1.16 kg/m and 1000 kg/m³, respectively. The pressure difference between pipes A and B is _______kPa.
Acceleration due to gravity g = 10 m/s²

(Important - Enter only the numerical value in the answer)

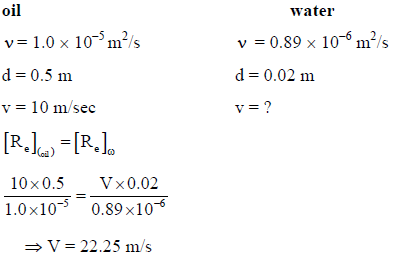

Oil (kinematic viscosity, ν_oil = 1.0 x 10^-5 m²/s) flows through a pipe of 0.5 m diameter with velocity of 10 m/s. Water (Kinematic viscosity, ν_w = 0.89 x 10^-6 m²/s) is flowing through a model pipe of diameter 20 mm. For satisfying the dynamic similarity, the velocity of water (in m/s) is ____

(Important - Enter only the numerical value in the answer)

A steady laminar boundary layer is formed over a flat plate as shown in the figure. The free stream velocity of the fluid is U_o . The velocity profile at the inlet a-b is uniform, while that at a downstream location c-d is given by


The ratio of the mass flow rate, bd, m_bd leaving through the horizontal section b-d to that entering through the vertical section a-b is

(Important - Enter only the numerical value in the answer)

A steel ball of 10 mm diameter at 1000 K is required to be cooled to 350 K by immersing it in a water environment at 300 K. The convective heat transfer coefficient is 1000 W/m²-K. Thermal conductivity of steel is 40 W/m-K.The time constant for the cooling process τ is 16s. The time required (in s) to reach the final temperature is________

(Important - Enter only the numerical value in the answer)

An infinitely long furnace of 0.5 m x 0.4 m cross-section is shown in the figure below. Consider all surfaces of the furnace to be black. The top and bottom walls are maintained at temperature T₁ = T₃ = 927^oC while the side walls are at temperature T₂ = T₄ = 527^oC. The view factor, F_1-2 is 0.26. The net radiation heat loss or gain on side 1 is _____ W/m.

Stefan-Boltzman constant = 5.67 x 10^-8 W/m²-K⁴

(Important - Enter only the numerical value in the answer)

A fluid (Prandtl number, Pr = 1) at 500 K flows over a flat plate of 1.5 m length, maintained at 300 K. The velocity of the fluid is 10 m/s. Asuming kinematic viscosity, v = 30 x 10^-6 m²/s, the thermal boundary layer thickness (in mm) at 0.5 m from the leading edge is ____

(Important - Enter only the numerical value in the answer)

For water at 25^oC, dp_s/dT_s = 0.189 kPa/K (p_s is the saturation pressure in kPa and T_s is the saturation temperature in K) and the specific volume of dry saturated vapour is 43.38 m³/kg. Assume that the specific volume of liquid is negligible in comparson with that of vapour. Using the Clausius-Clapeyron equation, an estimate of the enthalpy of evaporation of water at 25^oC (in kJ/kg) is ___

(Important - Enter only the numerical value in the answer)

An ideal gas undergoes a reversible process in which the pressure varies linearly with volume. The conditions at the start (subscript 1) and at the end (subscript 2) of the process with usual notation are: p₁ = 100 kPa, V₁ = 0.2 m³ and p₂ = 200 kPa, V₂ = 0.1 m³ and the gas constant, R = 0.275 kJ/kg-K. The magnitude of the work required for the process (in kJ) is______

(Important - Enter only the numerical value in the answer)

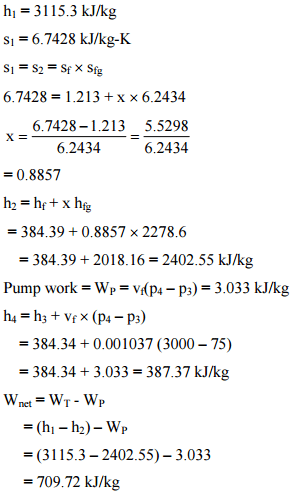

In a steam power plant operating on an ideal Rankine cycle, superheated steam enters the turbine at 3 MPa and 350^oC. The condenser pressure is 75 kPa. The thermal efficiency of the cycle is _______ percent.

Given data:

For saturated liquid, at P = 75 kPa,

h_f = 384.39 kJ/kg, v_f = 0.001037 m³/kg,

s_f = 1.213 kJ/kg-K

At 75 kPa, h_fg = 2278.6 kJ/kg,

s_fg = 6.2434 kJ/kg-K

At P = 3 MPa and T = 350^o C (Superheated steam), h = 3115.3 kJ/kg,

s = 6.7428 kJ/kg-K

(Important - Enter only the numerical value in the answer)

A hypothetical engineering stress-strain curve shown in the figure has three straight lines PQ, QR, RS with coordinates P(0,0), Q (0.2,100), R(0.6, 140) and S(0.8, 130). ‘Q’ is the yield point, 'R' is the UTS point and 'S' the fracture point.

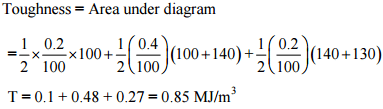

The toughness of the material (in MJ/m³) is ____

(Important - Enter only the numerical value in the answer)

Heat is removed from a molten metal of mass 2 kg at a constant rate of 10 kW till it is completely solidified. The cooling curve is shown in the figure.

Assuming uniform temperature throughout the volume of the metal during solidification, the latent heat of fusion of the metal (in kJ/kg) is ____

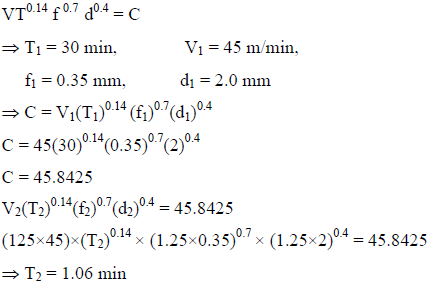

The too life equation for HSS tool is = Constant. The tool life (T) of 30 min is obtained using the following cutting conditions = 45 m/min, f = 0.35 mm, d = 2.0 mm. If speed (V), feed (f) and depth of cut (D) are increased individually by 25%, the tool life (in min) is

A cylindrical job with diameter of 200 mm and height of 100 mm is to be cast using modulus method of riser design. Assume that the bottom surface of cylindrical riser does not contribute as cooling surface. If the diameter of the riser is equal to its height, then the height of the riser (in mm) is

A 300 mm thick slab is being cold rolled using roll of 600 mm diameter. If the coefficient of friction is 0.08, the maximum possible reduction (in mm) is ______

(Important - Enter only the numerical value in the answer)

The figure below represents a triangle PQR with initial coordinates of the vertices as P(1,3), Q (4,5) and R(5,3.5). The triangle is rotated in the X-Y plane about the vertex P by angle θ in clockwise direction. If sin θ = 0.6 and cos θ = 0.8, the new coordinates of the vertex Q are

The annual demand for an item is 10,000 units. The unit cost is Rs. 100 and inventory carrying charges are 14.4% of the unit cost per annum. The cost of one procurement is Rs. 2000. The time between two consecutive orders to meet the above demand is _____ month (s)

(Important - Enter only the numerical value in the answer)

Maximize Z = 15X₁ + 20X₂
Subject to
12X₁ + 4X₂ > 36
12X₁ - 6X₂ < 24
X₁, X₂ > 0
The above linear programming problem has
