Pressure Angle is the measure of the steepness of the cam profile. The angle between the direction of the follower movement and the normal to the pitch curve at any point is called pressure angle. Pressure angle varies from maximum to minimum during complete rotation.

The pressure should not exceed 30^० in the case of cams with translating followers (and angle should be less than 45^० for low-speed cam mechanisms with oscillating followers).

The area under P-V diagrams represents the work done.

Since the slope of the adiabatic process is greater than the slope of the isothermal process.

On the P-V diagram, Area under adiabatic curve > Area under the isothermal curve.

Work done under an adiabatic process is greater than work done under an isothermal process.

P_n = The component of force P, normal to section FG = P cos θ

P_t = The component of force P, along the surface of the section FG (tangential to the surface FG) = P sin θ

σ_n = Normal Stress across the section FG

σ_n=σcos²θ

σ_t = Tangential/Shear Stress across the section FG

Concept:

P-V-T relationship for an adiabatic process:

The flow rate through a pipe is usually measured by providing a coaxial area contraction within the pipe and by recording the pressure drop across the contraction, which is the application of Bernoulli’s equation.

Three flow meters primarily operate on this principle:

- Venturimeter

- Orificemeter

- Pitot tube

Crystal structure of Material

FCC: - Ni, Cu, Ag, Pt, Au, Pb, Al, Austenite or Ƴ-iron

BCC: - V, Mo, Ta, W, Ferrite or α-iron, δ-ferrite or δ-iron

HCP: - Mg, Zn

Cobalt: - HCP < 420°C, FCC > 420°C

Chromium: - HCP < 20°C, BCC > 20°C

Glass: - Amorphous

An orifice meter provides a simpler and cheaper arrangement for the measurement of flow through a pipe. An orifice meter is essentially a thin circular plate with a sharp-edged concentric circular hole in it.

C_d is defined as the ratio of the actual flow and the ideal flow and is always less than one.

For the orifice meter, the coefficient of discharge C_d depends on the shape of the nozzle, the ratio of pipe to nozzle diameter, and the Reynolds number of the flow.

The efficiency of Carnot engine (η_E) = 50%

η_E=1−TLTH=0.5

Now, this is converted to the heat pump,

Dividing by T_H

Short trick:

If a Carnot heat engine which is operating between two temperature limits is converted to a heat pump, then

Aluminium casting alloys offer a range of advantages, particularly good castability. This includes a relatively high fluidity, low melting point, short casting cycles, relatively low tendency for hot cracking, good as-cast surface finish, and chemical stability.

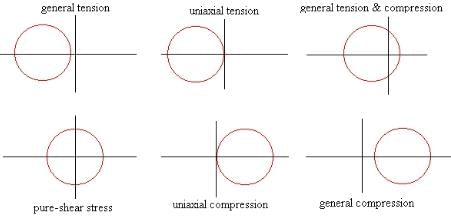

For pure shear, radius is equal to shear stress and the centre lies on the point of intersection of axes.

Normalizing: Heat the steel from 30°C to 50°C above its upper critical temp, held about fifteen minutes, and then allowed to cool down in still air. The homogeneous structure provides a higher yield point, ultimate tensile strength, and impact strength with lower ductility to steels.

Main objective

1. Refine grain size in metal, improve strength and hardness, reduce ductility

2. Remove cold worked stress.

3. Remove dislocations due to hot working.

Hooke's law states that the force applied to an elastic material is directly proportional to the extension produced. Therefore Hooke's law holds good up to limit of proportionality.

The refrigerators are the heat pumps which are used to lower the temperature of a given volume by doing work on fluid. The refrigerators work on a reverse Carnot cycle. The cool liquid passing through a chamber which is warmer does work on this fluid to convert it into the gaseous form thus lowering the temperature in the chamber. This process continues so as to bring the temperature of the chamber to a required temperature.


The quality or efficiency of performance of a refrigerator is determined by the coefficient of performance (COP) which is the ratio of the heat supplied or the work done by the air in the chamber to the work required by the system.

COP=Q/W

The work done W is the external work provided to the system for this non-spontaneous process to happen, in our case the electrical energy.
The superheating is the process in which the excess amount of heat is provided to the coolant. This increases the rate of cooling, which is a good indicator for COP.
But also, we should understand that if superheating occurs in a refrigerator, the external energy should be greater to keep the cycle moving.
From the above observations, the coolant evaporates faster adding efficiency of the system, on the other hand, the W required by the system increases, which clearly denotes a decline in the efficiency or the coefficient of performance of the refrigerator.
We get to know that the COP either increases or decreases when superheating takes place in a refrigerator, it is not consistent and therefore unpredictable.

Lower pair: When the two elements of a pair have a surface contact when relative motion takes place, and the surface of one element slides over the surface of the other, the pair formed is known as the lower pair. Sliding pairs, turning pairs, and screw pairs are examples of lower pairs.

Higher pair: When the two elements of a pair have a line or point contact when relative motion takes place, and the motion between the two elements is partly turning and partly sliding, then the pair is known as higher pair. A pair of toothed gearing, belt and rope drives, ball and roller bearings, and cam and follower are examples of higher pairs.

In Belt and pulley, due to line contact, they form a higher pair.

In actual compressors, a small clearance is left between the cylinder head and piston to accommodate the valves and to take care of thermal expansion and machining tolerances.

A large clearance volume results in low volumetric efficiency and hence large cylinder dimensions increase the contact area between the piston and cylinder and so, increases friction and work.

Volumetric efficiency is given by:

Where c = Clearance ratio.

P₂/P₁=Pressure;ratio

As the clearance ratio increases, the volumetric efficiency of the reciprocating compressor decreases as the pressure ratio increases.
