Civil Engineering (CE)  >  GATE Civil Engineering (CE) 2023 Mock Test Series  >  Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) Download as PDF

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Civil Engineering (CE)


Test Description

65 Questions MCQ Test GATE Civil Engineering (CE) 2023 Mock Test Series - Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II)

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) for Civil Engineering (CE) 2023 is part of GATE Civil Engineering (CE) 2023 Mock Test Series preparation. The Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) questions and answers have been prepared according to the Civil Engineering (CE) exam syllabus.The Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) MCQs are made for Civil Engineering (CE) 2023 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) below.
Solutions of Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) questions in English are available as part of our GATE Civil Engineering (CE) 2023 Mock Test Series for Civil Engineering (CE) & Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) solutions in Hindi for GATE Civil Engineering (CE) 2023 Mock Test Series course. Download more important topics, notes, lectures and mock test series for Civil Engineering (CE) Exam by signing up for free. Attempt Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) | 65 questions in 180 minutes | Mock test for Civil Engineering (CE) preparation | Free important questions MCQ to study GATE Civil Engineering (CE) 2023 Mock Test Series for Civil Engineering (CE) Exam | Download free PDF with solutions
1 Crore+ students have signed up on EduRev. Have you? Download the App
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 1

 where a, b, n and m are natural numbers. What is
the value of

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 1

n x a = a2b
n = ab ⟹ n2 = a2b2


m x b = ab
m = ab ⟹ m2 = a2b2



= (m×n)(n×m) = (m×n)(n×m)
= (m × n × n × m)
= m2 x n2
= a2b2 x a2b2
= a4b4

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 2

For non-negative integers, a, b, c, what would be the value of a + b+ c if log a + log b + log c = 0 ?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 2

As a, b, c are non-negative integers and given log a + log b + log c = 0
log (a*b*c) = log 1
⇒ a = b = c = 1
Which can be possible for simple values.
a = b = c = 1
Hence a + b + c = 1+1+1 = 3
Alternate Method:
Given, a = b = c = 1
log a + log b + log c = 0
As we know log 1 = 0, so each one of them can be zero if a = b = c = 1
log 1 + log 1 + log 1 = 0
By putting a =b= 1 equation satisfies
a + b + c = 1+1+1 = 3

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 3

A three-member committee has to be formed from a group of 9 people. How many such distinct committees can be formed?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 3

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 4

“Although it does contain some pioneering ideas, one would hardly characterize the work as ____________.” The word that best fills the blank in the above sentence is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 4

Innovative is similar to pioneer.

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 5

“His face _________ with joy when the solution of the puzzle was ________ to him.” The words that best fill the blanks in the above sentence are

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 5

Shone – It is past – participle and past form of shine.
Shown – To show means to reveal and point out something.

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 6

A faulty wall clock is known to gain 15 minutes every 24 hours. It is synchronized to the correct time at 9 AM on 11th July. What will be the correct time to the nearest minute when the clock show 2 PM on 15th July of the same year?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 6

9 AM of 11 July of 2 PM on 15th July = 101 hours
 hours of incorrect clock = 24 hours of correct clock
 hours of IC = 24 hours of correct clock
1 hour of IC = 96/97 hours of correct clock
101 hour of IC  hours of correct clock
= 99.958 hours of correct clock
= 99 hours + 0.95876 * 60 minutes of correct clock
= 99 hours + 57.525 minutes
= 99 hours and approx. 58 minutes
So, correct time will be
2 PM, 11th July + (99 hours and 58 minutes) = 12 : 58 PM on 15th July

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 7

Given that   10 for x ≠ y ≠ z, what is the value of the product PQR ?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 7


Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 8

In manufacturing industries, loss is usually taken to be proportional to the square of the deviation from a target. If the loss is Rs. 4900 for a deviation of 7 units, what would be the loss in Rupees for a deviation of 4 units from the target?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 8

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 9

The annual average rainfall in a tropical city is 1000 mm. On a particular rainy day (24 -hour period), the cumulative rainfall experienced by the city is shown in the graph. Over the 24-hour period, 50% of the rainfall falling on a rooftop, which had an obstruction-free area of 50 m2, was harvested into a tank. What is the total volume of water collected in the tank in liters?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 9

Cumulative rainfall = 300 mm
50% of rainfall
Area = 50 m2
⇒ Volume stored in tank = 150 * 10-3 * 50 m3
or = 7500 L

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 10

Each of the letters in the figure below represents a unique integer from 1 to 9. The letters are positioned in the figure such that each of ( A + B + C) , (C + D + E) , (E + F+ G) and (G + H+ K ) is equal to 13. Which integer does E represent?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 10

A + B + C = C + D + E + E + F + G
= G + H + K = 13
If we add all, we will get = 4 * 13 = 52
But sum of all natural number 1 to 9
A + B + C + C + D + E + E + F + G + G + H + K = 50
A  + B + C + D + E + F + G + H + K = 45
Substraction eq. (ii) from (i)
Hence, C + E + G = 7
Also, C + D + E = 13
Substraction eq. (iii) from (iv)
D - G = 6
E = 4
Alternative Method
By checking other equations

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 11

The clay mineral, whose structural units are held together by potassium bond is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 11

Kaolinite → Hydrogen bond
Illite → lonic Bond/Potassium Bond
Montmorillonite → Water Bond

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 12

A structural member subjected to compression, has both translation and rotation restrained at one end, while only translation is restrained at the other end. As per IS 456 : 2000, the effective length factor recommended for design is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 12


One end is fixed
Other end is pin jointed
Effective length of column (as per IS : 456-2000)
= 0.80 L

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 13

For a given discharge in an open channel, there are two depths which have the same specific energy. These two depths are known as

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 13

Depth with same specific energy are called Alternate depths of flow. It represents a subcritical
depth of flow (Y2) and a supercritical depth of flow (Y1 ).

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 14

Dupuit’s assumptions are valid for

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 14

unconfined aquifer

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 15

A vertical load of 10 kN acts on a hinge located at a distance of L /4 from the roller support Q of a beam of length L (see figure).

The vertical reaction at support Q is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 15


Bending moment about hinge point A = 0 (Consider the right hand side of A)

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 16

Peak Hour Factor (PHF) is used to represent the proportion of peak sub-hourly traffic flow within the peak hour. If 15-minute sub-hours are considered, the theoretically possible range of PHF will be

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 16

0.25 ≤ PHF15 ≤1

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 17

A fillet weld is simultaneously subjected to factored normal and shear stresses of 120 MPa and 50 MPa, respectively. As per IS 800 : 2007, the equivalent stress (in MPa, up to two decimal places) is ___________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 17

Factored normal stress, fa = 120 MPa
Factored shear stress, q = 50 MPa
According to IS-800 : 2007, clause 10.5.10.1.1
The equivalent stress,

Note : The above check for combination of stresses need not be done for fillet welds where the sum of normal and shear stresses does not exceed  [clause 10.5.10.1.2(b)] Hence, sum of normal
and shear stresses = 120 + 50 = 170 MPa ≥ fwd ( = 184.75 MPa)
So, the above check need not be done.
So, weld is designed for a resultant shear stress of (fr )

So, the design stress is  however equivalent stress 147.99 MPa.

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 18

As per IS 456 : 2000, the minimum percentage of tension reinforcement (up to two decimal places) required in reinforced-concrete beams of rectangular cross-section (considering effective depth in the calculation of area) using Fe500 grade steel is __________________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 18

Minimum percentage of steel (for Fe500)

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 19

A reinforced-concrete slab with effective depth of 80 mm is simply supported at two opposite ends on 230 mm thick masonry walls. The centre-to-centre distance between the walls is 3.3 m. As per IS 456 : 2000, the effective span of the slab (in m, up to two decimal places) is _________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 19

Effective depth
d = 80 mm
Width of support = 230 mm
c/c distance between walls = 3.30 m
Clear span of slab = 3.30− 0.23= 3.07 m
Effective span

So,
Leff = 3.15 m

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 20

Probability (up to one decimal place) of consecutively picking 3 red balls without replacement from a box containing 5 red balls and 1 white ball is _________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 20

Probability,

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 21

The contact pressure and settlement distribution for a footing are shown in the figure.

Q. The figure corresponds to a

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 21

Rigid footing on granular soil.

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 22

A culvert is designed for a flood frequency of 100 years and a useful life of 20 years. The risk involved in the design of the culvert (in percentage, up to two decimal places) is ___________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 22

Risk = The probability of a flood to occur at least once in n-successive years.

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 23

Which one of the following statements is NOT correct?

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 23

Boussinesq’s assumed soil as isotropic hence not applicable for stratified soil.

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 24

The initial concavity in the load-penetration curve of a CBR test is NOT due to

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 24

Initial concavity in CBR test due to :
• Improper compaction
• Soft top layer
• Inclined plunger

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 25

As per IS 10500:2012, for drinking water in the absence of alternate source of water, the permissible limits for chloride and sulphate, in mg/L, respectively are

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 25

As per IS-1500: 2012
Permissible limit in absence of alternate source.



*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 26

The quadratic equation 2x2 − 3x + 3 = 0 is to be solved numerically starting with an initial guess x0= 2.The new estimate of x after the first iteration using Newton-Raphson method is _____


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 26

Given

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 27

The setting time of cement is determined using

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 27

Vicat apparatus is used to determine the normal consistency, IST, FST of cement.

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 28

A flownet below a dam consists of 24 equipotential drops and 7 flow channels. The difference between the upstream and downstream water levels is 6 m. The length of the flow line adjacent to the toe of the dam at exit is 1 m. The specific gravity and void ratio of the soil below the dam are 2.70 and 0.70, respectively. The factor of safety against piping is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 28

Nf = 7 Nd = 24 H = 6 m
Critical Hydraulic Gradient

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 29

The solution of the equation  passing through the point (1,1) is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 29


When

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 30

The graph of a function f (x ) is shown in the figure.

For f (x ) to be a valid probability density function, the value of h is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 30

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 31

A probability distribution with right skew is shown in the figure.

The correct statement for the probability distribution is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 31


TL <tmean= Curve is skew to right.
mode < mean
i.e., mean > median and mode

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 32

As per IRC:37-2012, in order to control subgrade rutting in flexible pavements, the parameter to be considered is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 32

As per IRC : 37-2012


Where
N = Number of cumulative standard axle
vVertical strain in the subgrade

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 33

All the members of the planar truss (see figure), have the same properties in terms of area of cross-section ( A) and modulus of clasticity ( E ) .

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 33


Since member BD neither elongate nor contract.
Hence,
FBD = 0
So there are 2 tension members (AB and DC) and 3 zero force members

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 34

The intensity of irrigation for the Kharif season is 50% for an irrigation project with culturable command area of 50,000 hectares. The duty for the Kharif season is 1000 hectare/cumec. Assuming transmission loss of 10%, the required discharge (in cumec, up to two decimal places) at the head of the canal is _______


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 34

Culturable command area = 50000 ha
Intensity of irrigation for kharif season = 50%
∴ Area under kharif = 25000 ha
Duty for kharif season = 1000 ha/cumec

∴ Discharge at the head of field

Transmission/conveyance loss = 10%

Discharge at the head of canal

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 35

In the figures, Group I represents the atmospheric temperature profiles (P, Q, R and S) and Group II represents dispersion of pollutants from a smoke stack (1, 2, 3 and 4). In the figures of Group I, the dashed line represents the dry adiabatic lapse rate, whereas the horizontal axis represents temperature and the vertical axis represents the altitude.

Q. The correct match is

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 36

An 8 m long simply supported elastic beam of rectangular cross-section (100 mm x 200 mm) is subjected to a uniformly distributed load of 10 kN/m over its entire span. The maximum principal stress (in MPa, up to two decimal places) at a point located at the extreme compression of a crosssection and at 2 m from the support is ____________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 36




So principal stress = 90 N/mm2= 90 MPa

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 37

A level instrument at a height of 1.320 m has been placed at a station having a Reduced Level (RL) of 112.565 m. The instrument reads – 2.835 m on a levelling staff held at the bottom of a bridge deck. The RL (in m) of the bottom of the bridge deck is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 37


RL of bottom of bridge deck
= 112.565 + 1.320 + 2.835)
= 116.720 m

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 38

A cable PQ of length 25 m is supported at two ends at the same level as shown in the figure. The horizontal distance between the supports is 20 m. A point load of 150 kN is applied at point R which divides it into two equal parts

Neglecting the self-weight of the cable, the tension (in kN, in integer value) in the cable due to applied load will be ________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 38


12.52 = x2 + 10 ⇒ x = 7.5 m
Bending moment at S = 0 {Consider the left part}

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 39

A group of nine piles in a 3 x 3 square pattern is embedded in a soil strata comprising dense sand underlying recently filled clay layer, as shown in the figure. The perimeter of an individual pile is 126 cm. The size of pile group is 240 cm ´ 240 cm. The recently filled clay has undrained shear strength of 15 kPa and unit weight of 16 kN/m3.


The negative frictional load (in kN, up to two decimal places) acting on the pile group is _____________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 39

pile group
Negative skin friction for group.
weight of soil in negative zone.


= 472.3 kN/m2
Negative skin friction in individual action.


Negative skin friction is maximum of above (two)
Qnf = 472.32 kN/m2

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 40

A coal containing 2% sulfur is burned completely to ash in a brick kiln at a rate of 30 kg/min. The sulfur content in the ash was found to be 6% of the initial amount of sulfur present in the coal fed to the brick kiln. The molecular weights of S, H and O are 32, 1 and 16 g/mole, respectively. The annual rate of sulfur dioxide (SO2) emission from the kiln (in tonnes/year, up to two decimal places) is __________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 40

Coal burned in one year = 30 × 24 × 60 × 365
= 1.5768 × 107 kg
Sulfur content 315.36 tonnes/year
Sulfur content in ash = 315.36 tonnes/year
Sulfur converted to SO2 = 315.36 – 18.92 = 296.44 tonnes/year

1 mole of S is present in 1 mole of SO2
32 gm of S is present in 64 gm of SO2
∴ Rate of SO2 emission  = 592.88 tonnes

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 41

A 3 m high vertical earth retaining wall retains a dry granular backfill with angle of internal friction of 30o and unit weight of 20 kN/m3. If the wall is prevented from yielding (no movement), the total horizontal thrust (in kN per unit length) on the wall is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 41


Soil is dry sand
K0 = 1 − sinØ = 1 - sin 30° = 0.5
Total horizontal thrust

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 42

A singly-reinforced rectangular concrete beam of width 300 mm and effective depth 400 mm is to be designed using M25 grade concrete and Fe500 grade reinforcing steel. For the beam to be under-reinforced, the maximum number of 16 mm diameter reinforcing bars that can be provided is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 42

B = 300 mm
d = 400 mm (effective depth)
M25 and Fe500


= 1142.64 mm2

Number of 16 mm
For  maximum number of bars to be provided is 5.

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 43

A car follows a slow moving truck (travelling at a speed of 10 m/s) on a two-lane two-way highway. The car reduces its speed to 10 m/s and follows the truck maintaining a distance of 16 m from the truck. On finding a clear gap in the opposing traffic stream, the car accelerates at an average rate of 4 m/s2, overtakes the truck and returns to its original lane. When it returns to its original lane, the distance between the car and the truck is 16 m. The total distance covered by the car during this period (from the time it leaves its lane and subsequently returns to its lane after overtaking) is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 43

Overtaking time,
S = Space heady way = 16 m
a = Acceleration = 4 m/s2
Distance travelled by vehicle = S2

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 44

Three soil specimens (Soil 1, Soil 2 and Soil 3), each 150 mm long and 100 mm diameter, are placed in series in a constant head flow set-up as shown in the figure. Suitable screens are provided at the boundaries of the specimens to keep them intact. The values of coefficient of permeability of Soil 1, Soil 2 and Soil 3 are 0.01, 0.003 and 0.03 cm/s, respectively.​The value of h in the set-up is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 44

In normal to bedding plane flow (series arrangement), Discharge will be same and Head loss and Hydraulic gradient will be different.


Total head loss = HL = 560 mm


h = 40 mm

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 45

A prismatic propped cantilever beam of span L and plastic moment capacity MP is subjected to a concentrated load at its mid-span. If the collapse load of the beam is  the value of α is  __________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 45

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 46

A flocculation tank contains 1800 m3 of water, which is mixed using paddles at an average velocity gradient G of 100/s. The water temperature and the corresponding dynamic viscosity are 30oC and 0.798 × 10–3 Ns/m2, respectively. The theoretical power required to achieve the stated value of G (in kW, up to two decimal places) is ___________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 46

Power required

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 47

The value (up to two decimal places) of a line integral for  along C which is a straight line joining (0,0) to (1,1) is _____________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 47




*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 48

At a small water treatment plant which has 4 filters, the rates of filtration and backwashing are 200 m3 /d/m2 and 1000 m3 /d/mrespectively. Backwashing is done for 15 min per day. The maturation, which occurs initially as the filter is put back into service after cleaning, takes 30 min. It is proposed to recover the water being wasted during backwashing and maturation. The percentage increase in the filtered water produced (up to two decimal places) would be ________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 48

Let total area of filters be 1 m2

Water used for backwashing
Water used for maturation
Total water wasted for backwashing and maturation = 10.4166 + 4.166 = 14.58 m3
Water to be treated by filtered
% increase in filtered water produced
% increase in filtered water produced

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 49

A prismatic beam P-Q-R of flexural rigidity  is subjected to a moment of 180  kNm at Q as shown in the figure.

The rotation at Q (in rad, up to two decimal places) is _________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 49


KQ = KQP + KQR


Alternate solution

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 50

c is taken at a scale of 1:7500. The focal length of the camera is 15 cm. The altitude of the flight above mean sea level (in m, up to one decimal place) is ___________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 50

h = 1400 m
Scale 1 : 7500
f = 15 cm

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 51

A rough pipe of 0.5 m diameter, 300 m length and roughness height of 0.25 mm, carries water (kinematic viscosity = 0.9 x 10-6 m2s with velocity of 3 m/s. Friction factor ( f ) for laminar flow is given by f = 64 / Re, and for turbulent flow it is given by where, Re = Reynolds number, r = radius of pipe, k = roughness height and g = 9.81 m/s2 . The head loss (in m, up to three decimal places) in the pipe due to friction is ________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 51


Means turbulent flow.

So, = 4.594 m

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 52

The total horizontal and vertical stresses at a point X in a saturated  sandy medium are 170 kPa and 300 kPa, respectively. The static pore-water pressure is 30 kPa. At failure, the excess porewater pressure is measured to be 94.50 kPa, and the shear stresses on the vertical and horizontal planes passing through the point X are zero. Effective cohesion is 0 kPa and effective angle of internal friction is 36o. The shear strength (in kPa, up to two decimal places) at point X is __________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 52




Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 53

The matrix  has

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 53






(complex eigen values)


∴ Complex Eigen values and complex Eigen vectors.

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 54

A 7.5 m wide two-lane road on a plain terrain is to be laid along a horizontal curve of radius 510 m. For a design speed of 100 kmph, super-elevation is provided as per IRC : 73-1980. Consider acceleration due to gravity as 9.81 m/s2. The level difference between the inner and outer edges of the road (in m, up to three decimal places) is __________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 54


*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 55

The compression curve (void ratio, e vs. effective stress,  for a certain clayey soil is a  straight line in a semi-logarithmic plot and it passes through the points  and  The compression index (up to two decimal places) of the soil is ___________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 55


Compression Index

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 56

A three-fluid system (immiscible) is connected to a vacuum pump. The specific gravity values  of the fluids (S1,S2 ) are given in the figure.

The gauge pressure value (in kN/m2, up to two decimal places) of p1 is _________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 56

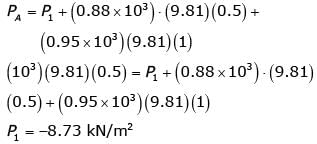

Taking P1 is in gauge pressure.

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 57

The total rainfall in a catchment of area 1000 km2 , during a 6 h storm, is 19 cm. The surface runoff due to this storm computed from triangular direct runoff hydrograph is 1 x 108 m3. The  or  this storm (in cm/h, up to one decimal place) is ________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 57

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 58

A schematic flow diagram of a completely mixed biological reactor with provision for recycling of solids is shown in the figure.

S0,S = readily biodegradable soluble BOD, mg/L
Qr, Qr, Qw = flow rates,
X0 , Xr, Xe, Xu = microorganism concentrations (mixed-liquor volatile suspended solids or MLVSS), mg/L
The mean cell residence time (in days, up to one decimal place) is ___________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 58

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 59

A 6 m long simply supported beam is prestressed as shown in the figure.

The beam carries a uniformly distributed load 6 kN/m over its entire span. If the effective flexural rigididty EI = 2´ 104 kNm2 and the effective prestressing force is 200 kN, the net increase in length of the prestressing cable (in mm, up to two decimal places) is ___________


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 59

Span of PSC beam = 6 m


(a) Slope of beam due to P-force


(b) Slope of beam due to UDL


(c) Net slope of beam

(d) Total net increase in length

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 60

Two rigid bodies of mass 5 kg and 4 kg are at rest on a frictionless surface until acted upon by a force of 36 N as shown in the figure. The contact force generated between the two bodies is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 60


As after action of 36 N, both blocks will move with same acceleration so considering 5 kg and 4 kg together in a system and applying Newton’s 2nd law.



N = ma {Newton's 2nd law}
N = 4 x 4 = 16 N

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 61

The rank of the following matrix is​

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 61


No. of non zero rows = 2
rank of A = 2

Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 62

The Laplace transform F (s ) of the exponential function, f (t ) = eat when  where a is a constant and ( s −a)> 0, is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 62


Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 63

Four bolts P, Q, R and S of equal diameter are used for a bracket subjected to a load of 130 kN as shown in the figure.
​The force in bolt P is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 63



Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 64

In a 5 m wide rectangular channel, the velocity μ distribution in the vertical direction y is given by u  The distance y is measured from the channel bed. If the flow depth is 2 m, the discharge per unit width of the channel is

Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 64


Consider an element dy at distance y from channel bed.

*Answer can only contain numeric values
Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 65

The space mean speed (kmph) and density (vehicles/km) of a traffic stream are linearly related. The free flow speed and jam density are 80 kmph and 100 vehicles/km respectively. The traffic flow (in vehicles/h, up to one decimal place) corresponding to a speed of 40 kmph is _____________.


Detailed Solution for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) - Question 65

Vf = Free mean speed = 50 kmph
kj = Jam density = 100 veh/km
As per linear model (green-shield)

⇒ Density @ speed = 40 kmph

Traffic flow @ density 50 veh/km @ speed 40 kmph
q = Vk

= 2000 veh/km

27 docs|296 tests
Information about Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) Page
In this test you can find the Exam questions for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II) solved & explained in the simplest way possible. Besides giving Questions and answers for Practice Test: Gate Civil Engineering(CE) 2018 Paper: (Session II), EduRev gives you an ample number of Online tests for practice
Download as PDF
Download free EduRev App
Track your progress, build streaks, highlight & save important lessons and more!
(Scan QR code)
