Electronics And Communication - ECE 2016 GATE Paper (Practice Test)


Test Description

65 Questions MCQ Test GATE Past Year Papers for Practice (All Branches) | Electronics And Communication - ECE 2016 GATE Paper (Practice Test)

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) for Electronics and Communication Engineering (ECE) 2023 is part of GATE Past Year Papers for Practice (All Branches) preparation. The Electronics And Communication - ECE 2016 GATE Paper (Practice Test) questions and answers have been prepared according to the Electronics and Communication Engineering (ECE) exam syllabus.The Electronics And Communication - ECE 2016 GATE Paper (Practice Test) MCQs are made for Electronics and Communication Engineering (ECE) 2023 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) below.
Solutions of Electronics And Communication - ECE 2016 GATE Paper (Practice Test) questions in English are available as part of our GATE Past Year Papers for Practice (All Branches) for Electronics and Communication Engineering (ECE) & Electronics And Communication - ECE 2016 GATE Paper (Practice Test) solutions in Hindi for GATE Past Year Papers for Practice (All Branches) course. Download more important topics, notes, lectures and mock test series for Electronics and Communication Engineering (ECE) Exam by signing up for free. Attempt Electronics And Communication - ECE 2016 GATE Paper (Practice Test) | 65 questions in 180 minutes | Mock test for Electronics and Communication Engineering (ECE) preparation | Free important questions MCQ to study GATE Past Year Papers for Practice (All Branches) for Electronics and Communication Engineering (ECE) Exam | Download free PDF with solutions
1 Crore+ students have signed up on EduRev. Have you? Download the App
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 1

Q.1 – Q.5 Carry One Mark Each

Which of the following is CORRECT with respect to grammar and usage?
Mount Everest is ______

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 1

Before superlative article ‘the’ has to be used. ‘one of ’ the expression should take plural noun and so option ‘C’ and ‘D’ can’t be the answer.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 2

The policeman asked the victim of a theft, “What did you ______?”

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 2

lose’ is verb.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 3

Despite the new medicine’s ___________ in treating diabetes, it is not ______ widely

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 3

‘effectiveness’ is noun and ‘prescribed’ is verb. These words are apt and befitting with the word ‘medicine.’

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 4

In a huge pile of apples and oranges, both ripe and unripe mixed together, 15% are unripe fruits,
Of the unripe fruits, 45% are apples, Of the ripe ones, 66% are oranges. If the pile contains a total
of 5692000 fruits, how many of them are apples?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 4

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 5

Michael lives 10 km way from where I live. Ahmed lives 5km away and Susan lives 7 km away from where I live. Arun is farther away than Ahmed but closer than Susan from where I live. From the information provided here, what is one possible distance (in km) at which I live from Arun’s place?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 5

From given data, the following diagram is possible

AH = Ahmed lives; M = Michael lives
S = Susan lives; A= Arun lives
→ Arun lives farthes away than Ahmed means more than 5 km but closer than Susan means less than 7 km, from given alternatives, option ‘C’ only possible.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 6

Q.6 – Q.10 Carry two marks each

Q.

A person moving through a tuberculosis prone zone has a 50% probability of becoming infected.
However, only 30% of infected people develop the disease. What percentage of people moving
through a tuberculosis prone zone remains infected but does not shows symptoms of disease?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 6

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 7

In a world filled with uncertainty, he was glad to have many good friends. He had always assisted
them in times of need and was confident that they would reciprocate. However, the events of the
last week proved him wrong.
Which of the following interference(s) is/are logically valid and can be inferred from the above
passage?
(i) His friends were always asking him to help them
(ii) He felt that when in need of help, his friends would let him down.
(iii) He was sure that his friends would help him when in need.
(iv) His friends did not help him last week.

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 7

The words ‘was confident that they would reciprocate’ and ‘last week proved him wrong’ lead to statements iii and iv as logically valid inferences.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 8

Leela is older than her cousin Pavithra, pavithra’s brother Shiva is older than Leela. When Pavithra
and shiva are visiting Leela, all three like to play chess. Pavithra wins more often than Leela does.
Which one of the following statements must be TRUE based on the above?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 8

From given data, the following arrangement is possible
Shiva
Leela
Pavithra
Among four alternatives, option D is TRUE.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 9

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 9

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 10

P,Q,R and S are working on a project. Q can finish the taks in 25 days, working alone for 12 hours a day. R can finish the task in 50 days, working alone for 12 hours per day. Q worked 12 hours a day but took sick leave in the beginning for two days. R worked 18 hours a day on all days. What is the ratio of work done by Q and R after 7 days from the start of the project?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 10

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 11

Q.11 – Q.35 Carry one mark each.

Q. Let M4 = I (where I denotes the identity matrix)and M ? I, M2 ? I and M3 ? I. Then, for any
natural number k, M–1 equals:

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 11

M4 = I
M8 = M4 = I M7 = M-1
M12 = M8 = I M11 = M-1
M16 = M12 = I M15 = M-1
…………………..
M-1 = M4K+ 3, K is a natural number

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 12

The second moment of a Poisson-distributed random variables is 2. The mean of the random variable is _____.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 12

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 13

Given the following statements about a function f: R→R, select the right option:
P : If f(x) is continuous at x = x0, then it is also differentiable at x = x0
Q : If f(x) is continuous at x = x0, then it may not be differentiable at x = x0
R : If f(x) is continuous at x = x0, then it is also different at x = x0

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 13

Since continuous function may not be differentiable. But differentiable function is always continuous.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 14

Which one of the following is a property of the solutions to the Laplace equation :

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 15

Consider the plot of f(x) versus x as shown below

Suppose which one of the following is a graph of F(x)?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 15

integration of ramp is parabolic, integration of step is ramp.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 16

Which one of the following is an eigen function of the class of all continuous-time, linear, timeinvariant
systems (u(t) denotes the unit-step function) ?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 16

If the input to a system is its eigen signal, the response has the same form as the eigen signal

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 17

A continuous –time function x(t) is periodic with period T. The function is sampled uniformly with
a sampling period Ts. In which one of the following cases is the sampled signal periodic ?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 17

A discrete time signal  is said to be periodic if  is a rational number

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 18

Consider the sequence x[n] = an u[n] +bn u[n], where u[n] denotes the until-step sequence and 0 <
|a| < |b| <1. The region of convergence (ROC) of the z-transform of x[n] is

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 18

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 19

Consider a two-port network with the transmission matrix :   If the network is
reciprocal, then

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 19

A two port network is reciprocal in transmission parameters if AD – BC = 1
i.e Determinant(T) = 1

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 20

A continuous-time sinusoid of frequency 33 Hz is multiplie with a periodic Dirac impulse train of
frequency 46 Hz. The resulting signal is passed through an ideal analog low-pass filter with a
cutoff frequency of 23Hz. The functional frequency (in Hz) of the output is _____.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 20

fm = 33Hz, fs = 46Hz
The frequency in sampled signal are = 33, 13, 79, 59, 125 …… The above frequencies are passed
to a LPF of cutoff frequency 23Hz. The output frequency are = 13Hz.



Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 21

A small percentage of impurity is added to intrinsic semiconductor at 300 K. Which one of the
following statements is true for the energy band diagram shown in the following figure?



Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 21

Donor energy level close to conduction band.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 22

Consider the following statements for a metal oxide semiconductor field after effect transistor
(MOSFET):
P : As channel length reduces, OFF-state current increases
Q : As channel length reduces, output resistance increases
R : As channel length reduces, threshold voltage remains constant
S: As channel reduces, ON current increases.
Which of the above statements are INCORRECT?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 22

P: TRUE
Q: FALSE, As channel length reduces, output resistance reduces
R: FALSE: As channel length reduces, threshold voltage reduces
S: TRUE

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 23

Consider the constant current source shown in the figure below. Let ? represent the current gain of
the transistor

The load current I0 through RL is

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 23

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 24

The following signal Vi of peak voltage 8V is applied to the non-inverting terminal of an ideal
Opamp. The transistor has VBE = 0.7 V, β = 100; VLED = 1.5V, VCC = 10V and –VCC = – 10V.



The number of times the LED glows is –––––




Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 24

Vcrosses 2V, 3times
Therefore the LED glows 3 times

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 25

Consider the oscillator circuit shown in the figure. The function of the network (shown in dotted
lines) consisting of the 100 k? resistor in series with the two diodes connected back-to-back is to:





Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 25

The circuit shown is a wein bridge oscillator. The amplitude of oscillations can be determined and stabilized by using a nonlinear control network. As the oscillations grow, the diodes start to conduct causing the effective resistance in the feedback to decrease. Equilibrium will be reached at the output amplitude that causes the loop gain to be exactly unity.

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 26

The block diagram of a frequency synthesizer consisting of Phase Locked Loop (PLL) and a
divide-by-N counter (comprising /2, /4, /8, /16 outputs) is sketched below. The synthesizer is
excited with a 5 kHz signal (Input 1). The free-running frequency of the PLL is set to 20kHz.
Assume that the commutator switch makes contacts repeatedly in the order 1-2-3-4.

The corresponding frequencies synthesized are:

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 26

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 27

The output of the combinational circuit given below is

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 27

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 28

What is the voltage Vout in the following circuit?

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 29

Match the inferences X, Y, and Z, about a system, to the corresponding properties of the elements
of first column in Routh’s Table of the system characteristic equation.
X: The system is stable …..                   P: … When all elements are positive
Y: The system is unstable …                Q: … When any on element is zero
Z: The test breaks down ….                  R: … When there is a change in sign of coefficients

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 29

X - P, Y - R, Z -Q

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 30

A closed-loop control system is stable if the Nyquist plot of the corresponding open-loop transfer
function

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 30

For closed loop stability Z = 0, N = P
(-1, j0) should be encircled in Counter clock wise direction equaling P poles in RHP.

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 31

Consider binary data transmission at a rate of 56 kbps using baseband binary pulse amplitude
modulation (PAM) that is designed to have a raised-cosine spectrum. The transmission bandwidth
(in kHz) required for a roll-off factor of 0.25 is –––––.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 31

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 32

A superheterodyne receiver operates in the frequency range of 58 MHz-68MHz. The intermediate frequency f1F and local oscillator frequency fLO are chosen such that f1F fLO. It is required that the image frequencies fall outside the 59 MHz – 68 MHz band. The minimum required f1F (in MHz) is


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 32

fs = 58 MHz– 68 MHz
When fs = 58 MHz
fsi = fs + 21F > 68 MHz
21F > 10 MHz
1F ? 5 MHz

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 33

The amplitude of a sinusoidal carrier is modulated by a single sinusoid to obtain the amplitude
modulated signal s(t) = 5 cos 1600?t + 20 cos 1800 ?t + 5 cos 2000?t. The value of the modulation
index is –––––––.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 33

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 34

Concentric spherical shells of radii 2m, 4m, and 8m carry uniform surface charge densities of 20
nC/m2, –4 nC/m2 and ρs, respectively. The value of ρs (nC/m2) required to ensure that the electric
flux density D = 0 at radius 10 m is –––––.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 34

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 35

The propagation constant of a lossy transmission line is (2 +j5) m-1 and its characteristic
impedance is (50 + j0) ? at ω = 106 rad S-1. The values of the line constants L,C,R,G are,
respectively,

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 35



Therefore line constants L, C, R & G are respectively L = 250  μH/m, C = 0.1 μF/m, R = 100 ?/m, G = 0.04 s/m

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 36

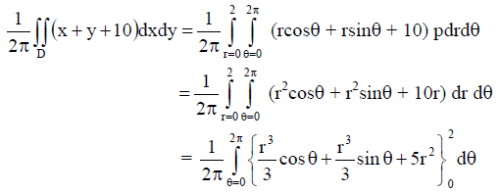

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 36

Converting to polar coordinates, we get

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 37

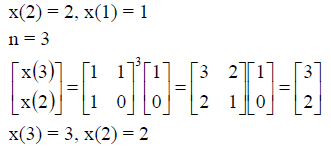

A sequence x[n] is specified as

The initial conditions are x[0] = 1, x[1] = 1 and x[n] = 0 for n < 0. The value of x[12] is ––––


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 37

From the above values we can write the recursive relation as

x(n) = x(n–1) + x(n –2)
x(2) = x(1) + x(0) = 1 +1 = 2
x(3) = x(2) + x(1) = 2 +1 = 3
x(4) = x(3) + x(2) = 3 + 2 = 5
x(5) = x(4) + x(3) = 5 + 3 = 8
x(6) = x(5) + x(4) = 8 + 5 = 13
x(7) = x(6) + x(5) = 13+ 8 = 21
x(8) = x(7) + x(6) = 21 + 13 = 34
x(9) = x(8) + x(7) = 34 + 21 = 55
x(10) = x(9) + x(8) = 55 + 34 = 89
x(11) = 89 + 55 = 144
x(12) = 144 + 89 = 233

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 38

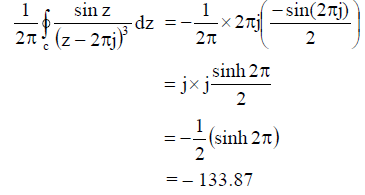

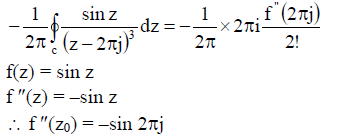

In the following integral, the contour C encloses the points 2πj and –2πj . The value of the integral


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 38

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 39

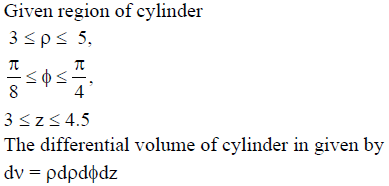

The region specified by  in cylindrical coordinates has volume of –––––.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 39

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 40

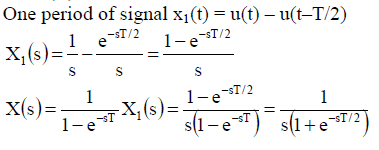

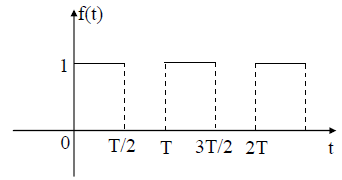

The Laplace transform of the causal periodic square wave of period T shown in the figure below
is

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 40

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 41

A network consisting of a finite number of linear resistor (R), inductor (L), and capacitor (C)
elements, connected all in series or all in parallel, is excited with a source of the form

The source has nonzero impedance. Which one of the
following is a possible form of the output measured across a resistor in the network?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 41

Consider a series RLC-Circuit with voltage source
Here

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 42

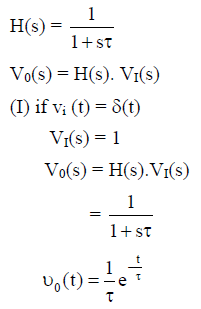

A first-order low-pass filter of time constant T is excited with different input signals (with zero
initial conditions up to t = 0 ). Match the excitation signals X,Y, Z with the corresponding time
responses for t 0:

X: Impulse                                   P: 1 – e-t/T
Y: Unit step                                  Q: t – T(1 – e-t/T)
Z: Ramp                                       R: e-t/T

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 42

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 43

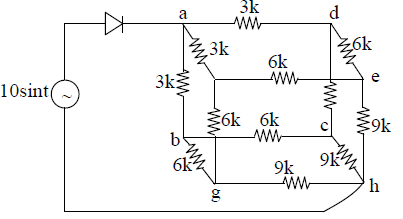

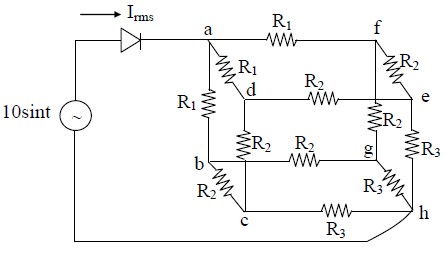

An AC voltage source V = 10 sin (t) volts is applied to the following network. Assume that
R1 = 3 k?, R2 = 6k? and R3 = 9k?, and that the diode is ideal.

Rms current Irms (in mA) through the diode is _____


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 43

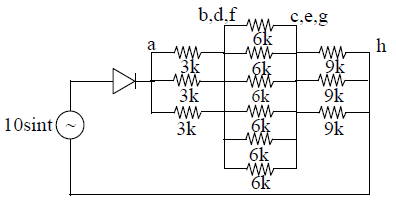

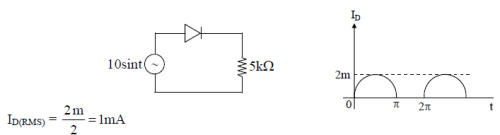

We can join nodes that are at same  Potential so network becomes

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 44

In the circuit shown in the figure, the maximum power (in watt) delivered to the resistor R is ––––.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 44

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 45

Consider the signal x[n] =6δ[n +2] +3δ[n +1]+8δ[n]+7δ[n – 1] +4δ[n – 2].
If X(e) is the discrete-time Fourier transform of x[n], then


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 45

Plancheral’s relation is

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 46

Consider a silicon p-n junction with a uniform acceptor doping concentration of 1017 cm-3 on the pside
and a uniform donor doping concentration of 1016 cm-3 on the n-side. No external voltage is
applied to the diode. Given:

and q= 1.6 x 10-19c
The charge per unit junction area (nC cm-2) in the depletion region on the p-side is –––––.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 46



*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 47

Consider an n-channel metal oxide semiconductor field effect transistor (MOSFET) with a gate-tosource
voltage of 1.8V. Assume that W /L =4,  μNCox = 70 X10-6AV-2, the threshold voltage is 0.3V,
and the channel length modulation parameter is 0.09 V-1, In the saturation region, the drain
conductance (in micro siemens)is –––––.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 47

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 48

The figure below shows the doping distribution in a P-type semiconductor in log scale.

The magnitude of the electric field (in kV/cm) in the semiconductor due to non uniform doping is


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 48

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 49

Consider a silicon sample at T = 300 K, with a uniform donor density Nd = 5x1016 cm-3
illuminated uniformly such that the optical generation rate is Gopt = 1.5 x1020 cm-3s-1 through out
the sample. The incident radiation is turned off at t = 0. Assume low-level injection to be valid and
ignore surface effects. The carrier lifetimes are po = 0.1 and no = 0.5 ?s.

The hole concentration at t = 0 and the hole concentration at t = 0.3 μs, respectively, are

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 49



*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 50

An ideal opamp has voltage source V1, V2, V3, V5, …. , VN–1 connected to the non-inverting input
and V2, V4, V6 ….VN connected to the inverting input as shown in the figure below (+VCC = 15
volt, –VCC = –15 volt). The voltage V1, V2, V3, V5, V6 …. are 1, –1/2, 1/3,–1/4, 1/5, –1/6, …..
volt, respectively. As N approaches infinity, the output voltage (in volt) is ________


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 50



*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 51

A p-i-n photo diode of responsivity 0.8A/W is connected to the inverting input of an ideal opamp
as shown in the figure, +Vcc = 15V, –Vcc = –15V,Load resistor RL = 10 k?. If 10μW
of power is incident on the photodiode, then the value of the photocurrent (in μA) through the
load is _____.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 51

The photo diode with Responsivity 0.8A/W
Diode current = 0.8A/W[10μW]
= 8 x 10-6A
V0 = –8μ (1M) = –8V

Therefore the value of photo current throughput the load is –800 μA

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 52

Identify the circuit below.

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 52

(No Answer) if considering OP6 → IP5, OP7 →IP4

Thus it is a Binary to Gray code converter

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 53

The functionally implemented by the circuit below is

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 53

Hence it is a “4 to 1 multiplexer”

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 54

In a 8085 system, a PUSH operation requires more clock cycles than a POP operation, which one
of the following options is the correct reason for this?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 54

Push takes 12T states due to pre decrement and pop takes 10T states.

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 55

The open-loop transfer function of a unity-feedback control system is

The value of K at the breakaway point of the feedback control system’s root-locus plot is ____


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 55

Break away point  dk/ds=0

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 56

The open-loop transfer function of a unity-feedback control system is given by

For the peak overshoot of the closed-loop system to a until step input to be 10% , the value of K is


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 56

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 57

The transfer function of a linear time invariant systems is given by H(s) = 2s4–5s3+5s–2
The number of zeros in the right half of the s-plane is _____.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 57

TF H(s) 2s4 – 5s3+5s–2
RH – Criteria

3 Sign Changes
3 Roots (Zeros) in the RH -S-Plane.

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 58

Consider a discreet memoryless source with alphabet S = {s0, s1, s2, s3, s4 …..} and respective
probabilities of occurrence

The entropy of the source (in bits ) is _____.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 58

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 59

A digital communication system uses a repetition code for channel encoding/decoding. During
transmission, each bit is repeated three times (0 is transmitted as 000, and 1 is transmitted as 111).
It is assumed that the source puts out symbols independently and with equal probability . The
decoder operates as follows: In a block of three received bits, if the number of zeros exceeds the
number of ones, the decoder decides in favor of a 0, and if the number of ones exceeds the number
of zeros, the decoder decides in favor of a 1,Assuming a binary symmetric channel with crossover
probability p = 0.1, the average probability of error is ________.


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 59

Pe = P3 + 3P2 (1 –P)
P = 0.1
Pe = (0.1)3 + 3 x (0.1)2 (1–0.1) = 0.001 + 3 x 0.01 x 0.9 = 0.001 + 0.027 = 0.028

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 60

An analog pulse s(t) is transmitted over an additive white Gaussian (AWGN) channel. The
received signal is r(t) = s(t) + n(t), where n(t) is additive white Gaussian noise with power spectral
density N0/2 . The received signal is passed through a filter with impulse response h(t). Let Es and
En denote the energies of the pulse s(t) and the filter h(t), respectively. When the signal-to-noise
ratio (SNR) is maximized at the output of the filter (SNRmax), which of the following holds?

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 60

The impulse response of the filter is same on the signal so Es = Eh

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 61

The current density in a medium is given by

The total current and the average current density flowing through the portion of a spherical
surface  are given, respectively, by

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 61

correct option is not given

current passing through the portion of sphere of radius r = 0.8 m is given by

The average current density through the given sphere surface is



Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 62

An antenna pointing in a certain direction has a noise temperature of 50K. The ambient
temperature is 290K. The antenna is connected to pre-amplifier that has a noise figure of 2dB and
an available gain of 40 dB over an effective bandwidth of 12 MHz. The effective input noise
temperature Te for the amplifier and the noise power Pao at the output of the preamplifier,
respectively, are

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 62

*Answer can only contain numeric values
Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 63

Two lossless X-band horn antennas are separated by a distance of 200?. The amplitude reflection
coefficients at the terminals of the transmitting and receiving antennas are 0.15 and 0.18,
respectively. The maximum directivities of the transmitting and receiving antennas (over the
isotropic antenna) are 18dB and 22dB, respectively. Assuming that the input power in the lossless
transmission line connected to the antenna is 2 W, and that the antennas are perfectly aligned and
polarization matched, the power (in mW) delivered to the load at the receiver is ____


Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 63

Given
Lossless horn antennas
ηT = ηR = 1

Power Gain = Directivity
Directivity of Txing antenna, DT = 18 dB
10 logDT = 18
GT (or) DT = 63.09
Directivity of Rxing antenna, DR = 22 dB
10logDR = 22
GR(or) DR = 158.48
input power Pin = 2 W
Spacing, r = 200 λ



= 3.1 x10–3

As there is a reflection at the terminals of Rxing antenna power delivered to the load in given by

Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 64

The electric filed of a uniform plane wave travelling along the negative z direction is given by the
following equation:

This wave is incident upon a receiving antenna placed at the origin and whose radiated electric
field towards the incident wave is given by the following equation:

The polarization of the incident wave, the polarization of the antenna and losses due to the
polarization mismatch are, respectively,

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 64

Given

As a tip of electric field intensity is tracing a circle when time varies, hence the wave is said to be circularly polarized in clockwise direction (or) RHCP. Polarizing vector of incident wave is given
by,

As both x & y components are in-phase, hence the wave is said to be linear polarized. Polarizing vector of radiated field is

polarizing mismatch; The polarizing mismatch is said to
have, if the polarization of receiving antenna is not same on the polarization of the incident wave.
The polarization loss factor (PLF) characterizes the loss of EM power due to polarization mismatch.



Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 65

The far-zone power density radiated by a helical antenna is approximated as:

The radiated power density is symmetrical with respect to ? and exists only in the upper
hemisphere: is a constant. The power radiated by the antenna (in watts)
and the maximum directivity of the antenna, respectively, are

Detailed Solution for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) - Question 65

Given

Power density radiated by the antenna

407 docs|127 tests
Information about Electronics And Communication - ECE 2016 GATE Paper (Practice Test) Page
In this test you can find the Exam questions for Electronics And Communication - ECE 2016 GATE Paper (Practice Test) solved & explained in the simplest way possible. Besides giving Questions and answers for Electronics And Communication - ECE 2016 GATE Paper (Practice Test), EduRev gives you an ample number of Online tests for practice
Download as PDF

Download free EduRev App

Track your progress, build streaks, highlight & save important lessons and more!
(Scan QR code)
