Test: Design of Traffic Intersections - Civil Engineering (CE) MCQ


Test Description

10 Questions MCQ Test Transportation Engineering - Test: Design of Traffic Intersections

Test: Design of Traffic Intersections for Civil Engineering (CE) 2024 is part of Transportation Engineering preparation. The Test: Design of Traffic Intersections questions and answers have been prepared according to the Civil Engineering (CE) exam syllabus.The Test: Design of Traffic Intersections MCQs are made for Civil Engineering (CE) 2024 Exam. Find important definitions, questions, notes, meanings, examples, exercises, MCQs and online tests for Test: Design of Traffic Intersections below.
Solutions of Test: Design of Traffic Intersections questions in English are available as part of our Transportation Engineering for Civil Engineering (CE) & Test: Design of Traffic Intersections solutions in Hindi for Transportation Engineering course. Download more important topics, notes, lectures and mock test series for Civil Engineering (CE) Exam by signing up for free. Attempt Test: Design of Traffic Intersections | 10 questions in 30 minutes | Mock test for Civil Engineering (CE) preparation | Free important questions MCQ to study Transportation Engineering for Civil Engineering (CE) Exam | Download free PDF with solutions
1 Crore+ students have signed up on EduRev. Have you? Download the App
Test: Design of Traffic Intersections - Question 1

Which of the following is not an intersection at grade?

Detailed Solution for Test: Design of Traffic Intersections - Question 1

The intersection at grade include un channelized, channelized and rotary intersections, the different level intersections are used for over pass and under pass.

Test: Design of Traffic Intersections - Question 2

A well-designated signalized intersection is one in which the

Detailed Solution for Test: Design of Traffic Intersections - Question 2

Intersection is an area shared by two or more roads. Its main function is to guide vehicles to their respective directions. The essence of the intersection control is to resolve crossing conflicts at the intersection for the safe and efficient movement of both vehicular traffic and pedestrians with an objective of minimum

  1. Time sharing: Time shared by each vehicle during crossing the intersection. It includes the stopping time, starting time and time required to cross the intersection. Here we have only control over the delay time as other aspects depend upon the vehicular characteristics and driver characteristics.
  2. Space sharing: It is the space occupied by the vehicle. Generally it relates with the density of vehicle.

So, in a well-designed signalized intersection total delay is minimized to avoid the conflicts with proper time sharing.

Test: Design of Traffic Intersections - Question 3

An intersection that is provided for different levels of road is called __________

Detailed Solution for Test: Design of Traffic Intersections - Question 3

An intersection that is provided for different levels of road is called grade separated intersection, thus eliminating the crossing manoeuvre.

Test: Design of Traffic Intersections - Question 4

A 3 phase traffic signal at a 4-legged intersection is designed for flow as show below

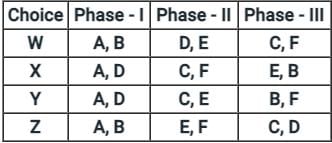

There are 6 groups of flows identified by the alphabets, A through F. among these A,C,D and F are through flows, and B and E are right turnings. Identify which phasing scheme is not recommended

Detailed Solution for Test: Design of Traffic Intersections - Question 4

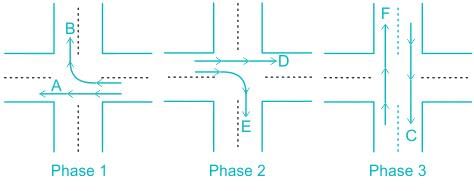

For Choice W:

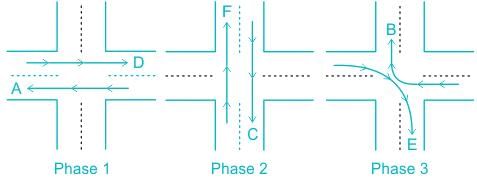

For Choice X:

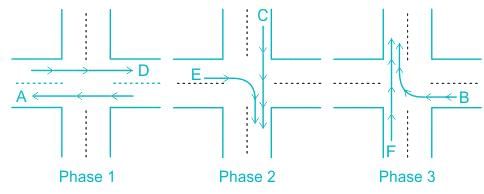

For Choice Y:

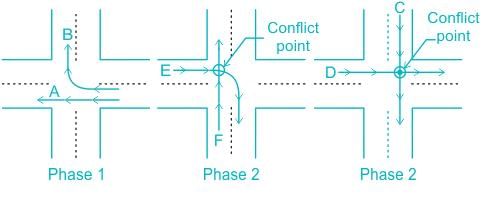

For Choice Z:

From the above diagram it is clear that Phase-2 and Phase- 3 of choice Z is not recommended as conflict point will form while traffic flows in these phases.

Test: Design of Traffic Intersections - Question 5

If the velocity of a vehicle is 60kmph and the other vehicle velocity is 20kmph, then the relative velocity is?

Detailed Solution for Test: Design of Traffic Intersections - Question 5

The relative velocity is the difference of the velocities moving in same direction and sum of the velocities of vehicle moving in opposite direction.

Test: Design of Traffic Intersections - Question 6

Which of the following is not a correct statement with respect to basic requirements of intersection at grade?

Detailed Solution for Test: Design of Traffic Intersections - Question 6

Intersection:
An intersection is an at-grade junction where two or more roads or streets meet or cross. Intersections may be classified by a number of road segments, traffic controls, or lane design. In general, there are two types of intersections including signalized and unsignaled intersections.
Basic requirements of the intersection at grade

  • Good lighting at night is desirable
  • A sudden change of path should be avoided
  • Geometric features should be adequately provided
  • Rotaries are self-governing and do not need practically any control by police or traffic signals.

Advantages

  • Traffic flow is regulated to only one direction of movement, thus eliminating severe conflicts between crossing movements.
  •  All the vehicles entering the rotary are gently forced to reduce the speed and continue to move at a slower speed. Thus, none of the vehicles need to be stopped, unlike in a signalized intersection.
  • Because of the lower speed of negotiation and elimination of severe conflicts, accidents, and their severity are much less in rotaries.
  • They are ideally suited for moderate traffic, especially with irregular geometry, or intersections with more than three or four approaches.

Disadvantages

  • All the vehicles are forced to slow down and negotiate the intersection. Therefore, the cumulative delay will be much higher than a channelized intersection.
  • Even when there is a relatively low traffic, the vehicles are forced to reduce their speed.
  • Rotaries require a large area of relatively flat land making them costly in urban areas.
  • The vehicles do not usually stop at a rotary. They accelerate and exit the rotary at relatively high speed. Therefore, they are not suitable when there are high pedestrian movements
Test: Design of Traffic Intersections - Question 7

If the angle of merging is low, then the relative speed will be __________

Detailed Solution for Test: Design of Traffic Intersections - Question 7

If the angle of merging is small, then the relative velocity will be low and impact will be low.

Test: Design of Traffic Intersections - Question 8

The basic traffic manoeuvres in a traffic stream may be represented by ______.

Test: Design of Traffic Intersections - Question 9

If an additional pavement is provided for lane change, then that intersection is called __________

Detailed Solution for Test: Design of Traffic Intersections - Question 9

If an additional pavement is provided for lane change, then that intersection is called as flared intersection, it is provided in very crowded areas.

Test: Design of Traffic Intersections - Question 10

The number of "right turn-through" traffic conflict points in a 2-lane-2-way uncontrolled intersection are ____.
