What does Gauss's Law for Electricity state about electric flux and charge?

Gauss's Law for Electricity states that the electric flux through a closed surface is proportional to the charge enclosed within that surface.

Fill in the blank: Gauss's Law for Magnetism indicates that magnetic monopoles ___ exist.

Do not

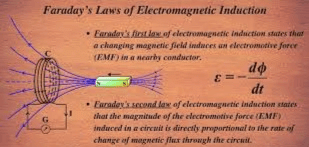

True or False: Faraday's Law of Electromagnetic Induction states that a constant magnetic field creates an electric field.

False. Faraday's Law states that a changing magnetic field creates an electric field.

List the four Maxwell's equations.

1. Gauss's Law for Electricity, 2. Gauss's Law for Magnetism, 3. Faraday's Law of Electromagnetic Induction, 4. Ampere-Maxwell Law.

In the equation for Gauss's Law for Electricity, what does the symbol ρ represent?

The symbol ρ represents the charge density.

Ampère's Law with Maxwell's Addition accounts for ___ in the context of changing electric fields.

Displacement current

How does Maxwell's modification of Ampère's Law ensure consistency with the continuity equation?

By adding a term for the displacement current, which accounts for changing electric fields, thus linking the changing electric field to the current through the loop.

The equation for displacement current density (J_D) is given by J_D = S(∂D/∂t). What do the symbols represent?

J_D is the displacement current density, S is the area of the capacitor plate, and ∂D/∂t is the rate of change of electric displacement.

True or False: Displacement current involves the movement of charge carriers between capacitor plates.

False; displacement current does not involve the movement of charge carriers but represents a changing electric field.

What is the significance of displacement current in the context of capacitors?

Displacement current explains the changing electric field in a capacitor when it is charging or discharging, even in the absence of actual charge flow between the plates.

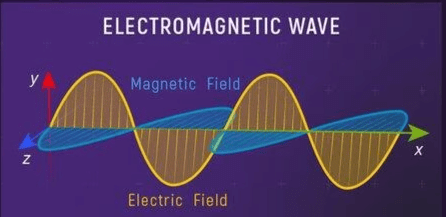

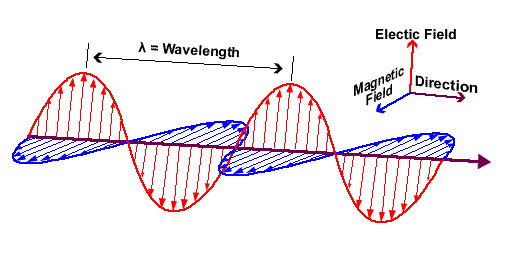

Electromagnetic waves consist of electric and magnetic fields that change ___ and are ___ to each other.

Sinusoidally; perpendicular

True or False: Electromagnetic waves can be produced by stationary charged particles.

False; Electromagnetic waves are produced by accelerated charged particles.

The equations for a plane progressive electromagnetic wave are E = E₀ sin(Ω(t - x/c)) and B = B₀ sin(Ω(t - x/c)). What is Ω?

Ω = 2πv, where v is the frequency of the wave.

What is the speed of electromagnetic waves in a vacuum?

The speed of electromagnetic waves in a vacuum is 3 x 10^8 m/s.

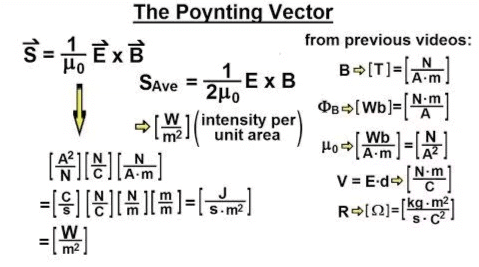

The Poynting vector S is defined by which expression?

The Poynting vector S is defined by the expression S = 1 / μo (E * B).

Electromagnetic waves are ___ in nature.

Transverse

True or False: The energy in electromagnetic waves is unequally divided between electric and magnetic field vectors.

False. The energy in electromagnetic waves is equally divided between electric and magnetic field vectors.

What does the average electric energy density UE equal in terms of the electric field strength E?

The average electric energy density UE equals 1 / 2 εo E².

Intensity of electromagnetic wave is defined as ___ crossing per unit area per unit time perpendicular to the direction of propagation.

Energy
