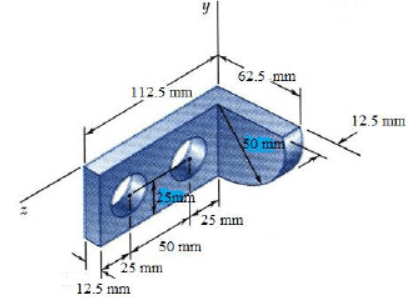

Locate the center of gravity of the steel machine element. The diameter of each hole is 1 in.

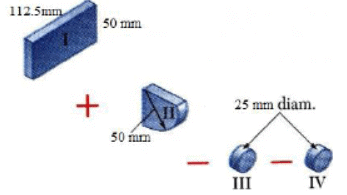

Solution: Form the machine element from a rectangular parallelepiped and a quarter cylinder and then subtracting two 1-in. diameter cylinders.
| Volume,mm3 |  |  |  |  |  |  | |
| I | 70312.5 | 6.25 | -25 | 56.25 | 439,453 | -1,757,813 | 3,955,078 |
| II | 24,553.6 | 33.71 | -21.21 | 6.25 | 827,702 | -520,782 | 153,460 |
| III | -6138.4 | 6.25 | -25 | 87.5 | -38,365 | 153,460 | -537,110 |
| IV | -6138.4 | 6.25 | -25 | 37.5 | -38,365 | 153,460 | 230,190 |
| 82,589.3 | 1190,425 | -1,961,662 | 3,341,238 |
| Shape |  | Volume | |
| Cone |  | h/4 | 1/3 πa2h |
| Pyramid |  | h/4 | 1/3 abh |
| Shape | | Volume | |
| Hemisphere |  | 3a/8 | 2/3πa3 |
| Semiellipsoid of revolution |  | 3h/8 | 2/3πa2h |
| Paraboloid of revolution |  | h/3 | 1/2πa2h |

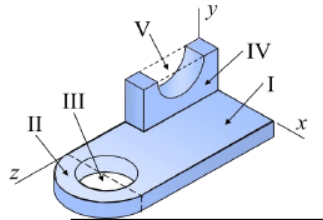

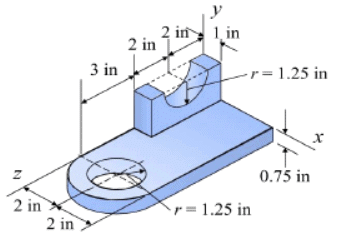

For the machine element shown, locate the z coordinate of the center of gravity.
| V, in3 |  |  | |
| I | 4*0.75*7=21 | 3.5 | 73.5 |
| II | π/2*22*0.75=4.7124 |  | 36.987 |
| III | -π*1.252*0.75=−3.68 | 7 | -25.76 |
| IV | 1*2*4=8 | 2 | 16 |
| V | −π1.252*1=−2.453 | 2 | -4.906 |
| ∑ | 27.579 | 95.821 |
