TRANSMISSION LINE

Classification: On the basis of length of transmission line, the transmission lines are divided into three categories:

  • Short transmission lines
  • Medium transmission lines
  •  Long transmission lines

1. SHORT TRANSMISSION LINE

A transmission is defined as a short transmission if its length is less than 80 km.

Assumptions :

  • The shunt capacitance effect is negligible.
  • The line parameters could be assumed to be lumped.

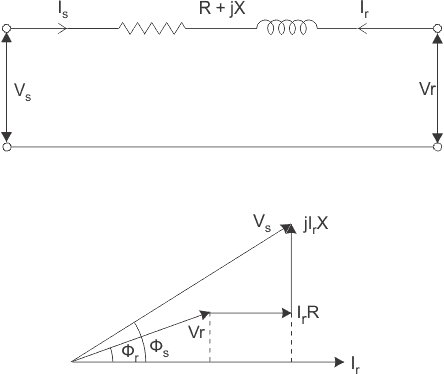

Equivalent Circuit:

  • Under balanced conditions, the line can be represented by the equivalent circuit of a single phase with resistance R and inductive reactance XL in series.

 Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)


Sending end parameters Is = Ir, Vs = Vr + IrZ
Where Is, Vs are sending end current and voltage and Ir, Vr are the receiving end current and voltage respectively and Z is the impedance of transmission line.

In matrix from

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)


VOLTAGE REGULATION:

  • Voltage regulation of a line is defined as the rise in the receiving end voltage when full load at a specified power factor is removed while the sending end voltage is kept constant.

% voltage regulation = Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

 Where Vs is the sending voltage or no load receiving end voltage and Vr is full load rated receiving end voltage.

  • From phasor diagram of shunt transmission line, the sending end voltage

Where fr is the phase angle at receiving end.


Voltage regulation = Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Note:

  • In above equation, fr is positive for lagging power factor load and negative for leading power factor load.

Remember:

  • The power factor has a great influence on the voltage regulation; for lagging power factor the regulation is positive and for leading power factors may even by negative.
  • Condition for zero voltage regulation Ir R cosfr = Ir XL sinf

or tan r = (R/x)


EFFICIENCY:

The ratio of power at the receiving end to the power at the sending end is known as efficiency of the transmission line.

% efficiency  = (Power delivered at he receiving end / Power sent from the sending end) x 100


ABCD PARAMETERS:

The sending end quantities Vs, Is can be represented in terms of receiving end quantities Vr, Ir by the following equations.

 Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Vs = AV+ BI
Is = CVr + DIr

  •  A: It is the voltage impressed at the sending end per volt at the receiving end when receiving end is open. It is dimensionless.

   Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • B: It is the voltage impressed at the sending end to have one ampere of current at the short circuited receiving end. This is known as transfer impedance.

   Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  •  C: It is the current in amperes into the sending end per volt on the open-circuited receiving end.

This is known as transfer admittance.

   Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  •  D: It is the current at the sending end for one amperes of current at the short circuited receiving end.

  Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • In matrix form s

 Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  •  ABCD parameters of short transmission line A = 1, B = Z, C = 0, D = 1
  • Efficiency of short transmission line:

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)
where P is the power received at the receiving end and R is the resistance per phase of the line.


2. MEDIUM TRANSMISSION LINE

A transmission line is defined as medium transmission line if it has length between 80 km and 240 km and its single phase equivalent circuit can be represented as nominal p or nominal T circuit configuration.

Assumption:

  • The line parameters are lump parameters.

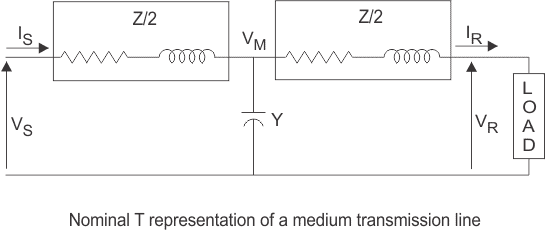

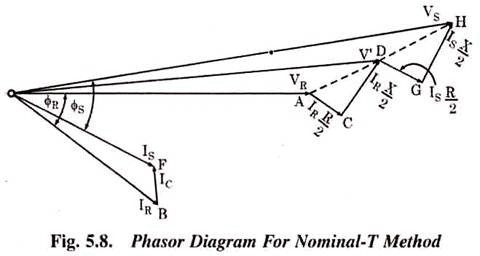

Nominal Circuit

  • The shunt admittance is assumed to be concentrated in the middle while the series impedance is split into two equal parts.

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)


  • The sending end parameters in terms of receiving end parameters



Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • In matrix form

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)


  • A, B, C, D parameters

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

   Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • Current in shunt branch

   Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • Voltage across the shunt branch

  Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

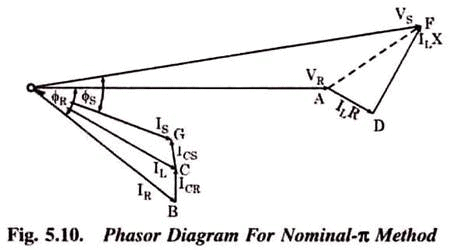

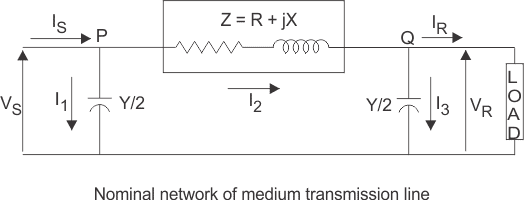

Nominal π Circuit:

  • One half of the total capacitance of each conductor is placed at each end.


Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

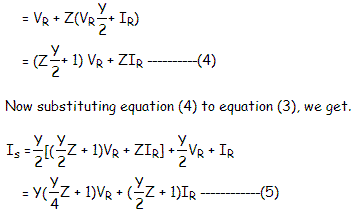

  • The sending end parameters in terms of receiving end parameters.

V= A Vr + Z*Ir

 Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • In matrix form

 Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)


  • A, B, C, D parameters

 Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)




3. LONG TRANSMISSION LINE

A transmission line is defined as long transmission line if it has length greater than 240 km.

  •  Line parameters are distributed uniformly over the entire length.

 Assumptions:

  • The line is operating under sinusoidal, balanced, steady-state conditions.
  • The line is transposed.

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • In the above figure V(x) and I(x) denotes the phasor voltage and phasor current at location x on the line from the receiving end.
  • The series impedance per-unit length Z = R + jwL.
    Where R and L are series resistance and inductance per unit length.
  • The shunt admittance per unit-length Y = G + jwC.
    Where G and C are shunt conductance and capacitance to neutral per unit length

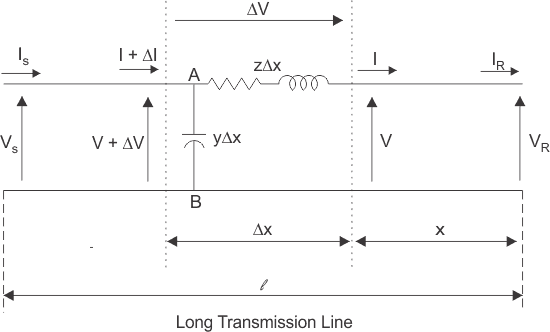

Here a line of length l > 250km is supplied with a sending end voltage and current of VS and IS respectively, whereas the VR and IR are the values of voltage and current obtained from the receiving end. Lets us now consider an element of infinitely small length Δx at a distance x from the receiving end as shown in the figure where.

  • V = value of voltage just before entering the element Δx.
  • I = value of current just before entering the element Δx.
  • V+ΔV = voltage leaving the element Δx.
  • I+ΔI = current leaving the element Δx.
  • ΔV = voltage drop across element Δx.
  • zΔx = series impedance of element Δx
  • yΔx = shunt admittance of element Δx

Where, Z = z l and Y = y l are the values of total impedance and admittance of the long transmission line.

Therefore, the voltage drop across the infinitely small element Δx is given by

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Now to determine the current ΔI, we apply KCL to node A.
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Since the term ΔV yΔx is the product of 2 infinitely small values, we can ignore it for the sake of easier calculation.Therefore, we can write

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Now derivating both sides of eq (1) w.r.t x,
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Now substitutingPerformance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)from equation (2)

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

The solution of the above second order differential equation is given by.Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Derivating equation (4) w.r.to x.

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Now comparing equation (1) with equation (5)Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Now to go further let us define the characteristic impedance Zc and propagation constant δ of a long transmission line as
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Then the voltage and current equation can be expressed in terms of characteristic impedance and propagation constant as

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Now at x=0, V= VR and I= Ir. Substituting these conditions to equation (7) and (8) respectively.
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Solving equation (9) and (10),We get values of A1 and A2 as,
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Now applying another extreme condition at x = l, we have V = VS and I = IS.

Now to determine VS and IS we substitute x by l and put the values of A1 and
A2 in equation (7) and (8) we get
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

By trigonometric and exponential operators we knowPerformance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Therefore, equation (11) and (12) can be re-written asPerformance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Thus compared with the general circuit parameters equation, we get the ABCD parameters of a long transmission line as,
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

 FERRANTI-EFFECT
When a long line is operating under no load or light load condition, the receiving end voltage is greater than the sending end voltage. This is known as Ferranti-effect.
Remember:

  • Usually the capacitive reactance of the line is quite large as compared to the inductive reactance.
  • Under no load or lightly loaded condition the line current is of leading power factor (pf).

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • The charging current (IC) produces drop in the reactance of the line which is in phase opposition to the receiving end voltage.

Remember:

  • If the reactive power generated at a point is more than the reactive power absorbed, the voltage at that point becomes higher than the normal value and vice versa.
  • Inductive reactance of the transmission line is a sink for the reactive power when as the shunt capacitances generate reactive power.
  • If the line loading corresponds to the surge impedance loading, the voltage is same every where as the reactive power absorbed equals the reactive power generated by the line.

Remember:

  • If loading is less than SIL (surge impedance loading), the reactive power generated is more than absorbed.

POWER FLOW

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • In above figure the sending end bus is fed by generator and the receiving end bus feeds to the load. Sr, Ss is the complex power at the receiving end and sending end respectively.
  • Let receiving end voltage Vr = |Vr| ∠0° Sending ed voltage Vs = |Vs| ∠d°, A = D = |A| ∠a°, B = |B| ∠b°
  • Receiving end current in terms of Vs, Vr and ABCD parameters

   Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • The complex power per phase at the receiving end

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • Sending end current in terms of Vs, Vr, and ABCD parameters

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • The complex power per phase at the sending end or power infected injected by generator

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)
Important Observations:

  • The above equations yield power per phase if the phase voltage are used for Vs and Vr.

The total power is three times the power per phase.

  • The above equations yield 3-f power directly if Vs and Vr represent line to line voltage.

Real and Reactive Power

At receiving end
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)
At sending end
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • For fixed value of Vs and Vr the receiving end real power is maximum whend =b

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

  • The load must draw the leading Vars to achieve condition of maximum real power at the receiving end.

For short transmission line

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)
the transmission line has very small resistance as compared to inductive reactance.

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)
Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

Important Conclusion:

  • For fixed values of Vs, Vr and X the real power depends on power angle d which is the phase angle between Vs and Vr. Power can be transferred over the line even when |Vs| = |Vr|.
  • A decrease in inductance increases the line capacity.
  • Inductance can be decreased by using double circuit lines and by use of bundled conductor line.
The document Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE) is a part of the Electrical Engineering (EE) Course Electrical Engineering SSC JE (Technical).
All you need of Electrical Engineering (EE) at this link: Electrical Engineering (EE)
23 videos|89 docs|42 tests

Top Courses for Electrical Engineering (EE)

FAQs on Performance of Transmission Lines - Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

1. What is the purpose of transmission lines in electrical engineering?
Ans. Transmission lines in electrical engineering are used to transmit electrical energy from power plants to distribution systems. They are designed to minimize power losses and ensure efficient power transfer over long distances.
2. What are the main factors that affect the performance of transmission lines?
Ans. The performance of transmission lines is influenced by factors such as line length, conductor material, insulation, temperature, and frequency. Longer lines and higher frequencies tend to cause more power losses and signal distortions.
3. How do transmission line losses affect power transmission?
Ans. Transmission line losses, such as resistive losses, can result in a decrease in power transmitted from the source to the load. These losses cause power dissipation in the form of heat and can impact the overall efficiency of the power transmission system.
4. What is the significance of impedance matching in transmission lines?
Ans. Impedance matching is crucial in transmission lines to minimize signal reflections and maximize power transfer. When the load impedance matches the characteristic impedance of the transmission line, there are minimal reflections, ensuring efficient power delivery.
5. How does the skin effect impact the performance of transmission lines?
Ans. The skin effect in transmission lines refers to the tendency of high-frequency currents to flow near the surface of the conductor, resulting in an unequal distribution of current. This effect increases the effective resistance of the conductor, leading to higher power losses and signal degradation in high-frequency transmission systems.
23 videos|89 docs|42 tests
Download as PDF
Explore Courses for Electrical Engineering (EE) exam

Top Courses for Electrical Engineering (EE)

Signup for Free!
Signup to see your scores go up within 7 days! Learn & Practice with 1000+ FREE Notes, Videos & Tests.
10M+ students study on EduRev
Related Searches

past year papers

,

ppt

,

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

,

practice quizzes

,

study material

,

Extra Questions

,

Objective type Questions

,

pdf

,

Free

,

Previous Year Questions with Solutions

,

Sample Paper

,

MCQs

,

mock tests for examination

,

Summary

,

video lectures

,

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

,

Important questions

,

Semester Notes

,

Exam

,

Viva Questions

,

shortcuts and tricks

,

Performance of Transmission Lines | Electrical Engineering SSC JE (Technical) - Electrical Engineering (EE)

;
