**DEFINITION OF DISPERSION**

The second important characteristic of a distribution is given by dispersion. Two distributions may be identical in respect of its first important characteristic i.e. central tendency and yet they may differ on account of scatterness. The following figure shows a number of distributions having identical measure of central tendency and yet varying measure of scatterness. Obviously, distribution is having the maximum amount of dispersion.

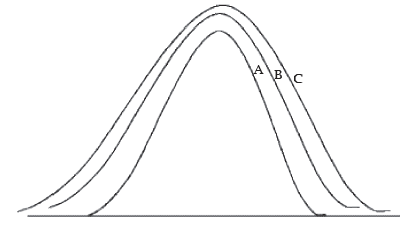

Showing distributions with identical measure of central tendency and varying amount of dispersion.

Dispersion for a given set of observations may be defined as the amount of deviation of the

observations, usually, from an appropriate measure of central tendency. Measures of dispersion may be broadly classified into

1. Absolute measures of dispersion.

2. Relative measures of dispersion.

Absolute measures of dispersion are classified into

(i) Range

(ii) Mean Deviation

(iii) Standard Deviation

(iv) Quartile Deviation

Likewise, we have the following relative measures of dispersion :

(i) Coefficient of Range.

(ii) Coefficient of Mean Deviation

(iii) Coefficient of Variation

(iv) Coefficient of Quartile Deviation.

We may note the following points of distinction between the absolute and relative measures of dispersion :

I Absolute measures are dependent on the unit of the variable under consideration whereas the relative measures of dispersion are unit free.

II For comparing two or more distributions, relative measures and not absolute measures

of dispersion are considered.

III Compared to absolute measures of dispersion, relative measures of dispersion are difficult to compute and comprehend.**Characteristics for an ideal measure of dispersion**

As discussed in section 15.2.1 an ideal measure of dispersion should be properly defined, easy to comprehend, simple to compute, based on all the observations, unaffected by sampling fluctuations and amenable to some desirable mathematical treatment.**RANGE**

For a given set of observations, range may be defined as the difference between the largest and smallest of observations. Thus if L and S denote the largest and smallest observations respectively then we have

Range = L â€“ S

The corresponding relative measure of dispersion, known as coefficient of range, is given

by

Coefficient of range

For a grouped frequency distribution, range is defined as the difference between the two extreme class boundaries. The corresponding relative measure of dispersion is given by the ratio of the difference between the two extreme class boundaries to the total of these class boundaries, expressed as a percentage.**We may note the following important result in connection with range:****Result:**

Range remains unaffected due to a change of origin but affected in the same ratio due toa change in scale i.e., if for any two constants a and b, two variables x and y are related by y =a + bx,

Then the range of y is given by**Example :** Following are the wages of 8 workers expressed in Rupees. 82, 96, 52, 75, 70, 65, 50, 70. Find the range and also its coefficient.

Solution: The largest and the smallest wages are L = â‚¹96 and S= â‚¹50

Thus range = â‚¹ 96 â€“ â‚¹50 = â‚¹ 46**Example **: What is the range and its coefficient for the following distribution of weights?**Solution**: The lowest class boundary is 49.50 kgs. and the highest class boundary is 74.50 kgs. Thus we have

Range = 74.50 kgs. â€“ 49.50 kgs.

= 25 kgs.**Example :** If the relationship between x and y is given by 2x+3y=10 and the range

of x is â‚¹15, what would be the range of y?**Solution:**

Applying, the range of y is given by**MEAN DEVIATION**

Since range is based on only two observations, it is not regarded as an ideal measure of dispersion.A better measure of dispersion is provided by mean deviation which, unlike range, is based on all the observations. For a given set of observation, mean deviation is defined as the arithmetic mean of the absolute deviations of the observations from an appropriate measure of central tendency. Hence if a variable x assumes n values x_{1,} x_{2}, x_{3}â€¦xn, then the mean deviation of x about an average A is given by

For a grouped frequency distribution, mean deviation about A is given by

Where x_{i} and f_{i} denote the mid value and frequency of the i-th class interval and

In most cases we take A as mean or median and accordingly, we get mean deviation about mean or mean deviation about median.

A relative measure of dispersion applying mean deviation is given by

Mean deviation takes its minimum value when the deviations are taken from the median.

Also mean deviation remains unchanged due to a change of origin but changes in the same

ratio due to a change in scale i.e. if y = a + bx, a and b being constants,**Example **: What is the mean deviation about mean for the following numbers?

5, 8, 10, 10, 12, 9.**Solution:**

The mean is given by"

Thus mean deviation about mean is given by**Example **: Find mean deviations about median and also the corresponding coefficient

for the following profits (â€˜000 â‚¹) of a firm during a week.

82, 56, 75, 70, 52, 80, 68.

**Solution:**

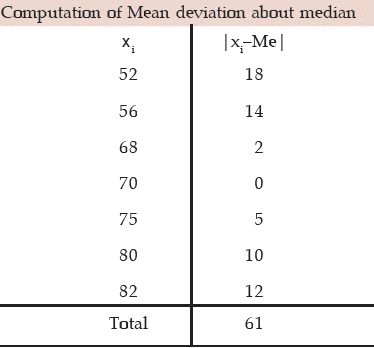

The profits in thousand rupees is denoted by x. Arranging the values of x in an ascending order, we get

52, 56, 68, 70, 75, 80, 82.

Therefore, Me = 70. Thus, Median profit = â‚¹ 70,000.**Example : **Compute the mean deviation about the arithmetic mean for the following

data:

lso find the coefficient of the mean deviation about the AM.**Solution:** We are to apply formula (15.1.2) as these data refer to a grouped frequency

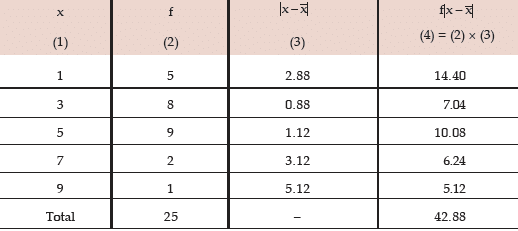

distribution the AM is given by**Computation of MD about the AM**

Thus, MD about AM is given by

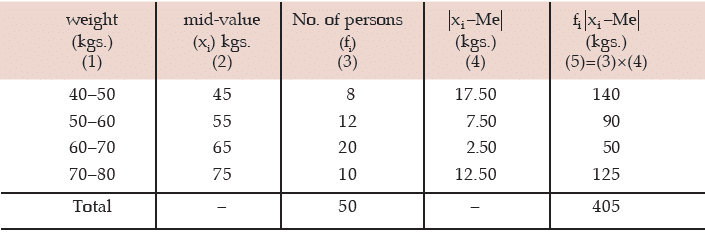

=1.72**Example :** Compute the coefficient of mean deviation about median for the following

distribution:**Solution: **We need to compute the median weight in the first stage**Computation of median weight****Computation of mean deviation of weight about median**

**Example :** If x and y are related as 4x+3y+11 = 0 and mean deviation of x is 5.40, what is

the mean deviation of y?**Solution:** Since 4x + 3y + 11 = 0

**STANDARD DEVIATION**

Although mean deviation is an improvement over range so far as a measure of dispersion is concerned, mean deviation is difficult to compute and further more, it cannot be treated

mathematically. The best measure of dispersion is, usually, standard deviation which does not possess the demerits of range and mean deviation. Standard deviation for a given set of observations is defined as the root mean square deviation when the deviations are taken from the AM of the observations. If a variable x assumes n values x_{1} ,x_{2}, x_{3} â€¦â€¦â€¦..x_{n} then its standard deviation(s) is given by

For a grouped frequency distribution, the standard deviation is given by

can be simplified to the following forms

Sometimes the square of standard deviation, known as variance, is regarded as a measure of dispersion. We have, then,

A relative measure of dispersion using standard deviation is given by coefficient of variation (cv) which is defined as the ratio of standard deviation to the corresponding arithmetic mean, expressed as a percentage.**ILLUSTRATIONS:**

**Example :** Find the standard deviation and the coefficient of variation for the following

numbers: 5, 8, 9, 2, 6**Solution:** We present the computation in the following table.**Computation of standard deviation**

Applying (15.2.7), we get the standard deviation as

The coefficient of variation is**Example :** Show that for any two numbers a and b, standard deviation is given**Solution:** For two numbers a and b, AM is given by

The variance is

(The absolute sign is taken, as SD cannot be negative).**Example :** Prove that for the first n natural numbers, SD is **Solution:** for the first n natural numbers AM is given by

Thus, SD of first n natural numbers is

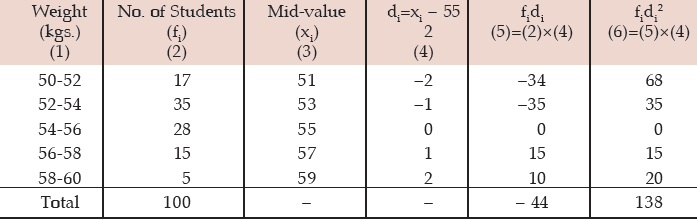

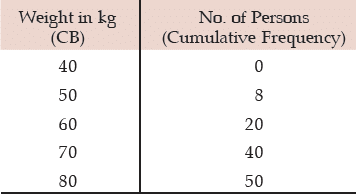

We consider the following formula for computing standard deviation from grouped frequency distribution with a view to saving time and computational labour:**Example :** Find the SD of the following distribution:**Solution:****Computation of SD**

Applying (11.33), we get the SD of weight as**Properties of standard deviation**

I. If all the observations assumed by a variable are constant i.e. equal, then the SD is zero.

This means that if all the values taken by a variable x is k, say, then s = 0. This result

applies to range as well as mean deviation.

II. SD remains unaffected due to a change of origin but is affected in the same ratio due to

a change of scale i.e., if there are two variables x and y related as y = a+bx for any two

constants a and b, then SD of y is given by

III. If there are two groups containing n1 and n2 observations, x_{1} and x_{2} as respective AMâ€™s,

s_{1} and s_{2} as respective SDâ€™s , then the combined SD is given by

This result can be extended to more than 2 groups. For x(7^{2}) groups, we have

**Example :** If AM and coefficient of variation of x are 10 and 40 respectively, what is the variance of (15â€“2x)?**Solution:** let y = 15 â€“ 2x

Then applying (11.34), we get,

s_{y} = 2 Ã— s_{x} â€¦â€¦â€¦â€¦â€¦â€¦â€¦â€¦â€¦â€¦â€¦â€¦â€¦ (1)

As given cv_{x} = coefficient of variation of x = 40 and

Therefore, variance of (15 2x) S_{y}^{2} 64

Example 15.2.14: Compute the SD of 9, 5, 8, 6, 2.

Without any more computation, obtain the SD of**Computation of SD**

If we denote the original observations by x and the observations of sample I by y, then we have

y = â€“10 + x

y = (10) + (1) x

= 12.45

= 2.45

In case of sample II, x and y are related as

Y = 10x

= 0 + (15)x**Example :** For a group of 60 boy students, the mean and SD of stats. marks are 45 and2 respectively. The same figures for a group of 40 girl students are 55 and 3 respectively. Whatis the mean and SD of marks if the two groups are pooled together?**Solution:** As given n1 = 60,

Thus the combined mean is given by

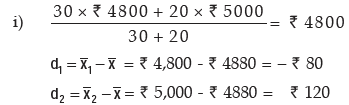

Applying, we get the combined SD as**Example :** The mean and standard deviation of the salaries of the two factories are provided below :

i) Find the combined mean salary and standard deviation of salary.

ii) Examine which factory has more consistent structure so far as satisfying its employees are concerned.** Solution:** Here we are givenHere we are given

hence, the combined SD in rupees is given by

thus the combined mean salary and the combined standard deviation of salary are ` 4880 and â‚¹98.58 respectively.

ii) In order to find the more consistent structure, we compare the coefficients of variation of the two factories. Letting CV_{A }

We would say factory A is more consistent if CV_{A} < CV_{B} . Otherwise factory B would be more consistent.

Thus we conclude that factory A has more consistent structure.**Example :** A student computes the AM and SD for a set of 100 observations as 50 and 5respectively. Later on, she discovers that she has made a mistake in taking one observation as 60instead of 50. What would be the correct mean and SD if

i) The wrong observation is left out?

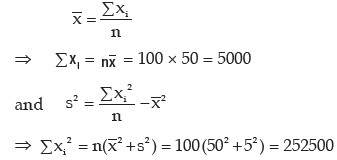

ii) The wrong observation is replaced by the correct observation?**Solution :** As given, nx = 1000,S = 5

Wrong observation = 60(x), correct observation = 50(V)

i) Sum of the 99 observations = 5000 â€“ 60 = 4940

AM after leaving the wrong observation = 4940/99 = 49.90

Sum of squares of the observation after leaving the wrong observation

= 252500 â€“ 60^{2} = 248900

Variance of the 99 observations = 248900/99 â€“ (49.90)^{2}

= 2514.14 â€“ 2490.01

= 24.13

SD of 99 observations = 4.91

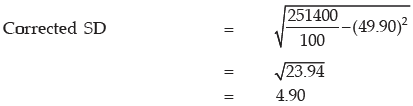

ii) Sum of the 100 observations after replacing the wrong observation by the correct observation

= 5000 â€“ 60 + 50 = 4990

Corrected sum of squares = 252500 + 502 â€“ 602 = 251400

QUARTILE DEVIATION

Another measure of dispersion is provided by quartile deviation or semi-interâ€“quartile range which is given by

A relative measure of dispersion using quartiles is given by coefficient of quartile deviation

which is

Quartile deviation provides the best measure of dispersion for open-end classification. It is also less affected due to sampling fluctuations. Like other measures of dispersion, quartile deviation remains unaffected due to a change of origin but is affected in the same ratio due to change in scale.

**Example :** Following are the marks of the 10 students : 56, 48, 65, 35, 42, 75, 82, 60, 55,

50. Find quartile deviation and also its coefficient.

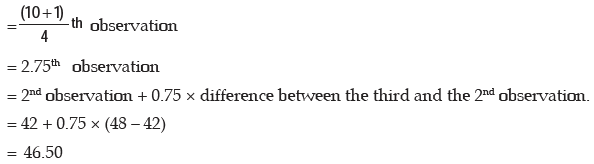

**Solution:** After arranging the marks in an ascending order of magnitude, we get 35, 42, 48, 50, 55, 56, 60, 65, 75, 82

= 8.25 th observation

= 65 + 0.25 Ã— 10

= 67.50

Thus applying (11.37), we get the quartile deviation as

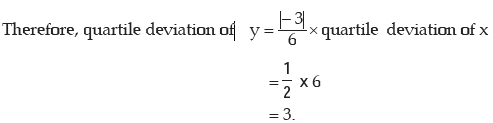

Also, using (11.38), the coefficient of quartile deviation**Example :** If the quartile deviation of x is 6 and 3x + 6y = 20, what is the quartile deviation of y?**Solution:** 3x + 6y = 20

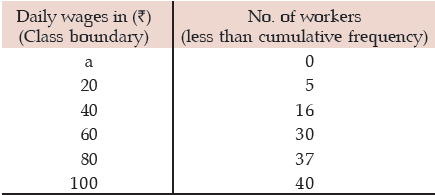

**Example :** Find an appropriate measures of dispersion from the following data:**Solution:** Since this is an open-end classification, the appropriate measure of dispersion would be quartile deviation as quartile deviation does not taken into account the first twenty five percent and the last twenty five per cent of the observations.**Computation of Quartile**

Here a denotes the first Class Boundary

Thus quartile deviation of wages is given by**Example :** The mean and variance of 5 observations are 4.80 and 6.16 respectively. If

three of the observations are 2, 3 and 6, what are the remaining observations?

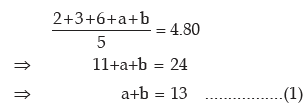

**Solution**: Let the remaining two observations be a and b, then as given

From (1), we get a = 13 â€“ b ...........(3)

Eliminating a from (2) and (3), we get

(13 â€“ b)^{2} + b^{2} = 97

169 â€“ 26b + 2b^{2} = 97

b2 â€“ 13 b + 36 = 0

(bâ€“4)(bâ€“9) = 0

b = 4 or 9

From (3), a= 9 or 4

Thus the remaining observations are 4 and 9.

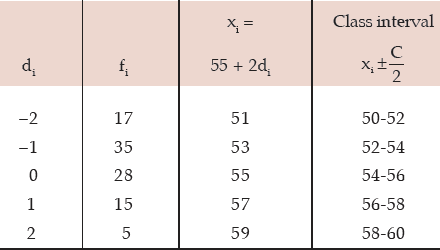

**Example :** After shift of origin and change of scale, a frequency distribution of a

continuous variable with equal class length takes the following form of the changed variable (d):

If the mean and standard deviation of the original frequency distribution are 54.12 and 2.1784 respectively, find the original frequency distribution.

**Solution:** We need find out the origin A and scale C from the given conditions.

Once A and C are known, the mid- values xiâ€™s would be known. Finally, we convert the midvalues to the corresponding class boundaries by using the formula:

On the basis of the given data, we find that**Computation of the Original Frequency Distribution****Example :** Compute coefficient of variation from the following data:**Solution:** What is given in this problem is less than cumulative frequency distribution. Weneed first convert it to a frequency distribution and then compute the coefficient of variation.**Computation of coefficient of variation Age****The AM is given by:**

The standard deviation is

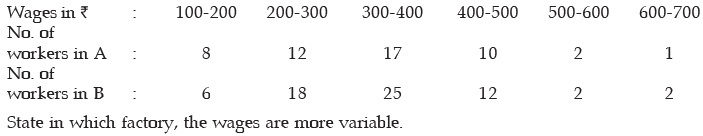

Thus the coefficient of variation is given by**Example :** You are given the distribution of wages in two factors A and B

State in which factory, the wages are more variable.

**Solution:**

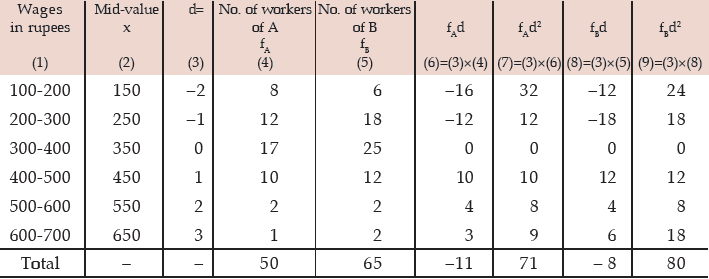

As explained in example 11.36, we need compare the coefficient of variation of A(i.e. v_{A}) and of B (i.e v_{B}).

If v_{A}> v_{B}, then the wages of factory A would be more variable. Otherwise, the wages of factory B would be more variable where**Computation of coefficient of variation of wages of Two Factories A and B**

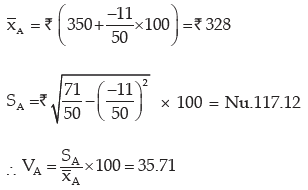

For Factory A

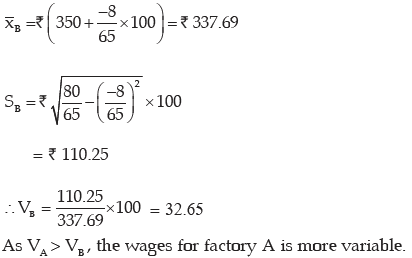

For Factory B
