Introduction

What is a Finite State Machine?

A Finite State Machine (FSM) is a mathematical model used to describe and analyze the behavior of digital systems. Specifically, it provides a framework for understanding sequential circuits that exist in a finite number of distinct states at any given time. In simpler terms, a synchronous sequential circuit is classified as an FSM if it operates with a limited set of states. The transitions between these states occur based on internal or external inputs, leading to predictable and systematic changes in the system’s behavior.

Components of a Finite State Machine

A typical FSM comprises the following key components:

• Finite States: These are the distinct modes or conditions of the system, each representing a specific behavior. In digital systems, states are often denoted by symbols or labels.
• State Transitions: These refer to the movement from one state to another, triggered by specific inputs or conditions. Transitions follow predefined rules that dictate the system’s next state.
• State Diagram: A graphical representation of the FSM’s states and transitions, the state diagram visually illustrates the system’s behavior and flow.
• Inputs: External signals, such as those from sensors or user devices (e.g., keyboards or microphones), that drive state transitions.
• Outputs: The responses generated by the system based on its current state and inputs. Outputs can control actuators, trigger events, or provide feedback to the environment.

Types of Finite State Machines

FSMs are broadly categorized into two types:

•  Mealy State Machines
•  Moore State Machines.

Mealy State Machine

A Mealy State Machine is an FSM where the outputs depend on both the current inputs and the current state. Its block diagram includes two primary components: a combinational logic circuit and a memory element. The memory stores past states and outputs, feeding them back into the combinational logic along with present inputs to determine the outputs. Consequently, outputs in a Mealy machine are valid only during clock signal transitions (positive or negative).

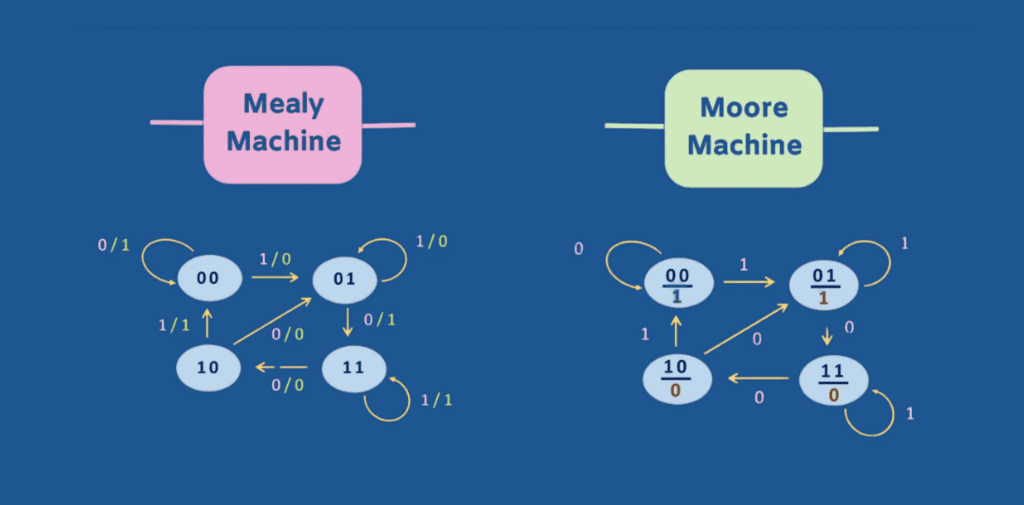

• State Diagram of Mealy State Machine: The diagram features states (e.g., A, B, C) represented by circles, with directed lines showing transitions. Each transition is labeled with an input/output pair (e.g., 0/0, 1/0), indicating how inputs drive state changes and outputs. Typically, Mealy machines require fewer states than their Moore counterparts, and every Mealy machine has an equivalent Moore machine.

Moore State Machine

In contrast, a Moore State Machine produces outputs based solely on the current state, independent of the current inputs. Its block diagram also includes combinational logic and memory, but here, the memory determines the next state based on inputs and current states, while outputs are tied directly to the states. As a result, outputs are valid only after a state transition occurs.

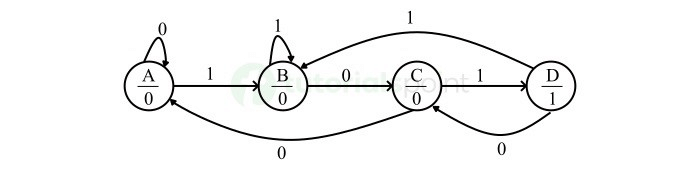

• State Diagram of Moore State Machine: States (e.g., A, B, C, D) are depicted in circles with outputs labeled alongside them, while transitions are marked only with input values. Moore machines often require more states than Mealy machines, and every Moore machine has an equivalent Mealy version.

State Encoding

State encoding is the process of assigning unique binary codes to each state in an FSM, enabling its implementation in hardware or software. Common encoding schemes include:

• Binary Encoding: States are assigned sequential binary numbers (e.g., 00, 01, 10), minimizing the number of bits required.
• One-Hot Encoding: Each state is represented by a single ‘1’ in a unique bit position (e.g., 1000, 0100), simplifying state detection but requiring more bits.

The choice of encoding impacts the FSM’s efficiency, hardware complexity, and performance, making it a critical design consideration.

Advantages of Finite State Machines

FSMs are indispensable in digital electronics due to their numerous benefits:

• Simplicity: They provide a clear, systematic way to model systems with discrete states and transitions.
• Modularity: FSMs break complex systems into manageable components, simplifying design, testing, and maintenance.
• Scalability: New states, transitions, or logic can be added without disrupting the core structure.
• Predictability: Their deterministic nature ensures reliable, consistent operation—ideal for real-time and safety-critical applications.
• Efficiency: FSMs require minimal hardware (e.g., logic gates, memory) and software resources.
• Parallelism: They support simultaneous state transitions, enhancing system performance.
• Versatility: FSMs are widely applicable across digital design, control systems, software development, and artificial intelligence.

Applications of Finite State Machines

FSMs are powerful tools with diverse applications in digital electronics and computer science, including:

• Sequential Logic Circuits: Used in designing counters, timers, and control units.
• Control Systems: Regulate automated systems like robots and industrial machinery.
• Communication Protocols: Implement network protocols, data transmission, and protocol converters.
• Software Development: Model state-based systems, user interfaces, game mechanics, and workflows.

Limitations of Finite State Machines

Despite their strengths, FSMs have limitations:

• Complexity with Large Systems: As the number of states grows, designing and managing the FSM can become cumbersome, leading to increased design time and potential errors.
• Limited Expressiveness: FSMs struggle to model systems with continuous variables or highly dynamic behaviors, restricting their use in certain advanced applications.

Conclusion

Finite State Machines are vital tools in digital electronics and computer engineering, enabling the modeling, design, and analysis of state-based systems and synchronous sequential circuits. With their structured approach, FSMs empower engineers to create efficient, reliable, and scalable solutions for complex logic and processes. By understanding their components, types, encoding methods, advantages, applications, and limitations, you can harness their full potential in both hardware and software domains.
