Heron’s Formula Class 9 Notes Maths Chapter 10

Introduction

Today, we’re diving into the fascinating world of geometry with Heron's Formula. Have you ever wanted to calculate the area of a triangle without knowing its height?

For instance, consider a triangular park with sides measuring 40 m, 32 m, and 24 m. If we were to use the conventional formula for area, ½ x base x height.

We would need to know the height, which we don’t have. This is where Heron's Formula comes in, allowing us to find the area of a triangle using just the lengths of its three sides.

In this lesson, we will explore how to use Heron’s Formula step-by-step and apply it through engaging examples. So, get ready to unlock the secrets of triangles and discover the beauty of geometry!

Area of a Triangle — by Heron’s Formula

Heron, a mathematician born around 10 AD, made significant contributions to applied mathematics. His works covered various mathematical and physical subjects.

In his geometrical works, Heron derived the famous formula for the area of a triangle based on its three sides. This formula is now known as Heron's formula or Hero's formula

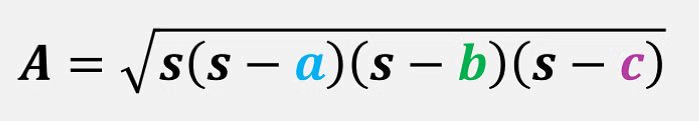

Area=�(�−�)(�−�)(�−�)

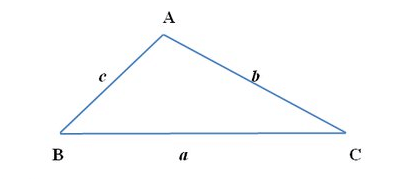

Here, �a, �b, and �c are the sides of the triangle, and �s  is the semi-perimeter i.e sum of all-side divided by 2

s= (a+b+c) /2

�=�+�Application of Heron's Formula

�=40+32+242=48

Let us take a = 40 cm, b = 24 cm, c = 32 cm,

Semi perimeter of the triangle (s) = (a + b + c)/2

s = (40 + 32 + 24)/2 = 48 cm

�−�=48−40=8s −a = 48 − 40 = 8 cm�−�=48−24=24

s −b = 48 − 24 = 24 cm �−�=48−32=16

s −c = 48 − 32 = 16 cm

Area of the triangle = √[s(s-a)(s-b)(s-c)]

Area=48×8×24×16=3842=384 m2

This matches the area calculated using the traditional method:

To ascertain the park's area, the application of the formula 12×32×24½ × 32 × 24 square meters yields 384 cm².

Verification and Examples

Now, let's verify Heron's formula by applying it to other triangles:

Equilateral triangle (side =10 cm )

s= (a+b+c) /2

=> (10+10+10) /2

=> 30/2 =15

=> s= 15

replacing all values in the above area formulae we get ,

Additional Examples:

Example 1:

Given sides of triangle 8 cm, and 11 cm, and a perimeter of 32 cm, the area is calculated using Heron's formula:

Area=16×8×5×3=30 cm2

Example 2:

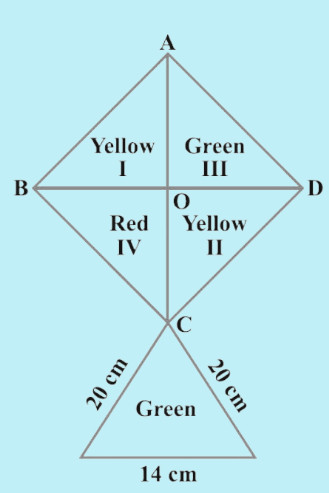

How much paper of each shade is needed to make a kite given in the figure, in which ABCD is a square with diagonal 44 cm.

Solution:

According to the figure,

AC = BD = 44cm, AO = 44/2 = 22cm, BO = 44/2 = 22cm

From ΔAOB,

AB² = AO² + BO²

⇒ AB² = 22² + 22²

⇒ AB² = 2 × 22²

⇒ AB = 22√2 cm

Area of square ABCD = (Side)²

= (22√2)²

= 968 cm²

Area of each triangle (I, II, III, IV) = Area of square /4

= 968 /4

= 242 cm²

To find area of lower triangle,

Let a = 20, b = 20, c = 14

s = (a + b + c)/2

⇒ s = (20 + 20 + 14)/2 = 54/2 = 27.

Area of the triangle = √[s(s-a)(s-b)(s-c)]

= √[27(27-20)(27-20)(27-14)]

= √[27×7×7×13]

= 131.14 cm²

Therefore, We get,

Area of Red = Area of IV

= 242 cm²

Area of Yellow = Area of I + Area of II

= 242 + 242

= 484 cm²

Area of Green = Area of III + Area of the lower triangle

= 242 + 131.14

= 373.14 cm²Area=125×5×45×75=15×30 m2=450 m2

Example 3:

A triangular plot has sides in the ratio 3:5:7, and its perimeter is 300 m. The area is:

Area=150×90×50×10=15003 m2

These examples illustrate Heron's formula as a powerful tool for finding triangle areas without relying on height.
