What is the Laplace Transform?

The Laplace Transform is a mathematical technique used to transform a function of a real variable t (often time) into a function of a complex variable $𝑠$s. This transformation simplifies the process of solving differential equations by converting them into algebraic equations.

Piecewise Continuous Functions
A function f(t) is said to be piecewise continuous if it has a finite number of discontinuities and does not become infinite at any point. If f(t) is a piecewise continuous function, then its Laplace transform can be defined.

Definition of Laplace Transform

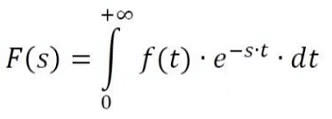

The Laplace transform of a function f(t) is represented as L{f(t)} or F(s). The transform is given by the integral formula:

whenever the improper integral converges.
Standard notation: Where the notation is clear, we will use an uppercase letter to indicate the Laplace transform, e.g, L(f; s) = F(s).
The Laplace transform we defined is sometimes called the one-sided Laplace transform. There is a two-sided version where the integral goes from −∞ to ∞.

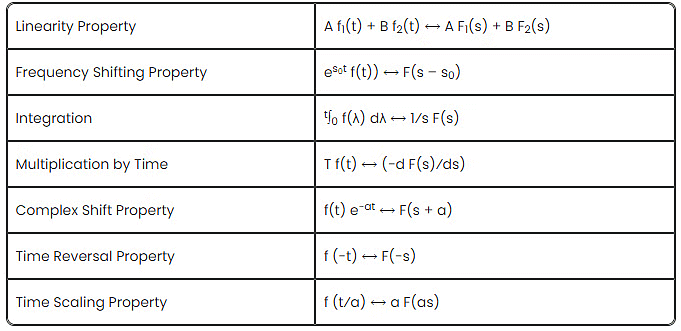

Properties of Laplace Transform

Some of the Laplace transformation properties are:

If f₁ (t) ⟷ F₁ (s) and [note: ⟷ implies Laplace Transform]

f₂ (t) ⟷ F₂ (s), then

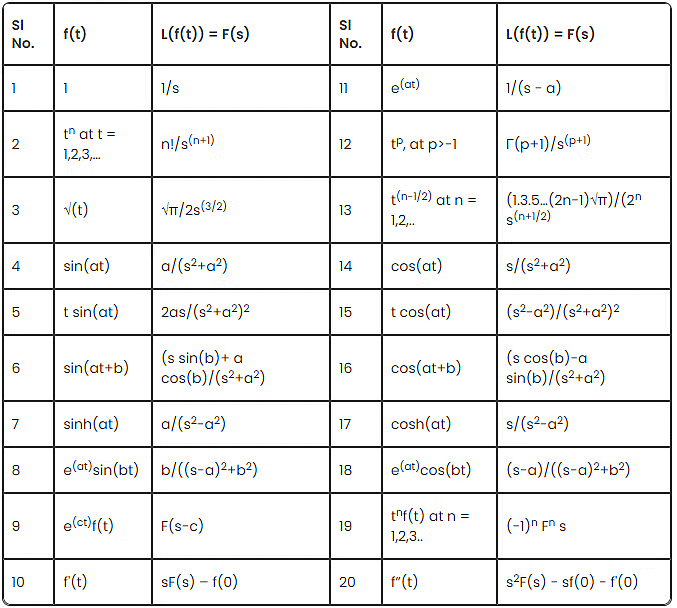

Laplace Transform Table

The following Laplace transform table helps to solve the differential equations for different functions:

Laplace Transform of Differential Equation

The Laplace transform is a well established mathematical technique for solving a differential equation. Many mathematical problems are solved using transformations. The idea is to transform the problem into another problem that is easier to solve. On the other side, the inverse transform is helpful to calculate the solution to the given problem.
For better understanding, let us solve a first-order differential equation with the help of Laplace transformation,
Consider y’- 2y = e^3x and y(0) = -5. Find the value of L(y).
First step of the equation can be solved with the help of the linearity equation:
L(y’ – 2y] = L(e^3x)
L(y’) – L(2y) = 1/(s-3)
(because L(e^ax) = 1/(s-a))
L(y’) – 2s(y) = 1/(s-3)
sL(y) – y(0) – 2L(y) = 1/(s-3)
(Using Linearity property of the Laplace transform)
L(y)(s-2) + 5 = 1/(s-3) (Use value of y(0) ie -5 (given))
L(y)(s-2) = 1/(s-3) – 5
L(y) = (-5s+16)/(s-2)(s-3) …..(1)
here (-5s+16)/(s-2)(s-3) can be written as -6/s-2 + 1/(s-3) using partial fraction method
(1) implies L(y) = -6/(s-2) + 1/(s-3)
L(y) = -6e^2x + e^3x

Step Functions

The step function is often called the Heaviside function, and it is defined as follows:

The step function can take the values of 0 or 1. It is like an on and off switch. The notations that represent the Heaviside functions are u_c(t) or u(t-c) or H(t-c)

Bilateral Laplace Transform

The Laplace transform can also be defined as bilateral Laplace transform. This is also known as two-sided Laplace transform, which can be performed by extending the limits of integration to be the entire real axis. Hence, the common unilateral Laplace transform becomes a special case of Bilateral Laplace transform, where the function definition is transformed is multiplied by the Heaviside step function.

The bilateral Laplace transform is defined as:

The other way to represent the bilateral Laplace transform is B{F}, instead of F.

Inverse Laplace Transform

In the inverse Laplace transform, we are provided with the transform F(s) and asked to find what function we have initially. The inverse transform of the function F(s) is given by:
f(t) = L^-1{F(s)}
For example, for the two Laplace transform, say F(s) and G(s), the inverse Laplace transform is defined by:
L^-1{aF(s)+bG(s)}= a L^-1{F(s)}+bL^-1 {G(s)}
Where a and b are constants.
In this case, we can take the inverse transform for the individual transforms, and add their constant values in their respective places, and perform the operation to get the result.

Laplace Transform in Probability Theory

In pure and applied probability theory, the Laplace transform is defined as the expected value. If X is the random variable with probability density function, say f, then the Laplace transform of f is given as the expectation of:
L{f}(S) = E[e^-sX], which is referred to as the Laplace transform of random variable X itself.

Applications of Laplace Transform

• It is used to convert complex differential equations to a simpler form having polynomials.
• It is used to convert derivatives into multiple domain variables and then convert the polynomials back to the differential equation using Inverse Laplace transform.
• It is used in the telecommunication field to send signals to both the sides of the medium. For example, when the signals are sent through the phone then they are first converted into a time-varying wave and then superimposed on the medium.
• It is also used for many engineering tasks such as Electrical Circuit Analysis, Digital Signal Processing, System Modelling, etc.

Laplace Equation

Laplace’s equation, a second-order partial differential equation, is widely helpful in physics and maths. The Laplace equation states that the sum of the second-order partial derivatives of f, the unknown function, equals zero for the Cartesian coordinates. The two-dimensional Laplace equation for the function f can be written as:

The Laplace equation for three-dimensional coordinates can be represented as:

Solved Numericals

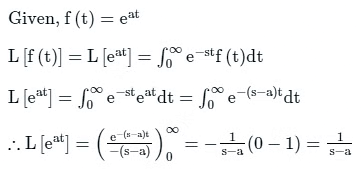

Q1. If f(t) = e^at, its Laplace Transform (for s > a) is given by
Solution:

∴ Laplace transform is

Q2. Consider the differential equation $\frac{𝑑}{𝑦}+𝑎𝑦=𝑒-𝑏𝑡$ with the initial condition y(0) = 0. Then the Laplace transform Y(s) of the solution y(t) is
Solution:
Integrating factor =
Solution of y is,

Given that, y(0) = 0

Now, the solution becomes,

Apply Laplace transform

Q3. The Laplace transform of the differential equation y" + ay' + by = f(t). Assume that y(0) = 5, y'(0) = 10, Y(s) and F(s) are the Laplace transforms of y(t) and f(t) respectively
Solution: A second-order differential equation is represented as:
y" + ay' + by = f(t)
The Laplace transform of the above equation with the initial condition is:

Calculation
Given, y(0) = 5, y'(0) = 10

Q4. The inverse Laplace transform of  for t ≥ 0 is
Solution: Some pairs of Laplace transforms are given below.

Given:

By applying inverse Laplace transform
⇒ H(t) = e^-t + 2t e^-t

Q5. If the Laplace transform of function f(t) is given by , then f(0) is
Solution: Laplace Transforms:

Given:
The above equation through partial fractions can be written as:

Comparing co-efficients on both sides, we get
A + B = 1 and 2A + B = 3
We get, A = 2, B = -1

f(t) = 2e-t - e-2tSo,
f(0) = 2e-0 - e-0 = 2 - 1 = 1
∴ f(0) = 1
