Metrology and Inspection

It is the measurement science that includes various aspects like design, manufacture, testing, and applications of various measuring instruments, devices, and techniques. Thus, it facilitates the proper application of the scientific principles in the accurate dimensional control of manufactured components.

Interchangeability

This principle generally used for the mass production of identical parts within the suggested limits of sizes.

Types of Interchangeability
Depending on these factors three types of interchangeabilities can be obtained on the finished components:

  1. Full or Universal interchangeability
  2. Selective assembly
  3. Matched fits.

Limit System

  1. Nominal Size
    It is the size of a part by which it is designated as a matter of convenience.
    For example: when we say a 25 mm pipe we actually mean a pipe having a 25 mm diameter bore.
  2. Basic Size
    It is the theoretical size that is common to both the parts of a mating pair, usually a hole and a shaft.
  3. Actual Size
    It is the measure of the actual dimension a part has attained after it has been finished.
  4. Allowance
    (i) It is the difference between the upper limit of the shaft and the lower limit of the hole.

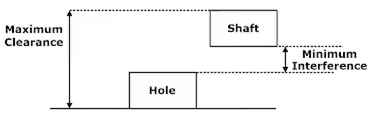

    (ii) In other words, it is the minimum clearance or maximum interference.
    (iii) It is the intentional difference between the basic dimensions of the mating parts. The allowance may be positive or negative.
  5. Tolerance
    (i) It is the difference between the lower limit and the upper limit of an assembly.
    (ii) It is the maximum permissible variation in a dimension.
    (iii) The tolerance may be unilateral or bilateral.

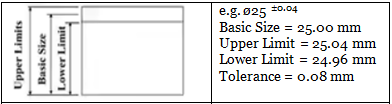

    (a) Unilateral Limits
    When variation in size is permitted on only one side , it is called unilateral limit system.
    Limits, Fits & Tolerance Notes | EduRev
    (b) Bilateral Limits

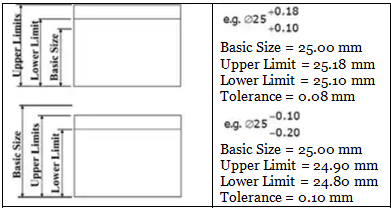

    When the variation in size is permitted on both sides, it is called bilateral limit system.
    Limits, Fits & Tolerance Notes | EduRev

Deviation

  1. Zero Line: It is the straight line that corresponds to the basic size and from this line, all the deviations are measured.
  2. Deviation: It is the algebraic difference of a any size and the corresponding basic size.
  3. Actual deviation: The algebraic difference of the basic size and actual size is referred as actual deviation.
  4. Upper deviation: The algebraic difference of the maximum size and the basic size is the upper deviation.
  5. Lower deviation: The algebraic difference of the minimum size and the basic size is referred as Lower deviation.
  6. Mean deviation: The arithmetical mean of lower and upper deviations is known as mean deviation.

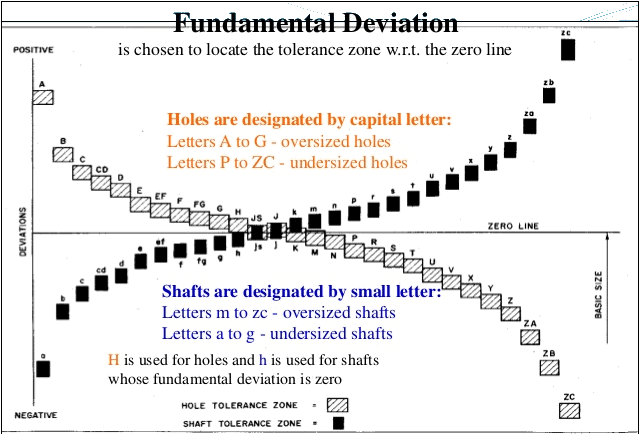

  7. Fundamental deviation: Either the upper or the lower deviation, which is the nearest one to zero line for either a hole or shaft is the fundamental deviation.

Fits

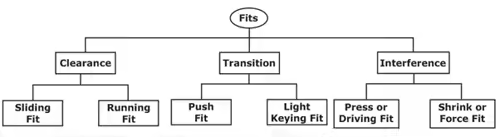

The condition which denotes the relationship between two mating parts with respect to the degree of clearance or interference appearing on the assembly is known as fit.
Limits, Fits & Tolerance Notes | EduRev

Hole Basis System

  1. Clearance Fit: When lower limit of hole is greater than upper limit of shaft.
    Limits, Fits & Tolerance Notes | EduRev
  2. Interference Fit: When lower limit of shaft is greater than upper limit of hole.
    Limits, Fits & Tolerance Notes | EduRev
  3. Transition Fit: When a part is selected randomly from hole lot and randomly from shaft lot, some of the assembly have clearance fit, some are having interference fit.
    Limits, Fits & Tolerance Notes | EduRev

Indian Standard System

The magnitudes of standard tolerances corresponding to grades IT01, IT0 and IT1 are as follows:
IT01 = 0.3 + 0.008D
IT0 = 0.5 + 0.012D
IT1 0.8 + 0.020D
Fundamental tolerance unit i,
Limits, Fits & Tolerance Notes | EduRev
D being the size or geometric mean diameter in mm. The two limits for calculating D are taken from below table.
Limits, Fits & Tolerance Notes | EduRev
Limits, Fits & Tolerance Notes | EduRev

Limit Gauges

Gauges are scaleless inspection tools that serves to check the dimension of the manufactured part.
The main forms of these gauges are:

  1. Plug Gauge

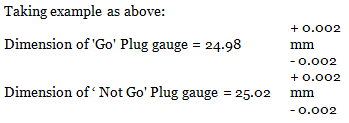

    The GO plug gauge has the size of the lower limit of the hole while the NO GO plug gauge corresponds to the high limit of the hole.
    Limits, Fits & Tolerance Notes | EduRev
    Plug gauge
  2. Ring Gauge
    It is used for testing the accuracy of the external features of a component such as the external diameter of a shaft.
    Snap, Gap or Ring gauge are used for gauging the shaft and male components.
    Limits, Fits & Tolerance Notes | EduRev
    Ring gauge
  3. Slip Gauges
    (i) They are in the form of rectangular prisms, very accurately made in varying lengths.
    (ii) They are made of hardened steel having flat parallel surfaces.
    Limits, Fits & Tolerance Notes | EduRev

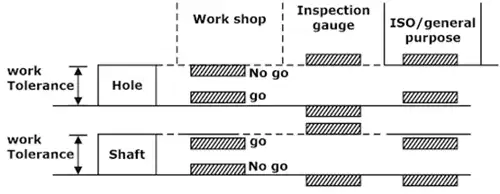

Gauge Design

  • Inspection Gauge
  • Workshop Gauge
  • Iso/General Purpose
    Limits, Fits & Tolerance Notes | EduRev

Unilateral System

  • Gauge tolerance zone is entirely under the work tolerance zone.
  • Work tolerance zone becomes lesser than the sum of the gauge tolerance.
    Limits, Fits & Tolerance Notes | EduRev
    Allocation of manufacturing tolerance

Bilateral System

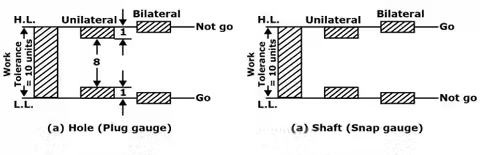

The NO-GO and GO gauge tolerance zones are bisected by the high and low limits of the work tolerance zone in this system.

Limits, Fits & Tolerance Notes | EduRev

Linear Measurements

  • Rules
  • Vernier
  • Micrometre
  • Height gauge
  • Bore gauge
  • Dial indicator

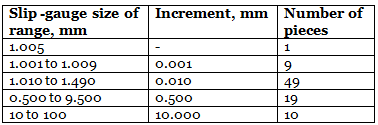

  • Slip gauges or gauge blocks

Angular Measurements

The angular measurement is sued to measure the angles of tapers and similar surfaces. The tools used for  angular measurement are as follows:

  • Bevel protractor
  • Sine bar
  1. Bevel Protractor
    (i) Is part of the machinist's combination square.
    (ii) The flat base of the protractor helps in setting it properly on the workpiece and then by rotation of the rule, it is possible to measure the angle. It generally has a discrimination of one degree.
  2. Sine Bar
    The distance between centres of the plugs is fixed for a particular sine bar and the same is always written over the bar.
    Limits, Fits & Tolerance Notes | EduRev
    Different forms of sine bar

Limits, Fits & Tolerance Notes | EduRevUse of sine barNow, if ‘θ’ be the angle subtended by the lower face of the sine bar with the datum surface (i.e., top of the surface plate), then:
Limits, Fits & Tolerance Notes | EduRev

Measurement Over Wires

Pitch diameter, DP = M + P
Limits, Fits & Tolerance Notes | EduRevThread measuring using micrometer

Three-Wire System

Pitch diameter(Dp):
Limits, Fits & Tolerance Notes | EduRev
Best wire diameter,
Limits, Fits & Tolerance Notes | EduRev

Optical Flat As Comparator

Using optical flat difference is the size of slip gauge can be calculated from a master reference. Suppose the difference ∆h has to be calculated:
From the similar triangles,
Limits, Fits & Tolerance Notes | EduRev

⇒ ∆h = (hλ/2)(G/L)

Surface Finish

It is a well-known fact that the actual surface after machining may look smooth but in reality it is not.
Most of the surfaces have some kind of roughness and inaccuracy up to a certain degree. The surface of a part seem a series of jagged peaks and valleys on magnification.

Lay direction

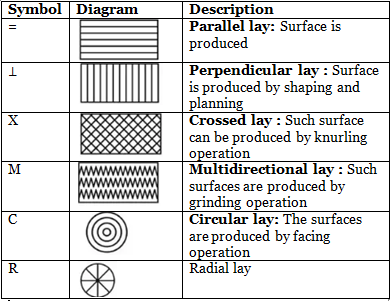

The predominant surface pattern produced on the workpiece by the tool marks show the lay directions. The different types of lay directions produced are shown below:

Limits, Fits & Tolerance Notes | EduRev

Evaluation of Surface Roughness

Arithmetical Average Or Center Line Average Value (CLA, RA):
Limits, Fits & Tolerance Notes | EduRevSurface roughness parameters

Root mean square value: The root-mean-square value of the deviation is used sometimes in place of the arithmetic average, Rrms. This in expression form is written as:
Limits, Fits & Tolerance Notes | EduRev

Peak To Valley Height (RT OR RMAX)

It is the difference between highest peak and deepest valley.
The approximate value of Ra is,
Ra = Hamx/4·
Maximum height of unevenness can also be expressed as,
Hmax = f2/8R
If complete tool signature is given, the peak to valley height can also be calculated as,
Limits, Fits & Tolerance Notes | EduRev
Where,
f = feed rate
Ψ = side cutting edge angle
Ψ1 = end cutting edge angle
