METHODS OF TRANSISTOR BIASING:

1) Fixed bias (base bias)

This form of biasing is also called base bias. In the fig 4.3 shown, the single power source (for example, a battery) is used for both collector and base of a transistor, although separate batteries can also be used.

In the given circuit,

V_cc = I_BR_B + V_be

Therefore,  I_B = (V_cc - V_be)/R_B

Since the equation is independent of current I_CR, dI_B//dI_CR =0  and the stability factor is given by the equation….. reduces to

                                                S=1+β

Since β is a large quantity, this is very poor biasing circuit. Therefore in practice the circuit is not used for biasing.

For a given transistor, V_be does not vary significantly during use. As V_CC is of fixed value, on selection of R_B, the base current I_B is fixed. Therefore this type is called fixed bias type of circuit.

Also for given circuit, V_CC = I_CR_C + V_ce

Therefore, V_ce = V_CC - I_CR_C

Merits:

• It is simple to shift the operating point anywhere in the active region by merely changing the base resistor (R_B).

• A very small number of components are required.

Demerits:

• The collector current does not remain constant with variation in temperature or power supply voltage. Therefore the operating point is unstable.

• Changes in V_be will change I_B and thus cause R_E to change. This in turn will alter the gain of the stage.

• When the transistor is replaced with another one, considerable change in the value of β can be expected. Due to this change the operating point will shift.

2) EMITTER-FEEDBACK BIAS:

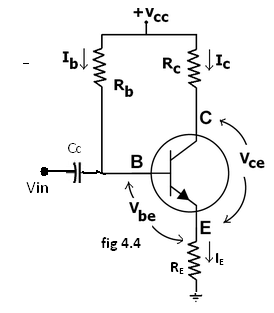

The emitter feedback bias circuit is shown in the fig 4.4. The fixed bias circuit is modified by attaching an external resistor to the emitter. This resistor introduces negative feedback that stabilizes the Q-point. From Kirchhoff's voltage law, the voltage across the base resistor is

V_RB = V_CC - I_ER_E - V_be.

From Ohm's law, the base current is

I_B = V_RB / R_B.

The way feedback controls the bias point is as follows. If V_be is held constant and temperature increases, emitter current increases. However, a larger I_E increases the emitter voltage V_E = I_ER_E, which in turn reduces the voltage V_RB across the base resistor. A lower base-resistor voltage drop reduces the base current, which results in less collector current because I_c = βI_B. Collector current and emitter current are related by I_C = α I_E with α ≈ 1, so increase in emitter current with temperature is opposed, and operating point is kept stable.

Similarly, if the transistor is replaced by another, there may be a change in I_C (corresponding to change in β-value, for example). By similar process as above, the change is neglected and operating point kept stable.

For the given circuit,

I_B = (V_CC - V_be)/(R_B + (β+1)R_E).

Merits:

The circuit has the tendency to stabilize operating point against changes in temperature and β-value.

Demerits:

• In this circuit, to keep I_C independent of β the following condition must be met:

which is approximately the case if ( β + 1 )R_E >> R_B.

• As β-value is fixed for a given transistor, this relation can be satisfied either by keeping R_E very large, or making R_B very low.

• If R_E is of large value, high V_CC is necessary. This increases cost as well as precautions necessary while handling.

• If R_B is low, a separate low voltage supply should be used in the base circuit. Using two supplies of different voltages is impractical.

• In addition to the above, R_E causes ac feedback which reduces the voltage gain of the amplifier.

 COLLECTOR TO BASE BIAS  OR COLLECTOR FEED-BACK BIAS

This configuration shown in fig 4.5 employs negative feedback to prevent thermal runaway and stabilize the operating point. In this form of biasing, the base resistor R_b is connected to the collector instead of connecting it to the DC source V_CC. So any thermal runaway will induce a voltage drop across the R_C resistor that will throttle the transistor's base current.

From Kirchhoff's voltage law, the voltage  across the base resistor R_b is

By the Ebers–Moll model, I_c = βI_b, and so

From Ohm's law, the base current  and so

Hence, the base current I_b is

If V_be is held constant and temperature increases, then the collector current I_c increases. However, a larger I_c causes the voltage drop across resistor R_c to increase, which in turn reduces the voltage across the base resistor R_b. A lower base-resistor voltage drop reduces the base current I_b, which results in less collector current I_c. Since, Because increase in collector current with temperature is opposed, the operating point is kept stable.

Merits:

• Circuit stabilizes the operating point against variations in temperature and β (i.e. replacement of transistor)

Demerits:

• In this circuit, to keep I_c independent of β, the following condition must be met:

which is the case when

• As β-value is fixed (and generally unknown) for a given transistor, this relation can be satisfied either by keeping R_c fairly large or making R_b very low.
• If R_c is large, a high V_cc is necessary, which increases cost as well as precautions necessary while handling.
• If R_b is low, the reverse bias of the collector–base region is small, which limits the range of collector voltage swing that leaves the transistor in active mode.
• The resistor R_b causes an AC feedback, reducing the voltage gain of the amplifier. This undesirable effect is a trade-off for greater Q-point stability.

Usage: The feedback also decreases the input impedance of the amplifier as seen from the base, which can be advantageous. Due to the gain reduction from feedback, this biasing form is used only when the trade-off for stability is warranted.

COLLECTOR –EMITTER FEEDBACK BIAS:

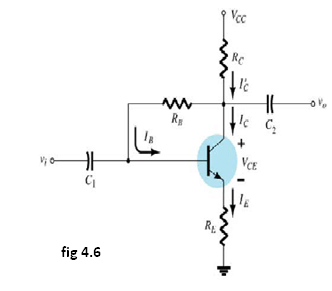

The above fig 4.6 shows the collector –emitter feedback bias circuit that can be obtained by applying both the collector feedback and emitter feedback. Here the collector feedback is provided by connecting a resistance R_B from the collector to the base and emitter feedback is provided by connecting an emitter R_E from emitter to ground. Both feed backs are used  to control collector current and base current I_B in the opposite direction to increase the stability as compared to the previous biasing circuits.

1. VOLTAGE DIVIDER BIAS OR SELF BIAS OR EMITTER BIAS:

The voltage divider as shown in the fig 4.7 is formed using external resistors R₁ and R₂. The voltage across R₂ forward biases the emitter junction. By proper selection of resistors R₁ and R₂, the operating point of the transistor can be made independent of β. In this circuit, the voltage divider holds the base voltage fixed independent of base current provided the divider current is large compared to the base current. However, even with a fixed base voltage, collector current varies with temperature (for example) so an emitter resistor is added to stabilize the Q-point, similar to the above circuits with emitter resistor.

In this circuit the base voltage is given by:

V_{B =} voltage across

  Provided

Also

For the given circuit,

Let the current in resistor R1 is I1 and this is divided into two parts – current through base and resistor R2. Since the base current is very small, so for all practical purposes it is assumed that I1 also flows through R2, so we have

Applying KVL in the circuit, we have

It is apparent from above expression that the collector current is independent of transistor parameters thus the stability is excellent. In all practical cases the value of V_be is quite small in comparison to the V₂, so it can be ignored in the above expression. Hence, the collector current is almost independent of the transistor parameters thus this arrangement provides excellent stability.

The resistor R_E provides stability to the circuit. If the current through the collector rises, the voltage across the resistor R_E also rises. This will cause V_CE to increase as the voltage V₂ is independent of collector current. This decreases the base current, thus collector current increases to its former value.

Stability factor for such circuit arrangement is given by:

If R_eq/R_E is very small as compared to 1, it can be ignored in the above expression thus we have

which is excellent since it is the smallest possible value for the stability. In actual practice the value of stability factor is around 8-10, since R_eq/R_E cannot be ignored as compared to 1.

Merits:

• Unlike above circuits, only one dc supply is necessary.
• Operating point is almost independent of β variation.
• Operating point stabilized against shift in temperature.

Demerits:

• In this circuit, to keep I_C independent of β the following condition must be met:

which is approximately the case if

where R₁ || R₂ denotes the equivalent resistance of R₁ and R₂ connected in parallel.

• As β-value is fixed for a given transistor, this relation can be satisfied either by keeping R_E fairly large, or making R₁||R₂ very low.
• If R_E is of large value, high V_CC is necessary. This increases cost as well as precautions necessary while handling.
• If R₁ || R₂ is low, either R₁ is low, or R₂ is low, or both are low. A low R₁ raises V_B closer to V_C, reducing the available swing in collector voltage, and limiting how large R_C can be made without driving the transistor out of active mode. A low R₂ lowers V_be, reducing the allowed collector current. Lowering both resistor values draws more current from the power supply and lowers the input resistance of the amplifier as seen from the base.
• AC as well as DC feedback is caused by R_E, which reduces the AC voltage gain of the amplifier.

Usage: The circuit's stability and merits as above make it widely used for linear circuits.

The various biasing circuits considered use some type of negative feedback to stabilize the operation point. Also, diodes, thermistors and sensistors can be used to compensate for variations in current.
