You have no doubt heard the word pressure being used in relation to blood (high or low blood pressure) and in relation to the weather (high- and low-pressure weather systems). These are only two of many examples of pressures in fluids. Pressure P is defined as
P=F/A
Where F is a force applied to an area A that is perpendicular to the force.
Pressure
Pressure is defined as the force divided by the area perpendicular to the force over which the force is applied, or P=F/A
A given force can have a significantly different effect depending on the area over which the force is exerted. The SI unit for pressure is the pascal, where
1Pa = 1N/m2.
In addition to the pascal, there are many other units for pressure that are in common use. In meteorology, atmospheric pressure is often described in units of millibar (mb), where
100 mb = 1105Pa.

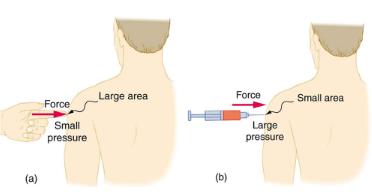

Pounds per square inchPressure - Fluid statics Physics Notes | EduRevis still sometimes used as a measure of tire pressure, and millimeters of mercury (mm Hg) is still often used in the measurement of blood pressure. Pressure is defined for all states of matter but is particularly important when discussing fluids.(a) While the person being poked with the finger might be irritated, the force has little lasting effect. (b) In contrast, the same force applied to an area the size of the sharp end of a needle is great enough to break the skin.
Pressure - Fluid statics Physics Notes | EduRev
Calculating Force Exerted by the Air: What Force Does a Pressure Exert?
An astronaut is working outside the International Space Station where the atmospheric pressure is essentially zero. The pressure gauge on her air tank reads 6.90106Pa. What force does the air inside the tank exert on the flat end of the cylindrical tank, a disk 0.150 m in diameter?
Strategy

We can find the force exerted from the definition of pressure given in P=F/A, provided we can find the area A acted upon.
Solution
By rearranging the definition of pressure to solve for force, we see that

F=P/A.
Here, the pressure P is given, as is the area of the end of the cylinder A , given by A = πr2. Thus,
Pressure - Fluid statics Physics Notes | EduRev
Discussion
Wow! No wonder the tank must be strong. Since we found F=PA, we see that the force exerted by a pressure is directly proportional to the area acted upon as well as the pressure itself.
The force exerted on the end of the tank is perpendicular to its inside surface. This direction is because the force is exerted by a static or stationary fluid. We have already seen that fluids cannot withstand shearing (sideways) forces; they cannot exert shearing forces, either. Fluid pressure has no direction, being a scalar quantity. The forces due to pressure have well-defined directions: they are always exerted perpendicular to any surface. Finally, note that pressure is exerted on all surfaces. Swimmers, as well as the tire, feel pressure on all sides.
Pressure inside this tire exerts forces perpendicular to all surfaces it contacts. The arrows give representative directions and magnitudes of the forces exerted at various points. Note that static fluids do not exert shearing forces.
Pressure - Fluid statics Physics Notes | EduRev

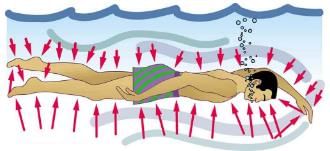

Pressure is exerted on all sides of this swimmer, since the water would flow into the space he occupies if he were not there. The arrows represent the directions and magnitudes of the forces exerted at various points on the swimmer. Note that the forces are larger underneath, due to greater depth, giving a net upward or buoyant force that is balanced by the weight of the swimmer.
Pressure - Fluid statics Physics Notes | EduRev
Section Summary
1. Pressure is the force per unit perpendicular area over which the force is applied. In equation form, pressure is defined as P = F/A
2. The SI unit of pressure is pascal and 1Pa = 1 N/m2
Conceptual Questions
How is pressure related to the sharpness of a knife and its ability to cut?
Why does a dull hypodermic needle hurt more than a sharp one?
The outward force on one end of an air tank was calculated. How is this force balanced? (The tank does not accelerate, so the force must be balanced.)
Why is force exerted by static fluids always perpendicular to a surface?
In a remote location near the North Pole, an iceberg floats in a lake. Next to the lake (assume it is not frozen) sits a comparably sized glacier sitting on land. If both chunks of ice should melt due to rising global temperatures (and the melted ice all goes into the lake), which ice chunk would give the greatest increase in the level of the lake water, if any?
How do jogging on soft ground and wearing padded shoes reduce the pressures to which the feet and legs are subjected?
Toe dancing (as in ballet) is much harder on toes than normal dancing or walking. Explain in terms of pressure.
How do you convert pressure units like millimeters of mercury, centimeters of water, and inches of mercury into units like newtons per meter squared without resorting to a table of pressure conversion factors?
Problems & Exercises
As a woman walks, her entire weight is momentarily placed on one heel of her high-heeled shoes. Calculate the pressure exerted on the floor by the heel if it has an area of Pressure - Fluid statics Physics Notes | EduRev and the woman’s mass is 55.0 kg. Express the pressure in Pa. (In the early days of commercial flight, women were not allowed to wear high-heeled shoes because aircraft floors were too thin to withstand such large pressures.)
Pressure - Fluid statics Physics Notes | EduRev; or Pressure - Fluid statics Physics Notes | EduRev
The pressure exerted by a phonograph needle on a record is surprisingly large. If the equivalent of 1.00 g is supported by a needle, the tip of which is a circle 0.200 mm in radius, what pressure is exerted on the record in Pressure - Fluid statics Physics Notes | EduRev?
Nail tips exert tremendous pressures when they are hit by hammers because they exert a large force over a small area. What force must be exerted on a nail with a circular tip of 1.00 mm diameter to create a pressure of Pressure - Fluid statics Physics Notes | EduRev(This high pressure is possible because the hammer striking the nail is brought to rest in such a short distance.)
Pressure - Fluid statics Physics Notes | EduRev
