Probability & Venn Diagrams

• Venn diagrams illustrate two (or more) characteristics of a situation, highlighting areas of overlap.
• For instance, in a sixth form, students can study biology or chemistry, and there might be students studying both subjects.

What might I be asked to do with a Venn diagram?

• You may be asked to draw or interpret a Venn diagram.
• The rectangle (box) in a Venn diagram is essential; it represents all possible outcomes.
• The letters calligraphic E, ξ, U, or S inside or near the box indicate "the set of all possible outcomes."
• AND and OR are crucial terms in drawing and interpreting Venn diagrams.
• Familiarize yourself with the symbols ∩ (intersection) and ∪ (union).
  • ∩ means AND (intersection).
  • ∪ means OR (union).

How do I draw a Venn diagram?

• Commence with a "box" and overlapping "bubbles". Typically, 2-3 bubbles are used based on the characteristics involved.
  • Determine the number of bubbles required based on the characteristics.
  • Usually, 2-3 bubbles are adequate for most scenarios.
• Systematically analyze each piece of information to progressively fill in sections of the Venn diagram. Sometimes, information needs to be combined before inclusion in the diagram.
• Not all values may be explicitly provided; some might need to be deduced. This problem-solving is crucial for completing the Venn diagram accurately.
• Always consider the implications of AND and OR operations when interpreting data for the diagram.

How do I interpret a Venn diagram?

• Identify the parts of the Venn diagram needed to answer a question.
• Shading relevant parts of a Venn diagram can aid in understanding.
• Pay attention to probability notations like A' (not A) and symbols ∩ and ∪.

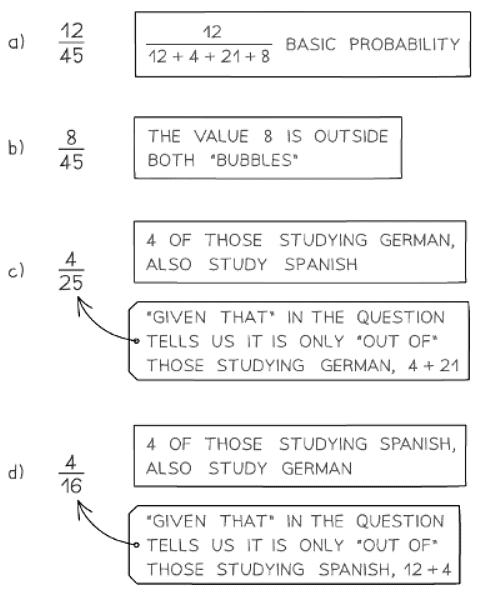

How do I use Venn diagrams with conditional probability?

• Conditional probabilities involve finding the likelihood of an event given that another event has occurred.
• For instance, to find the probability that a student studies German, given that the student also studies Spanish, we use specific calculations.

• Calculation of Conditional Probabilities

  • To determine the probability of an intersection, such as 'Spanish AND German,' divide this value by the sum of all probabilities in the 'Spanish' section of the diagram.
  • Conditional probabilities are sometimes represented using the 'straight bar' notation, denoted as 'the probability of A given B.'
  • For example, this could refer to the chance that a student studies German, provided that the student also studies Spanish.

• Interpreting Conditional Probability Notations

  • The notation 'the probability of A given B' signifies the probability of event A occurring given that event B has occurred.
  • For example, this notation could indicate the probability that a student studies German, considering that the student also studies Spanish.
