Introduction

Propagation delay is the time it takes for a signal—like a text message, video call, or data packet—to go from one place to another. Imagine sending a letter: this delay is how long it takes the letter to travel, not how long it takes to write it. Signals move fast, but not instantly, because they’re limited by the speed of light and slowed down by things like wires, air, or circuits. This small wait is super important when building systems—like phones or computers—that need to send info quickly and without mistakes.

What Affects Propagation Delay?

A bunch of things can change how long this delay is:

• Type of Path: Signals zip through fiber optic cables almost as fast as light, but they crawl through copper wires because electrons move slower.
• Parts in a Circuit: Tiny bits like transistors or resistors in a gadget add their own little delays that stack up.
• Extra Steps: Making a signal louder or cleaner (like boosting a weak radio signal) takes a few extra moments.
• Speed: How fast the signal moves depends on what it’s traveling through—air is different from metal or glass.
• Distance: The farther it goes, the longer it takes. A signal from your house to a friend across town takes longer than to your neighbor.

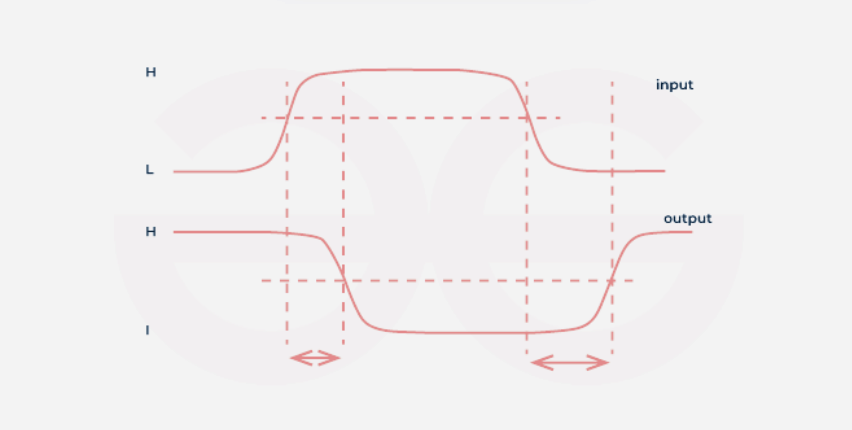

How Does Propagation Delay Work?

Propagation Delay = Distance ÷ Speed

If a signal has to travel far, the delay gets bigger. If it moves fast, the delay shrinks. For example, picture a signal going through a long cable—it’s slower than light because the cable’s material holds it back a bit. A 100-meter cable has less delay than a 1,000-meter one. The stuff the signal travels through—like copper, fiber, or even air—decides how fast it goes, so picking the right material is a big deal when setting up communication systems.

Features of Propagation Delay

• Waiting Time: This delay adds to how long you wait for data—like a video to load or a message to arrive.
• Data Speed: Faster internet helps send data quicker, but this delay still depends on how far the signal travels.
• Signal Weakening: As it moves, the signal can fade, like a voice getting quieter over distance, which might mess things up.

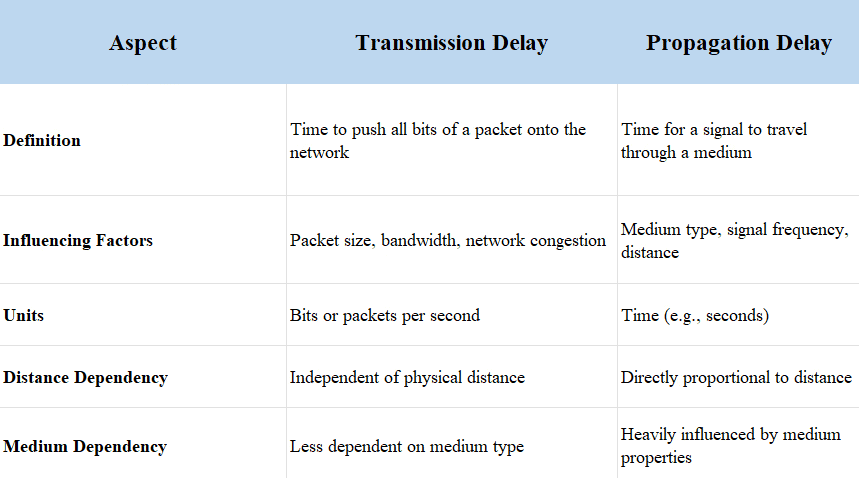

Transmission Delay vs. Propagation Delay

Advantages

• Keeps Signals Clear: A steady delay stops signals from getting mixed up too soon, keeping data clean.
• Works Near or Far: It’s solid whether you’re sending stuff next door or across the state.
• Easy to Predict: You can tell how long it’ll take, which is awesome for things like robots or timers that need exact timing.
• Helps Wireless Signals: In wireless setups, signals bouncing around can actually make things better if you handle it right.

​Disadvantages

• Signal Mess-Ups: If signals take too many paths or go too far, they can get scrambled and cause mistakes—like a garbled phone call.
• Slows Down Satellite Stuff: Sending signals to space takes longer because it’s so far, messing up live chats or games.
• Harder for Fast Systems: In super-speedy tech, even a tiny delay can throw things off, making it tough to keep everything in sync.
• Costs More to Fix: Long delays might mean spending extra on better cables or equipment to keep things running smooth.

How to Measure Propagation Delay

• Pulse Test: Send a quick signal and time how long it takes to bounce back—like yelling in a canyon and hearing the echo.
• Ping Check: On a computer, send a “hi” to another device and see how long the “hi back” takes, then cut that time in half.
• Gadget Watch: Use a tool (like an oscilloscope) to see how long a signal takes to go through a circuit, from start to finish.

These methods help you see if the delay is too much or just fine.

How to Reduce It

• Better Paths: Use fast stuff like fiber optic cables instead of slow copper wires.
• Signal Boosters: Add helpers along the way to keep the signal strong, like little cheerleaders.
• Shorter Routes: Make the signal go straight instead of zigzagging around.
• Smart Fixes: Save data close by or guess what’s next so the delay doesn’t feel so bad.

Example Problem

Question: A sender and receiver are 500 kilometers apart, and the signal moves at 200,000 kilometers per second. How long is the delay?

Answer:
Propagation Delay = Distance ÷ Speed
= 500 km ÷ 200,000 km/s
= 0.0025 seconds (or 2.5 milliseconds)

It’s quick, but even this little wait can matter in fast systems.

Conclusion

Propagation delay is a big piece of how signals move, affecting everything from your phone to satellites. Knowing what slows it down—like distance or the material it goes through—helps us fix problems and make tech work better. It’s different from transmission delay (which is about sending data), but both are important. With ways to measure and shrink it, propagation delay is like a hidden helper keeping our connected world on track.
