CHEMICAL BOND
Chemical bond is the attractive force which holds various constituents together in a molecule.
There are three types of chemical bonds: Ionic Bond, Covalent Bond, Co-ordinate Bond.
 NEET Notes | EduRevOctet Rule:
Atoms form chemical bonds in order to complete their octet i.e. eight electrons in their valence shell.

Lewis Structures:

  • Pair of bonded electrons is by means of a ‘dash’ (-) usually called a ‘bond’.
  • Lone pairs or ‘non-bonded’ electrons are represented by ‘dots’.
  • Electrons present in the last shell of atoms are called valence electrons.         NEET Notes | EduRev





Exceptions to the Octet Rule:

  • Species with odd number of electrons: NO, NO2
  • Incomplete octet for the central atom:  LiCl, BeH2 and BCl3
  • Expanded octet for the central atom: PF5, SFand H2SO4

Formal Charge:

  • Formal charge is the difference between the number of valence electrons in an isolated atom and number of electrons assigned to that atoms in Lewis structure.
  • Formal charge = [Total number of valence electrons in the free atom ) - (Total number of lone pairs of electrons) -1/2(Total number of shared electrons i.e. bonding electrons)]

Resonance:

  • For molecules and ions showing resonance it is not possible to draw a single Lewis structure.
  • All the properties of such species can only be explained by two or more Lewis structures. Example: Resonance of O3

 NEET Notes | EduRevA and B are resonating or canonical structures and C is the resonance hybrid
Some other examples
(i) CO32– ion
 NEET Notes | EduRev(ii) Carbon-oxygen bond lengths in carboxylate ion are equal due to resonance.
 NEET Notes | EduRev(iii) Benzene
 NEET Notes | EduRev(iv) Vinyl Chloride
 NEET Notes | EduRev
IONIC BONDING
Formation of Ionic Bond:

  • Formation of ionic bond takes place between a metal and a non-metal by transfer of electron.
  • Steps involved in formation of an ionic bond:

STEPS

(i) Formation of gaseous cations

  • Equation - A(g) + I.E. → A+ (g) + e
  • Energy involved - Ionization Energy

(ii) Formation of gaseous anions

  • Equation - X(g) + e → X- (g) + E.A
  • Energy involved - Electron Affinity

(iii) Packing of ions of opposite charges to form ionic solids

  • Equation - A+ (g) + X- (g) →AX (s) +Energy
  • Energy involved - Lattice energy

Conditions required of formation of ionic bonds:

  • Low I.E of cation.
  • High E.A of anion.
  • High lattice energy.

Covalent Bonding:

  • Covalent bond is formed between two non-metals by sharing of electrons.
  • Electron pairs which participate in bonding are called bond pairs.
  • Electron pairs which do not participate in bonding are called lone pairs.
  • There could be single, double or triple covalent bonds between two elements depending on the number of electrons being shared.  NEET Notes | EduRev

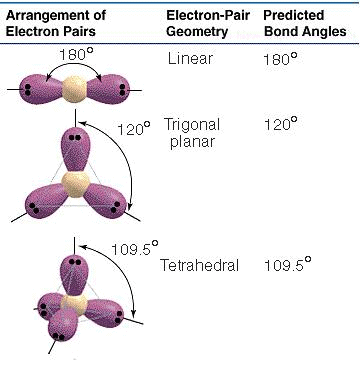

VSEPR (Valence Shell Electron Pair Repulsion) Theory:

  • The shape of the molecule is determined by repulsions between all of the electron pairs present in the valence shell.
  • Order of the repulsion: Lone pair↔ Lone pair > Lone pair↔ Bond pair > Bond pair↔ Bond pair.
  • Repulsion among the bond pairs is directly proportional to the bond order and electronegativity difference between the central atom and the other atoms.

Determination of shape of molecules using VSEPR theory:

  • Calculate X using following method.

X = (No. of valence electrons of central atom) + (No. of other atoms) + (Negative charge on the molecule) – (Positive charge on the molecule)

Use the following chart to find the shape.

X

Shape

Examples

2

Linear

HgCl2/BeCl2

3

Triangular planar

BF3

3

Angular

SnCl2, NO2

4

Tetrahedral

CH4, BF4-

4

Trigonal Pyramidal

NH3, PCl3

4

Angular

H2O

5

Trigonal bipyramidal

PCl5, PF5

5

Irregular tetrahedral

SF4, IF4+

5

T-shaped

CIF3, BrF3

5

Linear

XeF2, I3-

6

Octahedral

SF6, PF6-

6

Square Pyramidal

IF5

6

Square planar

XeF4, ICI4


Fajan's Rule:
It accounts for the covalent character in ionic compounds.
Covalency is favoured by

  • Smaller cation
  • Larger anion and
  • Large charge on either ion.

Dipole Moment:

  • Dipole moment of any bond is the product of the net positive or negative charge and distance between the two charged ends, i.e., the bond length. i.e.
    Dipole moment (m) = electronic charge (e) × Distance (d) Dipole moment is measured in debye unit (D);
  • Dipole moment of a molecule is vector addition of all the individual bond moments.

Percentage Ionic Character:
The percent ionic character =
 NEET Notes | EduRev

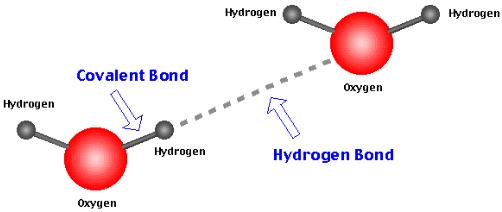

Hydrogen Bonding:

  • Hydrogen bond is an electrostatic attractive force between covalently bonded hydrogen atom of one molecule or a part of a molecule and an electronegative atom (such as F,O, N) of another molecule (Inter-molecular hydrogen bonding)  or another part of the same molecule (intramolecular hydrogen bonding).
  • Intermolecular hydrogen bonding increases boiling point of the compound and also its water solubility
  • Intramolecular hydrogen bonding decreases the boiling point of the compound and also its water solubility


 NEET Notes | EduRev

Valence bond theory (VBT):

  • A covalent bond is formed by overlapping of valence shell atomic orbital of the two atoms having unpaired electron.
  • There is maximum electron density between the bonding atoms.
  • Greater the overlapping of atomic orbital higher is the strength of chemical bond.
  • The bond formed by lateral overlap of two atomic orbitals having maximum overlapping on both sides of the line connecting the centres of the atoms is called a π-bond. A π-bond possess a plane of symmetry, often referred to as the nodal plane.

 NEET Notes | EduRev

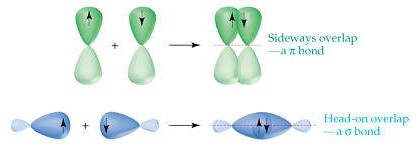

• σ-Bond : When covalent bond is formed by overlapping of atomic orbitals along the same axis it is called s - bond. Such type of bond is symmetrical about the line joining the two nuclei e.g.

(a) s-s overlapping
 NEET Notes | EduRev

(b) s-p overlapping

 NEET Notes | EduRev

(c) p-p overlapping

 NEET Notes | EduRevπ - Bond: This type of bond is formed by the sidewise or lateral overlapping of two half filled atomic orbitals.
 NEET Notes | EduRevThe strength of a bond depends upon the extent of overlapping of half-filled atomic orbitals. The extent of overlapping is between two atoms is always greater when there is end to end overlapping of orbitals than, when there is sidewise overlapping of oritals. Hence s-bond is always stronger than p-bond.
The average distance between the nuclei of the two bonded atoms in a molecule is called bond length and the energy required to break one mole of bonds of particular type in gaseous state is called Bond energy or Bond strength. The same amount of energy is released information of one mol of particular bond.

Hybridization:

  • The mixing of dissimilar orbital of similar energies to form new set of hybrid orbital.
  • Number of hybrid orbital formed is equal to the no. of orbital taking part in hybridization.
  • Depending upon the different combination of s and p orbitals, these types of hybridization are known.

sp3 hybridization: In this case, one s and three p orbitals hybridise to form four sphybrid orbitals. These four sphybrid orbitals are oriented in a tetrahedral arrangement.
 NEET Notes | EduRevsp2 hybridization: In this case one s and two p orbitals mix together to form three sphybrid orbitals and are oriented in a trigonal planar geometry.
 NEET Notes | EduRevThe remaining p orbital if required form side ways overlapping with the other unhybridized p orbital of other C atom and leads to formation of p2C = CH2 bond as in H
sp hybridization: In this case, one s and one p orbital mix together to form two sp hybrid orbitals and are oriented in a linear shape.
 NEET Notes | EduRevThe remaining two unhybridised p orbitals overlap with another unhybridised p orbital leading to the formation of triple bond as in HC≡CH.

HYBRIDIZATION
(i) sp

  • Total Number of orbitals taking part - 2 (one s and one p)
  • Shape - Linear
  • Examples -
     NEET Notes | EduRev

(ii) sp2

  • Total Number of orbitals taking part - 3 (one s and two p)
  • Shape - Trigonal planar
  • Examples -
     NEET Notes | EduRev

(iii) sp3

  • Total Number of orbitals taking part - 4 (one s and three p)
  • Shape - Tetrahedral
  • Examples -
     NEET Notes | EduRev

(iv) sp3d

  • Total Number of orbitals taking part - 5 (one s ,three p and one d)
  • Shape - Trigonal bipyramidal
  • Examples -
      NEET Notes | EduRev

(v) sp3d2

  • Total Number of orbitals taking part - 6 (one s ,three p and two d)
  • Shape - Octahedral
  • Examples -
      NEET Notes | EduRev


BOND CHARACTERISTICS
Bond Length:

  • The distance between the nuclei of two atoms bonded together is called bond length.
  • It is expressed in angstrom (Å) units or picometer (pm).
  • Bond length in ionic compound = rc+ + ra
  • Bond length in covalent compound (AB) = rA + rB

 NEET Notes | EduRev

Important features of bond length

  • The bond length of the homonuclear diatomic molecules are twice the covalent radii.
  • The lengths of double bonds are less than the lengths of single bonds between the same two atoms, and triple bonds are even shorter than double bonds.Single bond > Double bond > Triple bond (decreasing bond length)
  • Bond length decreases with increase in s-character since s-orbital is smaller than a p – orbital.
    sp3 C – H = 1.112Å:                    sp2 C – H = 1.103Å;                   sp C – H = 1.08Å;
    (25% s-character as in alkanes) (33.3% s-character as in alkenes) (50% s-character as in alkynes)
  • Bond length of polar bond is smaller than the theoretical non-polar bond length.

Bond Angel:
Bond angel is the angle between two adjacent bonds at an atom in a molecule made up of three or more atoms.
 NEET Notes | EduRev

Bond angles mainly depend on the following three factors:

  • Hybridization: Bond angle depends on the state of hybridization of the central atom

Hybridization

Bond angle

 Example

sp3

109o28'

CH4

sp2

120o

BCl3

sp

180o

BeCl2


Generally s- character increase in the hybrid bond, the bond angle increases.

  • Lone pair repulsion: Bond angle is affected by the presence of lone pair of electrons at the central atom. A lone pair of electrons at the central atom always tries to repel the shared pair (bonded pair) of electrons. Due to this, the bonds are displaced slightly inside resulting in a decrease of bond angle.
  • Electronegativity: If the electronegativity of the central atom decreases, bond angle decreases.

Bond Energy or Bond Strength:

  • The amount of energy required to break a bond in molecule is called bond energy.
  • Bond energy of sigma bond is more than that of a π-bond.
  • Bond energy increases with decrease in bond length
    C ≡ C > C = C > C – C (decreasing bond length)
    s < p < sp < sp2 < sp3
  • The bond energy decreases with increase in number of lone pairs on the bonded atom.

Molecular Orbital Theory:

  • Molecular orbital are formed by  linear combination of atomic orbital (LCAO)
  • Atomic orbital of all the atoms are assumed to interfere with each other in the form of waves.
  • Bonding  molecular orbital are formed by constructive interference of atomic orbital.
  • Anti-bonding orbital are formed by destructive interference of atomic orbital.
  • Anti-bonding MO is of higher energy than Bonding MO.
  • In simple homonuclear diatomic molecules the order of MO's based on increasing energy is
     NEET Notes | EduRev
  • For molecules including O2 and above, the order is
     NEET Notes | EduRev
  • Bond Order: Bond-order = 1/2 (no. of bonding electrons - No. of anti-bonding electrons).


APPLICATION OF MOT TO HOMONUCLEAR DIATOMIC MOLECULES

Species

(i) H2+

  • Total number of electrons - 1
  • Electronic configuration - s 1s1
  • Bond order - (1-0)/2 =1/2
  • Magnetic Behaviour - Paramagnetic

(ii) H2

  • Total number of electrons - 2
  • Electronic configuration - s 1s2
  • Bond order - (2-0)/2 = 1
  • Magnetic Behaviour - Diamagnetic

(iii) He2+

  • Total number of electrons - 3
  • Electronic configuration - s1s2, s* 1s1
  • Bond order - (2-1)/2 = 1/2
  • Magnetic Behaviour - Paramagnetic

(iv) He2

  • Total number of electrons - 4
  • Electronic configuration - s1s2, s* 1s2
  • Bond order - (2-2)/2 = 0
  • Magnetic Behaviour - Molecule does not exist

(v) O2

  • Total number of electrons - 16
  • Electronic configuration - s1s2, s* 1s2, s2s2 , s*2s2, s2p2x , p2py2  , p2pz2, p*2py1  , p2pz1
  • Bond order - (10-6)/2 =2
  • Magnetic Behaviour - Paramagnetic


APPLICATION OF MOT TO HETERONUCLEAR DIATOMIC MOLECULES

Molecules/Ions

(i) CO

  • Total No. of electrons - 14
  • Magnetic behaviour - Diamagnetic

(ii) NO

  • Total No. of electrons - 15
  • Magnetic behaviour - Paramagnetic

(iii) NO+

  • Total No. of electrons - 14
  • Magnetic behaviour - Diamagnetic

(iv) NO

  • Total No. of electrons - 16
  • Magnetic behaviour - Diamagnetic

(v) CN

  • Total No. of electrons - 13
  • Magnetic behaviour - Paramagnetic

(vi) CN

  • Total No. of electrons - 14
  • Magnetic behaviour - Diamagnetic
