Introduction

In digital circuit design, setup time and hold time are critical parameters that ensure the correct operation of flip-flops, which are fundamental building blocks of sequential circuits. These timing constraints define how long the data input must be stable before and after the clock edge to prevent errors. Violations of setup and hold time can cause metastability, leading to unpredictable behavior in digital systems. Understanding these concepts is essential for designing reliable and high-performance circuits.

What is Setup Time?

Setup time is the minimum period before the clock's active edge during which the data input must remain stable to ensure the flip-flop correctly captures the value. If the data changes too close to the clock edge, a setup violation occurs, potentially leading to incorrect data being latched. Designers must ensure that data remains steady for at least the required setup time before the clock transition to avoid errors.

What is Hold Time?

Why Do We Need Setup and Hold Time?

To get why setup and hold times matter, let’s look at how a flip-flop works. Flip-flops are built from basic parts like inverters and transmission gates.

Inverters: These flip the input signal (e.g., turning a 1 into a 0). Their behavior is shown in a voltage transfer curve.

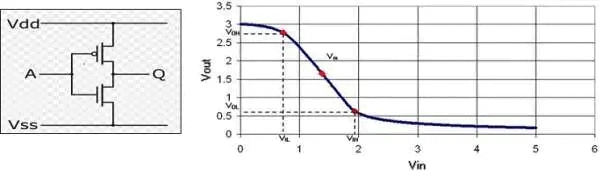

 Figure 1. A basic building block of a flip-flop, an inverter features a characteristic voltage transfer curve.

Transmission Gates: Called "Tx" here, a transmission gate is made of an nMOS and pMOS connected in parallel, with opposite signals controlling them. It acts like a switch: when both transistors are on, it lets signals (1 or 0) pass through easily with low resistance (around 100 Ω or less). When off, it blocks the signal with high resistance (over 5 MΩ). This setup keeps the signal strong and avoids unwanted voltage drops.

Figure 2. A transmission gate, shown here with a truth table, is a parallel connection of nMOS and pMOS with complementary inputs to both MOSFETs.

Inside a D flip-flop, you’ll find two inverters hooked up back-to-back, forming a “latching circuit” that holds onto a logic value. There might be an extra inverter right after the D input, depending on the design. These parts need time to work properly—data has to settle before the clock ticks (setup time) and stay put after (hold time) to make sure the flip-flop locks in the right value.

Normal Operation of a Flip-Flop

To understand how a flip-flop works normally (Figure 4), let’s break it down:

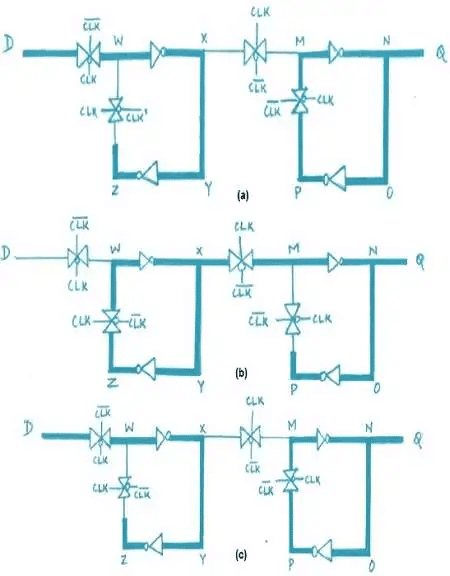

• CLK Low (Figure 4a): When D = 0 and the clock (CLK) is LOW, the input follows the path D-W-X-Y-Z, and Z ends up as 1. For now, we’re ignoring the right-hand side (RHS) latching circuit.

Figure 4. The workings of a D flip-flop whereby the darkened line shows the conducting path.

• CLK High (Figure 4b): When CLK goes HIGH, the master latch (left-hand side, LHS) activates. It locks in a 1 at node Z, which is then transferred to the slave latch, making Q = 0 (correct for D = 0). The output changes at the positive edge of CLK, confirming this is a positive edge-triggered flip-flop.
• CLK Low Again (Figure 4c): When CLK drops LOW, the slave latch (right-hand side, RHS) activates, holding the output Q steady. If D changes while CLK is LOW, it updates node Z in the master latch, but the output Q only updates at the next positive CLK edge.
• In short, changes in D show up at Z when CLK is LOW, but they only reach the output (Q) when CLK goes HIGH.

Reason for Setup Time

Setup time is the time it takes data D to travel to node Z and stabilize before the clock edge (Figure 5).

Figure 5. The time it takes data D to reach node Z is called the setup time.

Here’s how it works: When D = 0 and CLK is LOW, D moves through the path D-W-X-Y-Z. Along the way, W = 1, Y = 0, and Z = 1. This takes some time—the setup time. When CLK goes HIGH, Transmission gate T1, controlled by CLK BAR, turns OFF, and T2, controlled by CLK, turns ON, activating the LHS latching circuit. It grabs whatever value is stable at Z and sets the output (Q = 0, Q’ = 1). For this to work right, Z needs a steady value before CLK rises. That’s why setup time matters—data sent too late won’t settle at Z in time.

Reason for Hold Time

Hold time is about keeping data stable after the clock edge (Figure 6).

Figure 6. The darkened line shows the conducting path for hold time.

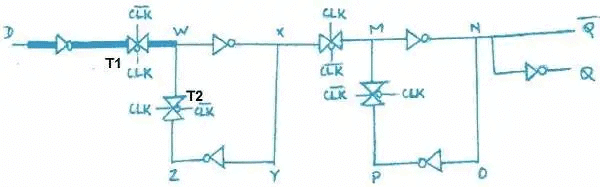

Hold time is measured from the active CLK edge. In Figure 6, data D passes through an inverter or other logic before reaching transmission gate T1. The CLK and CLK BAR signals, which control T1 and T2, arrive after a slight delay (due to buffers or inverters). This delay means T1 takes a moment to turn OFF when CLK goes HIGH. D must stay stable during this transition to ensure the value at node Z is correctly latched by the master latch.

That’s the reason for hold time—it ensures the input doesn’t change too soon.

Hold time can be positive, zero, or even negative, depending on delays in the circuit. Before T1, there might be combinational logic (like for set-reset or scan-enable features), adding a delay called Tinitial. The time T1 takes to switch after CLK and CLK BAR arrive is called TTX (Figure 7).

Figure 7. The relationship between Tinitial and TTX establishes various types of hold time.

The balance between Tinitial and TTX decides the hold time type (Figure 8).

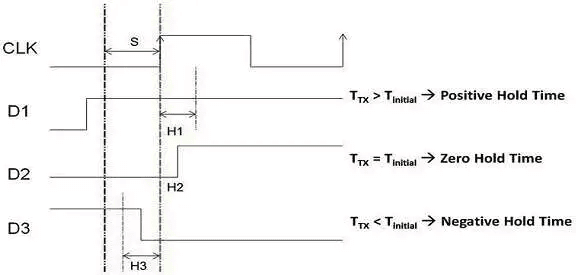

Figure 8. Relationships that establish positive, zero, and negative hold time. Adjusting the TTX changes the hold margin.

In Figure 8:

• CLK is the clock with a rising active edge.
• D1, D2, D3 are different data signals.
• S is the setup margin.
• H1, H2, H3 are hold margins for each data signal.
• Tinitial is the delay from logic before T1.
• TTX is the switching time of T1.

Since hold time is set relative to the CLK edge, tweaking TTX shifts the hold margin, making it positive (data must stay longer), zero (no extra wait), or negative (data can change shortly after the edge, before TTX completes).

Conclusion

Setup time and hold time are key to ensuring that flip-flops function correctly in digital circuits. Setup time guarantees that data is available in time for proper latching, while hold time ensures that data remains stable long enough after the clock edge to be correctly registered. Violating these constraints can lead to incorrect data capture and unreliable system performance. By carefully analyzing and optimizing these parameters, designers can build robust and efficient digital systems.
