Introduction

As an example of the use of the Lagrangian, we will examine the problem of small oscillations about a stable equilibrium point. The description of motion about a stable equilibrium is one of the most important problems in physics. This is true for both classical and quantum mechanics.
Although there are other means of solving this problem, the Lagrangian method results in equations of motion that emphasizes symmetries of the system.

1 Formulation of the Problem

We assume that the forces acting on the system are conservative in which the potential depends only on the spatial coordinates; it is independent of the time and velocity. In addition, the transformations de¯ning the generalized coordinates are assume to not depend on the time explicitly.
Hence, the constraints are time independent. For the system to be in equilibrium, the generalized force must be zero

           (1)

where q_0i is the equilibrium point. Furthermore, the equilibrium point is stable if the second derivative of potential is positive; the potential is concave up at the equilibrium point.
We will be interested in small displacement about the equilibrium. Therefore, we will write the generalized coordinates in the following form q_i = q_0i + η_i where  is the displacement from the equilibrium point. Assuming the displacements are small, the potential can be expanded about q0i as follows

.

The first term in the expansion is a constant, since the potential is only defined to a constant, we can ignore this term. The second term is zero, since we are expanding about the minimum.
Therefore, the potential in this approximation is

        (3)

where we assume that the displacements are small such that higher order terms are negligible. The V_ij in this equation are the equivalent spring constant for the one-dimensional problem. In addition, we note that the V_ij are symmetric as can be seen from the definition.
The kinetic energy, as shown earlier, can be written as the sum of three terms

where

Since we assume that the transformations are independent of time, only the M_ij terms are nonzero; this is a natural system. In addition, since M_ij in general is a function of the coordinates, we expand the M_ij about the equilibrium point, since we are assuming small displacements about it

(6)

We keep only the lowest order term in this expansion, since the kinetic energy is already quadratic in the coordinates (velocities). Thus, the kinetic energy becomes
  (7)

where the relation q_i = q_0i +η_i is used to derive   and T_ij denotes M_ij(q₀). Note that the T_ij
terms are symmetric.

The Lagrangian for small oscillations about an equilibrium point is
 (8)

where T_ij describes the inertia of the system, and V_ij the stiffness¹. In Cartesian coordinates, and many other case, the kinetic energy term can be reduced to  the very familiar form of the kinetic energy. To calculate the equations of motion, we apply the Euler-Lagrange equations to the Lagrangian

 (9)

Keep in mind that the M_ij and V_ij are independent of the coordinates and time, and they are symmetric.

1.2 The Eigenvalues and Eigenvectors

The solutions to the equations of motion are of the form

      (10)

where C is an overall scale factor, a_i the relative amplitude of the ith term, and the second equation comes from substituting the solutions into the equations of motion. Notice that this is a matrix equation, representing matrix multiplication between and n×n matrix and an n-dimensional column vector. This set of equations can be solved for the allowed values of ω by setting the determinant of the coefficients of ai equal to zero²

 (11)

 where we have written the equation explicitly in matrix form. Through the manipulations we have performed, we have arrived at an eigenvalue problem

          (12)

where V_a is shown to be a multiple of T_a. First we will show that the eigenvalues (λ) are real and positive, and the eigenvectors (a) are orthogonal. Start by taking the complex conjugate of Eq. 12
 (13)

where we have used the fact that V and T are real and symmetric, and in addition, j corresponds to the jth eigenvalue and eigenvector. Next, multiply Eq. 13 by a_i from the right

 (14)

For the ith eigenvalue and eigenvector, multiply Eq. 12 from the left by

 (15)

Next, subtract the two equations
       (16)

If we assume that the λ_i are distinct and we consider the case . This states that the amplitudes are orthogonal to each other with respect to T. Let’s now consider the case where i = j. First notice that  implies that the matrix product is real. Next, write , where we have written a_i in terms of its real and imaginary components. Then, we get

 (17)

Since the left hand side of this expression has already been shown to be real, the imaginary term is zero, thus

 (18)

Starting with Eq. 7, we see that in matrix notation the kinetic energy is
  (19)

Since η ∝ a and the phase of the amplitude is arbitrary, Eq. 18 represents twice the kinetic energy. For a real velocity, the kinetic energy must be positive. Therefore, the term  must be positive (we already showed it was real), therefore  is real.

 Since   is real, we can write a_i as
 (20)

where N is an overall normalization factor, and φ is a real phase. The two factors can be absorbed into C of Eq. 10 making the a_i real.

Starting with the eigenvalue equation (Eq. 12) and multiplying from the left by  , we can solve for the individual eigenvalues

   (21)

The denominator is proportional to the kinetic energy, thus is must be positive. The numerator is the potential energy, which must be positive for a stable equilibrium. Therefore, λ_i must be positive and the frequencies are therefore real. To remove the arbitrary normalization and phase from ai, we require . Since we have an equation for each degree of freedom, we can combine this relation with , and write a matrix A whose columns are the individual ai. This leads to the relation

        (22)

which is a congruence transformation that diagonalizes the matrix T. We take this further by noting that Eq. 12 can be written as

  (23)

where λ is a diagonal matrix composed of the eigenvalues. If we multiply from the left by A^T, we diagonalize V

   (24)

Therefore, the problem of small oscillation is reduced to solving the following matrix problem

   (25)

That is, we must find a transformation that diagonalizes the matrix T. In this form, the Lagrangian is written as

  (26)

1.3 Multiple Roots

Let’s assume that two of the eigenvalues are equal λ₁ = λ₂. From the formalism given above, we expect that one of the eigenvectors will be orthogonal to the remaining eigenvectors, but there is no guarantee that they will be orthogonal to each other; recall that we wish to create the matrix A, which must be orthogonal in order to diagonalize the T and V matrices. To do this, we can write one of the eigenvector as the sum of the two

 (27)

and apply the orthogonality relation

   (28)

This procedure can be generalized for n repeated roots (eigenvalues).

1.4 Example

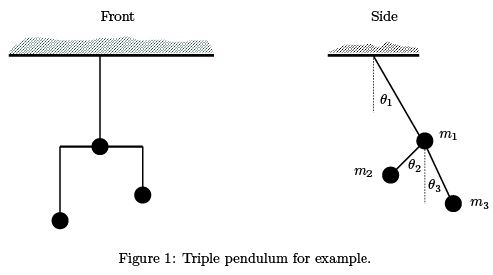

Let’s consider a triple pendulum as shown in Fig 1. We would like to determine the eigenfrequencies and eigenvectors (normal modes) of this oscillator for small oscillations. We start by writing the Lagrangian in rectangular coordinates

where all the coordinates are measured from a coordinate system fixed to the pivot of the top pendulum as shown in the figure. Next we convert to a set of coordinates given by the angular displacement from the equilibrium point. The coordinates of the top pendulum are transformed as follows

   (30)

The kinetic and potential energies for m1 are

     (31)

where the approximation comes from expanding the potential in a Taylor series

  (32)

Next, we consider the kinetic and potential energies associated with m₂. The transformation equations are

Applying the transformations to the m₂ terms, the kinetic and potential energies are

The kinetic and potential energies associated with m₃ are arrived at in a manner similar to m₂. These energies are

Combining the kinetic and potential energy terms together, the Lagrangian becomes

To determine the eigenvalues, we write the kinetic and potential energies in matrix form. The mass matrix for the kinetic energy is

and the stiffness matrix is

Next, we solve the eigenvalue equation

  (42)

The eigenvalues are given by setting the determinant of the coefficients of a equal to zero

Since the algebra becomes extremely complicated for arbitrary masses and lengths, we will take all the masses and length to be equal, in this case the determinant is

and the eigenfrequencies are
   (45)

Next, we calculate the motion of the normal modes. This is done by calculating the eigenvectors a for each eigenfrequency. We start with the the eigenfrequency ω² = g/ℓ

We follow the same procedure for the two remaining eigenfrequencies and find the eigenvalues to be

where

 (48)

Finally, repeat for the remaining eigenfrequency and we get

where

 (50)

What we have arrived at is the following description of the motion: The mode associated with the frequency  has the upper mass stationary and the lower masses oscillating with the same amplitude, but π radians out of phase. The frequency  corresponds to the two lower mass in phase and same amplitude, but π radians out of phase with the upper mass which has a smaller amplitude. The final mode corresponds to the two lower masses in phase with the upper mass, but the upper mass has a smaller amplitude.
