Volume Class 5 Notes Maths

What is Volume?

• Volume refers to the amount of space inside an object, like a box or a ball.
•  We measure volume in cubic units because it represents three dimensions: length, width, and height.
•  Flat objects, such as book pages or a blackboard, do not have volume.
•  Instead of volume, we measure the size of flat things using area.

Look at the following solid shapes:

Thus, we observe that solids have three dimensions—length, breadth and height.
For example:
  (i) Glass has space to fill water in it,
 (ii) The box has space to fill objects or items in it.
 (iii) The balloon has space to fill the air in it.

The space inside the solid is known as the volume of a solid.

The volume of a solid is the amount of space enclosed by it or the amount of space it takes up.

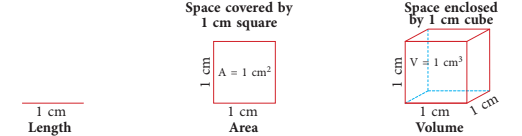

The other units used for measuring volume are cubic millimetres (mm³) and cubic metre (m³). The unit used for measuring volume depends on the size of the solid being measured.

Measuring Volume

• We say that a 1 cm cube is a unit cube and has a volume of 1 cubic centimetre (1 cu cm).
• We also write it as 1 cm³.
• To measure the volume of a solid region, we find out the number of unit cubes that make up the solid or fill the solid.
  Let us study the following example.

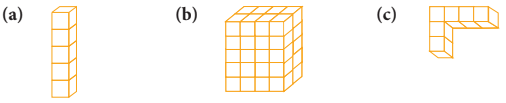

  Example 1: Find the volume of these solids by counting the number of cubes in
  each solid. The volume of each small cube is 1 cm³.

Sol: (a) There are 5 cubes in the given solid, so, volume = 5 cm³.
(b) 1st row = 8 cubes; 2nd row = 8 cubes;  3rd row = 8 cubes; 4th row = 8 cubes; 5th row = 8 cubes
∴ Volume = 8 cm³ + 8 cm³ + 8 cm³ + 8 cm³ + 8 cm³ = 40 cm³.
We can also say that there are 5 layers of cubes and each layer consists of 8 cubes. So, Volume = Number of layers × Number of cubes in each layer
V = (5 × 8) cm3 = 40 cm³.
(c) Cubes in horizontal row = 4 cubes Cubes in vertical row = 2 cubes
Volume = 4 cm³ x 2 cm³ = 8 cm³.

Volume of a Cuboid

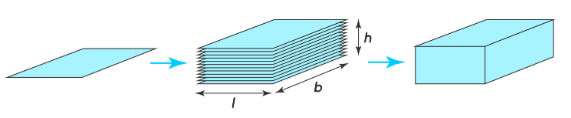

• A cuboid is a shape made by stacking rectangular sheets.
• It has length, width, and height.
• The volume of a cuboid is the amount of space it takes up inside.
• Volume is measured in cubic units, like cubic meters or cubic centimetres.
• A cuboid has 6 faces, 12 edges, and 8 corners (vertices).
• If you change the length, width, or height, you change the volume of the cuboid.

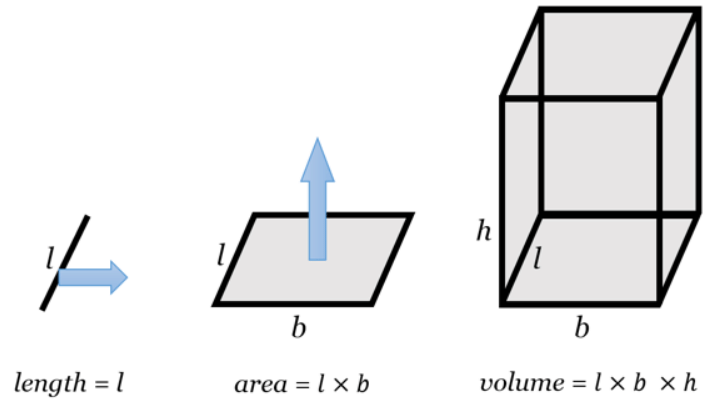

Formula for Volume of Cuboid

• To find the volume of a cuboid, we multiply the area of its base by its height.
• The area of the base is the length multiplied by the width.
• So, Volume = Length × Width × Height, which can be written as V = l × b × h.
• This means the volume of the cuboid is found by multiplying its length, width, and height together.

  Volume of Cuboid

Examples

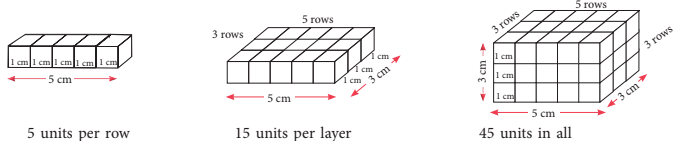

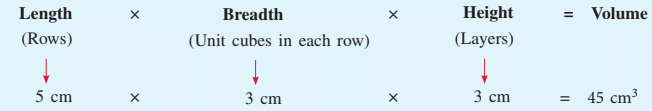

Example 1: See how a cuboid is built from 1-centimetre cubes and how we can find its volume.

Sol:

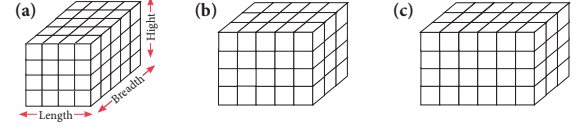

Example 2: The given cuboids are built from 1-centimetre cubes. Find the volume of each solid.

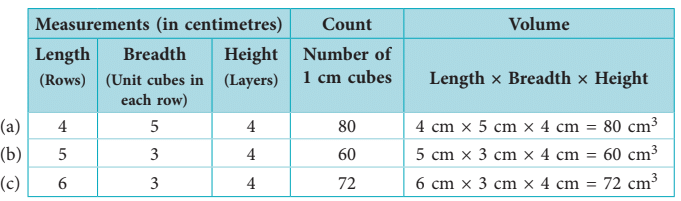

Sol: Let us study the table given below using these cuboids as shown.

Example 3: Find the volume of a cuboid whose length, breadth and height are 15 cm, 11 cm and 6 cm, respectively.

Sol: Length of the cuboid = 15 cm
Breadth of the cuboid = 11 cm
Height of the cuboid = 6 cm
Volume of the cuboid = length × breadth × height

Volume = 15× 11 × 6=990cm³

Volume of a Cube

• The volume of a cube is the total space inside it.
• A cube is a solid object with six square faces.
• All sides of a cube are the same length.
• A cube is also called a regular hexahedron.

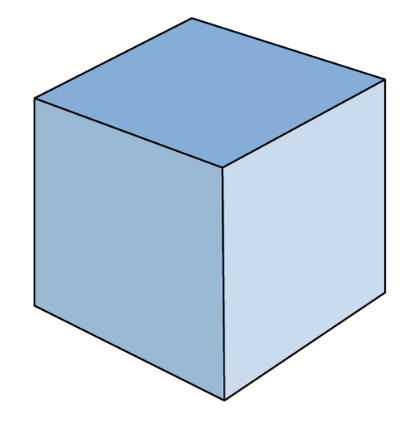

  Cube
• It's one of the five platonic solid shapes.
• Volume is measured in cubic units like cubic meters or cubic inches.

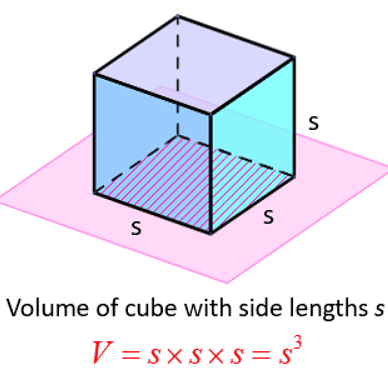

Formula for Volume of Cube

• To find the volume of a cube, you multiply the length of one side by itself three times.
• This means you "cube" the length of the side.
• So, if the length of one side of a cube is 4, you find the volume by doing 4 x 4 x 4, which is written as 4³.
• The formula for the volume of a cube is: Volume = side length × side length × side length, or simply V = s³.
• Here, 's' represents the length of one side of the cube.

Solved Examples for Volume of Cube

Example 1: Find the volume of a cube whose one edge measures 2 cm.

Sol: Length of each side of the cube = 2 cm.
Volume of the cube = side × side × side
= (2 × 2 × 2) cm³ = 8 cm³

Example 2: A box is 20 cm by 18 cm and 40 mm thick. How many cubic centimetres of space will the books keep in it occupy?

Sol: Length = 20 cm
Breadth = 18 cm
Height = 40 mm = (40 ÷ 10) cm = 4 cm
∴ Volume of the box = (20 × 18 × 4) cm³ = 1440 cm³
Hence, the books will occupy 1440 cm³ of space.

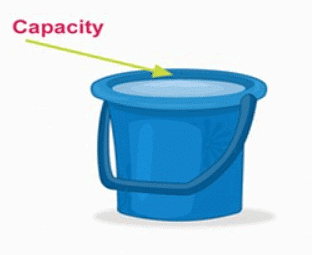

Capacity

Capacity of a container is defined as the amount of a solid, liquid or gas it can hold.

For example, the amount of space in a swimming pool (in m³).
1. The capacity is the amount of liquid that a given solid can hold. Thus, the capacity of the swimming pool is the amount of water needed to fill the swimming pool.
2. The capacity of a gas cylinder is the amount of gas it can hold.
3. The capacity of a fuel tank in a vehicle is the amount of petrol or diesel needed to fill it full.

• The standard unit of capacity is litre (L). Liquids are often measured in litres or millilitres.

EduRev Tips:

• 1 litre = 1000 mL = 1000 cm³, 1 mL = 1 cm³
• 1 cm³ = 1 mL,
• 1 m³ = 100 cm × 100 cm × 100 cm
  = 1000000 cm³
  = 1000000 mL = 1000 L

Examples

Example 1: A rectangular tank measures 2.5 m by 3 m by 4 m and is full of water. What is its capacity in liters?

Sol: The tank measures 2.5 m by 3 m by 4 m, i.e., 250 cm by 300 cm by 400 cm.
Volume of the tank = (250 × 300 × 400) cm³
Since 1 litre = 1000 cm³,
So, capacity in litres = 250 × 300 × 400/1000 L = 30000 L.

Example 2: A machine for making ice freezes 5.76 litres of water into ice bricks measuring 3 cm by 2 cm by 1 cm. How many ice bricks will be made?

Sol: Volume of 1 ice brick = (3 × 2 × 1) cm³ = 6 cm³
Volume of water = 5.76 litres = 5.76 × 1000 cm3 = 5760 cm³
∴ Number of ice bricks made = 5760 ÷ 6 = 5760/6 = 960.

Example 3: There are 1.75 litres of water in the rectangular container shown. How much more water is needed to fill the container completely?

Sol: Capacity of the rectangular container = 15 cm × 10 cm × 20 cm
= 3000 cm³ = 3 L (Q 1000 cm³ = 1 L)
Volume of water in the container = 1.75 L
∴ Volume of water needed to fill the container
= 3 L – 1.75 L = 1.25 L
= (1.25 × 1000) mL = 1250 mL.
