Objectives

  • Familiarity with and understanding of the basic elements encountered in electric networks.
  • To learn the fundamental differences between linear and nonlinear circuits.
  • To understand the Kirchhoff’s voltage and current laws and their applications to circuits.
  • Meaning of circuit ground and the voltages referenced to ground.
  • Understanding the basic principles of voltage dividers and current dividers.
  • Potentiometer and loading effects.
  • To understand the fundamental differences between ideal and practical voltage and current sources and their mathematical models to represent these source models in electric circuits.
  • Distinguish between independent and dependent sources those encountered in electric circuits.
  • Meaning of delivering and absorbing power by the source.

Introduction

The interconnection of various electric elements in a prescribed manner comprises as an electric circuit in order to perform a desired function. The electric elements include controlled and uncontrolled source of energy, resistors, capacitors, inductors, etc. Analysis of electric circuits refers to computations required to determine the unknown quantities such as voltage, current and power associated with one or more elements in the circuit. To contribute to the solution of engineering problems one must acquire the basic knowledge of electric circuit analysis and laws. Many other systems, like mechanical, hydraulic, thermal, magnetic and power system are easy to analyze and model by a circuit. To learn how to analyze the models of these systems, first one needs to learn the techniques of circuit analysis. We shall discuss briefly some of the basic circuit elements and the laws that will help us to develop the background of subject.

Basic Elements & Introductory Concepts

Electrical Network: A combination of various electric elements (Resistor, Inductor, Capacitor, Voltage source, Current source) connected in any manner what so ever is called an electrical network. We may classify circuit elements in two categories, passive and active elements.

Passive Element: The element which receives energy (or absorbs energy) and then either converts it into heat (R) or stored it in an electric (C) or magnetic (L) field is called passive element.

Active Element: The elements that supply energy to the circuit is called active element. Examples of active elements include voltage and current sources, generators, and electronic devices that require power supplies. A transistor is an active circuit element, meaning that it can amplify power of a signal. On the other hand, transformer is not an active element because it does not amplify the power level and power remains same both in primary and secondary sides. Transformer is an example of passive element.

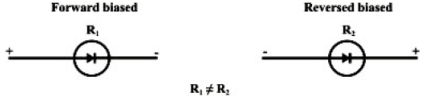

Bilateral Element: Conduction of current in both directions in an element (example: Resistance; Inductance; Capacitance) with same magnitude is termed as bilateral element.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Unilateral Element: Conduction of current in one direction is termed as unilateral (example: Diode, Transistor) element.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Meaning of Response: An application of input signal to the system will produce an output signal, the behavior of output signal with time is known as the response of the system.

Linear and Nonlinear Circuits

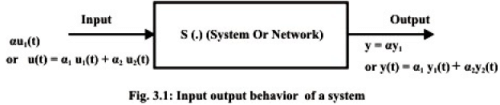

Linear Circuit: Roughly speaking, a linear circuit is one whose parameters do not change with voltage or current. More specifically, a linear system is one that satisfies (i) homogeneity property [response of αu(t) equals α times the response of u(t) , S (αu(t)) = αS (u(t)) for all α ; and] (ii) additive property [that is the response of system due to an input (α1u1(t) + α2 u2 (t)) equals the sum of the response of input α1 u1 (t) and the response of input α2 u2 (t) , S (α1u1(t) +α2 u2 (t)) = α1 S (u1(t)) +α2 S (u2(t)).] When an input u1(t) or u2(t) is applied to a system “S”, the corresponding output response of the system is observed as S(u1(t)) = y1(t) or s(u2(t)) = y2(t) respectively. Fig. 3.1 explains the meaning of homogeneity and additive properties of a system.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

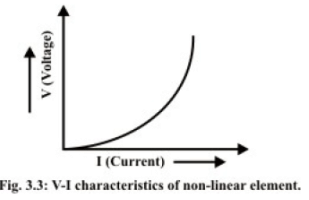

Non-Linear Circuit: Roughly speaking, a non-linear system is that whose parameters change with voltage or current. More specifically, non-linear circuit does not obey the homogeneity and additive properties. Volt-ampere characteristics of linear and non-linear elements are shown in figs. 3.2 - 3.3. In fact, a circuit is linear if and only if its input and output can be related by a straight line passing through the origin as shown in fig.3.2. Otherwise, it is a nonlinear system.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)
Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Potential Energy Difference: The voltage or potential energy difference between two points in an electric circuit is the amount of energy required to move a unit charge between the two points.

Kirchhoff’s Laws

Kirchhoff’s laws are basic analytical tools in order to obtain the solutions of currents and voltages for any electric circuit; whether it is supplied from a direct-current system or an alternating current system. But with complex circuits the equations connecting the currents and voltages may become so numerous that much tedious algebraic work is involve in their solutions.

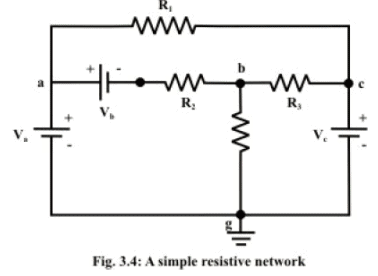

Elements that generally encounter in an electric circuit can be interconnected in various possible ways. Before discussing the basic analytical tools that determine the currents and voltages at different parts of the circuit, some basic definition of the following terms are considered.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

  • Node- A node in an electric circuit is a point where two or more components are connected together. This point is usually marked with dark circle or dot. The circuit in fig. 3.4 has nodes a, b, c, and g. Generally, a point, or a node in an circuit specifies a certain voltage level with respect to a reference point or node.
  • Branch- A branch is a conducting path between two nodes in a circuit containing the electric elements. These elements could be sources, resistances, or other elements. Fig.3.4 shows that the circuit has six branches: three resistive branches (a-c, b-c, and b-g) and three branches containing voltage and current sources (a-, a-, and c-g).
  • Loop- A loop is any closed path in an electric circuit  i.e., a closed path or loop in a circuit  is a contiguous sequence of branches which starting and end points for tracing the path are, in effect, the same node and touches no  other node more than once. Fig. 3.4 shows three loops or closed paths namely, a-b-g-a; b-c-g-b; and a-cb-a. Further, it may be noted that the outside closed paths a-c-g-a and a-b-c-g-a are also form two loops.
  • Mesh- a mesh is a special case of loop that does not have any other loops within it or in its interior. Fig. 3.4 indicates that the first three loops (a-b-g-a; b-c-g-b; and a-c-b-a) just identified are also ‘meshes’ but other two loops (a-c-g-a and a-b-c-g-a) are not.

With the introduction of the Kirchhoff’s laws, a various types of electric circuits can be analyzed.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)
Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

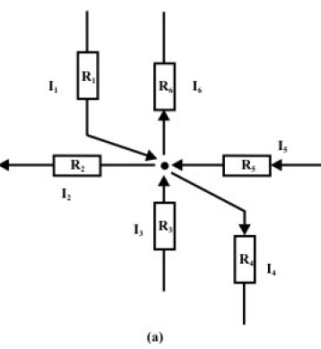

Kirchhoff’s Current Law (KCL): KCL states that at any node (junction) in a circuit the algebraic sum of currents entering and leaving a node at any instant of time must be equal to zero. Here currents entering(+ve sign) and currents leaving (-ve sign) the node must be assigned opposite algebraic signs (see fig. 3.5 (a), I1 −I2 + I3− I4 + I5 − I6 = 0).

Kirchhoff’s Voltage Law (KVL): It states that in a closed circuit, the algebraic sum of all source voltages must be equal to the algebraic sum of all the voltage drops. Voltage drop is encountered when current flows in an element (resistance or load) from the higher-potential terminal toward the lower potential terminal. Voltage rise is encountered when current flows in an element (voltage source) from lower potential terminal (or negative terminal of voltage source) toward the higher potential terminal (or positive terminal of voltage source). Kirchhoff’s voltage law is explained with the help of fig. 3.5(b).

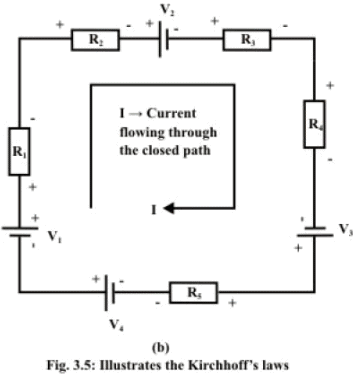

KVL equation for the circuit shown in fig. 3.5(b) is expressed as (we walk in clockwise direction starting from the voltage source  and return to the same point)

V1 − IR1− IR2 − V2 − IR3 − IR4 + V3 − IR5 − V4 = 0

 V1 - V2 + V3 - V4 = IR + IR2 + IR3 + IR4 + IR5

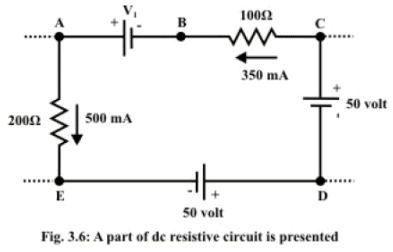

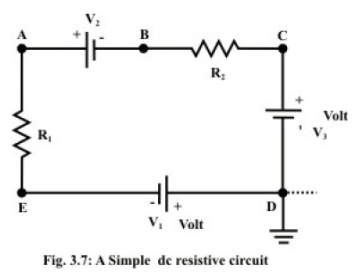

For the circuit shown in fig. 3.6, calculate the potential of points A, B, C , and E with respect to point D . Find also the value of voltage source V1.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Let us assume we move in clockwise direction around the close path D-EA-B-C-D and stated the following points.

  • 50 volt source is connected between the terminals D & E and this indicates that the point E is lower potential than D. So, 50 VED (i.e., it means potential of E with respect to D) is -50 volt and similarly VCD = 50 volt or VDC = −50 volt .
  • 500 mA current  is flowing through 200 Ω resistor from A to E and this implies that point A is higher potential than E. If we move from lower potential (E) to higher potential (A), this shows there is a rise in potential.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

  • V1 voltage source is connected between A & B and this indicates that the terminal B is lower potential than A i.e., VAB = V1 volt or VBA = -V1 volt... One can write the voltage of point B with respect to D is VBD = 50 −V1 volt.
  • One can write KVL law around the closed-loop D-E-A-B-C-D as VED +VAE+ VBA + VCB + VDC = 0

−50+ 100 − V + 35 − 50 = 0 ⇒ V1 = 35 volt.

Now we have  VED = -50 volt, VAD = -50+100 = 50 volt, VBD = 50-35 = 15 volt, VCD = 15+ 35 = 50 volt.

Meaning of Circuit Ground and the Voltages referenced to Ground

In electric or electronic circuits, usually maintain a reference voltage that is named “ground voltage” to which all voltages are referred. This reference voltage is thus at ground potential or zero potential and each other terminal voltage is measured with respect to ground potential, some terminals in the circuit will have voltages above it (positive) and some terminals in the circuit  will have voltages below it (negative) or in other words, some potential above or below ground potential or zero potential. Consider the circuit as shown in fig. 3.7 and the common point of connection of elements V1 & V3 is selected as ground (or reference) node. When the voltages at different nodes are referred to this ground (or reference) point, we denote them with double subscripted voltages. VED, VAD, VED, and VCD Since the point D is selected as ground potential or zero potential, we can write VED as VE, VAD as VA and so on.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

In many cases, such as in electronic circuits, the chassis is shorted to the earth itself for safety reasons.

Understanding the Basic Principles of Voltage Dividers and Current dividers

Voltage Divider

Very often, it is useful to think of a series circuit as a voltage divider. The basic idea behind the voltage divider is to assign a portion of the total voltage to each resistor. In Figure 3.8 (a), suppose that the source voltage is E. By the circuit configuration shown one can divide off any voltage desired (Vout), less than the supply voltage E, by adjusting R1, R2, R3.

  Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

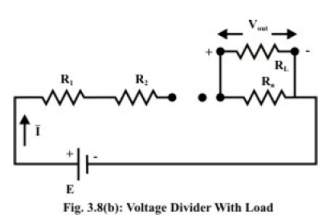

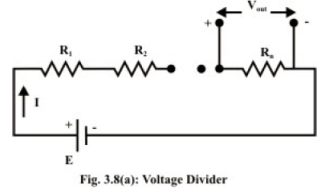

From figure 3.8(a) the output of the voltage divider Vout is computed by the relation

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Equation (3.1) indicates that the voltage across any resistor Ri (Ri i = 1, 2, .....n) in a series circuit is equal to the applied voltage (E) across the circuit multiplied by a factor  Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) It should be noted that this expression is only valid if the same current I flows through all the resistors. If a load resistor is connected to the voltage divider (see figure 3.8(b)), one can easily modify the expression (3.1) by simply combining RL & Rn in parallel to find a new  Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) in equation (3.1).

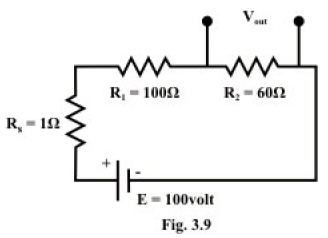

Example: L-3.2  For the circuit shown in Figure 3.9,

(i) Calculate Vout, ignoring the internal resistance Rs of the source E . Use voltage division.
(ii) Recalculate Vout taking into account the internal resistance Rs of the source.

What percent error was introduced by ignoring Rs in part (i)?

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Solution: Part (i):  From equation (3.1) the output voltage Vout across the resistor RIntroduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) (when the internal resistance Rs of the source is considered zero.) Similarly,Vout  = 37.27 volt when Rs is taken into account for calculation. Percentage error is computed as Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Current divider

Another frequently encountered in electric circuit is the current divider. Figure 3.10 shows that the current divider divides the source current Is between the two resistors.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

The parallel combination of two resistors is sometimes termed as current divider, because the supply current is distributed between the two branches of the circuit. For the circuit, assume that the voltage across the branch is V and the current expression in resistor can be written as Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Similarly, the current flowing through
the  can be obtained as  Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)It can be noted that the expression for I1 has R2 on its top line, that for I2 has R1 on its top line.

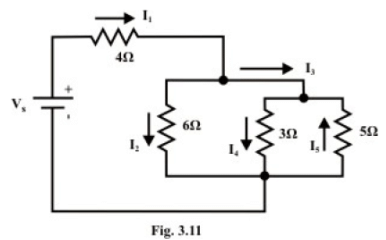

Example: L-3.3 Determine I1 , I2,I3 & I5 using only current divider formula when I4 = 4A.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Solution- Using the current division formula we can write

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)
Furthermore, we can write  Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

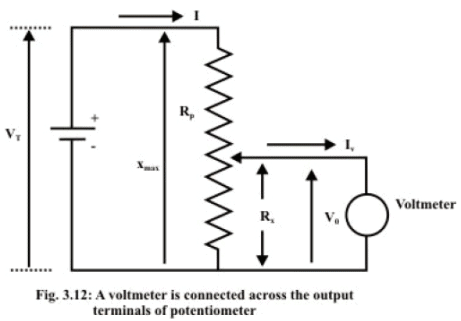

The potentiometer has a resistance Rp and its wiper can move from top position x = xmax to bottom position x = 0 . The resistance Rx corresponds to the position x of the wiper such that Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)(assumed that the per unit length resistance of the potentiometer is same through out its length). Figure 3.12 represents a potentiometer whose output is connected to a voltmeter. In true sense, the measurement of the output voltage Vwith a voltmeter is affected by the voltmeter resistance RV  and the relationship between Vo and x (x = wiper distance from the bottom position) can easily be established. We know that the voltmeter resistance is very high in MΩ range and practically negligible current is flowing through the voltmeter. Under this condition, one can write the expression for voltage between the wiper and the bottom end terminal of the potentiometer as

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

It may be noted that depending on the position of movable tap terminal the output voltage (Vout) can be controlled. By adjusting the wiper toward the top terminal, we can increase. Vout The opposite effect can be observed while the movable tap moves toward the bottom terminal. A simple application of potentiometer in real practice is the volume control of a radio receiver by adjusting the applied voltage to the input of audio amplifier of a radio set. This audio amplifier boosts this voltage by a certain fixed factor and this voltage is capable of driving the loudspeaker.

Example- L-3.4 A 500−kΩ potentiometer has 110 V applied across it. Adjust the position of Rbot such that 47.5 V appears between the movable tap and the bottom end terminal (refer fig.3.12).

Solution- Since the output voltage (Vbot) is not connected to any load, in turn, we can write the following expression

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Practical Voltage and Current Sources

Ideal and Practical Voltage Sources

  • An ideal voltage source, which is represented by a model in fig.3.13, is a device that produces a constant voltage across its terminals (V = E) no matter what current is drawn from it (terminal voltage is independent of load (resistance) connected across the terminals)
  • Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

For the circuit shown in fig.3.13, the upper terminal of load is marked plus (+) and its lower terminal is marked minus (-). This indicates that electrical potential of upper terminal is  volts higher than that of lower terminal.  The current flowing through the load RL is given by the expression Vs = VL = ILRL and we can represent the terminal V - I characteristic of an ideal dc voltage as a straight line parallel to the x-axis. This means that the terminal voltage VL remains constant and equal to the source voltage Vs irrespective of load current is small or large. The V − I characteristic of ideal voltage source is presented in Figure 3.14.

  • However, real or practical dc voltage sources do not exhibit such characteristics (see fig. 3.14) in practice. We observed that as the load resistance RL connected across the source is decreased, the corresponding load current IL increases while the terminal voltage across the source decreases (see eq.3.1). We can realize such voltage drop across the terminals with increase in load current provided a resistance element (Rs) present inside the voltage source. Fig. 3.15 shows the model of practical or real voltage source of value Vs.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

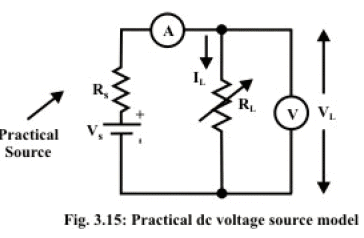

The terminal V characteristics of the practical voltage source can be described by an equation VL = V− IL Rs and this equation is represented graphically as shown in fig.3.16.  In practice, when a load resistance  more than 100 times larger than the source resistance Rs, the source can be considered approximately ideal voltage source. In other words, the internal resistance of the source can be omitted. This statement can be verified using the relation RL = 100 Rs in equation (3.1). The practical voltage source is characterized by two parameters namely known as (i) Open circuit voltage (Vs) (ii) Internal resistance in the source’s circuit model. In many practical situations, it is quite important to determine the source parameters experimentally. We shall discuss briefly a method in order to obtain source parameters.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Method-: Connect a variable load resistance across the source terminals (see fig. 3.15). A voltmeter is connected across the load and an ammeter is connected in series with the load resistance. Voltmeter and Ammeter readings for several choices of load resistances are presented on the graph paper (see fig. 3.16). The slope of the line is − Rs , while the curve intercepts with voltage axis (at IL = 0) is the value of Vs

The V − I characteristic of the source is also called the source’s “regulation curve” or “load line”.  The open-circuit voltage is also called the “no-load” voltage, Voc . The maximum allowable load current (rated current) is known as full-load current IFI and the corresponding source or load terminal voltage is known as “full-load” voltage VFL . We know that the source terminal voltage varies as the load is varied and this is due to internal voltage drop inside the source. The percentage change in source terminal voltage from no-load to full-load current is termed the “voltage regulation” of the source. It is defined as

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

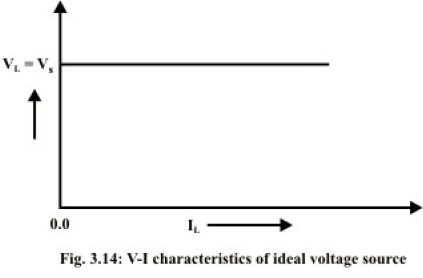

For ideal voltage source, there should be no change in terminal voltage from no-load to full-load and this corresponds to “zero voltage regulation”. For best possible performance, the voltage source should have the lowest possible regulation and this indicates a smallest possible internal voltage drop and the smallest possible internal resistance.
Example:-L-3.5 A practical voltage source whose short-circuit current is 1.0A and opencircuit voltage is 24 Volts. What is the voltage across, and the value of power dissipated in the load resistance when this source is delivering current 0.25A?

Solution:  From fig. 3.10,  Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) (short-circuit test) Voc = Vs = 24 volts (open circuit test). Therefore, the value of internal source resistance is obtained as Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Let us assume that the source is delivering current IL = 0.25A when the load resistance RL is connected across the source terminals. Mathematically, we can write the following expression to obtain the load resistance RL

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Now, the voltage across the load RL = IL RL = 0.25× 72= 18 volts. , and the power consumed by the load is given by Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Example-L-3.6 (Refer fig. 3.15) A certain voltage source has a terminal voltage of 50 V when I= 400 mA; when I rises to its full-load current value 800 mA the output voltage is recorded as 40 V. Calculate (i) Internal resistance of the voltage source (Rs). (ii) No-load voltage (open circuit voltage Vs ). (iii) The voltage Regulation.

Solution- From equation (3.1) (VL = Vs − IL Rs) one can write the following expressions under different loading conditions.

50 = Vs - 0.4 Rs & 40 = Vs - 0.8 Rs → solving these equations we get, Vs = 60V & Rs = 25Ω

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Ideal and Practical Current Sources

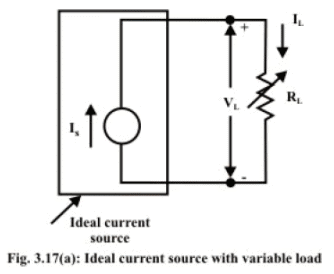

  • Another two-terminal element of common use in circuit modeling is `current source` as depicted in fig.3.17. An ideal current source, which is represented by a model in fig. 3.17(a), is a device that delivers a constant current to any load resistance connected across it, no matter what  the terminal voltage is developed across the load (i.e., independent of the voltage across its terminals across the terminals).

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

It can be noted from model of the current source that the current flowing from the source to the load is always constant for any load resistance (see fig. 3.19(a)) i.e. whether is small (VL is small) or RL is large (VL is large). The vertical dashed line in fig. 3.18 represents the V - I characteristic of ideal current source. In practice, when a load  RL is connected across a practical current source, one can observe that the current flowing in load resistance is reduced as the voltage across the current source’s terminal is increased, by increasing the load resistance RL. Since the distribution of source current in two parallel paths entirely depends on the value of  external resistance that connected across the source (current source) terminals. This fact can be realized by introducing a parallel resistance Rs in parallel with the practical current source Is , as shown in fig. 3.17(b). The dark lines in fig. 3.18 show the V - I characteristic (load-line) of practical current source. The slope of the curve represents the internal resistance of the source. One can apply KCL at the top terminal of the current source in fig. 3.17(b) to obtain the following expression.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

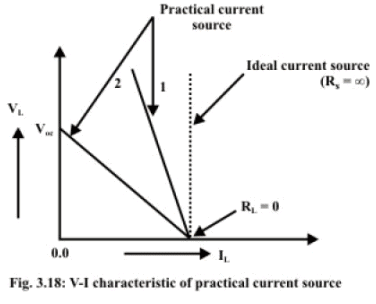

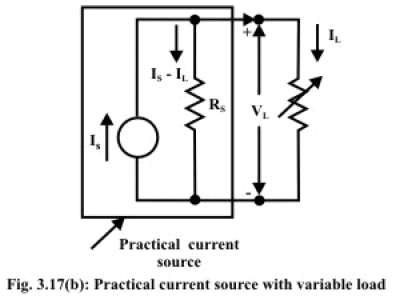

The open circuit voltage and the short-circuit current of the practical current source are given by  and Voc = Is Rs short = Is respectively. It can be noted from the fig.3.18 that source 1 has a larger internal resistance than source 2 and the slope the curve indicates the internal resistance Rs of the current source. Thus, source 1 is closer to the ideal source. More specifically, if the source internal resistance Rs ≥ 100 RL then source acts nearly as an ideal current source.

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

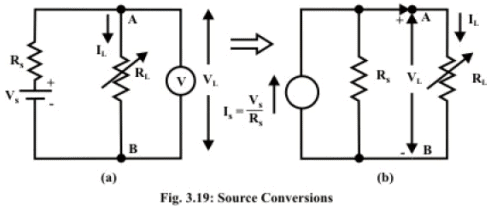

Conversion of a Practical Voltage Source to a Practical Current source and vise-versa

  • Voltage Source to Current Source

For the practical voltage source in fig. 3.19(a), the load current is calculated as

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Note that the maximum current delivered by the source when RL (under shortcircuit condition) is given by  Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) From eq.(3.3) one can rewrite the
expression for load current as

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

A simple current divider circuit having two parallel branches as shown in fig.3.19 (b) can realize by the equation (3.4).

Note: A practical voltage source with a voltage Vs and an internal source resistance Rs can be replaced by an equivalent practical current source with a current Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) and a source internal resistance Rs (see fig. 3.19(b)).

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)
Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

  • Current source to Voltage Source

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

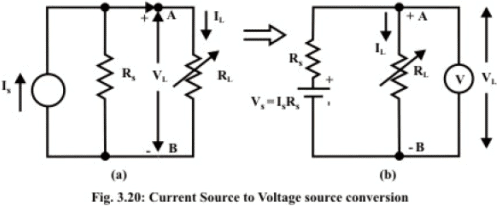

For the circuit in fig. 3.15(a), the load voltage  is given by

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Equation (3.5) represents output from the voltage source across a load resistance and this act as a voltage divider circuit. Figure 3.20(b) describes the situation that a voltage source with a voltage value Vs = IsRs and an internal source resistance Rs has an equivalent effect on the same load resistor as the current source in figure 3.20(a).
Note: A current source with a magnitude of current Is and a source internal resistance Rs can be replaced by an equivalent voltage source of magnitude Vs = Is Rs and an internal source resistance Rs (see fig. 3.20(b)).

Remarks on practical sources: (i) The open circuit voltage that appears at the terminals A & B for two sources (voltage & current) is same (i.e., Vs.
(ii) When the terminals A & B are shorted by an ammeter, the shot-circuit results same in both cases (i.e., Is).
(iii) If an arbitrary resistor (RL) is connected across the output terminals A & B either source, the same power will be dissipated in it.
(iv) The sources are equivalent only as concerns on their behavior at the external terminals.
(v) The internal behavior of both sources is quite different (i.e., when open circuit the voltage source does not dissipate any internal power while the current source dissipates. Reverse situation is observed in short-circuit condition).

Ind ependent and Dependent Sources that encountered in electric circuits

  • Independent Sources

 So far the voltage and current sources (whether ideal or practical) that have been discussed are known as independent sources and these sources play an important role to drive the circuit in order to perform a specific job. The internal values of these sources (either voltage source or current source) – that is, the generated voltage Vs or the generated current Is (see figs. 3.15 & 3.17) are not affected  by the load connected across the source terminals or across any other element that exists elsewhere in the circuit or external to the source.

  • Dependent Sources

Another class of electrical sources is characterized by dependent source or controlled source. In fact the source voltage or current depends on a voltage across or a current through some other element elsewhere in the circuit. Sources, which exhibit this dependency, are called dependent sources. Both voltage and current types of sources may be dependent, and either may be controlled by a voltage or a current. In general, dependent source is represented by a diamond Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) -shaped symbol as not to confuse it with an independent source. One can classify dependent voltage and current sources into four types of sources as shown in fig.3.21. These are listed below:

(i) Voltage-controlled voltage source (VCVS)
(ii) Current-controlled voltage source (ICVS)
(iii) Voltage-controlled current source(VCIS)
(iv) Current-controlled current source(ICIS)

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)
Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Fig. 3.21: Iikul depend nut (cunlmlLed) sources

Note: When the value of the source (either voltage or current) is controlled by a voltage (vx) somewhere else in the circuit, the source is said to be voltage-controlled source. On the other hand, when the value of the source (either voltage or current) is controlled by a current (ix) somewhere else in the circuit, the source is said to be current-controlled source. KVL and KCL laws can be applied to networks containing such dependent sources. Source conversions, from dependent voltage source models to dependent current source models, or visa-versa, can be employed as needed to simplify the network. One may come across with the dependent sources in many equivalent-circuit models of electronic devices (transistor, BJT(bipolar junction transistor), FET(field-effect transistor) etc.) and transducers.

Understanding Delivering and Absorbing Power by the Source.

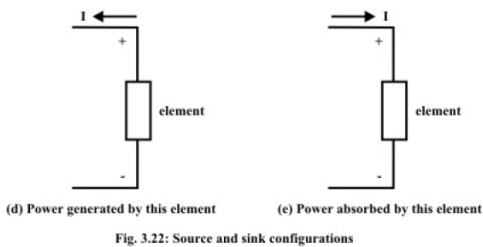

It is essential to differentiate between the absorption of power (or dissipating power) and the generating (or delivering) power. The power absorbed or dissipated by any circuit element when flows in a load element from higher potential point (i.e +ve terminal) toward the lower terminal point (i.e., -ve terminal). This situation is observed when charging a battery or source because the source is absorbing power. On the other hand, when current flows in a source from the lower potential point (i.e., -ve terminal) toward the higher potential point (i.e., +ve terminal), we call that source is generating power or delivering power to the other elements in the electric circuit. In this case, one can note that the battery is acting as a “source” whereas the other element is acting as a “sink”. Fig.3.22 shows mode of current entering in a electric element and it behaves either as source (delivering power) or as a sink (absorbing or dissipating power).

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

The document Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE) is a part of the Electrical Engineering (EE) Course Basic Electrical Technology.
All you need of Electrical Engineering (EE) at this link: Electrical Engineering (EE)
57 docs|62 tests

Top Courses for Electrical Engineering (EE)

FAQs on Introduction of Electric Circuit - Basic Electrical Technology - Electrical Engineering (EE)

1. What is an electric circuit?
Ans. An electric circuit is a closed loop through which electric current flows. It consists of various components such as a power source, conductors, resistors, capacitors, and switches that are connected together to allow the flow of electricity.
2. What is the purpose of an electric circuit?
Ans. The purpose of an electric circuit is to provide a path for the flow of electric current, allowing the transfer of electrical energy from the power source to various devices or components. It enables the functioning of electrical appliances, lighting, and other electrical systems.
3. What are the different types of electric circuits?
Ans. There are primarily two types of electric circuits: series circuits and parallel circuits. In a series circuit, the components are connected in a single path, and the current flows through each component in sequence. In a parallel circuit, the components are connected in multiple paths, and the current divides among the branches.
4. How does an electric circuit work?
Ans. An electric circuit works based on the principles of Ohm's law and electrical energy conservation. When a power source, such as a battery, is connected to a circuit, it creates a potential difference that drives the flow of electric charges (current) through the conductive path. The components in the circuit, such as resistors, regulate the flow of current and convert electrical energy into other forms, such as heat or light.
5. What are some common symbols used in electric circuit diagrams?
Ans. Electric circuit diagrams use standardized symbols to represent various components. Some common symbols include a straight line for a wire, a circle with a plus sign (+) for a battery or power source, a zigzag line for a resistor, a capacitor symbol, and a switch symbol. These symbols help in understanding and designing circuit diagrams.
57 docs|62 tests
Download as PDF
Explore Courses for Electrical Engineering (EE) exam

Top Courses for Electrical Engineering (EE)

Signup for Free!
Signup to see your scores go up within 7 days! Learn & Practice with 1000+ FREE Notes, Videos & Tests.
10M+ students study on EduRev
Related Searches

study material

,

MCQs

,

shortcuts and tricks

,

Extra Questions

,

Sample Paper

,

Exam

,

practice quizzes

,

Objective type Questions

,

Previous Year Questions with Solutions

,

past year papers

,

Semester Notes

,

ppt

,

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

,

Summary

,

Viva Questions

,

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

,

Introduction of Electric Circuit | Basic Electrical Technology - Electrical Engineering (EE)

,

Free

,

mock tests for examination

,

video lectures

,

Important questions

,

pdf

;
