Formation of Clay Minerals
A soil particle may be a mineral or a rock fragment. A mineral is a chemical compound formed in nature during a geological process, whereas a rock fragment has a combination of one or more minerals. Based on the nature of atoms, minerals are classified as silicates, aluminates, oxides, carbonates and phosphates.
Out of these, silicate minerals are the most important as they influence the properties of clay soils. Different arrangements of atoms in the silicate minerals give rise to different silicate structures.
Basic Structural Units
Soil minerals are formed from two basic structural units: tetrahedral and octahedral. Considering the valencies of the atoms forming the units, it is clear that the units are not electrically neutral and as such do not exist as single units.
The basic units combine to form sheets in which the oxygen or hydroxyl ions are shared among adjacent units. Three types of sheets are thus formed, namely silica sheet, gibbsite sheet and brucite sheet.
Isomorphous substitution is the replacement of the central atom of the tetrahedral or octahedral unit by another atom during the formation of the sheets.
The sheets then combine to form various two-layer or three-layer sheet minerals. As the basic units of clay minerals are sheet-like structures, the particle formed from stacking of the basic units is also plate-like. As a result, the surface area per unit mass becomes very large.
Structure of Clay Minerals

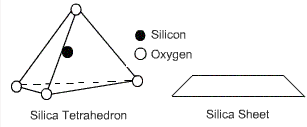

A tetrahedral unit consists of a central silicon atom that is surrounded by four oxygen atoms located at the corners of a tetrahedron. A combination of tetrahedrons forms a silica sheet.
An octahedral unit consists of a central ion, either aluminium or magnesium, that is surrounded by six hydroxyl ions located at the corners of an octahedron. A combination of aluminium-hydroxyl octahedrons forms a gibbsite sheet, whereas a combination of magnesium-hydroxyl octahedrons forms a brucite sheet.
The document Formation & Structure of Clay Minerals | Soil Mechanics - Civil Engineering (CE) is a part of the Civil Engineering (CE) Course Soil Mechanics.
All you need of Civil Engineering (CE) at this link: Civil Engineering (CE)
|
30 videos|76 docs|74 tests
|
FAQs on Formation & Structure of Clay Minerals - Soil Mechanics - Civil Engineering (CE)
| 1. What is the formation process of clay minerals? |  |
Ans. Clay minerals are formed through the weathering and decomposition of rocks containing silicate minerals. This process involves the breakdown of parent minerals under the influence of water, temperature changes, and chemical reactions. Over time, the minerals in the rocks react with water and other substances, resulting in the formation of clay minerals.
| 2. How does the structure of clay minerals affect civil engineering projects? | |
Ans. The structure of clay minerals plays a crucial role in civil engineering projects. Clay minerals have a layered structure with negatively charged surfaces, which allows them to attract and hold water molecules. This property can lead to swelling and shrinkage of clay soils, causing stability issues in structures such as foundations and embankments. Understanding the structure of clay minerals helps engineers assess the behavior of clay soils and design appropriate measures to mitigate their effects.
| 3. What are the main types of clay minerals found in civil engineering applications? | |
Ans. The main types of clay minerals found in civil engineering applications include kaolinite, montmorillonite, and illite. Kaolinite is a non-swelling clay mineral commonly used in the production of ceramics and as a filler in construction materials. Montmorillonite is a swelling clay mineral with high water absorption capacity, often causing stability problems in construction projects. Illite is a non-swelling clay mineral that can be found in both residual and sedimentary soils, influencing their engineering properties.
| 4. How do clay minerals affect soil properties in civil engineering? | |
Ans. Clay minerals significantly influence soil properties in civil engineering. When present in high proportions, clay minerals can lead to low permeability, high compressibility, and low shear strength of soils. These properties make clay soils prone to settlement, instability, and poor drainage. Additionally, the presence of clay minerals can also impact the plasticity and shrinkage characteristics of soils, affecting their suitability for construction purposes.
| 5. What are some common techniques used to identify and analyze clay minerals in civil engineering projects? | |
Ans. Various techniques are used to identify and analyze clay minerals in civil engineering projects. X-ray diffraction (XRD) is a commonly used method that can determine the mineralogical composition of clay minerals. Scanning electron microscopy (SEM) helps visualize the microstructure and morphology of clay minerals. Other techniques such as differential thermal analysis (DTA) and thermal gravimetric analysis (TGA) can provide information about the thermal behavior and composition of clay minerals. These techniques aid engineers in understanding the properties and behavior of clay minerals in construction projects.
