Mass moment of inertia

Mass moment of inertia for a particle: The mass moment of inertia is one measure of the distribution of the mass of an object relative to a given axis. The mass moment of inertia is denoted by I and is given for a single particle of mass m as

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

where O-O is the axis around which one is evaluating the mass moment of inertia, and r is the perpendicular distance between the mass and the axis O-O. As can be seen from the above equation, the mass moment of inertia has the units of mass times length squared. The mass moment of inertial should not be confused with the area moment of inertia which has units of length to the power four. Mass moments of inertia naturally appear in the equations of motion, and provide information on how difficult (how much inertia there is) it is rotate the particle around given axis.



Mass moment of inertia for a rigid body: When calculating the mass moment of inertia for a rigid body, one thinks of the body as a sum of particles, each having a mass of dm. Integration is used to sum the moment of inertia of each dm to get the mass moment of inertia of body. The equation for the mass moment of inertia of the rigid body is

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

The integration over mass can be replaced by integration over volume, area, or length. For a fully three dimensional body using the density ρ one can relate the element of mass to the element of volume. In this case the density has units of mass per length cubed and the relation is given as

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

and the equation for the mass moment of inertia becomes

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

The integral is actually a triple integral. If the coordinate system used is rectangular then dV=dxdydz . If the coordinates uses are cylindrical coordinates then Mass Moment of Inertia | Additional Study Material for Mechanical Engineering.



For a two dimensional body like a plate or a shell one can use density ρ  per unit area (units of mass per length squared) to change the integration using the relation

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

where A is the surface are and dA differential element of area. For example, for rectangular coordinates dA=dxdy and for polar coordinates Mass Moment of Inertia | Additional Study Material for Mechanical Engineering. After this substitution one gets the equation to calculate the mass moment of inertia as

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

If the body is a rod like object then one can use the relation

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

to get

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

where l is a coordinate along the length of the rod  and the density ρ is in units of mass per unit length.

Radius of gyration: Sometime in place of the mass moment of inertia the radius of gyration is provided. The mass moment of inertia can be calculated from k using the relationMass Moment of Inertia | Additional Study Material for Mechanical Engineering

where m is the total mass of the body. One can interpret the radius of gyration as the distance from the axis that one could put a single particle of mass equal to the mass of the rigid body and have this particle have the same mass moment of inertia as the original body.

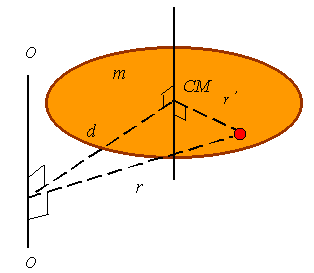

Parallel-axis theorem: The moment of inertia around any axis can be calculated from the moment of inertia around parallel axis which passes through the center of mass. The equation to calculate this is called the parallel axis theorem and is given as

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

Mass Moment of Inertia | Additional Study Material for Mechanical Engineering

where d is the distance between the original axis and the axis passing through the center of mass, m is the total mass of the body, and Mass Moment of Inertia | Additional Study Material for Mechanical Engineering is the moment of inertia around the axis passing through the center of mass.

Composite bodies: If a body is composed of several bodies, to calculate the moment of inertia about a given axis one can simply calculate the moment of inertia of each part around the given axis and then add them to get the mass moment of inertia of the total body.







The document Mass Moment of Inertia | Additional Study Material for Mechanical Engineering is a part of the Mechanical Engineering Course Additional Study Material for Mechanical Engineering.
All you need of Mechanical Engineering at this link: Mechanical Engineering
1 videos|30 docs|57 tests

Top Courses for Mechanical Engineering

FAQs on Mass Moment of Inertia - Additional Study Material for Mechanical Engineering

1. What is the mass moment of inertia in mechanical engineering?
Ans. The mass moment of inertia, also known as the rotational inertia, is a measure of an object's resistance to changes in its rotational motion. It quantifies how mass is distributed around a given axis of rotation.
2. How is the mass moment of inertia calculated for simple shapes?
Ans. The mass moment of inertia for simple shapes can be calculated using specific formulas. For example, the mass moment of inertia for a solid cylinder is given by the formula (1/2) * mass * radius^2. Similarly, different formulas exist for other shapes like spheres, disks, and rods.
3. Can objects with the same mass have different mass moments of inertia?
Ans. Yes, objects with the same mass can have different mass moments of inertia. This is because the distribution of mass around the axis of rotation affects the mass moment of inertia. Objects with mass concentrated closer to the axis will have smaller moments of inertia compared to objects with mass distributed farther from the axis.
4. How does the mass moment of inertia affect the rotational motion of an object?
Ans. The mass moment of inertia plays a crucial role in determining how easily an object can be rotated. Objects with larger mass moments of inertia require more torque to achieve the same angular acceleration compared to objects with smaller moments of inertia. This means that objects with larger moments of inertia are typically more resistant to changes in their rotational motion.
5. What are some practical applications of the mass moment of inertia in mechanical engineering?
Ans. The mass moment of inertia is extensively used in various engineering applications. It is crucial in designing and analyzing rotating machinery such as engines, turbines, and flywheels. Additionally, it is essential in understanding the stability and control of vehicles, such as cars, airplanes, and rockets, during rotational motions.
