Q_n(x ) Functions of the Second Kind

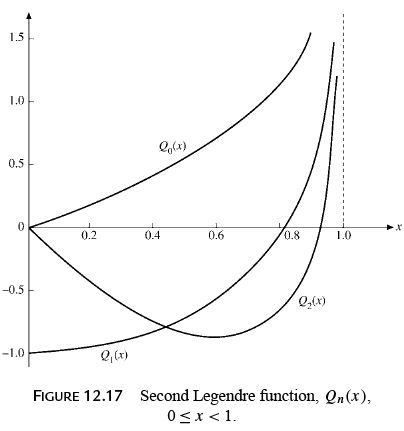

It will be noticed that we have used only p_n for n even and q_n for n odd (because they terminated for this choice of n). We may now define a second solution of Legendre’s equation (Fig. 12.17) by

 for n even,n = 2s,           (12.215)

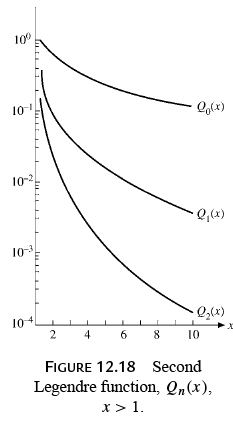

This choice of normalizing factors forces Q_n to satisfy the same recurrence relations as P_n . This may be verified by substituting Eqs. (12.215) and (12.216) into Eqs. (12.17) and (12.26). Inspection of the (series) recurrence relations (Eqs. (12.207) and (12.209)), that is, by the Cauchy ratio test, shows that Q_n (x ) will converge for −1 <x < 1. If |x |≥ 1, these series forms of our second solution diverge. A solution in a series of negative powers of x can be developed for the region |x | > 1 (Fig. 12.18), but we proceed to a closed-form solution that can be used over the entire complex plane (apart from the singular points x =±1 and with care on cut lines).

Closed-Form Solutions

Frequently, a closed form of the second solution, Q_n (z), is desirable. This may be obtained by the method discussed in Section 9.6. We write

in which the constant A_n replaces the evaluation of the integral at the arbitrary lower limit.
Both constants, A_n and B_n , may be determined for special cases.

For n = 0, Eq. (12.217) yields

the last expression following from a Maclaurin expansion of the logarithm. Comparing this with the series solution (Eq. (12.210)), we obtain

we have A₀ = 0, B₀ = 1. Similar results follow for n = 1. We obtain

Expanding in a power series and comparing with Q₁ (z) =−p₁ (z),wehave A1 = 0,B₁ = 1. Therefore we may write

Perhaps the best way of determining the higher-order Q_n (z) is to use the recurrence relation (Eq. (12.17)), which may be verified for both x ² < 1 and x ² > 1 by substituting in the series forms. This recurrence relation technique yields

         (12.222)

Repeated application of the recurrence formula leads to

From the form ln[(1 + z)/(1 − z)] it will be seen that for real z these expressions hold in the range −1 <x < 1. If we wish to have closed forms valid outside this range, we need only replace

When using the latter form, valid for large z, we take the line interval −1 ≤ x ≤ 1 as a cut line. Values of Q_n (x ) on the cut line are customarily assigned by the relation

         (12.224)

and so on.
For convenient reference some special values of Q_n (z) are given.

1. Q_n (1) =∞, from the logarithmic term (Eq. (12.223)).

2. Q_n (∞) = 0. This is best obtained from a representation of Q_n (x ) as a series of negative powers of x ,

3. Q_n (−z) = (−1)ⁿ⁺¹ Q_n (z). This follows from the series form. It may also be derived by using Q₀ (z), Q₁ (z) and the recurrence relation (Eq. (12.17)).

4. Q_n (0) = 0, for n even, by (3).

This last result comes from the series form (Eq. (12.216)) with p_n (0) = 1.

VECTOR SPHERICAL HARMONICS

Most of our attention in this chapter has been directed toward solving the equations of scalar fields, such as the electrostatic potential. This was done primarily because the scalar fields are easier to handle than vector fields. However, with scalar field problems under firm control, more and more attention is being paid to vector field problems.

Maxwell’s equations for the vacuum, where the external current and charge densities vanish, lead to the wave (or vector Helmholtz) equation for the vector potential A. In a partial wave expansion of A in spherical polar coordinates we want to use angular eigenfunctions that are vectors. To this end we write the coordinate unit vectors  in spherical notation (see Section 4.4),

so that eˆ_m form a spherical tensor of rank 1. If we couple the spherical harmonics with the eˆ_m to total angular momentum J using the relevant Clebsch–Gordan coefficients, we are led to the vector spherical harmonics:

It is obvious that they obey the orthogonality relations

Given J , the selection rules of angular momentum coupling tell us that L can only take on the values J + 1,J , and J − 1. If we look up the Clebsch–Gordan coefficients and invert Eq. (12.228) we get

displaying the vector character of the Y and the orbital angular momentum contents, L + 1 and L − 1,

Under the parity operations (coordinate inversion) the vector spherical harmonics transform as

where

            (12.232)

The vector spherical harmonics are useful in a further development of the gradient (Eq. (2.46)), divergence (Eq. (2.47)) and curl (Eq. (2.49)) operators in spherical polar co-ordinates:

If we substitute Eq. (12.230) into the radial component rˆ ∂/∂ r of the gradient operator, for example, we obtain both dF /dr terms in Eq. (12.233). For a complete derivation of Eqs. (12.233) to (12.239) . These relations play an important role in the partial wave expansion of classical and quantum electrodynamics.
The definitions of the vector spherical harmonics given here are dictated by convenience, primarily in quantum mechanical calculations, in which the angular momentum is a significant parameter.

• Vector spherical harmonics are developed from coupling L units of orbital angular momentum and 1 unit of spin angular momentum. An extension, coupling L units of orbital angular momentum and 2 units of spin angular momentum to form tensor spherical harmonics, is presented by Mathews.
• The major application of tensor spherical harmonics is in the investigation of gravitational radiation.

Exercises

1.  Construct the l = 0,m = 0 and l = 1,m = 0 vector spherical harmonics.
