Time, Speed and Distance: Problems on Trains | General Test Preparation for CUET - CUET Commerce PDF Download

Problems on trains are very common in competitive exams. Various types of questions are asked on trains. Questions on trains are solved using the concept of time, speed and distance i.e. we use the formulas of time, speed and distance to solve questions on trains.
Given below is a list of some important points that need to be kept in mind while solving questions on trains.

Basic Formulas to Remember

1.  Speed = Distance / Time
2.  1 km/hr = 5/18 m/s
3. 1 m/s = 18/5 km/hr
4. If the distance is same, then
   Average Speed = 2AB/A+B
5. If a train of length 'L₁' overtakes any other train or passes a platform of length 'L'₂ . Then,
   Distance Covered by the train = L₁ + L₂
6. If two trains with speed  S₁ & S₂ respectively are moving in the same direction, their relative speed (R_s) will be
   R_s = S₁-S₂
7. If two trains with speed  S₁ & S₂ respectively are moving in the opposite direction, their relative speed (R_s) will be
   R_s = S₁₊S₂
8.  In case of boats and streams, we generally take
   x = Speed of boat in still water.
   y = Speed of boat in stream.
9.  Downstream speed (D_s) = x + y
   Upstream Speed (U_s) = x - y
10. On solving the above equations we can also find the values of x and y that are
    x = (D_s + U_s)/2
    y = (D_s - U_s)/2
    where, D_s = Downstream Speed
    U_s = Upstream Speed
11. In Police - thief case,
    Remember that
    Speed of Police > Speed of thief (therefore he will be able to catch the thief)

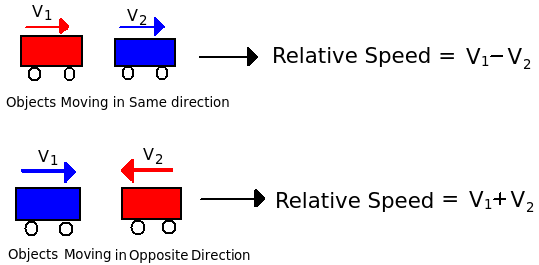

Relative Speed

• “Relative” means “in comparison to”. Thus, the concept of relative Speed is used when two or more bodies moving with some Speed are considered.
• To make things simpler, one body can be made stationary (i.e. Speed =zero) and take the Speed of the other body with respect to the stationary body, which is the sum of the Speeds if the bodies are moving in the opposite direction and the difference if they are moving in the same direction.
• This Speed of the moving body with respect to the stationary body is called the Relative Speed.


  Important Points

• Relative Speed of 2 bodies = Sum of their individual Speeds if they are moving in the opposite direction = Difference of their individual Speeds if they are moving in the same direction.
• When two trains are going in the same direction, then their relative speed is the difference between the two speeds.
• When two trains are moving in the opposite direction, then their relative speed is the sum of the two speeds.
• When a train crosses a stationary man/ pole/ lamp post/ sign post- in all these cases, the object which the train crosses is stationary and the distance travelled is the length of the train.
• When it crosses a platform/ bridge- in these cases, the object which the train crosses is stationary and the distance travelled is the length of the train and the length of the object.
• When two trains are moving in same direction, then their speed will be subtracted.
• When two trains are moving in opposite directions, then their speed will be added.
• In both the above cases, the total distance is the sum of the length of both the trains.
• When a train crosses a car/ bicycle/ a mobile man- in these cases, the relative speed between the train and the object is taken depending upon the direction of the movement of the other object relative to the train- and the distance travelled is the length of the train.

Solved Examples for Relative Speed

Sol: Here are two bodies moving at different Speeds.
So assume Bhagu Ram to be stationary and take the Speed of Pakad Singh relative to Bhagu Ram.
So, now once the concept of relative Speed is applied, it can be deduced that Bhagu Ram is standing and Pakad Singh who is at a Distance of 200 m is running at 7 – 5 = 2 kmph.
To catch Bhagu Ram he needs to travel a Distance of 200 ms or 0.2 km.
So Time taken = 0.2/2 = 0.1 hours or 6 minutes.
Thus the Distance that is covered by Bhagu Ram before being caught is 0.5 km.

Example 2: A bird is sitting on a train A moving at a Speed of 40 kmph. It sees another train B at a Distance of 200 ms with Speed of 60 kmph coming from the opposite direction on the same rail track. It flies with an average Speed of 10kmph and sits on another train. Again immediately it flies back to the first train and again to the second train and so on. It does so before the two trains crash. What is the total Distance traveled by the bird?

Sol: Two trains are moving in opposite direction with Speed 40 kmph and 60 kmph.
 Make train B stationary and then take the Speed of train A relative to the train B.
So relative Speed of train A = 40 + 60 = 100 kmph.
Before it crashes into the stationary train B it has to travel a Distance of 200 m which it will do in (0.2/100 ) hours.
During this duration, the average Speed of bird has been 10 kmph i.e. before the crash total Distance covered by the bird
= 0.2 * 10/100 km
=20 meters.

Some Specific Cases of Relative Speed

CASE 1 : Boats & Streams
Let the Speed of boat in still water = x
Speed of stream = y
As it is previously discussed that in questions where two bodies with different Speeds are concerned, the concept of relative Speed should be used.
Here the stream can be assumed to be the stationary body and the Speed of boat relative to the Speed of the stream can be taken.
Using the concept of relative Speed, one can now have the situation where the stream is stationary and only the boat is moving at a Speed determined by the direction of the boat relative to the stream.

Therefore , along the stream, or the "Downstream" Speed of the boat, D_s = x+ y
and against the stream, or " Upstream" Speed of the boat U_s = x -y
If Downstream Speed  'D_s' and Upstream Speed 'U_s' are given, then
speed of boat x = (D_s + U_s)/2 ,    Speed of stream, y = (D_s - U_s)/2

Example 3: Gita rows a boat at a speed of 15 kmph upstream and 20 kmph downstream. Find the Speed with which Gita rows the boat in still water and also find the Speed of the stream.

Sol:  Given that upstream Speed = 15 kmph
Downstream Speed = 20 kmph
Speed of Gita in still water = x = (D_s + U_s)/2= (20+15)/2 = 35/2
Speed of stream =y = ( (D_s - U_s)/2= (20-15)/2 = 5/2.

Example 4: The Speed of Narmada river is 5 kmph. A stationary body is placed in the river. Find the Time taken by the floating body to reach a stone which is 10 km downstream from the point where it is now?

 Sol: Speed of body = Speed of river (as Speed of boy is 0) = 5 kmph
Speed=Distance/Time.
So, Time taken to reach 10 km = 10/5 = 2 hours.

Example 5: A man rows 135 km upstream in 2.7 hours. He rows the same Distance downstream in 2.5 hours. However, for downstream, he reduces his Speed by 9%, while Speed of the current gets reduced by 20%. Find the Speed of the man.
(a) 52
(b) 55
(c) 50
(d) none of these

Ans: Option 'b' is correct.

Sol: Let us use a different approach for this question
x= The speed of boat and
y= The Speed of stream
Given that x-y= 135/2.7= 50  -—–(1)
Given that 10/11 x + 4/5 y = 135/2.5 = 54   ——–(2)
(reduction of 9% = 100- 9 = 0.91x. 0.91 in terms of a fraction can be written as 10/11 since 1/11= 0.0909).
(Similarly, reduction of 20% => 0.8 y. 0.8 in terms of a fraction can be written as 4/5.

Go from answer options-
Option (c)The Speed of the man cannot be 50, as the Speed of the stream cannot be zero (on substituting in equation (1))

option (b) substitute x= 52 and x=55 in the second equation and see for which value you are getting an integral value for y.
This happens only for x=55, where you will get y=5. Hence answer is the option
(b) Here the Reverse Gear approach is used i.e. working from answer options. It should be Remembered that longer the question, the easier it is to eliminate the wrong answer options.

CASE 2: Moving body and a stationary body of negligible length
Assume a stationary pole and a train approaching it.
Here the Speed of the train relative to the pole will be the Speed of the train itself, as the pole has a Speed of zero.
Also, since the pole is of negligible length in comparison to the train, the Distance traveled by train to pass the pole will be the length of the train itself.
Therefore, the Time taken by a train with length L1 and Speed S1 to pass a post/ stationary pole = L₁/S₁

Example 6: A train is traveling at a Speed of 4 m/s. Raman is standing on the road. How much Time will it take for the train to cross him if the length of the train is 200m?

Sol: Time taken to pass Raman= (Length of train)/(Speed of train)
                                                                                 = 200/4
                                                                                 = 50 sec.

CASE 3: Moving body and a stationary body of some length
Now let’s assume that the same train is going to pass a long bridge of length L.
The new distance covered by the train while passing over the bridge = the length of the bridge+ the length of the train.
Also, the Speed of the train relative to the bridge will be the Speed of the train itself, as the bridge is stationary.
The time taken by a train of length L₁ and Speed S₁ to pass a bridge of length L = (L₁+ L)/S_1.
Here the Distance to be covered is the sum of the lengths of train and bridge.

CASE 4: Two moving bodies in opposite directions
When two bodies move in opposite direction, then the Relative Speed = Sum of Speeds
i.e for e.g. for a person sitting in a train moving with a Speed of 40 km/hr in the west direction, another train which is going towards east with a Speed of 40 km/hr, will appear to move at a Speed of (40+40) = 80 km/hr.
There are two trains with lengths L₁ and L₂ and Speeds S₁ and S₂ respectively moving in the opposite direction. Time taken by the trains to cross each other after meeting = (L₁+L₂)/(S₁+ S₂ ).
Here the Total Distance to be covered is the sum of the lengths of the trains and relative Speed is the sum of the Speeds (since they are moving in the opposite direction).

CASE 5: Two moving bodies in the same direction
When two bodies move in the same direction then the Relative Speed = Difference of Speeds
i.e for a person a sitting in a train moving with a Speed of 60 km/hr in the west direction, another train which is going towards west with a Speed of 40 km/hr, will appear to move at a Speed of (60-40) = 20 km/hr.
There are two trains of lengths L₁ and L₂ and traveling at Speeds S₁ and S₂ respectively moving in the same direction.
Time taken by the trains to cross each other after meeting = (L₁+L₂)/(S₁ – S₂ ).
Here the Total Distance to be covered is the sum of the lengths of the trains and relative Speed is the difference of the Speeds (since they are moving in the opposite direction).

Example 7: Train A which is 125 m long is traveling at 108 km/hr. On a parallel track, a 180 m long Train B is traveling at 72 km/hr, in the same direction. In Train B, a passenger is walking towards the rear end of the train at a Speed of 9 km/hr. In how many seconds will Train A completely cross the passenger in Train B
(a) 14.4
(b) 10
(c) 16.67
(d) 24

Ans: Option 'b' is correct

Sol:  Speed of A = 108 km/hr = 30 m/s
Speed of train B = 72 km/hr = 20 m/s
Here r the relative Speed between train A and train B should be considered first i.e.= 30 -20 = 10 m/s.
Relative Speed -Train A and man moving in the opposite direction with a Speed of 2.5 m/s=10 +2.5 = 12.5m/s
Time taken by train A to pass the man who is moving in the opposite direction = 125/12.5 = 10 secs since the Distance to be covered over here is the length of train A only.

Example 8: How much Time a 100m long train traveling at a Speed of 8 m/s will take to overtake another train which is 80m and is traveling in the same direction at a Speed of 4 m/s?

Sol: Suppose the 80 m long train is stationary and take the Speed of the 100m long train in relative to the former.
So relative Speed of 100m long train = 8 – 4 = 4 m/s.
To overtake the 80m long train it has to travel a total Distance = sum of its own length and that of the other train = 100 m + 80 m = 180 m
So to travel that Distance with a Speed of 4 m/s, it will take 180/4= 45 secs.

Solved Questions: Trains

Sol: Speed in m/sec = 60 *(5/18) = 50/3 m/sec
Time taken to cross the man = 6 secs
Therefore, Distance = (50/3)* 6 = 100 meter (i.e. the length of the train)

Q 2: A train travelling at 60 kmph crosses another train travelling in the same direction at 50 kmph in 30 seconds. What is the combined length of both the trains?

Sol: Speed of train A = 60 kmph = 60* (5/18) = 50/3 m/sec
Speed of train B = = 50 kmph = 50 *(5/18) = 125/9 m/sec
The relative speed =(50/3)-(125/9)=25/9 m/s (we have subtracted the two values because
both the trains are going in the same direction)
Time taken by train A to cross train B = 30 secs
Distance = Speed * Time
Distance =25/9 * 30 = 250/3 meter (i.e. the combined length of both trains)

Q 3: Train A, 600 mts long is running at 80 kmph will take how much time to cross a man sitting in another train which is 400 meter long, running at 64 kmph in the opposite direction?

Sol: Distance = 600 meters
Total Speed = 64 + 80 = 144 kmph (added because they are travelling in opposite directions)
In m/sec, speed = 144 *(5/18) = 40 m/sec
Distance = Speed x Time
600 = 40 x Time
Therefore, Time = 15 seconds

Q 4: Two trains start at the same time from Pune and Delhi and proceed towards each other at 80 kmph and 95 kmph respectively. When they meet, it is found that one train has travelled 180 km more than the other. Find the distance between Delhi and Pune.

Sol: Let t be the time after they meet
Distance1 = Speed * Time = 80 * t = 80t
Distance2 = Speed * Time = 95 * t = 95t
As the distance gap between both trains is 180 kms
Therefore, we can say that:
95t - 80t = 180
15t = 180
t = 12 seconds
Total Distance, (95+80) t = 175 * 12 (t = 12)
Distance = 2100 kms

Q 5: The distance between two places A and B is 570 kms. A train starts from A at 50 kmph at 6 am and another starts from B at 80 kmph at 7 am towards each other. At what time will they meet?

Sol: Let the two trains meet at a distance x km from place A
Time required by the train starting from A to cover x is x/50 hr
Time taken by the other train starting from B to cover (570 - x) km = (570-x)/80
But the first train has started 1 hr early. So, it has travelled 50 km in this 1 hr.
Therefore, x/50 - 1= (570-x)/80
On Solving, x = 250
So, they will meet at a distance of 250 km from place A
So the time at which they will meet will be (250/50) = 5 hrs (after 6 am)
Hence, they will meet at 11 am.

Q 6: The average speed of a train without stoppages is 48 kmph and average speed with stoppages is 40 kmph. How many minutes in an hour the train stops on an average.

Sol: If the train were to travel without stoppages, it would cover 48 km.
With stoppages, the average speed reduces by (48-40) = 8 km
Therefore, (8/48)* 60 minutes = 10 minutes
Hence, 10 minutes would be the time per hour the train stops on an average.

Q 7: Indrayani Express leaves Pune for Bombay at 17:30 hrs and reaches Bombay at 21:30 hrs. While, Shatabdi, which leaves Bombay at 17:00 hrs reaches Pune at 20:30 hrs. At what time do they pass each other

Sol: Let the distance between Bombay and Pune = d km
Indrayani’s Speed =(d/4) kmph and that of Shatabdi = (d/3.5)kmph
Let t be the time in hrs after Shatabdi has left for Pune, when the two trains meet
Therefore, distance travelled by Shatabdi = (d/3.5)* t
And that of Indrayani =(d/4) * (t-30/60)
The sum of the distances travelled by the two trains = distance between Bombay and Pune = d km
Therefore, (d/3.5)* t +(d/4) * (t-30/60)=d
Solving for t, we get t = 2.1 hrs or 2 hrs and 6 mins
Hence, the two trains meet at 19:06 hrs

Q 8: How long will a 150 m long train running at a speed of 60 kmph take to cross a bridge of 300 m?

Sol: Total Distance = 300 + 150 = 450 m
Speed = 60 kmph = 60 *(5/18)=(50/3) m/sec
Distance = Speed * Time
450 =(50/3) * Time
Time = 27 seconds
