Q1: M20 concrete as per IS 456: 2000 refers to concrete with a design mix having    [2023, Set-2]
(a) an average cube strength of 20MPa
(b) an average cylinder strength of 20MPa
(c) a 5 -percentile cube strength of 20MPa
(d) a 5 -percentile cylinder strength of 20MPa
Ans: (c)
Sol: In M20, M refers to mix and 20 to characteristic cube strength. As per clause no. 6.1.1, IS456: 2000 characteristic strength is defined as the strength below which not more than 5 percent of the test results are expected to fall.
Hence, correct option is (c).

Q1: A reinforced concrete beam with rectangular cross section (width =300 mm, effective depth =580 mm ) is made of M30 grade concrete. It has 1% longitudinal tension reinforcement of Fe415 grade steel. The design shear strength for this beam is 0.66 N/mm². The beam has to resist a factored shear force of 440kN. The spacing of two-legged, 10 mm diameter vertical stirrups of Fe415 grade steel is mm. (round off to the nearest integer)    [2022, Set-1]
Ans: 100 to 102
Sol:
b = 300 mm
d = 580 mm
V_u = 440kN
Concrete used is M30
Raft steel is Fe415
V_cu = τ _cBd =
V_su = V_u - V_cu = 440 - 114.84 = 325.16kN
Spacing of 2-legged shear reinforcement

= 101.16mm

Q1: A reinforcing steel bar, partially embedded in concrete, is subjected to a tensile force P. The figure that appropriately represents the distribution of the magnitude of bond stress (represented as hatched region), along the embedded length of the bar, is    [2020, Set-1]
(a) A
(b) B
(c) C
(d) D
Ans: (c)

Q1: Tie bars of 12 mm diameter are to be provided in a concrete pavement slab. The working tensile stress of the tie bars is 230MPa, the average bond strength between a tie bar and concrete is 2MPa, and the joint gap between the slabs is 10 mm. Ignoring the loss of bond and the tolerance factor, the design length of the tie bars (in mm, round off to the nearest integer) is _________     [2019, Set-1]
Ans: 700
Sol:

Length of tie bar = L_d + 10 + L_d = 345 + 10 + 345 = 700mm

Q2: For a given loading on a rectangular plain concrete beam with an overall depth of 500 mm, the compressive strain and tensile strain developed at the extreme fibers are of the same magnitude of 2.5×10^-4. The curvature in the beam cross-section (in m^-1, round off to 3 decimal places), is _______    [2019, Set-1]
Ans: 0.001
Sol: Simple bending equation

Q.1  An RCC beam of rectangular cross-section has factored shear of 200 kN at its critical section. Its width b is 250 mm and effective depth d is 350 mm. Assume design shear strength τ_c of concrete as 0.62 N/mm² and maximum allowable shear stress τ_{c max} in concrete as 2.8 N/mm². If two legged 10 mm diameter vertical stirrups of Fe250 grade steel are used, then the required spacing (in cm, up to one decimal place) as per limit state method will be ________    [2018, Set-1]
Ans: 7 to 9
Sol:

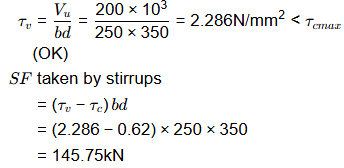

Nominal shear stress,

Q.2  As per IS 456 : 2000 for the design of reinforced concrete beam, the maximum allowable shear stress (τ_cmax) depends on the [2016 : 1 Mark, Set-II]
(a) grade of concrete and grade of steel
(b) grade of concrete only
(c) grade of steel only
(d) grade of concrete and percentage of reinforcemen
Ans. (B)
Solution:
From table 20 of IS 456 : 2000 it is evident that τ_cmax values are dependent only on concrete grade.


Q.3 In shear design of an RC beam, other than allowable shear strength of concrete (τ_c), there is also an additional check suggested in IS 456 : 2000 with respect to the maximum permissible shear stress (τ_cmax). The check for (τ_cmax) is required to take care of [2016 : 1 Mark, Set-I]
(a) additional shear resistance from reinforcing steel
(b) additional shear stress that comes from accidental loading
(c) possibility of failure of concrete by diagonal tension
(d) possibility of crushing of concrete by diagonal compression
Ans.(D)
Solution:
The check for τ_cmax is an additional check to take care of possibility of crushing of concrete by design of compression.

Q.4 The development length of a deformed reinforcement bar can be expressed as  From the IS: 456-2000 , the value of k can be calculated as ________. [2015 : 1 Mark, Set-I]
Solution:
Bond strength of concrete
= Tensile force in steel

⇒
For deformed bars τ_bd value is increased by 60%,
∴
∴ k = 6.4

Q.5 A rectangular beam of width (b) 230mm and effective depth (d) 450 mm is reinforced with four bars of 12 mm diameter. The grade of concrete is M20 and grade of steel is Fe500. Given that for M20 grade of concrete the ultimate shear strength, τ_uc = 0.36 N/mm² for steel percentage, p = 0.25, and τ_uc= 0.48 N/mm² for p = 0.50. For a factored shear force of 45 kN, the diameter (in mm) of Fe500 steel two legged stirrups to be used at spacing of 375 mm, should be [2014 : 2 Marks, Set-I]
(a) 8
(b) 10
(c) 12
(d) 16
Ans. (A)
Solution:


Factored SF = 45 kN - V_u
We have to calculate the dia of Fe 500 2-Legged stirrup to be used at a spacing of 325 mm c/c

∴ %tensile steel


⇒ Min shear reinforcement is required
⇒ Min shear reinforcement is given by



Q.6 As per IS 456 : 2000 for M20 grade concrete and plain bars in tension the design bond stress τ_bd = 1.2 MPa. Further, IS 456 : 2000 permits this design bond stress value to be increased by 60% for HYSD bars. The stress in the HYSD reinforcing steel bars in tension, σ_s = 360 MPa. Find the required development length, L_d, for HYSD bars in terms of the bar diameter, φ.______ [2013 : 1 Mark]
Solution:


Q.7 Consider a bar of diameter ‘D embedded in a large concrete block as shown in the adjoining figure, with a pull out force P being applied. Let σ_b and σ_st be the bond strength (between the bar and concrete) and the tensile strength of the bar, respectively. If the block is held in position and it is assumed that the material of the block does not fail, which of the following options represents the maximum value of P? [2011 : 2 Marks]

(a) Maximum of
(b) Maximum of
(c) Minimum of
(d) Minimum of
Ans.(C)
Solution:

Maximum force resisted by bond strength
Maximum tensile force resisted by bar
∴ Maximum value of P = Minimum of


Q.8 Consider two RCC beams, Pand Q, each having the section 400 mm x 750 mm (effective depth, d = 750 mm) made with concrete having τ_cmax = 2.1 N/mm². For the reinforcement provided and the grade of concrete used, it may be assumed that the τ_c = 0.75 N/mm². The design shear in beam P is 400 kN and in beam Q is 750 kN. Considering the provisions of IS 456 : 2000, which of the following statements is TRUE? [2011 : 2 Marks]
(a) Shear reinforcement should be designed for 175 kN for beam Pand the section for beam Q should be revised.
(b) Nominal shear reinforcement is required for beam Pand the shear reinforcement should be designed for 120 kN for beam Q.
(c) Shear reinforcement should be designed for 175 kN for beam Pand the shear reinforcement should be designed for 525 kN for beam Q.
(d) The sections for both beams Pand Q need to be revised.
Ans. (A)
Solution:
Shear strength of the concrete = τc  x Bd
= 0.75 x 400 x 750 x 10^-3 = 225 kN
Maximum shear strength of concrete

Design shear in beam P is 400 kN which is less than the maximum shear that the concrete can sustain. But the design shear is more than the nominal shear of 225 kN.
∴ Shear reinforcement is designed for
= 400-225 = 175 kN
Design shear in beam Q is 750 kN which is more than the maximum shear that the concrete can sustain. Hence the beam Q should be redesigned.

Q.9 Consider a reinforcing bar embedded in concrete. In a marine environment this bar undergoes uniform corrosion, which leads to the deposition of corrosion products on its surface and an increase in the apparent volume of the bar. This subjects the surrounding concrete to expansive pressure As a result , corrosion induced cracks appear at the surface of concrete. Which of the following statements is TRUE?    [2011 ; 1 Mark]
(a) Corrosion causes circumferential tensile stresses in concrete and the cracks will be parallel to the corroded reinforcing bar.
(b) Corrosion causes radial tensile stresses in concrete and the cracks will be parallel to the corroded reinforcing bar.
(c) Corrosion causes circumferential tensile stresses in concrete and the cracks will be perpendicular to the direction of the corroded reinforcing bar.
(d) Corrosion causes radial tensile stresses in concrete and the cracks will be perpendicular to the direction of the corroded reinforcing bar.
Ans. (A)
Solution: Corrosion in steel occupies more volume than volume of reinforcing steel, hence exerts radial pressure on adjoining concrete layer. As a consequence, cracking results along reinforcing bars and concrete starts spalling.
