Sound Class 9 Notes Science Chapter 11

Understanding Sound

Sound is an essential part of our everyday life, coming to us in many different forms. But what is sound exactly?

Sound Class 9 Notes Science Chapter 11

Sound is a type of energy that creates a sensation of hearing. It is made by vibrations and travels in waves. It is important to understand that sound waves are a kind of mechanical wave, which means they need a medium (like air, water, or solids) to move through.

Sound Class 9 Notes Science Chapter 11

Key Characteristics of Sound

  • Nature of Sound: Sound is produced by vibrations and travels in waves.
  • Transmission: Sound requires a medium (such as air, water, or solids) to travel.
  • Loudness and Intensity: Loudness is how our ears respond to the intensity of sound.
  • Audible Range: The typical range of hearing for most people is between 20 Hz and 20 kHz. Sounds below this range are called 'infrasonic', while those above are called 'ultrasonic'.

When you clap, you create a sound. But can you make sound without using any energy? In this chapter, we will explore how sound is made, how it travels through different mediums, and how it is detected by our ears.

Production of Sound

Sound is created by objects that vibrate. It is a type of energy that we hear with our ears. When objects vibrate, they generate sound waves made of compressions and rarefactions, which are key to understanding how sound moves through the air. A compression is a part of the sound wave where the pressure is higher, while rarefaction is where the pressure is lower.

Activity:

 Sound Class 9 Notes Science Chapter 11 Vibrating tuning fork just touching the suspended Table Tennis ball

  • Objective: Observe how vibrations create sound and influence nearby objects.
  • Materials: Tuning fork, rubber pad, small ball (table tennis or plastic), thread, needle.
  • Procedure:
    1. Strike the tuning fork against the rubber pad to make it vibrate.
    2. Hold the vibrating fork near your ear and listen to the sound.
    3. Touch a vibrating prong with your finger and feel the vibrations.
    4. Hang a small ball using a thread. Lightly touch the ball with the vibrating fork and watch how it moves.
  • Observations:
    1. The vibrating fork makes sound.
    2. Touching the prong lets you feel the vibrations.
    3. The ball moves when it is touched by the vibrating fork.
  • Conclusion: Vibrations create sound, and sound can also be produced by plucking, scratching, rubbing, blowing, or shaking different objects.

Sound can be generated through various actions that cause objects to vibrate. Vibration means the quick back-and-forth movement of an object. The sound of a human voice comes from vibrations in the vocal cords. When a stretched rubber band is plucked, it vibrates and makes sound.

  • Compression is the area of high pressure in a sound wave.
  • Rarefaction is the area of low pressure in a sound wave.

In brief, sound is made by vibrating objects, and grasping the ideas of compression and rarefaction is important for understanding how sound travels through different materials.

Question for Chapter Notes: Sound
Try yourself:What is vibration?
View Solution

Propagation of Sound

Sound Propagation and Waves:

  • A wave is a disturbance that travels through a medium, causing its particles to move and set nearby particles in motion.
  • The particles themselves do not move forward; rather, the disturbance moves forward.
  • Sound can be thought of as a wave because it is the movement of particles in a medium.
  • Sound waves are known as mechanical waves because they depend on the movement of particles.
  • Sound can be seen as variations in density or pressure in the medium.

Sound Class 9 Notes Science Chapter 11

Sound Propagation in Air:

  • Air is the most common medium for sound transmission.
  • When a vibrating object moves forward, it compresses the air in front of it, creating a high-pressure area known as compression (C).
  • This compression then moves away from the vibrating object.
  • When the object moves backward, it creates a low-pressure area called rarefaction (R).
  • As the object oscillates quickly, it produces a series of compressions and rarefactions in the air, forming the sound wave.
  • Compression indicates high pressure, whereas rarefaction indicates low pressure.

 Sound Class 9 Notes Science Chapter 11  Compression (C) & Rarefaction (R) of sound

  • Pressure relates to the number of particles in a given volume of the medium.
  • A higher density of particles results in more pressure, and a lower density results in less pressure.
  • The distance between two consecutive compressions or rarefactions is known as the wavelength, λ.
  • The time taken for one complete oscillation of the density or pressure is called the time period, T.
  • The speed (v), frequency (f), and wavelength (λ) of sound are connected by the equation: v = fλ.

The law of reflection of sound states that the angles of incidence and reflection are equal concerning the normal to the reflecting surface at the point of incidence, and all three lie in the same plane.

Sound Waves are Longitudinal Waves

  • A wave is a disturbance that travels through a medium, causing its particles to move and set nearby particles in motion. The individual particles do not move forward themselves; instead, the disturbance moves through the medium.
  • Sound travels through the medium by a series of compressions (C) and rarefactions (R). These areas of closely packed and spaced out particles create longitudinal waves.
  • In longitudinal waves, the particles of the medium move in the same direction as the wave is travelling. They oscillate back and forth around their resting position without changing their location.
  • Sound waves are defined by how the particles in the medium move and are classified as mechanical waves. Air is the most common medium for sound transmission.

How Sound Waves Work

  • When a vibrating object moves forward, it compresses the air in front, creating a high-pressure area known as a compression (C).
  • When the object moves backward, it creates a low-pressure area called a rarefaction (R). Compression refers to high pressure, while rarefaction refers to low pressure.
  • Pressure is linked to the number of particles in a given volume; a denser medium results in higher pressure, and a less dense medium results in lower pressure.

Sound Class 9 Notes Science Chapter 11

Transverse Waves

  • Another type of wave is called a transverse wave. In these waves, particles do not move in the same direction as the wave travels but rather move up and down around their average position.
  • This means that in transverse waves, the individual particles move at a right angle to the direction of wave travel.
  • An example of a transverse wave is the ripples created on the surface of water when a pebble is dropped into it.

Question for Chapter Notes: Sound
Try yourself:In longitudinal waves, how do particles of the medium move in relation to the direction of wave propagation?
View Solution

Characteristics of a Sound Wave

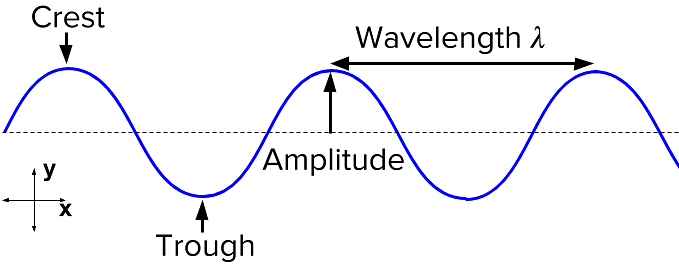

We can describe a sound wave by its:

Sound Class 9 Notes Science Chapter 11

  • Frequency
  • Amplitude
  • Speed

Key Characteristics of Sound Waves

  • Sound waves can be described by their frequency, amplitude, and speed.
  • The density and pressure of the medium change with distance as the sound wave travels.
  • Compressions are areas of high density and pressure, while rarefactions are areas of low pressure.
  • Wavelength is the distance between two consecutive compressions or rarefactions, represented by λ (lambda) with the SI unit of metre.
  • Frequency represents the number of oscillations per unit time and is measured in hertz (Hz), usually represented by ν (Greek letter, nu).
  • The time period (T) is the time taken for one complete oscillation, and frequency and time period are inversely related.
  • The audible range of hearing for average human beings is in the frequency range of 20 Hz - 20 kHz.
  • Sound waves with frequencies below the audible range are called "infrasonic," and those above are called "ultrasonic."

Pitch, Amplitude, and Loudness

  • Pitch is determined by the frequency of the sound wave, where higher frequency corresponds to a higher pitch.
  • Amplitude refers to the size of the maximum disturbance in the medium.
  • Loudness is a response of the ear to the intensity of sound, with greater amplitude producing a louder sound.
  • The loudness of a sound decreases as it travels further from its source.

Sound Class 9 Notes Science Chapter 11

Quality and Speed of Sound

  • Quality or timbre refers to the feature that distinguishes one sound from another with the same pitch and loudness.
  • Sound waves with a single frequency are called tones, while those with a mix of frequencies are called notes.
  • The speed of sound is the distance travelled by a point on a wave per unit time, calculated as Speed of sound = wavelength × frequency.

Sound Class 9 Notes Science Chapter 11

  • The speed of sound depends mainly on the nature and the temperature of the transmitting medium.

Intensity of Sound

  • Intensity of sound refers to the amount of sound energy passing through a unit area per second.
  • Loudness is a response of the ear to the intensity of sound.
  • Even sounds with the same intensity can be heard as different loudness due to differences in the ear's sensitivity.

Speed of Sound In Different Media

  • Sound travels through a medium at a finite speed, which is slower than the speed of light.
  • The speed of sound depends on the properties of the medium and is affected by temperature; as temperature rises, the speed of sound in the medium increases.
  • The speed of sound varies in different media at a given temperature and decreases when moving from a solid to a gas.
  • Raising the temperature in a medium generally increases the speed of sound.

Sound Class 9 Notes Science Chapter 11

Question for Chapter Notes: Sound
Try yourself:
What is the definition of sound?
View Solution

Reflection of Sound


    • Sound waves behave like a rubber ball bouncing off a wall when they hit a solid or liquid surface.
    • Similar to light, sound follows the laws of reflection that you may have studied before.
    • When sound strikes a surface, it reflects in such a way that the angles of incidence and reflection are equal in relation to the normal (a line that is perpendicular to the surface) at the point where it hits.
    • These angles and the normal line are all in the same plane.
    • For sound waves to reflect, they need a sufficiently large obstacle, regardless of whether it is smooth or rough.

Sound Class 9 Notes Science Chapter 11

Echo

  • An echo is the sound we hear when the original sound is bounced back to us. The sensation of sound lingers in our brain for about 0.1 seconds.
  • Yelling or clapping near a suitable reflecting surface can create an echo.

 Sound Class 9 Notes Science Chapter 11 Man producing echo

Conditions for Hearing a Distinct Echo

  • To hear a clear echo, there must be a time gap of at least 0.1 seconds between the original sound and the reflected sound. If we consider the speed of sound to be 344 m/s at a temperature of 22 °C in air, the total distance the sound travels must be at least (344 m/s) × 0.1 s = 34.4 m.
  • For a distinct echo, the minimum distance between the sound source and the reflecting surface should be half of the total distance, which is 17.2 metres. This distance can change depending on the temperature of the air.

Echoes can happen more than once because of repeated reflections.

Reverberation

When a sound is made in a large hall, it continues to exist because of multiple reflections from the walls until its intensity decreases enough that it can no longer be heard. This ongoing presence of sound due to reflections is known as reverberation.

 Sound Class 9 Notes Science Chapter 11 Reverberation of Sound


    • Too much reverberation in an auditorium or large hall is not desirable.
    • To reduce reverberation, the walls and ceiling of the auditorium are usually covered with materials that absorb sound, such as compressed fibreboard, rough plaster, or curtains.
    • Additionally, the materials used for seating are selected for their sound-absorbing properties.

Question: A person clapped his hands near a cliff and heard the echo after 2 s. What is the distance of the cliff from the person if the speed of sound, v, is taken as 346 m/s?

Solution: Given,

Speed of sound: 346 m/s

Time taken for hearing the echo: 2 s

Distance travelled by the sound

Distance = 346 m/s × 2 s = 692 m

In 2 seconds, sound travels twice the distance between the cliff and the person.

Therefore, the distance between the cliff and the person is: Distance = 692 m / 2 = 346 m

Minimum Distance for Distinct Echoes

  • To hear distinct echoes, the minimum distance of the obstacle from the source of sound must be half of the total distance covered by the sound, which is at least 17.2 m.
  • This distance can change with temperature, as the speed of sound varies with temperature.

Uses of Multiple Reflections of Sound

  • Megaphones and Loudhailers: These devices are made to direct sound in a specific direction rather than spreading it everywhere. They usually have a tube and a conical opening that reflect sound waves, directing most of the sound towards the audience.
  • Stethoscopes: A stethoscope is a medical instrument used by doctors to listen to sounds inside the body, especially in the heart or lungs. The sound of the patient's heartbeat reaches the doctor's ears through multiple reflections of sound within the stethoscope.
  • Auditoriums and Concert Halls: In concert halls, conference rooms, and cinemas, the ceilings are often curved to make sure that sound reaches every corner of the hall. This helps to spread sound evenly throughout the space. The rolling of thunder is another example, caused by the repeated reflections of sound from different surfaces, like clouds and the ground.

Sound Class 9 Notes Science Chapter 11

Curved ceiling of conference hall

Question for Chapter Notes: Sound
Try yourself:What is the minimum time interval required for a distinct echo to be heard?
View Solution

Range of Hearing

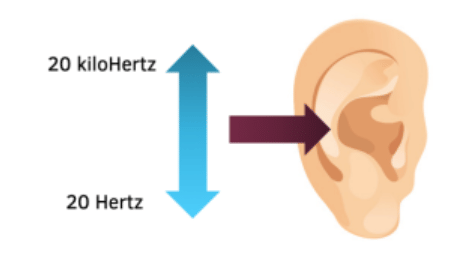

  • The range of sound that humans can hear is from about 20 Hz to 20,000 Hz (where one Hz equals one cycle per second). Children under five years old and some animals, like dogs, can hear sounds up to 25 kHz (one kHz equals 1000 Hz).
  • As people age, their ears become less responsive to higher frequencies.Sound Class 9 Notes Science Chapter 11
  • Sounds that are below 20 Hz are known as infrasonic sound or infrasound. If we were able to hear infrasound, we might perceive vibrations like those of a pendulum, similar to how we hear a bee's wings.
  • Rhinoceroses communicate using infrasound at frequencies as low as 5 Hz. Animals like whales and elephants also produce sounds in the infrasound range.
  • It has been noted that some animals can detect low-frequency infrasound before earthquakes occur. Earthquakes generate low-frequency infrasound prior to the main shock waves, which may warn the animals.
  • Frequencies above 20 kHz are referred to as ultrasonic sound or ultrasound. Animals such as dolphins, bats, and porpoises produce ultrasound.
  • Certain moths have exceptionally sensitive hearing, enabling them to hear the high-frequency sounds made by bats, helping them to escape. Additionally, rats can create ultrasound during play.
  • Ultrasound has various applications in both medical and industrial fields.

Sound Class 9 Notes Science Chapter 11

Question for Chapter Notes: Sound
Try yourself:What is the upper limit of the audible range for children under five years old and some animals?
View Solution

Applications of Ultrasound

1. Cleaning Hard-to-Reach Objects

  • Objects are placed in a cleaning solution while ultrasonic waves are sent through it.
  • The high frequency of the waves causes dust, grease, and dirt to detach and fall away.
  • This method ensures thorough cleaning, even in complex shapes like spiral tubes or electronic components.

2. Detecting Cracks and Flaws

  • Ultrasound is used to identify cracks and flaws in metal blocks used in construction.
  • Ordinary sounds with longer wavelengths cannot detect these flaws as they bend around corners.
  • Ultrasonic waves pass through the metal block, and detectors identify the transmitted waves.
  • If there is a defect, the ultrasound reflects back, indicating the presence of a flaw.Sound Class 9 Notes Science Chapter 11

3. Echocardiography

  • Ultrasonic waves are reflected from different parts of the heart to create an image.
  • Echocardiography is essential for diagnosing heart conditions and abnormalities.

4. Ultrasonography

  • Ultrasonic waves are used to image internal organs of the human body.
  • A doctor can examine organs like the liver, gall bladder, uterus, and kidneys.
  • Changes in tissue density cause the waves to reflect, turning into electrical signals.
  • These signals create images that help detect abnormalities, such as stones or tumours.
  • Ultrasonography is especially useful during pregnancy to check for congenital defects and growth issues.

5. Medical Treatment: Kidney Stone Breakage

  • Ultrasound can break small kidney stones into fine pieces.
  • The fragments can then be flushed out through urine, avoiding invasive procedures.

The document Sound Class 9 Notes Science Chapter 11 is a part of the Class 9 Course Science Class 9.
All you need of Class 9 at this link: Class 9
88 videos|369 docs|67 tests

Top Courses for Class 9

FAQs on Sound Class 9 Notes Science Chapter 11

1. What is the process of sound production?
Ans. Sound production occurs when an object vibrates, creating pressure waves in the surrounding medium, usually air. These vibrations can be caused by various activities, such as plucking a guitar string or speaking. The vibration generates sound waves that travel through the medium until they reach our ears.
2. How does sound propagate through different mediums?
Ans. Sound propagates through different mediums—solids, liquids, and gases—by causing the particles in those mediums to vibrate. In solids, sound travels fastest because the particles are closely packed, allowing efficient transfer of energy. In liquids, sound travels slower than in solids, and in gases, sound travels slowest because the particles are far apart.
3. What are the main characteristics of sound waves?
Ans. The main characteristics of sound waves include frequency, wavelength, amplitude, and speed. Frequency determines the pitch of the sound, while wavelength is the distance between two consecutive compressions or rarefactions. Amplitude refers to the loudness of the sound, and speed varies depending on the medium through which the sound is traveling.
4. How does the reflection of sound work?
Ans. The reflection of sound occurs when sound waves encounter a barrier and bounce back. This phenomenon is similar to light reflection. Echoes are a common example of sound reflection, where the original sound reaches a surface, reflects, and is heard again after a short delay.
5. What is the range of human hearing, and how does it relate to ultrasound?
Ans. The range of human hearing is typically between 20 Hz to 20,000 Hz (20 kHz). Frequencies above 20 kHz are classified as ultrasound, which is inaudible to humans. Ultrasound has various applications, such as medical imaging and industrial testing, due to its ability to penetrate materials and provide detailed information about structures.
88 videos|369 docs|67 tests
Download as PDF
Explore Courses for Class 9 exam

Top Courses for Class 9

Signup for Free!
Signup to see your scores go up within 7 days! Learn & Practice with 1000+ FREE Notes, Videos & Tests.
10M+ students study on EduRev
Related Searches

Summary

,

Exam

,

Important questions

,

pdf

,

past year papers

,

video lectures

,

Sound Class 9 Notes Science Chapter 11

,

mock tests for examination

,

study material

,

Viva Questions

,

Sample Paper

,

shortcuts and tricks

,

Sound Class 9 Notes Science Chapter 11

,

practice quizzes

,

MCQs

,

Semester Notes

,

ppt

,

Sound Class 9 Notes Science Chapter 11

,

Previous Year Questions with Solutions

,

Objective type Questions

,

Extra Questions

,

Free

;
