MULTIPLE CHOICE QUESTIONS I

Q.1. The conductivity of a semiconductor increases with increase in temperature because
(a) Number density of free current carriers increases
(b) Relaxation time increases
(c) Both number density of carriers and relaxation time increase
(d) Number density of current carriers increases, relaxation time decreases but effect of decrease in relaxation time is much less than increase in number density
Ans. (d)
Solution.
Key concept
Conductivity of Semiconductor:
(1) In intrinsic semiconductors n_e = n_h. Both electron and holes contributes in current conduction.
(2) When some potential difference is applied across a piece of intrinsic semiconductor current flows in it due to both electron and holes, i.e. i = i_e  + i_h ⇒ i = eA[n_ev_e + n_hv_h]

(3) As we know  Hence conductivity of semiconductor is σ = e[n_eμ_e + n_hμ_h]; where v_e = drift velocity of electron, v_h = drift velocity of holes, E= Applied electric field,  mobility of electron and  mobility of holes
(4) Motion of electrons in the conduction band and of holes in the valence band under the action o f electric field is shown below:

(5) At absolute zero temperature (0 K)conduction band of semiconductor is completely empty, i.e., σ= 0. Hence the semiconductor behaves as an insulator.
We know that
So, σ ∝ nτ
where, n = number density and τ = relaxation time
In semiconductors conductivity increases with increase in temperature, because the number density of current carries increases, relaxation time decreases but effect of decrease in relaxation is much less than increase in number density.

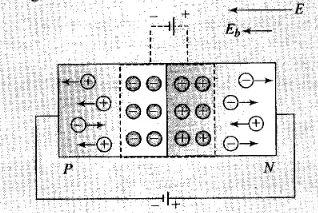

Q.2. In Figure, V_o is the potential barrier across a p-n junction, when no battery is connected across the junction
(a) 1 and 3 both correspond to forward bias of junction
(b) 3 corresponds to forward bias of junction and 1 corresponds to reverse bias of junction (c) 1 corresponds to forward bias and 3 corresponds to reverse bias of junction.
(d) 3 and 1 both correspond to reverse bias of junction.

Ans. (b)
when P-n junction is in forward bias, it compresses or decreases the depletion layer so potential barrier in forward bias decreases and in reverse layer so potential barrier in forward bias decrease and in reverse bias potential barrier increases.

Q.3. In Figure assuming the diodes to be ideal,

(a) D₁ is forward biased and D₂ is reverse biased and hence current flows from A to B
(b) D₂ is forward biased and D₁ is reverse biased and hence no current flows from B to A and vice versa.
(c) D₁ and D₂ are both forward biased and hence current flows from A to B.
(d) D₁ and D₂ are both reverse biased and hence no current flows from A to B and vice versa.
Ans. (b)
Solution.
A symbol of the diode is represented like this:
In this problem first we have to check the polarity of the diodes. - 10 V is the lower, voltage in the circuit. Now p-side of p-n junction D₁, is connected to lower voltage and n-side of D₁ to higher voltage. Thus D₁ is reverse biased.
Now, let us analyse 2nd diode of the given circuit. The p-side of p-n junction D₂ is at higher potential and n-side of D₂ is at lower potential. Therefore D₂ is forward biased.
Hence, current flows through the junction from B to A.

Q.4. A 220 V A.C. supply is connected between points A and B (in Figure). What will be the potential difference V across the capacitor?

(a) 220V
(b) 110V
(c) 0V
(d) 220√2 V
Ans. (d)
Solution.
Key concept: Half wave rectifier: When the P-N junction diode rectifies half of the ac wave, it is called half wave rectifier.

(i) During positive half cycle,
Diode → forward biased
Output signal → obtained
(ii) During negative half cycle,
Diode → reverse biased
Output signal → not obtained

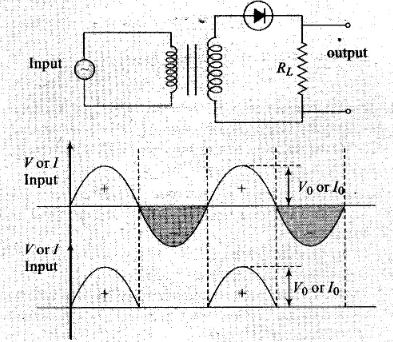

(iii) Output voltage is obtained across the load resistance R_L. It is not constant but pulsating (mixture of ac and dc) in nature.
(iv) Average output in one cycle

(r_{f =} forward biased resistance)

As p-n junction diode will conduct during positive half cycle only, during negative half cycle diode is reverse biased. During this diode will not give any output. So, potential difference across capacitor C - peak voltage of the given AC voltage
= V₀ = V_rms√2 = 220√2 V

Q.5. Hole is
(a) An anti-particle of electron
(b) A vacancy created when an electron leaves a covalent bond
(c) Absence of free electrons
(d) An artifically created particle
Ans. (b)
Solution.
Concept of holes in the semiconductor:

1. When an electron is removed from a covalent bond, it leaves a vacancy behind. An electron from a neighbouring atom can move into this vacancy, leaving the neighbour with a vacancy. In this way the vacancy formed is called a hole (or cotter), and can travel through the material and serve as an additional current carriers.
2. A hole is considered as a seat of positive charge, having magnitude of charge equal to that of an electron.
3. Holes acts as a virtual charge, although there is no physical charge on it.
4. Effective mass of hole is more than an electron.
5. Mobility of hole is less than an electron.

Q.6.The output of the given circuit in Figure

(a) Would be zero at all times
(b) Would be like a half wave rectifier with positive cycles in output
(c) Would be like a half wave rectifier with negative cycles in output
(d) Would be like that of a full wave rectifier
Ans. (c)
Solution.
When positive cycle is at A, diode will be in forward bias and resistance due to diode is approximately zero so potential across diode will be about zero.
Similarly, when there is negative half cycle at A, diode will be in reverse bias and resistance will be maximum so potential difference across diode is V_m sin ωt with negative at A.
So we get only negative output at A so it behaves like a half wave rectifier with negative cycle at A in output, verifies the answer (c).

Q. 7. In the circuit shown in Figure, if the diode forward voltage drop is 0.3 V, the voltage difference between A and B is

(a) 1.3 V
(b) 2.3 V
(c) 0
(d) 0.5 V
Ans. (b)
Solution.
In the middle right of the circuit the capacitor behaves like an open circuit for d.c 0.2 mA current so current will flow from A to B only. Let potential across A and B is V, so by Kirchhoff’s loop law
V_AB = (5000×0.2×10^-3) +0.3+5000×0.2×10^-3
V_AB = 1V+0.3V+ 1V
V_AB = 2.3 V

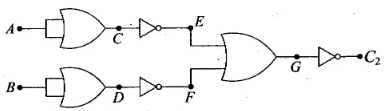

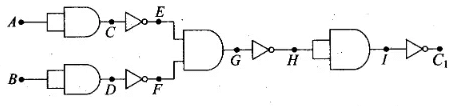

Q.8. Truth table for the given circuit (Figure) is





Ans. (c)
Solution.

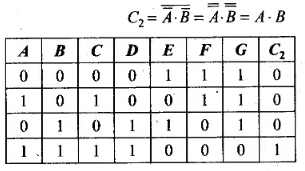

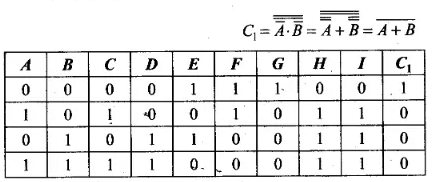

In this problem the input C of OR gate and which is an output of AND gate. So, " equals A AND B" or C=A • B and "D equals Not A AND B" or
and “E equals C AND D" or E = C + D = (A . B) + (A . B)

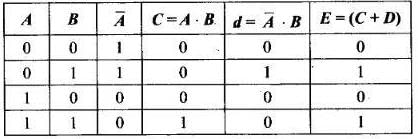

Now we can generate the truth table of this arrangement of gates can be given by

MULTIPLE CHOICE QUESTIONS II

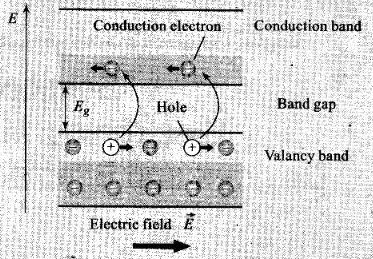

Q.9. When an electric field is applied across a semiconductor
(a) Electrons move from lower energy level to higher energy level in the conduction band
(b) Electrons move from higher energy level to lower energy level in the conduction band
(c) Holes in the valence band move from higher energy level to lower energy level
(d) Holes in the valence band move from lower energy level to higher energy level
Ans. (a,c)
Solution.
In valence band electrons are not capable of gaining energy from external electric field. While in conduction band the electrons can gain energy from external electric field.
When electric field is applied across a semiconductor, the electrons in the conduction band (which is partially filled with electrons) get accelerated and acquire energy. They move from lower energy level to higher energy level. While the holes in valence band move from higher energy level to lower energy level, where they will be having more energy.

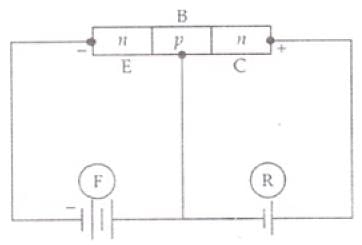

Q.10. Consider an npn transistor with its base-emitter junction forward biased and collector base junction reverse biased. Which of the following statements are true?.
(a) Electrons crossover from emitter to collector
(b) Holes move from base to collector
(c) Electrons move from emitter to base
(d) Electrons from emitter move out of base without going to the collector
Ans. (a,c)
Solution.
Electrons are repelled by forward bias from emitter to collector  5% of electrons combine with holes of base and rest 95% electrons of emitter are attracted by reverse bias of collector-base junction.

So electrons move from emitter to collector through base i.e., emitter to base verifies (a) and (c).

Q.11 Figure shows the transfer characteristics of a base biased CE transistor. Which of the following statements are true?

(a) At V_i = 0.4 V, transistor is in active state
(b) At V_i = 1 V , it can be used as an amplifier
(c) At V_i = 0.5 V, it can be used as a switch turned off
(d) At V_i = 2.5 V, it can be used as a switch turned on
Ans. (b,c,d)
Solution.
According to above graph transfer characteristics of a base biased common emitter transistor, we note that .
(a) when V_i= 0.4 V, output voltage remain same,there is no collection current. So, transistor circuit is not in active state.
(b) when V_i = 1 V (This is in between 0.6 V to 2 V), the transistor circuit is in active state and when input is increasing output is decreasing because when CE is used as an amplifier input and output voltages are 180° out of phase. Then it is used as an amplifier.
(c) when V_i = 0.5 V, there is no collector current. The transistor is in cut off state. The transistor circuit can be used as a switch to be turned off.
(d) when V_i = 2.5 V, the collector current becomes maximum and transistor is in a saturation state and can used as switch turned on state.

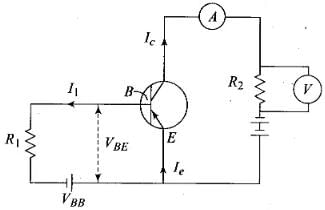

Q.12 In a npn transistor circuit, the collector  current is 10 mA. If 95 per cent of the electrons emitted reach the collector, which of the following statements are true?
(a) The emitter current will be 8 mA
(b) The emitter current will be 10.53 mA
(c) The base current will be 0.53 mA
(d) The base current will be 2 mA
Ans. (b,c)
Solution.
According to the problem, the collector current is 95% of electrons reaching the collector after emission. And collector current, I_C = 10 mA
I_E = emitter current
Also,

Also, I_B = I_E - I_C  = 10.53 - 10 = 0.53 mA

Q.13. In the depletion region of a diode
(a) there are no mobile charges
(b) equal number of holes and electrons exist, making the region neutral
(c) recombination of holes and electrons has taken place
(d) immobile charged ions exist
Ans. (a,b,d)
Solution.
On account of difference in concentration of charge carrier in the two sections of P-N junction, the electrons from N-rcgion diffuse through the junction into P-region and the hole from P-region diffuse into N-region.

Due to diffusion, neutrality of both N-and P-type semiconductor is disturbed, a layer of negative charged ions appear near the junction in the P-crystal and a layer of positive ions appears near the junction in N-crystal. This layer is called depletion layer.
The thickness of depletion layer is 1 micron = 10^-6 m.
Width of depletion layer ∞  1/Dopping
Depletion is directly proportional to temperature.
Important point: The P-N junction diode is equivalent to capacitor in which the depletion layer acts as a dielectric.

Q.14. What happens during regulation action of a Zener diode?
(a) The current in and voltage across the Zenor remains fixed
(b) The current through the series Resistance (Rs) changes
(c) The Zener resistance is constant
(d) The resistance offered by the Zener changes
Ans. (b, d)
Solution.
Symbolically zener diode represents like this:
In the forward bias, the zener diode acts as an ordinary diode. It can be used as a voltage regulator.

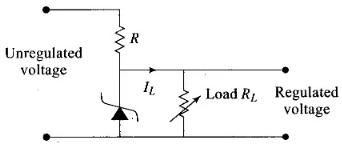

Zener Diode as a voltage regulatorA zener diode when reverse biases offers constant voltage drop across in terminals as unregulated voltage is applied across circuit to regulate. Then during regulation action of a Zener diode, the current through the series resistance Rs changes and resistance offered by the Zener changes. The current through the Zener changes but the voltage across the Zener remains constant.

Q.15. To reduce the ripples in a rectifier circuit with capacitor filter
(a) R_L should be increased
(b) Input frequency should be decreased
(c) Input frequency should be increased
(d) Capacitors with high capacitance should be used
Ans. (a,c,d)
Solution.
Ripple factor may be defined as the ratio of r.m.s. value of the ripple voltage to the absolute value of the DC component of the output voltage, usually expressed as a percentage. However ripple voltage is also commonly expressed as the peak-to-peak value. Ripple factor (r) of a full wave rectifier using capacitor filter is given by

Where, L is inductance of the coil and ω is the angular frequency.
or Ripple factor  can also  be given by


Ripple factor is inversely proportional to R_L, C and v.
Thus to reduce r, R_L should be increased, input frequency v should be increased and capacitance C should be increased.

Q.16. The breakdown in a reverse biased p–n junction diode is more likely to occur due to (a) large velocity of the minority charge carriers if the doping concentration is small
(b) large velocity of the minority charge carriers if the doping concentration is large
(c) strong electric field in a depletion region if the doping concentration is small
(d) strong electric field in the depletion region if the doping concentration is large
Ans. (a,d)
Solution.
Reverse biasing: Positive terminal of the battery is connected to the N-crystal and negative terminal of the battery is connected to P-crystal.

(i) In reverse biasing width of depletion layer increases

(ii) In reverse biasing resistance offered R_Reverse = 10⁵ Ω

(iii) Reverse bias supports the potential barrier and no current flows across the junction due to the diffusion of the majority carriers.

(A very small reverse current may exist in the circuit due to the drifting of minority carriers across the junction)

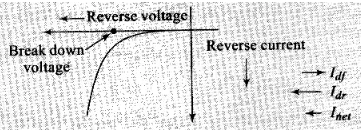

(iv) Break down voltage: Reverse voltage at which break down of semiconductor occurs. For Ge it is 25 V and for Si it is 35 V.

So, we conclude that in reverse biasing, ionization takes place because the minority charge carriers will be accelerated due to reverse biasing and striking with atoms which in turn cause secondary electrons and thus more number of charge carriers.
When doping concentration is large, there will be a large number of ions in the depletion region, which will give rise to a strong electric field.

Very Short Answer Type Questions

Q.17. Why are elemental dopants for Silicon or Germanium usually chosen from group XIII or group XV?
Ans. When pure semiconductor material is mixed with small amounts of certain specific impurities with valency different from that of the parent material, the number of mobile electrons/holes drastically changes. The process of addition of impurity is called doping. The size of the dopant atom should be compatible such that their presence in the pure semiconductor does not distort the semiconductor but easily contribute the charge carriers on forming covalent bonds with Silicon or Germanium atoms, which are provided by group XIII or group XV elements.

Q.18. Sn, C, and Si, Ge are all group XIV elements. Yet, Sn is a conductor, C is an insulator while Si and Ge are semiconductors. Why?
Ans. The conduction level of any element depends on the energy gap between its conduction band and valence band.
In conductors, there is no energy gap between conduction band and valence band. For insulator, the energy gap is large and for semiconductor the energy gap is moderate.
The energy gap for Sn is 0 eV, for C is 5.4 eV, for Si is 1.1 eV and for Ge is 0.7 eV related to their atomic size. Therefore Sn is a conductor, C is an insulator, and Ge and Si are semiconductors

Q.19. Can the potential barrier across a p-n junction be measured by simply connecting a voltmeter across the junction?
Ans. We cannot measure the potential barrier across a p-n junction by a voltmeter because the resistance of voltmeter is very high as compared to the junction resistance. Potential of potential barrier for Ge is V_B = 0.3 V and for silicon is V_B = 0.7 V.
On the average the potential barrier in P-N junction is ~0.5 V.

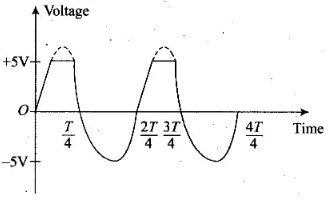

Q.20. Draw the output waveform across the resistor (Figure).
Ans. The diode act as a half wave rectifier, it offers low resistance when forward biased and high resistance when reverse biased. So the output is obtained only when positive input is given,so the output waveform is

Q.21. The amplifiers X, Y and Z are connected in series. If the voltage gains of X, Y and Z are 10, 20 and 30, respectively and the input signal is 1 mV peak value, then what is the output signal voltage (peak value)
(i) if dc supply voltage is 10V?
(ii) if dc supply voltage is 5V?

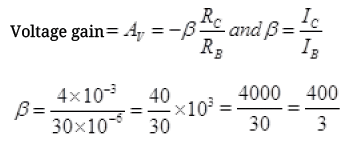

Ans. Total voltage amplification is defined as the ratio of output signal voltage and input signal voltage.
According to the problem, voltage gain in X, v_x = 10,
voltage gain in Y; v_y = 20,
voltage gain in Z, v_z, = 30;
ΔV_i = 1 mV = 10^-3 V
And Total voltage amplification = v_x * v_y * v_z,
ΔV₀ = v_x * v_y * v_z * ΔV_i
= 10 *20 * 30 * 10^-3 = 6V
(i) If DC supply voltage is 10 V, then output is 6 V, since theoretical gain is equal to practical gain, i.e., output can never be greater than 6 V.
(ii) If DC supply voltage is 5 V, i.e., V_cc = 5 V. Then, output peak will not exceed 5 V. Hence V₀ = 5 V.

Q.22. In a CE transistor amplifier there is a current and voltage gain associated with the circuit. In other words there is a power gain.
Considering power a measure of energy, does the circuit violate  conservation of energy?
Ans.
Key Concept: Different gain in CE transistor amplifier.
(i) ac current  gain:
(ii) dc current gain :
(iii) Voltage gain:
(iv) Power gain:
The power gain is very high in CE transistor amplifier. In this circuit, the extra power required for amplified output is obtained from DC source. Thus, the circuit used does not violate the law of conservation.

SHORT ANSWER TYPE QUESTIONS

Q.23.

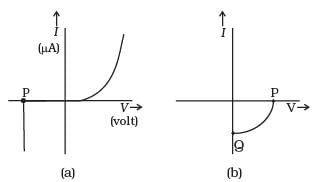

(i) Name the type of a diode whose characteristics are shown in Figure (A) and Fig. (B).
(ii) What does the point P in Figure (A) represent?
(iii) What does the points P and Q in Figure (B) represent?
Ans.
(i) Figure (a) represents the characteristics of Zener diode and curve (b) is of solar cell.
(ii) In figure (a), point P represents Zener breakdown voltage.
(iii) In figure (b), the point Q represents zero voltage and negative current. Which means the light falling on solar cell with atleast minimum threshold frequency gives the current in opposite direction to that due to a battery connected to solar cell. But for the point Q the battery is short circuited. Hence it represents the short circuit current.
And the point Pin figure (b) represents some open circuit, voltage on solar cell with zero current through solar cell.
It means, there is a battery connected to a solar cell which gives rise to the equal and opposite current to that in solar cell by virtue of light falling on it.

Q.24. Three photo diodes D₁, D₂ and D₃ are made of semiconductors having band gaps of 2.5 eV, 2 eV and 3 eV, respectively. Which ones will be able to detect light of wavelength  ?
Ans.
According to the problem,
Wavelength of light
energy of the light photon

The incident radiation which is detected by the photodiode D₂ because energy of incident radiation is greater than the band-gap.

Q.25. If the resistance R₁ is increased (Figure), how will the readings of the ammeter and voltmeter change?
Ans. Let us redrawn the circuit diagram to find the change in reading of ammeter and voltmeter.
so, I_BR₁ + V_BE = V_BB
Basic current

So, R₁ is increased, I_B is decreased.
Now, the current in ammeter is collector current I_C.
I_C = βI_B as I_B is decreased, I_C is also decreased and the reading of voltmeter and ammeter also decreased.

Q.26. Two car garages have a common gate which needs to open automatically when a car enters either of the garages or cars enter both. Devise a circuit that resembles this situation using diodes for this situation.
Ans. As car enters in either of the garages or both, the common gate opened automatically.
This means that if any one input is high, output will high otherwise low.

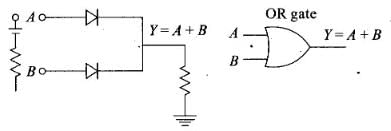

The device is shown like this:
So, OR gate gives the desired output


Q.27. How would you set up a circuit to obtain NOT gate using a transistor?
Ans.
(1) It has only one input and only one output.
(2) Boolean expression is Y = Ᾱ and is read as “y equals not A” .
Logical symbol of NOT gate.

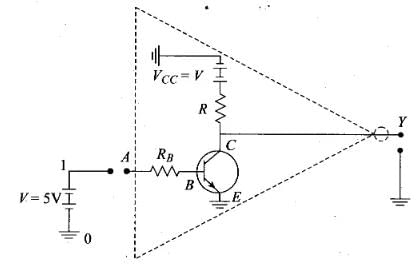

(3) Realization of NOT gate: The transistor is so biased that the collector voltage V_CC = V (Voltage corresponding to 1 state)
The resistors R and R_B are so chosen that if the input is low, i.e. 0, the transistor is in the cut off and hence the voltage appearing at the output will be the same as applied V = 5 V. Hence Y = V(or state I)
If the input is high, the transistor current is in saturation and the net voltage at the output Y is 0 (in state 0)
(4) Truth table for Not gate:


Q.28. Explain why elemental semiconductor cannot be used to make visible LEDs.
Ans.
Specially designed diodes, which give out light radiations when forward biases. LED 's are made of GaAsp, Gap etc.
These are forward biased P-N junctions which emits spontaneous radiation.
In elemental semiconductor, the band gap is such that the emission arc in infrared region and not in visible region.

for Si; E_g = 1.1 eV, λ = 1242/1.1 = 1129 nm
for Ge; E_g = 0.7 eV, λ = 1242/0.7 = 1725 nm

Q.29. Write the truth table for the circuit shown in Figure. Name the gate that the circuit resembles.
Ans.

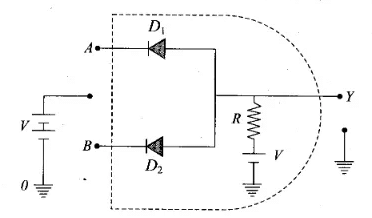

Logical Symbol of AND gateThis is 'AND' Gate and its characteristics are as follows:
(1) it has two inputs (A and B) and only one output (Y)
(2) Boolean expression is Y = A.B is read as "Y equals A AND B"
(3) Realization of AND gate

(i) A = 0 , B = 0
The voltage supply through R is forward biasing diodes D₁ and D₂ (offers low resistance), the voltage V would drop across R.
The output voltage at Y= the voltage across diode = 0
(ii) A = 0, B = I
D_{1 =} Conducts, D2 = Not Conducts
The out voltage at Y= The voltage across the diode (D₂) = 0
(iii) A = 1 , B = 0
D₁ = Conducts, D₂ = Not conducts
The out voltage at Y= The voltage across the diode (D₂) = 0
(iv) A = 1 , B = 1
None of the diode conducts
The out voltage at Y= Battery voltage = I
(4) Truth table for ‘AND' gate

Q.30. A Zener of power rating 1 W is to be used as a voltage regulator. If zener has a breakdown of 5V  and it has to regulate voltage which fluctuated between 3V and 7V, what should be the value of Rs for safe operation (Figure)?

Ans.

According to the problem power = 1 W
Zener breakdown voltage, V_z = 5 V
Minimum voltage, V_min = 3 V
Maximum voltage, V_max = 7 V
We know, P = VI

for safe operations R_s will be equal to

Long Answer Type Questions

Q.31. If each diode in Figure has a forward bias resistance of 25Ω and infinite resistance in reverse bias, what will be the values of the current I₁, I₂, I₃ and I₄?

Ans.
According to the problem, forward biased resistance = 25 Ω and reverse biased resistance = ∞.
As shown in the figure, the diode in branch CD is in reverse biased which having infinite resistance.
So, current in that branch is zero, i.e. I₃ = 0
Resistance in branch AB = 25 + 125 = 150 Ω, say R₁
Resistance in branch EF - 25 + 125 = 150 Ω, say R₂
AB is parallel to EF.
So, effective resistance

⇒ R' = 75Ω
Total resistance R of the circuit - R' + 25 = 75 + 25 = 100 U.

According to the kirchoff’s, current law (K.CL),
I₁=I₄ + I₂ + I₃   (Here I₃ = 0)
So, I₁ = I₄ + I₂
Here, the resistances R₁ and R₂ is same.
i.e., I₄ = I_2
∴  I₁ = 2I₂


and I₄ = 0.025 A
Therefore, we get, I₁, = 0.05 A, I₂ = 0.025 A, I₃ = 0 and I₄ = 0.025 A

Q.32. In the circuit shown in Figure when the input voltage of the base resistance is 10 V, V_be is zero and V_ce is also zero. Find the values of I_b, I_c and β.

Ans. Voltage across RB = 10V
V_B = R_BI_B





Q.33 Draw the output signals C₁ and C₂ in the given combination of gates (Figure).


Ans.






Q.34. Consider the circuit arrangement shown in Figure (a) for studying input and output characteristics of npn transistor in CE configuration.
(a)

(b)

Select the values of R_B and R_C for a transistor whose V_BE = 0.7 V, so that the transistor is operating at point Q as shown in the characteristics shown in Figure (b).
Given that the input impedance of the transistor is very small and V_CC = V_BB = 16 V, also find the voltage gain and power gain of circuit making appropriate assumptions.
Ans. For output characteristic at point Q
V_CE = 8V, I_B = 30 μA, I_C = 4 mA, V_BE = 0.7V
Applying Kirchhoff’s law in collector-emitter loop
V_CC=V_CE+R_CI_C

RC= 2000Ω
Now applying Kirchhoff’s loop law in base-emitter circuit,
V_BB=I_BR_B + V_BE


Average Voltage A_V

(-) sign shows change in phase angle of output is by input voltage.

Power gain = I.V



Q.35. Assuming the ideal diode, draw the output waveform for the circuit given in Figure Explain the waveform.

Ans.
Key concept: An ideal diode is a diode in which it has a very large resistance in reverse biased and very, low resistance in forward biased. So, it acts like a perfect conductor when voltage is applied forward biased and like a perfect insulator when voltage is applied reverse biased.
In reverse biased when the input voltage is equal to or less than 5 V diode,then it will offer high resistance in comparison to resistance (R) in series. Now, diode appears in open circuit. The input waveform is then passed to the output terminals. The result with sin wave input is to dip off all positive going portion above 5 V.
If input voltage is greater than +5 V, diode is in conducting state, then it will be conducting as if forward biased offering low resistance in comparison to R. But there will be no voltage in output beyond 5 V as the voltage beyond +5 V will appear across R.
When input voltage is negative, there will be opposition to 5 V battery in p-n junction input voltage becomes more than -5 V, the diode will be reverse biased. It will offer high resistance in comparison to resistance R in series. Now junction diode appears in open circuit. The input wave form is then passed on to the output terminals.
The output waveform will be like this (as shown below).


Q.36. Suppose a ‘n’-type wafer is created by doping Si crystal having 5 × 10²⁸ atoms/m³ with 1ppm concentration of As. On the surface 200 ppm Boron is added to create ‘P’ region in this wafer. Considering n_t = 1.5 × 10¹⁶ m^–3,
(i) Calculate the densities of the charge carriers in the n & p regions.
(ii) Comment which charge carriers would contribute largely for the reverse saturation current when diode is reverse biased.
Ans.
When As (pentavalent) is added to Si the n-type water is created.
So the number of majority carriers in n-type water,

For number of minority carriers n_h

=0.3 × 1.5 × 10^32-22 = 0.45 × 10⁺¹⁰    perm³
When boron(trivalent) is implanted in Si crystal, p- type wafer is formed with number of holes,
n_h = (N_D × n of Si)

n_h = 1×10²⁵ per m³

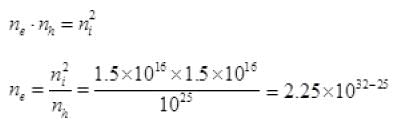

Minority carrier in p-type water

=2.25 × 10⁷ electrons per m³
When reversed bias is applied on p-n junction then the minority charge carrier moves toward depletion layer i.e., holes n_h=(0.45×10¹⁰ per m³) from n side and n_e=2.25 × 10⁷/m³ from p side moves towards junction and make the depletion layer thicker.

Q.37 An X-OR gate has following truth table:

It is represented by following logic relation

Build this gate using AND, OR and NOT gates.
Ans. XOR gate can be realized by the combination of two NOT gates, two AND gates and one OR gate. According to the problem, the logic relation for the . given truth table is
When

Y₁ can be obtained as output of AND gate I for which one input is of A through NOT gate and another input is of B. Y₂ can be obtained as output of AND gate II for which one input is of A and other input is of B through NOT gate.
Now Y can be obtained as output from OR gate, where Y₁, and Y₂ are inputs of OR gate.

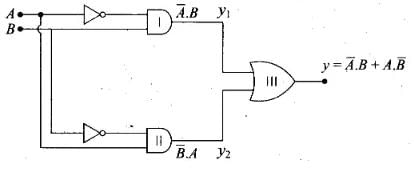

Thus, the logic circuit of this relation is given below.

Q.38. Consider a box with three terminals on top of it as shown in Figure (a):
(a)

Three components namely, two germanium diodes and one resistor are connected across these three terminals in some arrangement.
A student performs an experiment in which any two of these three terminals are connected in the circuit shown in (b).
(b)The student obtains graphs of current-voltage characteristics for unknown combination of components between the two terminals connected in the circuit.
The graphs are
(i) when A is positive and B is negative
(c)(ii) when A is negative and B is positive

(d)(iii) When B is negative and C is positive
(e)(iv) When B is positive and C is negative
(f)(v) When A is positive and C is negative
(g)(vi) When A is negative and C is positive
(h)From these graphs of current – voltage characteristic shown in Figure (c) to (h), determine the arrangement of components between A, B and C.
Ans. The V-I characteristics of these graph is discussed in points:
(a) In V-I graph of condition (i), a reverse characteristics is shown in figure (c). Here A is connected to n-side of p-n junction I and B is connected top-side of p-n junction I with a resistance in series.
(b) In V-I graph of condition (ii), a forward characteristics is shown in figure (d), where 0.7 V is the knee voltage of p-n junction I. 1/slope = (1/1000) Ω.
It means A is connected to n-side of p-n junction I and B is connected to p-side of p-n junction I and resistance R is in series of p-n junction I between A and B.
(c) In V-I graph of condition (iii), a forward characteristics is shown in figure (e) , where 0.7 V is the knee voltage. In this case p-side of p-n junction II is connected to C and n-side of p-n junction II to B.
(d) In V-I graphs of conditions (iv), (v), (vi) also concludes the above connection of p-n junctions I and II along with a resistance R.
Thus, the arrangement of p-n I, p-n II and resistance R between A, B and C will be as shown in the figure.

Q.39. For the transistor circuit shown in Figure, evaluate V_E, R_B, R_E given I_C = 1 mA, V_CE = 3V, V_BE = 0.5 V and V_CC = 12 V, β = 100.

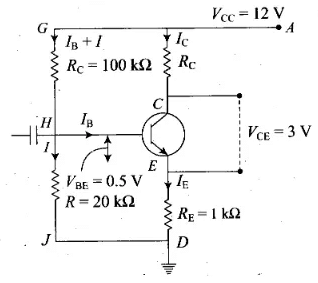

Ans. Let us redraw the circuit diagram given here to solve this problem.

As we know the base current is very small. So,
I_c ≈ I_E
R_c = 7.8 kΩ
From the figure, I_C(R_C + R_E) + V_CE = 12
(R_E + R_C) x 1 x 10^-3 + 3= 1 2
R_E + R_C = 9 x I0³ = 9 k Ω
R_E = 9 - 7.8 = 1.2 kΩ
V_E = I_E x R_E
= l x 10^-3 x 1.2 x 10³ = 1.2 V
Voltage V_B = V_E +V_BE= 1. 2+ 0.5 = 1.7 V


Q.40. In the circuit shown in Figure, find the value of RC.

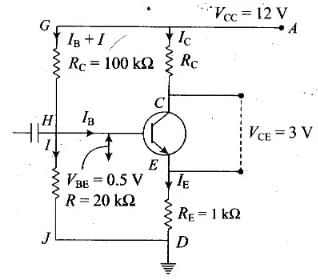

Ans. Let us consider the circuit diagram to solve this problem,
I_E = I_C + I_B and I_C = βI_B     ..(i)
I_CR_C + V_CE + I_ER_E = V_CC    ..(ii)
RI_B + V_BE + I_ER_E = V_CC     ..(iii)
∴ I_E≈I_C = βI_B
from (iii)
(R + βR_E)I_B = V_CC - V_BE

from (ii),
