Shear Force and Bending Moment Diagrams

Beam is one of the most important structural components. Beams are usually long, straight, prismatic members and always subjected forces perpendicular to the axis of the beam

  • A Shear Force Diagram (SFD) indicates how a force applied perpendicular to the axis (i.e., parallel to cross-section) of a beam is transmitted along the length of that beam.
  • A Bending Moment Diagram (BMD) will show how the applied loads to a beam create a moment variation along the length of the beam.

Types of Supports

  1. Roller Support: Resists vertical forces only
    Shear Force & Bending Moment | Solid Mechanics - Mechanical EngineeringShear Force & Bending Moment | Solid Mechanics - Mechanical Engineering

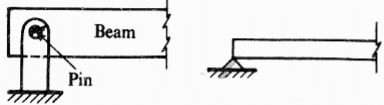

  2. Hinge support or pin connection: Resists horizontal and vertical forces
    Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
    Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
    Hinge and roller supports are called as simple supports
  3. Fixed support or built-in end
    Shear Force & Bending Moment | Solid Mechanics - Mechanical EngineeringShear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
    The distance between two supports is known as “span”.

Types of beams

Beams are classified based on the type of supports:

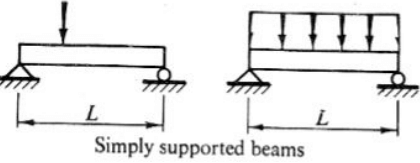

  1. Simply supported beam: A beam with two simple supports
    Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering

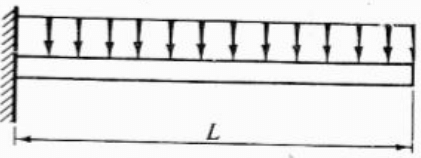

  2. Cantilever beam: Beam fixed at one end and free at other
    Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering

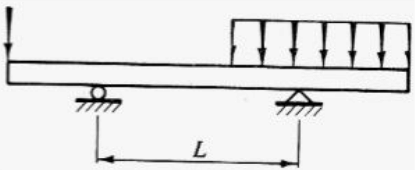

  3. Overhanging beam
    Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering

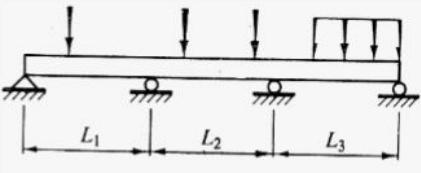

  4. Continuous beam: More than two supports
    Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering

Shear Force
Shear force has a tendency to slide the surface, it acts parallel to surface.
∑Fvert = 0
V - qdx - (V+dV) = 0

Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
Only for distributed load not for point load.

Bending Moment
Any moment produced by forces acting on the beam must be balance by an equal opposite moment produced by internal forces acting in beam at the section. This moment is called bending moment.
∑M = 0
-M - qdx(dx / z) - (V + dV)dx + M + dm = 0
dM/dx = V ⇒ Ma - MA = ∫V dx
Only for distributed and concentrated load not for couple.
The necessary internal forces to keep the segment of the beam in equilibrium are
∑Fx = 0 ⇒ P
∑Fy = 0 ⇒ V
∑Fz = 0 ⇒ M

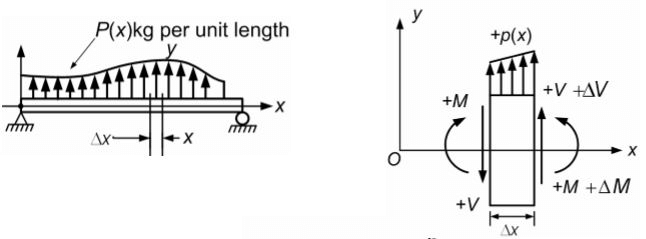

Differential equations of equilibrium

Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering

Sign Conventions:
[∑Fx = 0 → +]
[∑Fy = 0 ↑ +]
So the differential equations would be:
Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
From equation dV/dx = -P, we can write
Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
From equation dy/dx = -M, we can write
MD - MC = -∫Vdx

Statically Determinate Beam
A beam is said to be statically determinate if all its reaction components can be calculated by applying three conditions of static equilibrium i.e.,

∑ V = 0, ∑ H = 0 and ∑ M = 0

Statically Indeterminate Beam
When the number of unknown reaction components exceeds the static conditions of equilibrium, the beam is said to be statically indeterminate.Shear Force & Bending Moment | Solid Mechanics - Mechanical Engineering
