Multiple Choice Questions

Q.1. In Figure two boys A and B are shown applying force on a block. If the block moves towards the right, which one of the following statements is correct?

(a) The magnitude of force applied by A is greater than that of B.(b) The magnitude of force applied by A is smaller than that of B.
(c) The net force on the block is towards A.
(d) The magnitude of force applied by A is equal to that of B.
Ans: a
Explanation:
The magnitude of force applied by A is bigger than that of B as a result of the block moves towards right i.e. towards B.

Q.2. In the circuit shown in Figure when the circuit is completed, the hammer strikes the gong. Which of the following force is responsible for the movement of the hammer?
(a) gravitational force alone
(b) electrostatic force alone
(c) magnetic force alone
(d) frictional force alone

Ans: c
Explanation:
As electric current flows through the coil it behaves like an electromagnet which creates magnetic force. Hence the answer is magnetic force alone.

Q.3. During dry weather, while combing hair, sometimes we experience hair flying apart. The force responsible for this is
(a) force of gravity.
(b) electrostatic force.
(c) the force of friction.
(d) magnetic force.
Ans: b
Explanation:
On combing the hair, comb and hair get oppositely charged due to electrostatic force.

Q.4. Figure shows a container filled with water. Which of the following statements is correct about the pressure of water?

(a) The pressure at A > Pressure at B > Pressure at C.
(b) The pressure at A = Pressure at B = Pressure at C.
(c) The pressure at A <  Pressure at B > Pressure at C.
(d) The pressure at A <  Pressure at B.
Ans: d
Explanation:
Increase in water leads to an increase in depth.

Q.5. Two objects repel each other. This repulsion could be due to
(a) frictional force only
(b) electrostatic force only
(c) magnetic force only
(d) either a magnetic or an electrostatic force
Ans: d
Explanation:
when two objects are experiencing repulsive force because there may be an electrostatic force or a magnetic force.

Q.6. Which one of the following forces is a contact force?
(a) force of gravity
(b) force of friction
(c) magnetic force
(d) electrostatic force
Ans: b
Explanation:
Force of attraction acts only when the bodies are in contact.

Q.7. A water tank has four taps fixed at points A, B, C, D as shown in Figure. The water will flow out at the same pressure from taps at
(a) B and C
(b) A and B
(c) C and D
(d) A and C

Ans: a

Explanation:
B and C are at the same level, hence pressure will be the same at B and C.

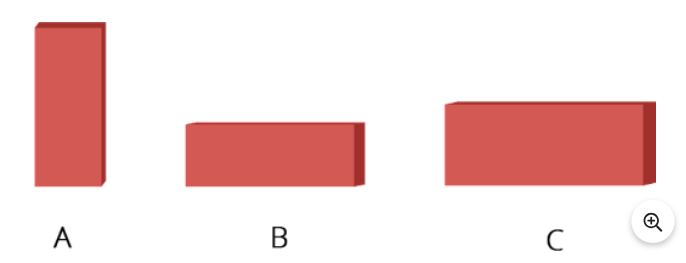

Q.8. A brick is kept in three different ways on a table as shown in Figure. The pressure exerted by the brick on the table will be

(a) maximum in position A-C(b) maximum in position B
(c) maximum in position
(d) equal in all cases.
Ans: a
Explanation:
Since the area of contact is minimum pressure will be maximum in A.

Very Short Answer Questions

Q.1. A ball of dough is rolled into a flat chapatti. Name the force exerted to change the shape of the dough.
Ans: Muscular Force.

Q.2. Where do we apply a force while walking?
Ans: While walking we apply force on the ground.

Q.3. A girl is pushing a box towards the east direction. In which direction should her friend push the box so that it moves faster in the same direction?
Ans: Towards the east.

Q.4. In the circuit shown in Figure, when the key is closed, the compass needle placed in the matchbox deflects. Name the force which causes this deflection.

Ans: Magnetic force.

Q.5. During dry weather, clothes made of synthetic fibre often stick to the skin. Which type of force is responsible for this phenomenon?
Ans: Electrostatic force

Q.6. While sieving grains, small pieces fall down. Which force pulls them down?
Ans: Force of gravity.

Q.7. Does the force of gravity act on dust particles?
Ans: Yes, the force of gravity act on dust particles.

Q.8. A gas-filled balloon moves up. Is the upward force acting on it larger or smaller than the force of gravity?
Ans: The upward force is larger than the force of gravity.

Q.9. Does the force of gravitation exist between two astronauts in space?
Ans: Yes, the force of gravitation exists between two astronauts in space.

Short Answer Questions

Q.1. A chapati maker is a machine which converts balls of dough into chapati. What effect of force comes into play in this process?
Ans: Force works on the dough to convert it to chapati.

Q.2. Figure shows a man with a parachute. Name the force which is responsible for his downward motion. Will he come down with the same speed without the parachute?

Ans: Force of gravity is responsible for his downward motion. If he comes down without parachute his speed will be higher.

Q.3. Two persons are applying forces on two opposite sides of a moving cart. The cart still moves with the same speed in the same direction. What do you infer about the magnitudes and direction of the forces applied?
Ans: Force applied is of equal magnitude in the opposite direction hence the cart moves with the same speed in the same direction.

Q.4. Two thermocol balls held close to each other move away from each other. When they are released, name the force which might be responsible for this phenomenon. Explain.
Ans: Two Thermocol balls held close to each other move away from each other, which is because of electrostatic force. The balls having similar charges move away due to repulsion between similar charges.

Q.5. Fruits detached from a tree fall down due to force of gravity. We know that a force arises due to the interaction between two objects. Name the objects interacting in this case.
Ans: Earth and fruits.

Q.6. A man is pushing a cart down a slope. Suddenly the cart starts moving faster and he wants to slow it down. What should he do?
Ans: He should apply a force to pull the cart up the slope.

Q.7.Figure shows a car sticking to an electromagnet. Name the forces acting on the car? Which one of them is larger?

Ans: Magnetic force (in the upward direction) force of gravity or the weight of the car (downward) act on car. Magnetic force is larger than the force of gravity.

Long Answer Questions

Q.1. An archer shoots an arrow in the air horizontally. However, after moving some distance, the arrow falls to the ground. Name the initial force that sets the arrow in motion. Explain why the arrow ultimately falls down.
Ans: Archer puts muscular force to stretch the string. This will change the shape of the arrow. When the string is released arrow regains its original position which gives it the initial force to set the motion. Because of gravitational from it comes down towards after some time.

Q.2.It is difficult to cut cloth using a pair of scissors with blunt blades. Explain.
Ans: The blunt blade has a larger area than shard edged blades. Because of this, blunt blade produces a low pressure which makes it difficult to cut the cloth. Whereas in sharp blade surface area is much is very less which increase the pressure produced. This makes the cutting of cloth easier with sharp blades.

Q.3. Two rods of the same weight and equal length have different thickness. They are held vertically on the surface of sand as shown in Figure. Which one of them will sink move? Why?

Ans: In Rod B area of contact is smaller. Hence the weight of the rod (Force) produces more pressure. In Case of the rod, the same force produces less pressure.

Q.4. Two women are of the same weight. One wears sandals with pointed heels while the other wears sandals with flat soles. Which one would feel more comfortable while walking on a sandy beach? Give reasons for your answer.
Ans: Women’s height are same and they apply the same weight when they walk. But women wearing sandal with a flat heel will be more comfortable while walking on a sandy beach. This is because flat soles have larger area compared to the sandals with pointed heels. Also, the pressure exerted by the pointed heels will be more compared to that with sandals having flat soles. This pressure will make the sandals with pointed soled sink in the sand which will make difficult to walk on sand.

Q.5. It is much easier to burst an inflated balloon with a needle than by a finger. Explain.
Ans: The pressure exerted on an inflated balloon by the needle will be more as it has a smaller area of contact compared to the finger. This larger pressure pierces the surface of the balloon easily which will make the balloon burst.

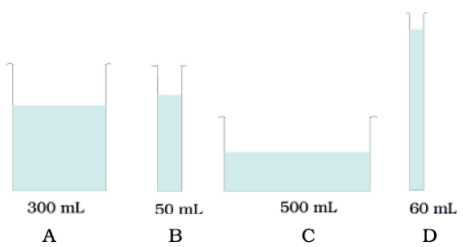

Q.6. Observe the vessels A, B, C and D shown in Figure carefully.

The volume of water taken in each vessel is as shown. Arrange them in the order of decreasing pressure at the base of each vessel. Explain.
Ans:
B, D, A, C. Because the pressure of a liquid column depends upon the height of the liquid column and not on volume of the liquid.
