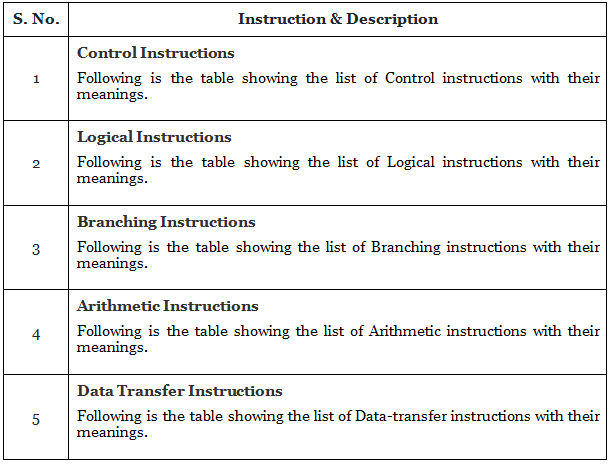

Instruction sets are instruction codes to perform some task. It is classified into five categories.
Microprocessor - 8085 Instruction Sets | Digital Circuits - Electronics and Communication Engineering (ECE)

8085 – Demo Programs

Now, let us take a look at some program demonstrations using the above instructions −

Adding Two 8-bit Numbers
Write a program to add data at 3005H & 3006H memory location and store the result at 3007H memory location.

Problem demo −

Microprocessor - 8085 Instruction Sets | Digital Circuits - Electronics and Communication Engineering (ECE)Result −

14H + 89H = 9DH

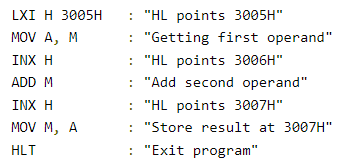

The program code can be written like this −
Microprocessor - 8085 Instruction Sets | Digital Circuits - Electronics and Communication Engineering (ECE)Exchanging the Memory Locations
Write a program to exchange the data at 5000M& 6000M memory location.

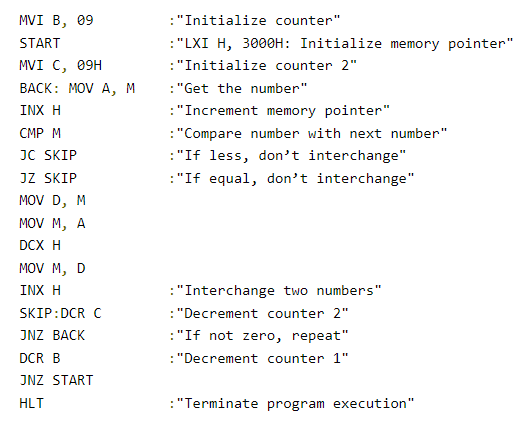

Microprocessor - 8085 Instruction Sets | Digital Circuits - Electronics and Communication Engineering (ECE)Arrange Numbers in an Ascending Order
Write a program to arrange first 10 numbers from memory address 3000H in an ascending order.

Microprocessor - 8085 Instruction Sets | Digital Circuits - Electronics and Communication Engineering (ECE)
