Introduction

Varactor diodes, also called varicap or voltage-variable capacitance diodes, are semiconductor devices whose junction capacitance varies with the applied reverse bias voltage. They are widely used in radio-frequency (RF) and tuning applications because a change of control voltage produces a predictable change of capacitance. Varactors always operate with a reverse bias; forward bias causes conduction and destroys the intended capacitive behaviour.

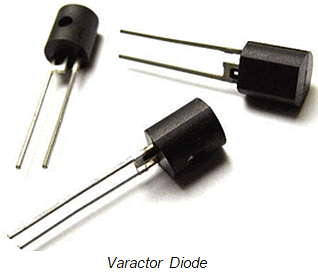

What is a Varactor Diode?

A varactor diode is a specially fabricated p-n junction diode optimised to provide a large, voltage-dependent junction capacitance when reverse biased. Because the depletion region width changes with reverse voltage, the junction behaves like a variable capacitor. Alternate names used in practice include varicap, voltcap, and tuning diode.

Symbol of the Varactor Diode

The electrical symbol for a varactor diode is similar to that of a standard p-n diode with an additional representation of a capacitor to emphasise the device's primary role as a voltage-controlled capacitor. One terminal is the anode and the other is the cathode; the capacitor symbol shows the junction capacitance and the small gap represents the depletion region.

Operation of the Varactor Diode

• The varactor is always used in reverse bias. Under reverse bias the depletion region at the p-n junction widens as the reverse voltage increases; the junction capacitance therefore decreases with increasing reverse voltage.
• The junction capacitance is approximately inversely proportional to the depletion width. Reducing the reverse bias reduces the depletion width and increases capacitance; increasing the reverse bias increases depletion width and reduces capacitance. This voltage-controlled capacitance replaces mechanical or switched capacitors in many tuning circuits.
• If the diode is forward biased, the junction conducts current and the depletion region collapses; the intended capacitive behaviour is lost. Continuous operation must therefore keep the varactor reverse biased within rated limits (reverse voltage and power).
• For RF use the varactor is biased with a dc control voltage superimposed on the RF node by using bias networks (for example, an RF choke or bias-tee and an RF blocking capacitor) so that the dc can vary the junction capacitance without shorting the RF path.

Varactor Diode Formulae

• Capacitance-Voltage relationship - the junction capacitance Cj as a function of applied reverse voltage V is commonly modelled by the empirical relation Cj(V) = C0 / (1 + V/V0)^m, where C0, V0 and m are device constants determined by the junction profile and manufacturing.
• Quality factor (Q) - the performance of a varactor at frequency f depends on its series resistance and capacitance. A commonly used expression for the quality factor is Q = 1 / (ω Cj Rs), where ω = 2πf and Rs is the effective series resistance at the operating frequency.

Notations used in the capacitance formula

• Cj - junction capacitance at applied reverse voltage V.
• C0 - capacitance at a specified reference bias (often at V = 0 or another defined bias).
• V - applied reverse bias voltage (note: sign convention, V is the magnitude of reverse voltage).
• V0 - a reference voltage related to the built-in potential; used to normalise the expression.
• m - exponent that depends on the doping profile of the junction (typical values: m ≈ 1/2 for abrupt junctions, m ≈ 1/3 for linearly graded junctions; specialised hyperabrupt profiles are engineered for larger tuning ranges, producing device-specific m values).
• Rs - effective series resistance of the device at the operating frequency.
• f - operating frequency; ω = 2πf.

Characteristics of Varactor Diodes

• Voltage control: Capacitance is controlled continuously by a dc reverse voltage, allowing smooth tuning of oscillator or filter frequency.
• No forward conduction in normal use: They must be kept reverse biased; forward bias destroys the desired operation.
• Tuning ratio: Difference between maximum and minimum capacitance (often expressed as Cmax/Cmin). Higher tuning ratio increases tuning range of circuits.
• Quality factor (Q): High Q is desirable to reduce loss and maintain selectivity; Q decreases with higher frequency and larger capacitance for a given Rs.
• Voltage handling and breakdown: Varactors have a maximum specified reverse voltage; exceeding it risks breakdown and damage.
• Temperature and bias dependence: Capacitance and Rs vary with temperature and bias; datasheet curves are used to predict behaviour.
• Power handling and nonlinearities: At high RF amplitude the diode's nonlinearity produces distortion and intermodulation-important in communication systems.

Types of Varactor Diodes

• Abrupt junction varactors: Standard device with a well defined junction step; the C-V characteristic follows the (1 + V/V0)^-1/2 law (m ≈ 1/2).
• Graded junction varactors: Doping changes gradually across the junction; the C-V relation follows a different exponent (typical m ≈ 1/3) and gives smoother tuning in some ranges.
• Hyperabrupt varactors: Specially doped to give a stronger dependence of capacitance on voltage and hence a larger tuning ratio. They are used when wide tuning range is required; the exact C-V exponent is device specific.

Equivalent Circuit

The small-signal equivalent of a varactor used at RF typically contains the following elements:

• Cj - the voltage-dependent junction capacitance.
• Rs - an effective series resistance representing ohmic contact resistance and semiconductor losses; Rs determines dissipation and Q.
• Rp or leakage resistance - a very large resistance in parallel with the junction accounting for dc leakage; this is usually negligible at RF but matters for bias stability.
• Parasitic inductance and packaging elements - leads and package introduce small inductance and capacitance that affect very high frequency performance.

Biasing and Practical Circuits

• Varactors require a dc control voltage and simultaneous connection to an RF node. Bias networks must supply DC while isolating RF. Typical arrangements use an RF choke (RFC) or a high-value inductor to feed dc without disturbing the RF, and a coupling capacitor to block the DC from other RF stages.
• When used in a tuned circuit or tank, the varactor replaces or is placed in parallel with a fixed capacitor so that the resonant frequency f0 = 1 / (2π√(L Ctotal)) is varied by the varactor capacitance.
• In a voltage-controlled oscillator (VCO), the varactor tunes the oscillator frequency; in a phase-locked loop (PLL) the VCO+varactor provide frequency control under feedback.
• Careful layout is necessary to avoid stray coupling of the control voltage into RF paths and to prevent spurious modulation or noise on the control line from affecting the tuned frequency.

Applications

• Tuning of radio receivers and transmitters - front-end tuning and automatic frequency control.
• Voltage-controlled oscillators (VCOs): Widely used in synthesizers and PLLs; varactors allow electronic control of oscillator frequency.
• Voltage-tunable filters and tracking filters - used in multi-band or frequency-scanning receivers.
• FM demodulators and frequency modulators - used where small capacitance changes correspond to frequency deviation.
• Antenna tuning and matching networks - to electronically adapt antenna impedance across frequency.
• Phase shifters and delay lines in phased arrays and RF beamforming circuits.

Performance Considerations and Limitations

• Nonlinearity and intermodulation: Varactors are nonlinear devices; at large RF amplitudes they produce harmonics and intermodulation products which can degrade receiver sensitivity or signal quality.
• Maximum reverse voltage and power: Adhere to datasheet limits for reverse voltage and RF power to avoid avalanche breakdown or thermal damage.
• Temperature stability: Capacitance and Q change with temperature; temperature compensation or calibration may be required for precision applications.
• Bias noise: Noise on the control voltage appears as frequency noise; supply filtering and buffering are often required.

Example: Using a Varactor in a Tuned LC Circuit (conceptual)

Replace or add a varactor in parallel with the fixed capacitor of an LC resonator. Adjusting the reverse bias varies the varactor capacitance and shifts the resonant frequency. In practice, an RF choke supplies the dc bias and a coupling capacitor isolates the dc from adjacent stages. The achievable tuning range depends on the varactor's Cmax/Cmin ratio and the circuit's fixed capacitances and inductance.

Summary

Varactor diodes are compact, voltage-controlled capacitors formed from specially doped p-n junctions. Their principal uses are in frequency tuning, VCOs, voltage-tunable filters and matching networks. Correct biasing, attention to Q and nonlinearity, and adherence to device ratings are essential for reliable and low-distortion operation. Device datasheets provide the specific C-V curves, Rs values and limits required for circuit design.
