Bernoulli’s equation can be applied to a flow through an open channel. In the case of flow through an open channel, the stream lines are straight and parallel or a little curved. As per Bernoulli’s equation, total energy per unit weight,
Energy-Depth Relationships | Irrigation Engineering - Civil Engineering (CE) Constant along a stream line.

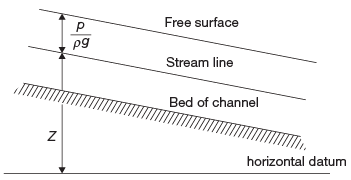

In the case of an open channel flow height of free surface represents potential head + pressure head, as shown in the figure.
Energy-Depth Relationships | Irrigation Engineering - Civil Engineering (CE)

So Bernoulli’s equation for an open channel flow is simplified as,
Height of liquid surface above datum + (v2/2g) = Constant (neglecting the frictional losses)
If frictional losses are considered, the Bernoulli’s equation for an open channel can be written as, Energy-Depth Relationships | Irrigation Engineering - Civil Engineering (CE)

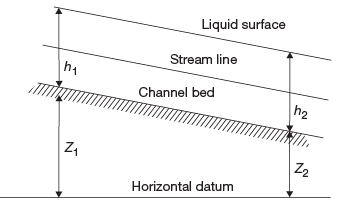

Where, hf = frictional loss, V1 and V2 are average flow velocities, h1 and h2 are depth of flow and Z1 and Z2 are channel bed heights at two section 1 and 2 as shown in the figure.
Energy-Depth Relationships | Irrigation Engineering - Civil Engineering (CE)

To account for non-uniformity of velocity over a crosssection, the equation can be modified as,
Energy-Depth Relationships | Irrigation Engineering - Civil Engineering (CE)
Energy-Depth Relationships | Irrigation Engineering - Civil Engineering (CE)
