Coordinate Geometry Class 10 Notes Maths Chapter 7

Terminologies related to Cartesian Plane

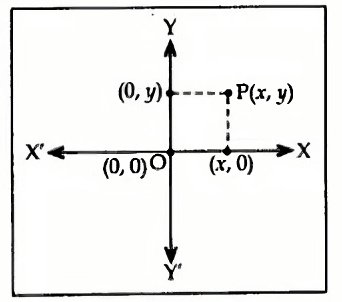

• Position of a point P in the Cartesian plane with respect to co-ordinate axes is represented by the ordered pair (x, y).

• The line X’OX is called the X-axis and YOY’ is called the Y-axis.
• The part of intersection of the X-axis and Y-axis is called the origin O and the co-ordinates of O are (0, 0).
• The perpendicular distance of a point P from the Y-axis is the ‘x’ co-ordinate and is called the abscissa.
• The perpendicular distance of a point P from the X-axis is the ‘y’ co-ordinate and is called the ordinate.

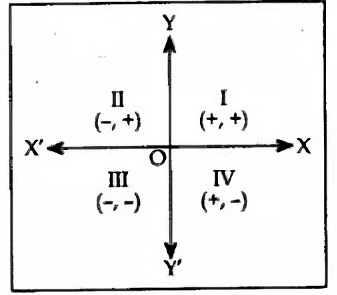

• Signs of abscissa and ordinate in different quadrants are as given in the diagram:

• Any point on the X-axis is of the form (x, 0).
• Any point on the Y-axis is of the form (0, y).

Distance Formula

The distance between two points P(x₁, y₁) and Q (x₂, y₂) is given by

Note. If O is the origin, the distance of a point P(x, y) from the origin O(0, 0) is given by :

Example: Find the distance between the following points:

(i) (-1, 2) and (2, 3)

(ii) (0, 1) and (6, -1)

Solution:

(i) Let the distance between the points (-1, 2) and (2, 3) be d.

Apply the distance formula:

d = √[(x₂ - x₁)² + (y₂ - y₁)²]

Substitute the values:

d = √[(2 - (-1))² + (3 - 2)²]

d = √[3² + 1²]

d = √[9 + 1]

d = √10 units.

(ii) Let the distance between the points (0, 1) and (6, -1) be d.

Apply the distance formula:

d = √[(6 - 0)² + (-1 - 1)²]

d = √[6² + (-2)²]

d = √[36 + 4]

d = √40

d = 2√10 units.

Section Formula

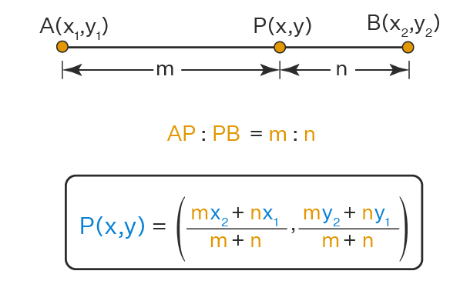

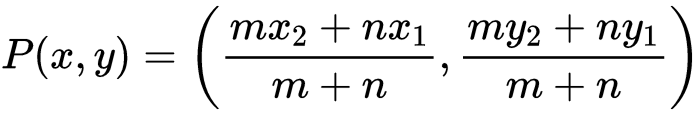

The coordinates of the point which divides the line segment joining the points A(x₁, y₁) and B(x₂, y₂) internally in the ratio m : n (that is, AP : PB = m : n) are:

The above formula is section formula.

The ratio m: n can also be written as m/n  : 1 or k:1, The co-ordinates of P can also be written as P(x, y) =

Example: Find the coordinates of the point which divides the line segment joining the points (4,6) and (-5,-4) internally in the ratio 3:2.

Sol: Let P(x, y) be the point which divides the line segment joining A(4, 6) and B(-5, -4) internally in the ratio 3 : 2.

Let P(x, y) be the required point dividing A(4, 6) and B(-5, -4) in the ratio 3 : 2.

Identify values:

x₁ = 4, y₁ = 6

x₂ = -5, y₂ = -4

m : n = 3 : 2

Using the section formula,

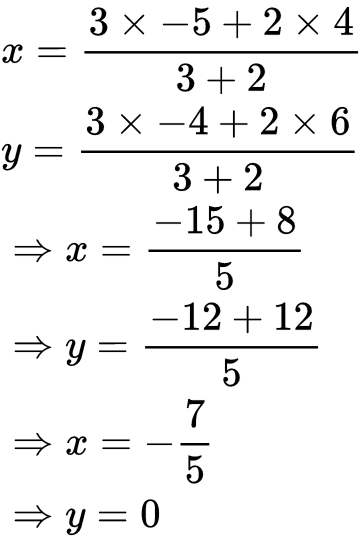

Coordinates of P are,

Therefore, P = (-7/5, 0).

Finding Ratios given the Points

To find the ratio in which a given point P(x, y) divides the line segment joining A(x₁, y₁) and B(x₂, y₂),

• Assume that the ratio is k : 1
• Substitute the ratio in the section formula for any of the coordinates to get the value of k.

When x₁, x₂ and x are known, k can be calculated. The same can be calculated from the y- coordinate also.

Example: Find the ratio when point (– 4, 6) divide the line segment joining the points A(– 6, 10) and B(3, – 8)?

Solution: Let the ratio be m:n.

We can write the ratio as:

m/n : 1 or k:1

Suppose (-4, 6) divide the line segment AB in k:1 ratio.

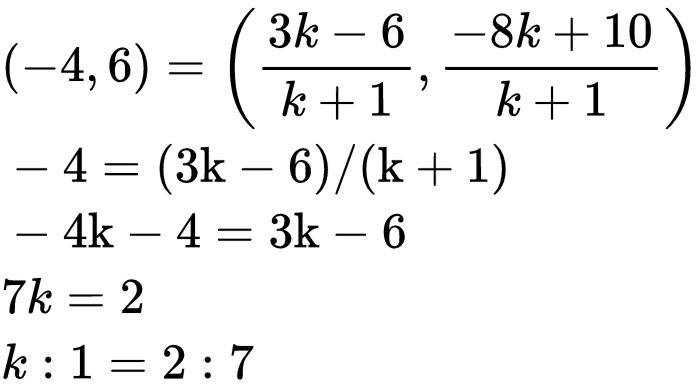

Now using the section formula, we have the following;

Thus, the required ratio is 2:7.

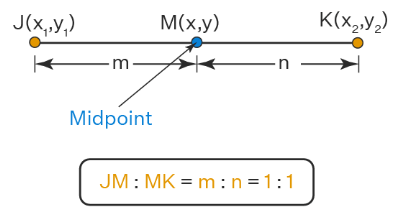

Mid Point of a Line Segment

The mid-point of the line segment joining the points P(x₁, y₁) and Q(x₂, y₂) is

Substituting m = 1, n = 1 in the section formula, we get,

Points of Trisection

To find the points of trisection P and Q, which divides the line segment joining A(x₁, y₁) and B(x₂, y₂) into three equal parts:

i) AP : PB = 1 : 2

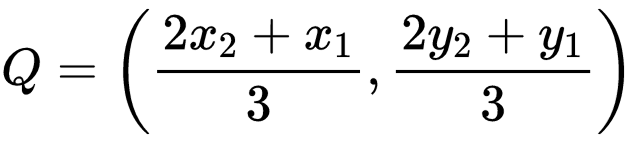

ii) AQ : QB = 2 : 1

Example: Find the coordinates of the points of trisection of the line segment joining the points A(2, – 2) and B(– 7, 4).

Solution: Let P and Q divide the line segment AB into three parts.

So, P and Q are the points of trisection here.

Let P divides AB in 1:2, thus by section formula, the coordinates of P are (1, 0)

Let Q divides AB in 2:1 ratio, then by section formula, the coordinates are (-4,2)

Thus, the point of trisection for line segment AB are (1,0) and (-4,2).

Centroid of a Triangle

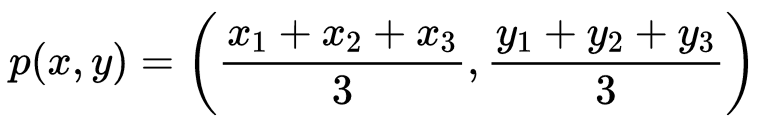

If A(x₁, y₁), B(x₂, y₂), and C(x₃, y₃) are the vertices of a ΔABC, then the coordinates of its centroid(P) are given by:

Example: Find the coordinates of the centroid of a triangle whose vertices are given as (-1, -3), (2, 1) and (8, -4)

Solution: Given,

The coordinates of the vertices of a triangle are (-1, -3), (2, 1) and (8, -4)

The Centroid of a triangle is given by:

G =  [(x₁ + x₂ + x₃)/3, (y₁ + y₂ + y₃)/3]

G = [(-1+2+8)/3, (-3+1-4)/3]

G = [9/3, -6/3]

G = (3, -2)

Therefore, the centroid of a triangle, G = (3, -2)
