# Circles Class 10 Notes Maths Chapter 10

## What is a Circle?

• A circle is a collection of all points in a plane which are at a constant distance from a fixed point.
• Every line that passes through the circle forms the line of reflection symmetry. Also, it has rotational symmetry around the centre for every angle.

### 1. Centre

The fixed point is called the centre.

### 2. Radius

The constant distance from the centre is called the radius.

### 3. Chord

A line segment joining any two points on a circle is called a chord.

### 4. Diameter

A chord passing through the centre of the circle is called diameter. It is the longest chord.

### 5. Secant

A straight line cutting the circle at two points. It is also called an extended chord.

### 6. Tangent

When a line meets the circle at one point or two coincidings The line is known as points, a tangent.
The tangent to a circle is perpendicular to the radius through the point of contact.
⇒ OP ⊥ AB

The lengths of the two tangents from an external point to a circle are equal.
⇒ AP = PB

### 7. Length of Tangent Segment

PB and PA are normally called the lengths of tangents from outside point P.

### 8. Arc

It is basically the connected curve of a circle.

Question for Short Notes: Circles
Try yourself:In a circle, which line segment is NOT defined in terms of its relationship with the circle's center?

Theorem 1: The tangent at any point of a circle is perpendicular to the radius through the point of contact.
Given: XY is a tangent at point P to the circle with centre O.
To prove: OP ⊥ XY
Construction: Take a point Q on XY other than P and join OQ
Proof: If point Q lies inside the circle, then XY will become a secant and not a tangent to the circle
OQ > OP

This happens with every point on line XY except point P. OP is the shortest of all the distances of point O the points of XY
OP ⊥ XY …[Shortest side is the perpendicular]

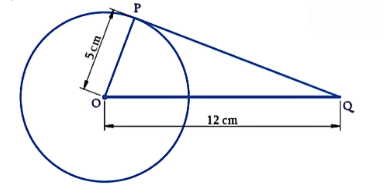

Example: A tangent PQ at a point P of a circle of radius 5 cm meets a line through the centre O at a point Q so that OQ = 12 cm. Then what is the length PQ?

Sol:

Given: Radius OP = 5 cm, OQ = 12 cm

We have to find the length of the tangent PQ.

ΔOPQ is a right-angle triangle according to Theorem 10.1: The tangent at any point of a circle is perpendicular to the radius through the point of contact.

By Pythagoras theorem:

OQ² = OP² + PQ²

12² = 5² + PQ²

144 = 25 + PQ²

PQ² = 119

PQ = √119

Thus, the length of PQ is √119 cm.

Theorem 2: A line drawn through the endpoint of a radius and perpendicular to it, is tangent to the circle.
Given: A circle C(O, r) and a line APB is perpendicular to OP, where OP is the radius.
To prove: AB is tangent at P.
Construction: Take a point Q on line AB, different from P, and join OQ.
Proof: Since OP ⊥ AB
OP < OQ ⇒ OQ > OP

Point Q lies outside the circle.
Therefore, every point on AB, other than P, lies outside the circle.
This shows that AB meets the circle at point P.
Hence, AP is tangent to the circle at P.

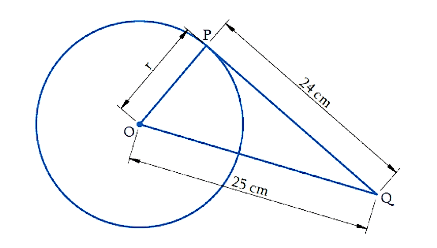

Example: From a point Q, the length of the tangent to a circle is 24 cm and the distance of Q from the centre is 25 cm. What is the radius of circle?

Sol:

Let's draw a figure as per the given question.

A tangent at any point of a circle is perpendicular to the radius at the point of contact.

Therefore, OPQ is a right-angled triangle.

By Pythagoras theorem,

OQ2 = OP2 + PQ2

252 = r2 + 242

r2 = 252 - 242

r2 = 625 - 576

r2 = 49

r = ± 7

Radius cannot be a negative value, hence, r =  7 cm.

Question for Short Notes: Circles
Try yourself:What is the relationship between the tangent and the radius at any point on a circle?

Theorem 3: The lengths of tangents drawn from an external point to a circle are equal
Given: PT and PS are tangents from an external point P to the circle with centre O.
To prove: PT = PS
Construction: Join O to P, T and S.

Proof: In ∆OTP and ∆OSP.
OT = OS …[radii of the same circle]
OP = OP …[common]
∠OTP = ∠OSP …[each 90°]
∆OTP = ∆OSP …[R.H.S.]
PT = PS …[c.p.c.t.]

Note: If two tangents are drawn to a circle from an external point, then:

• They subtend equal angles at the centre i.e., ∠1 = ∠2.
• They are equally inclined to the segment joining the centre to that point i.e., ∠3 = ∠4.
• ∠OAP = ∠OAQ

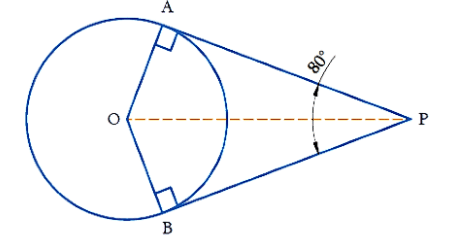

Example: If tangents PA and PB from a point P to a circle with centre O are inclined to each other at angle of 80°, then what is the value of ∠POA?

Sol:

Let's draw a figure as per the question.

The lengths of tangents drawn from an external point to a circle are equal.

A tangent at any point of a circle is perpendicular to the radius at the point of contact.

In ΔOAP and in ΔOBP

OA = OB (radii of the circle are always equal)

AP = BP (length of the tangents)

OP = OP (common)

Therefore, by SSS congruency ΔOAP ≅ ΔOBP

SSS congruence rule: If three sides of one triangle are equal to the three sides of another triangle, then the two triangles are congruent.

If two triangles are congruent then their corresponding parts are equal.

Hence,

∠POA = ∠POB

∠OPA = ∠OPB

Therefore, OP is the angle bisector of ∠APB and ∠AOB

Hence, ∠OPA = ∠OPB = 1/2 (∠APB )

= 1/2 × 80°

= 40°

By angle sum property of a triangle,

In ΔOAP

∠A + ∠POA + ∠OPA = 180°

OA ⊥ AP (Theorem : The tangent at any point of a circle is perpendicular to the radius through the point of contact.)

Therefore, ∠A = 90°

90° + ∠POA + 40° = 180°

130° + ∠POA = 180°

∠POA = 180° - 130°

∠POA = 50°
