JEE Advanced Previous Year Questions (2018 - 2025): Work, Energy and Power

Table of Contents
1. 2024
2. 2023
3. 2022
4. 2021
5. 2020
6. 2019
7. 2018
View more

2024

No Question in JEE Advanced Exam from Chapter Work, Energy and Power in Year 2024 !

2023

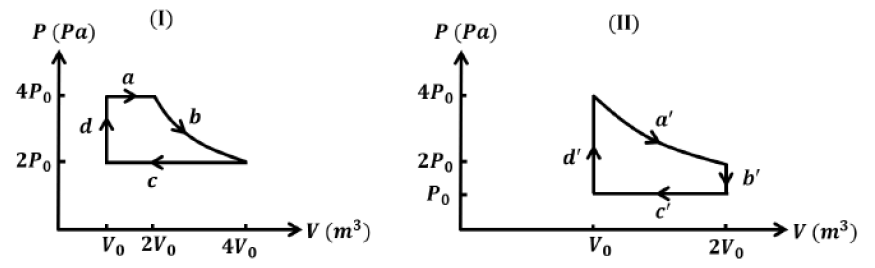

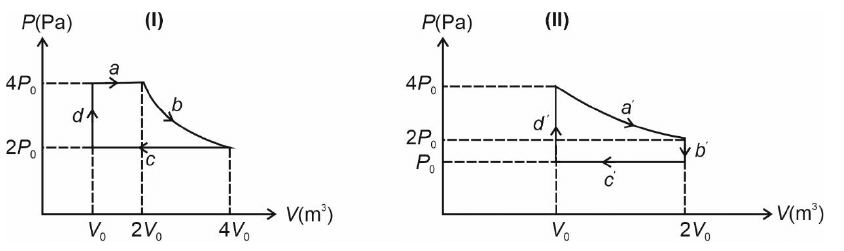

Q1: One mole of an ideal gas undergoes two different cyclic processes I and II, as shown in the P-V diagrams below. In cycle I, processes a, b, c and d are isobaric, isothermal, isobaric and isochoric, respectively. In cycle II, processes a', b', c' and d' are isothermal, isochoric, isobaric and isochoric, respectively. The total work done during cycle I is W₁ and that during cycle II is W₂. The ratio W₁/W₂ is ______.

Ans: (2)

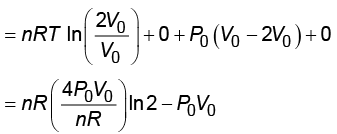

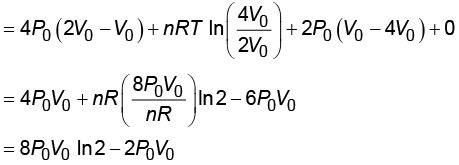

W_I = W_a + W_b + W_c + W_d

2022

Q1: The minimum kinetic energy needed by an alpha particle to cause the nuclear reaction
in a laboratory frame is n (in MeV). Assume that
is at rest in the laboratory frame.
The masses of
can be taken to be 16.006 u, 4.003 u, 1.008 u and 19.003 u, respectively, where 1 u = 930 MeVc^-2. The value of n is _______.
Ans: (2.33)
Q = (m_N + m_He - m_H - m_O) × c²
= (16.006 + 4.003 - 1.008 - 19.003) × 930 MeV
= - 1.86 MeV
= 1.86 MeV energy absorbed.

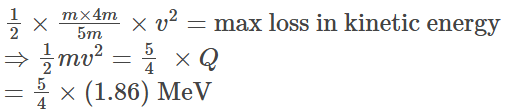

And,
= 2.325MeV
∴ n = 2.33

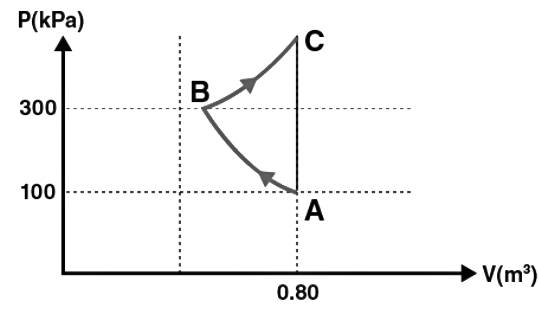

Q2: In the given P-V diagram, a monoatomic gas (γ = 5/3) is first compressed adiabatically from state A state B. Then it expands isothermally from state B to state C. [Given :
]
Which of the following statement(s) is(are) correct?
(A) The magnitude of the total work done in the process A → B → C is 144 kJ.
(B) The magnitude of the work done in the process B → C is 84 kJ.
(C) The magnitude of the work done in the process A → B is 60 kJ.
(D) The magnitude of the work done in the process C → A is zero.
Ans: (B, C, D)
Pvγ = c
⇒ (C) is correct
C → A is isochoric ⇒ (D) is correct

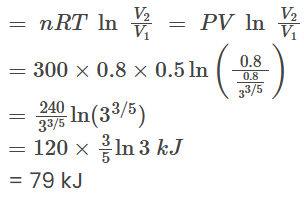

BC : W_BC
⇒ (A) & (B) are not correct.

2021

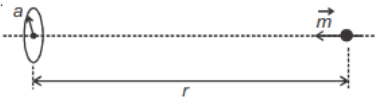

Q1: A special metal S conducts electricity without any resistance. A closed wire loop, made of S, does not allow any change in flux through itself by inducing a suitable current to generate a compensating flux. The induced current in the loop cannot decay due to its zero resistance. This current gives rise to a magnetic moment which in turn repels the source of magnetic field or flux. Consider such a loop, of radius a, with its centre at the origin. A magnetic dipole of moment m is brought along the axis of this loop from infinity to a point at distance r (>> a) from the centre of the loop with its north pole always facing the loop, as shown in the figure below.
The magnitude of the magnetic field of a dipole m, at a point on its axis at distance r, is

, where μ₀ is the permeability of free space. The magnitude of the force between two magnetic dipoles with moments, m₁ and m₂, separated by a distance r on the common axis, with their north poles facing each other, is km₁m₂/r⁴, where k is a constant of appropriate dimensions. The direction of this force is along the line joining the two dipoles.

The work done in bringing the dipole from infinity to a distance r from the centre of the loop by the given process is proportional to?
(a) m/r⁵
(b) m² /r⁵
(c) m² /r⁶
(d) m² /r⁷
Ans: (c)
Magnetic flux due to dipole through ring =

for net magnetic flux through the loop to be zero.
Magnetic flux due to dipole = Magnetic flux due to induced current
⇒, where k is proportionality constant.
⇒ l∝ m/r³

F = C(m²/r⁷) where C is a constant obtained by substituting the value of I

where C′ is a constant

2020

(a)
(b)
(c) the centripetal force required at points x and z is zero
(d) the centripetal force required is maximum at points x and z     [JEE Advanced 2020 Paper 2]
Ans: (a) & (d)
Apply energy conservation,

At top point y, the centripetal force provided by the component of mg,
mg sinθ = centripetal force = mv² / R
mv² / R = mg sinθ
Putting this value in Eq. (i), we get

At point x and a of circular path, the points are at same height but less than h. So the velocity is more than point y.
So required centripetal force = mv² / r is more.

2019

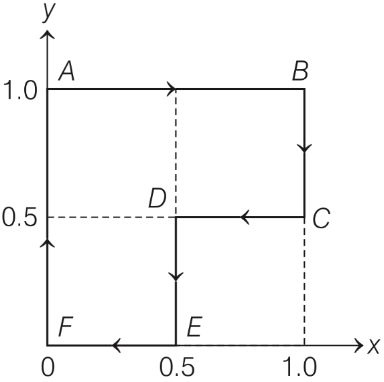

Q1: A particle is moved along a path AB-BC-CD-DE-EF-FA, as shown in figure, in presence of a force N, where x and y are in meter and α = -1 Nm^-1. The work done on the particle by this force F will be ............... Joule.      [JEE Advanced 2019 Paper 1]

Ans:0.75
d = F.dr
d = αydx + 2αxdy
A → B, y = 1, dy = 0
then,
B → C, x = 1, dx = 0
then,

C → D, y = 0.5, dy = 0
then,
D → E, x = 0.5, dx = 0
then,

E → F, y = 0, dy = 0 then W_EF = 0

F → A, x = 0, dx = 0 then W_F→A = 0
∴
Given, α = -1
⇒

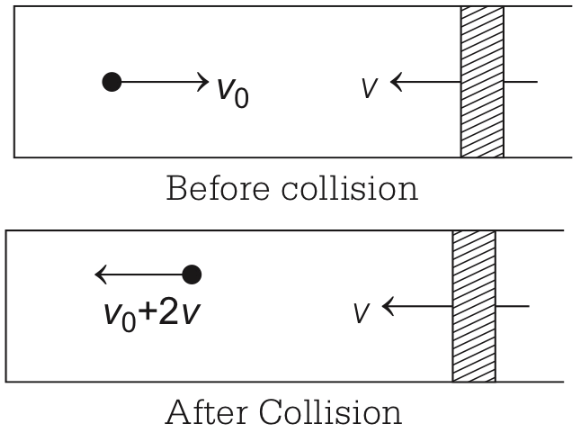

Q2: A small particle of mass m moving inside a heavy, hollow and straight tube along the tube axis undergoes elastic collision at two ends. The tube has no friction and it is closed at one end by a flat surface while the other end is fitted with a heavy movable flat piston as shown in figure.

When the distance of the piston from closed end is L = L₀, the particle speed is v = v₀. The piston is moved inward at a very low speed V such that where dL is the infinitesimal displacement of the piston. Which of the following statement(s) is/are correct?
(a) After each collision with the piston, the particle speed increases by 2V.
(b) If the piston moved inward by dL, the particle speed increases .
(c) The particle's kinetic energy increases by a factor of 4 when the piston is moved inward from L₀to 1/2 L₀.
(d) The rate at which the particle strikes the piston is v/L.   [JEE Advanced 2019 Paper 2]
Ans:(a) & (c)

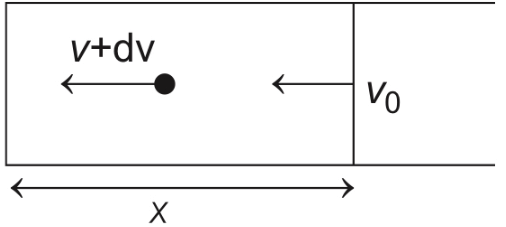

Change in speed = (2v + v₀ - v₀) = 2vIn every collision it acquires 2v,

Integration on both sides limits v0 to v, we get

So,
∴

2018

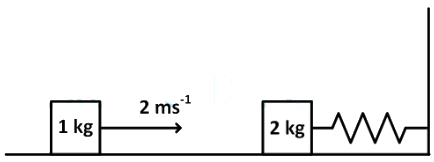

Q1: A spring-block system is resting on a frictionless floor as shown in the figure. The spring constant is 2.0Nm^-1and the mass of the block is 2.0kg.Ignore the mass of the spring. Initially the spring is an unstretched condition. Another block of mass 1.0kgmoving with a speed of 2.0ms^-1collides elastically with the first block. The collision is such that the 2.0kgblock does not hit the wall. The distance, in metres, between the two blocks when the spring returns to its unstretched position for the first time after the collision is __________.    [JEE Advanced 2018 Paper]
Ans:

After collision the 2.0 kg block will perform simple harmonic oscillation with time period

Given m = 2.0 kg and k = 2.0 N m^-1, we have
T = 2π
Thus, the block returns to its original position in time

That is, t = 3.14 s
Now, if v₁ and v₂ are velocities of 1.0 kg block and 2.0 kg block, respectively, before collision; v'₁ and v'₂ are velocities of 1.0 kg block and 2.0 block, respectively, after collision. So, by conservation of momentum
m₁v₁ + m₂v₂ = m₁v'₁ + m₂v'₂
Here, m₁ = 1.0 kg, v₁ is initial speed of 1.0 kg block = 2.0 m s^-1, m₂ = 2.0 kg, v₂ is initial speed of 2.0 kg block = 0.0 m s^-1, v'₁ is final speed of 1.0 kg block after collision and v'₂ is final speed of 2.0 kg block after collision. Then, 1.0 kg × 2.0 m/s + 2.0 kg × 0 m/s = 1.0 v'₁ + 2.0 v'₂
v'₁ + 2v'₂ = 2 ..... (1)
Also, using definition of coefficient of restitution
v'₂ - v'₁ = ε(v₁ - v₂)
Since collision is elastic, So ε = 1
⇒ v'₂ - v'₁ = v₁ - v₂
⇒ v'₂ - v'₁ = 2 - 0
⇒ v'₂ - v'₁ = 2 ...... (2)
From Eqs. (1) and (2), we get
v′₂ = 43 m s^-1 and v'₁ =-23 m s^-1
Therefore, distance between the blocks is given as
s = v′₁× t = -2 / 3 × 3.14
= 2.09 m

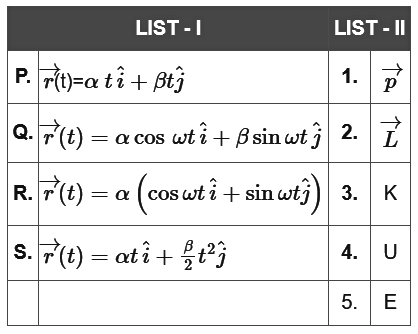

Q2: In the List-Ibelow, four different paths of a particle are given as functions of time. In these functions, αand βare positive constants of appropriate dimensions and α ≠ βIn each case, the force acting on the particle is either zero or conservative. In List-II, five physical quantities of the particle are mentioned is the linear momentum, is the angular momentum about the origin, Kis the kinetic energy, Uis the potential energy and Eis the total energy. Match each path in List-Iwith those quantities in List-II, which are conserved for that path.      [JEE Advanced 2018 Paper 2]

(a) P → 1, 2, 3, 4, 5; Q → 2, 5; R → 2, 3, 4, 5; S → 5
(b) P → 1, 2, 3, 4, 5; Q → 3, 5; R → 2, 3, 4, 5; S → 2, 5
(c) P → 2, 3, 4; Q → 5, 5; R → 1, 2, 4; S → 2, 5
(d) P → 1, 2, 3, 4, 5; Q → 2, 5; R → 2, 3, 4, 5; S → 2, 5
Ans:(a)

a = 0
F = 0
P = conserved ,
K = conserved
L = conserved ,
U = conserved
E = conserved
P → 1, 2, 3, 4, 5

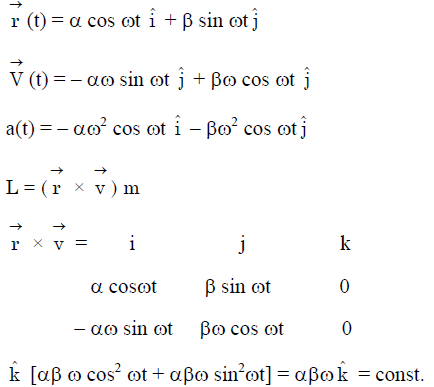

L = conserved τ of the force about origin is zero its mean this force is always passed through origin so it is central & conservative E = conserved.
Q → 2, 5

Q3: A particle of mass m is initially at rest at the origin. It is subjected to a force and starts moving along the x-axis. Its kinetic energy K changes with time as dK / dt = γt, where γ is a positive constant of appropriate dimensions. Which of a positive constant of appropriate dimensions. Which of the following statement is (are) true?       [JEE Advanced 2018 Paper 2]
(a) The force applied on the particle is constant
(b) The speed of the particle is proportional to time
(c) The distance of the particle from the origin increases linearly with time
(d) The force is conservative
Ans: (a), (b) & (d)
Given, a particle at rest is subjected to force. Motion of particle is along x-axis.
Change in kinetic energy is given as

where γ is positive constant.
We know that kinetic energy is given by
K = 1/2mv²...... (2)
Now, differentiate Eq. (2), we get

From Eqs. (1) and (3), we get

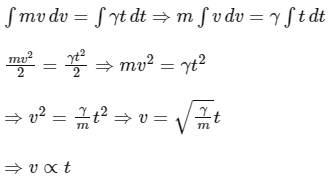

Integrating Eq. (4), we get

Since, γ and m are constant so the speed of particle is proportional to time therefore option (B) is true.
Also,  = constant
F = ma = constant
So, option (A) is true.
Also, v = dr/dt

Integrating Eq. (5), we get

So, the distance of the particle from the origin increases at t² so option (C) is false.
A force is conservative if work done by the force in any closed loop is zero (i.e., work done is independent of the path). If force is constant (both magnitude and direction) then work done by the force in a closed loop is given by

Note that we are able to take out of integral sign because is constant and is zero because integration is carried out over a closed loop. The argument 'since force is constant, hence it is conservative' should be understood properly. The kinetic friction force and viscous drag force (when body moves with a terminal speed) are both constant (in magnitude) but are non-conservative. These forces cannot start the particle motion from the rest. The situation given in this problem is similar to a particle dropped from rest under the gravitational force. This force is constant, can initiate the motion given in the problem and is conservative.
