Plotting Magnetic Field Lines
There are two main methods to do this:

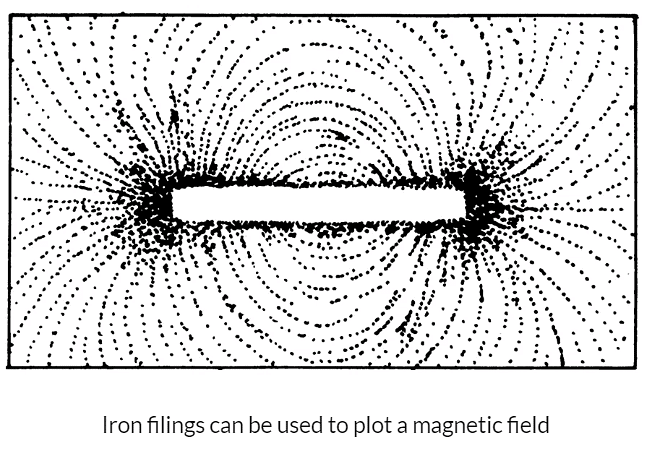

Using Iron Filings
- Position a sheet of paper atop the magnet's surface.
- Sprinkle iron filings gently onto the paper's surface.
- Gently tap the paper to encourage the iron filings to settle along the magnetic field lines.
How to Plot Magnetic Field Lines around a Bar Magnet
- Place the magnet on top of a piece of paper
- Draw a dot at one end of the magnet (near its corner)
- Place a plotting compass next to the dot, so that one end of the needle of the compass points towards the dot
- Use a pencil to draw a new dot at the other side of the compass needle
- Now move the compass so that it points towards the new dot, and repeat the above process
- Keep repeating until you have a chain of dots going from one end of the magnet to the other. Then remove the compass, and link the dots using a smooth curve – the magnetic field line
- The direction of the field line is the same as the direction of the plotting compass
- You can now repeat the whole process several times to create several other magnetic field lines

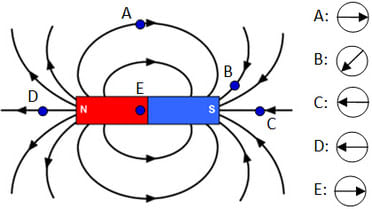

Compasses can be used to plot the magnetic field around a bar magnet
