Plant anatomy examines the internal structure of flowering plants (angiosperms), focusing on organization of cells into tissues and tissues into organs. The chapter covers three major tissue systems (epidermal, ground, vascular) and compares anatomical differences between monocotyledons (monocots) and dicotyledons (dicots) in roots, stems, and leaves. Understanding these structural patterns is essential for identifying plant groups and correlating structure with physiological functions.

1. Plant Tissues: Organization and Classification

1.1 Meristematic Tissues

• Definition: Actively dividing tissues with thin cellulose walls, dense cytoplasm, and no vacuoles or very small vacuoles
• Types by position: Apical meristem (root and shoot tips; responsible for primary growth in length), lateral meristem (vascular cambium and cork cambium; responsible for secondary growth in girth), intercalary meristem (at leaf base or internodes; common in monocots like grasses)
• Function: Continuous cell division produces new cells that differentiate into permanent tissues

1.2 Permanent Tissues

• Simple permanent tissues: Composed of one cell type only; includes parenchyma, collenchyma, and sclerenchyma
• Complex permanent tissues: Composed of more than one cell type working together; includes xylem and phloem
• Organization: Permanent tissues are grouped into three tissue systems based on position and function

2. The Three Tissue Systems

2.1 Epidermal Tissue System

The outermost protective layer covering all plant organs; controls water loss and gas exchange.

 Diagrammatic representation: (a) stomata with bean-shaped guard cells (b) stomata with dumb-bell shaped guard cell

2.1.1 Epidermis Structure

• Composition: Single layer of compact, living parenchymatous cells with thin cytoplasm and large central vacuole
• Cuticle: Waxy layer of cutin covering aerial parts (stems, leaves); reduces transpiration; generally absent in roots
• Modification: In roots, outermost layer is called epiblema or rhizodermis

2.1.2 Stomata and Stomatal Apparatus

• Structure: Pore formed by a pair of specialized guard cells that regulate opening and closing
• Guard cell features: Bean-shaped in most dicots; dumb-bell shaped (with terminal bulbous ends) in grasses and many monocots; contain chloroplasts
• Mechanism: Increase in turgidity of guard cells opens the pore; loss of turgidity closes it
• Subsidiary cells: Specialized epidermal cells surrounding guard cells; together with guard cells form the stomatal apparatus
• Function: Regulate gas exchange (CO₂ entry, O₂ exit) and transpiration

2.1.3 Epidermal Appendages

• Root hairs: Unicellular, tubular extensions of epiblema cells; increase surface area for absorption of water and minerals
• Trichomes: Hair-like structures on stems and leaves; may be unicellular or multicellular, simple or branched
• Functions of trichomes: Reduce transpiration by trapping moisture, reflect excess sunlight, provide mechanical protection; some are glandular and secrete substances

2.2 Ground Tissue System

Consists of simple permanent tissues occupying the region between epidermis and vascular bundles; includes parenchyma, collenchyma, and sclerenchyma.

2.2.1 Parenchyma

• Cell structure: Living cells with thin cellulose walls, large central vacuole, and intercellular spaces
• Distribution: Found in cortex, pith, medullary rays, and pericycle
• Functions: Storage of food (starch, oils, proteins), photosynthesis when containing chloroplasts (called chlorenchyma or mesophyll in leaves), wound healing, and regeneration
• Special types: Aerenchyma (parenchyma with large air cavities; common in aquatic plants for buoyancy)

2.2.2 Collenchyma

• Cell structure: Living cells with unevenly thickened primary walls (corners or tangential walls thickened with cellulose and pectin)
• Distribution: Present in hypodermis (layer below epidermis) of young dicot stems and petioles
• Function: Provides flexible mechanical support to growing organs; allows bending without breaking
• Key feature: Cells are living at maturity; thickening is primary (before secondary wall formation)

2.2.3 Sclerenchyma

• Cell structure: Cells with thick, uniformly lignified secondary walls; usually dead at maturity (lose protoplasm)
• Types: Fibres (long, narrow cells) and sclereids (short, isodiametric cells; also called stone cells)
• Distribution: Surrounds vascular bundles as bundle sheath in stems; forms hard seed coats and nut shells (sclereids); present in pericycle of some stems
• Function: Provides rigid mechanical support and protection; due to lignin deposition

2.3 Vascular Tissue System

Consists of complex permanent tissues (xylem and phloem) organized into vascular bundles; responsible for conduction of water, minerals, and organic solutes.

2.3.1 Xylem

• Components: Tracheids (elongated cells with tapering ends; present in all vascular plants), vessels (tube-like structures formed by vessel elements placed end-to-end; present in angiosperms), xylem parenchyma (living storage cells), and xylem fibres (dead sclerenchymatous cells for support)
• Conducting elements: Tracheids and vessels are dead at maturity with lignified walls and no protoplasm
• Functions: Conducts water and dissolved minerals from roots to aerial parts; provides mechanical strength due to lignin
• Direction of flow: Unidirectional upward transport

2.3.2 Phloem

• Components: Sieve tube elements (conducting cells in angiosperms; living at maturity but lack nucleus), companion cells (specialized parenchyma cells associated with each sieve tube element; control sieve tube function), phloem parenchyma (storage cells; generally absent in monocots), and phloem fibres (sclerenchyma for support; also called bast fibres)
• Sieve tube features: Have perforated end walls called sieve plates; living cells but lack nucleus; cytoplasm connected through sieve plate pores
• Companion cells: Nucleate living cells connected to sieve tubes by plasmodesmata; regulate sieve tube metabolism
• Functions: Conducts organic solutes (mainly sucrose) from leaves to other plant parts (source to sink)
• Direction of flow: Bidirectional transport possible

2.3.3 Types of Vascular Bundles

• Radial bundles: Xylem and phloem occur on different radii alternating with each other; typical of roots; primary structure
• Conjoint bundles:Xylem and phloem are located on the same radius
  • Conjoint open: Vascular cambium present between xylem and phloem; capable of secondary growth; typical of dicot stems
  • Conjoint closed: No cambium between xylem and phloem; no secondary growth; typical of monocot stems
• Arrangement in bundles: In conjoint bundles, xylem is generally towards the centre (adaxial) and phloem towards the periphery (abaxial)

3. Anatomy of Dicotyledonous Root

Transverse section of a typical dicot root (e.g., sunflower, gram) shows the following layers from outside to inside:

T.S. of root: dicot

3.1 Tissue Layers in Dicot Root

1. Epiblema (Rhizodermis): Outermost single layer; thin-walled; bears unicellular root hairs for absorption; no cuticle present
2. Cortex: Multiple layers (usually 5-8) of thin-walled parenchyma cells with intercellular spaces; stores food and allows gaseous exchange
3. Endodermis: Innermost layer of cortex; single layer of barrel-shaped cells without intercellular spaces; characterized by Casparian strip (a band of suberin and lignin on radial and tangential walls); regulates water and mineral entry into stele
4. Pericycle: Single or few layers just inside endodermis; composed of parenchyma cells; may have sclerenchyma patches; gives rise to lateral roots; participates in formation of vascular cambium during secondary growth
5. Vascular bundles:Radial arrangement; xylem and phloem in separate alternating radii
   • Number of xylem strands: 2 to 6; diarch (2 xylem strands), triarch (3), tetrarch (4), pentarch (5), or hexarch (6)
   • Xylem pattern: Exarch (protoxylem towards periphery, metaxylem towards centre)
   • Phloem patches: Alternate with xylem patches; separated by parenchyma called conjunctive tissue
6. Pith: Usually small or absent in many dicot roots; if present, consists of parenchyma

3.2 Key Features of Dicot Root

• Vascular arrangement: Radial; limited number of xylem patches (2-6)
• Xylem maturation: Exarch (from outside to inside)
• Pith: Absent or very small
• Secondary growth: Common; vascular cambium forms from conjunctive tissue and inner pericycle cells

4. Anatomy of Monocotyledonous Root

Transverse section of a typical monocot root (e.g., maize, wheat) shows similar basic organization to dicot root but with distinctive differences.

T.S. of Root: monocot

4.1 Tissue Layers in Monocot Root

1. Epiblema: Similar to dicot root; bears root hairs
2. Cortex: Multiple layers of parenchyma with intercellular spaces
3. Endodermis: Single layer with Casparian strip; barrel-shaped cells
4. Pericycle: Single layer of parenchyma; gives rise to lateral roots; does not form vascular cambium
5. Vascular bundles:Radial; polyarch (more than 6 xylem strands, usually 8 or more)
   • Xylem: Many xylem patches arranged in a ring; exarch
   • Phloem: Alternates with xylem patches
6. Pith: Large and well-developed; consists of parenchyma cells; occupies central portion

4.2 Key Features of Monocot Root

• Vascular arrangement: Radial; polyarch (many xylem patches, usually > 6)
• Pith: Large and well-developed (major difference from dicot root)
• Secondary growth: Generally absent; no vascular cambium forms
• Piliferous layer: Epiblema may be called piliferous layer when bearing root hairs

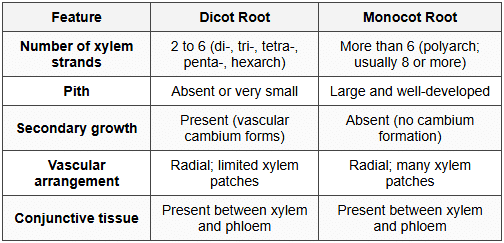

4.3 Comparison: Dicot vs Monocot Root

5. Anatomy of Dicotyledonous Stem

Transverse section of young dicot stem (e.g., sunflower, cucumber) in primary state shows the following organization from outside to inside:

T.S. of stem: Dicot

5.1 Tissue Layers in Dicot Stem

1. Epidermis:Single outermost layer; covered with cuticle; may bear trichomes; stomata present
   • Function: Protection; limits water loss
2. Cortex:Region between epidermis and vascular bundles; differentiated into three zones:
   • Hypodermis: 2-3 layers below epidermis; made of collenchyma; provides mechanical strength and flexibility
   • General cortex: Several layers of thin-walled parenchyma with intercellular spaces; photosynthesis and storage
   • Endodermis (Starch sheath): Innermost layer of cortex; cells rich in starch grains; Casparian strip generally absent in stems
3. Pericycle: Present outside phloem as patches of sclerenchyma (bundle cap fibres); provides mechanical support; not continuous in many dicot stems
4. Vascular bundles:Arranged in a ring; conjoint, collateral, open, and endarch
   • Arrangement: Form a complete or nearly complete ring
   • Conjoint and collateral: Xylem and phloem on same radius; xylem towards centre, phloem towards periphery
   • Open: Vascular cambium (strip of meristematic cells) present between xylem and phloem; enables secondary growth
   • Endarch: Protoxylem towards centre (pith); metaxylem towards periphery
   • Bundle sheath: Sclerenchyma may surround each bundle
5. Medullary rays: Parenchymatous radial strands between adjacent vascular bundles; connect cortex and pith; facilitate radial transport and storage
6. Pith: Large central region of thin-walled parenchyma cells with intercellular spaces; stores food and supports young stem

5.2 Key Features of Dicot Stem

• Vascular bundles: Conjoint, collateral, open, endarch; arranged in a ring
• Cambium: Present (open bundles); allows secondary growth
• Cortex differentiation: Hypodermis (collenchyma), general cortex (parenchyma), endodermis (starch sheath)
• Pith: Well-developed and large
• Medullary rays: Present between vascular bundles

5.3 Secondary Growth in Dicot Stem

• Vascular cambium formation: Cambium strip between xylem and phloem of each bundle becomes active; parenchyma cells of medullary rays become meristematic and join to form a complete cambial ring
• Activity: Cambium divides periclinally (parallel to surface); produces secondary xylem (wood) towards inside and secondary phloem towards outside
• Result: Increase in girth (diameter) of stem; primary xylem and phloem get crushed; secondary xylem accumulates as wood
• Cork cambium (Phellogen): Develops in outer cortex or epidermis; produces cork (phellem) outward and secondary cortex (phelloderm) inward; forms protective periderm

6. Anatomy of Monocotyledonous Stem

Transverse section of monocot stem (e.g., maize, sugarcane) shows different organization compared to dicot stem.

T.S. of stem: monocot

6.1 Tissue Layers in Monocot Stem

1. Epidermis: Single outermost layer covered with thick cuticle; stomata present; may bear trichomes
2. Hypodermis: 2-3 layers of sclerenchyma (not collenchyma) below epidermis; provides mechanical strength
3. Ground tissue:No distinction into cortex, endodermis, pericycle, medullary rays, and pith; entire mass of parenchyma with scattered vascular bundles
   • Composition: Undifferentiated parenchyma throughout
   • Peripheral bundles: Smaller in size and more numerous near periphery
   • Central bundles: Larger in size towards centre
4. Vascular bundles:Scattered throughout ground tissue; conjoint, collateral, closed, and endarch
   • Scattered arrangement: No ring formation (atactostele)
   • Closed bundles: No vascular cambium between xylem and phloem; no secondary growth
   • Bundle sheath: Each bundle surrounded by sclerenchymatous sheath for protection and support
   • Endarch xylem: Protoxylem towards centre
   • Phloem parenchyma: Generally absent in monocot stems

6.2 Key Features of Monocot Stem

• Vascular bundles: Conjoint, collateral, closed, endarch; scattered (no ring)
• Cambium: Absent (closed bundles); no typical secondary growth
• Ground tissue: Undifferentiated; no separate cortex and pith
• Hypodermis: Sclerenchymatous (provides rigidity)
• Bundle sheath: Sclerenchyma surrounds each vascular bundle
• Phloem parenchyma: Absent

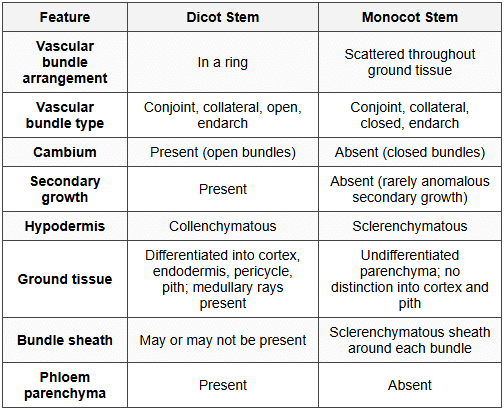

6.3 Comparison: Dicot vs Monocot Stem

7. Anatomy of Dicotyledonous Leaf (Dorsiventral Leaf)

Transverse section of typical dicot leaf shows dorsiventral (bifacial) structure with distinct upper (adaxial) and lower (abaxial) surfaces.

T.S. of Leaf: Dicot

7.1 Tissue Organization in Dicot Leaf

1. Upper (Adaxial) Epidermis:Single layer of cells; thick cuticle on outer surface; usually lacks stomata or has very few stomata
   • Function: Protection; reduces water loss from upper surface
2. Mesophyll:Photosynthetic tissue between upper and lower epidermis; differentiated into two distinct zones:
   • Palisade parenchyma: 1-3 layers of vertically elongated, cylindrical cells closely packed just below upper epidermis; rich in chloroplasts; main site of photosynthesis; little or no intercellular space
   • Spongy parenchyma: Irregularly shaped or oval cells with large intercellular spaces below palisade tissue; fewer chloroplasts than palisade; facilitates gas exchange and some photosynthesis
3. Lower (Abaxial) Epidermis:Single layer; cuticle thinner than upper epidermis; contains numerous stomata
   • Stomatal distribution: Higher density on lower surface (leaf is hypostomatic; stomata mainly on lower side)
4. Vascular bundles (Veins):Embedded in mesophyll; surrounded by bundle sheath (parenchyma or sclerenchyma)
   • Midrib: Largest vein; projects on lower surface; contains large vascular bundle with xylem towards upper side and phloem towards lower side
   • Minor veins: Smaller bundles distributed in mesophyll; form reticulate venation pattern (net-like) typical of dicots
   • Bundle sheath: One or more layers of compactly arranged cells around veins; may be parenchymatous or sclerenchymatous; regulate exchange between vascular tissue and mesophyll
   • Bundle sheath extensions: Parenchyma or sclerenchyma connecting bundle sheath to upper and/or lower epidermis; provide mechanical support

7.2 Key Features of Dicot (Dorsiventral) Leaf

• Symmetry: Dorsiventral (two distinct surfaces; upper and lower differ in structure)
• Mesophyll differentiation: Distinct palisade and spongy parenchyma layers
• Stomatal distribution: More stomata on lower epidermis (hypostomatic)
• Venation: Reticulate (net-like branching pattern)
• Photosynthetic efficiency: High due to palisade parenchyma rich in chloroplasts

8. Anatomy of Monocotyledonous Leaf (Isobilateral Leaf)

Transverse section of typical monocot leaf (e.g., grasses like maize, wheat) shows isobilateral (unifacial) structure with similar anatomy on both surfaces.

T.S. of leaf: Monocot

8.1 Tissue Organization in Monocot Leaf

1. Epidermis (Both Surfaces):Upper and lower epidermis are similar in structure; both have cuticle and stomata
   • Stomatal distribution: Stomata present on both upper and lower surfaces (leaf is amphistomatic)
   • Bulliform cells (Motor cells): Large, empty, thin-walled adaxial epidermal cells arranged in groups between vascular bundles; lose water and become flaccid causing leaf to roll inward (towards upper surface) during water stress; reduce transpiration
2. Mesophyll:Not differentiated into palisade and spongy layers; mesophyll cells are nearly uniform in shape and size
   • Chloroplasts: Distributed throughout mesophyll
   • Intercellular spaces: Present for gas exchange
3. Vascular bundles:Numerous bundles of varying sizes arranged parallel to each other (parallel venation)
   • Arrangement: Large and small bundles alternate; all aligned in one plane
   • Bundle sheath:Each bundle surrounded by two sheaths:
     • Outer bundle sheath: Parenchymatous (larger cells)
     • Inner bundle sheath: Sclerenchymatous (thick-walled for mechanical support)
   • Bundle orientation: Xylem towards upper (adaxial) side; phloem towards lower (abaxial) side
   • Additional support: Sclerenchymatous fibres may be present above and below vascular bundles in larger veins

8.2 Key Features of Monocot (Isobilateral) Leaf

• Symmetry: Isobilateral (both surfaces are structurally similar)
• Mesophyll differentiation: Absent; mesophyll is uniform (no distinct palisade and spongy layers)
• Stomatal distribution: Amphistomatic (stomata on both surfaces in nearly equal numbers)
• Bulliform cells: Present in adaxial epidermis; help in leaf rolling to reduce transpiration
• Venation: Parallel (veins run parallel to each other along length of leaf)
• Bundle sheath: Double sheath (outer parenchymatous, inner sclerenchymatous)

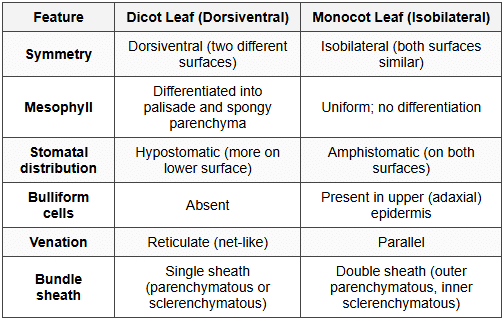

8.3 Comparison: Dicot vs Monocot Leaf

9. Important Anatomical Concepts and Exam Points

9.1 Casparian Strip

• Definition: A band of waterproof substances (suberin and lignin) deposited on radial and tangential walls of endodermal cells
• Location: Endodermis of roots (not usually present in stem endodermis)
• Function: Blocks apoplastic pathway (movement of water through cell walls and intercellular spaces); forces water and dissolved minerals to pass through the cytoplasm of endodermal cells (symplastic pathway); enables selective uptake and prevents backflow
• Significance: Acts as a checkpoint for entry of substances into the vascular cylinder

9.2 Protoxylem vs Metaxylem Position

• Exarch: Protoxylem (first-formed xylem) is located towards the periphery; metaxylem towards the centre; typical of roots
• Endarch: Protoxylem is located towards the centre (pith); metaxylem towards the periphery; typical of stems and leaves
• Significance: Indicates direction of xylem maturation and helps distinguish root from stem anatomy

9.3 Open vs Closed Vascular Bundles

• Open bundles: Contain vascular cambium (a strip of meristematic cells) between xylem and phloem; capable of secondary growth (increase in girth); found in dicot stems
• Closed bundles: Lack vascular cambium; cannot undergo secondary growth; found in monocot stems and leaves
• Exam Trap: All monocot bundles are closed; dicot stem bundles are open, but dicot and monocot leaf bundles are closed

9.4 Radial vs Conjoint Bundles

• Radial: Xylem and phloem are on different radii; alternate with each other; found in roots (both dicot and monocot)
• Conjoint: Xylem and phloem are on the same radius; found in stems and leaves
  • Collateral: Phloem on one side (outer) of xylem; most common type
  • Bicollateral: Phloem on both sides of xylem (outer and inner phloem); found in some dicot stems (e.g., Cucurbitaceae family)

9.5 Secondary Growth

• Definition: Increase in girth (diameter) of plant organs due to activity of lateral meristems (vascular cambium and cork cambium)
• Vascular cambium: Produces secondary xylem (wood) towards inside and secondary phloem towards outside
• Cork cambium (Phellogen): Produces cork (phellem) towards outside and secondary cortex (phelloderm) towards inside; together they form periderm (replaces epidermis in older stems and roots)
• Occurrence: Common in dicot stems and roots; generally absent in monocots (monocot stems and roots usually lack cambium)
• Result: Formation of annual rings in woody dicots; increase in mechanical strength

9.6 Stomatal Types

• Hypostomatic: Stomata mainly or only on lower (abaxial) surface; typical of dorsiventral dicot leaves
• Epistomatic: Stomata mainly or only on upper (adaxial) surface; found in some floating aquatic leaves
• Amphistomatic: Stomata on both upper and lower surfaces; typical of isobilateral monocot leaves

9.7 Adaptations Reflected in Anatomy

• Xerophytic adaptations: Thick cuticle, sunken stomata, presence of trichomes, sclerenchymatous hypodermis, bulliform cells (reduce transpiration in dry conditions)
• Hydrophytic adaptations: Large air spaces (aerenchyma) for buoyancy, thin or absent cuticle, reduced vascular tissue, epistomatic stomata in floating leaves
• Mechanical support: Collenchyma in young organs (flexible support), sclerenchyma in mature organs (rigid support), bundle sheaths around vascular bundles

9.8 Common Student Mistakes (Trap Alerts)

• Trap: Students confuse exarch (roots) with endarch (stems). Remember: Root = Radial + Exarch; Stem = Conjoint + Endarch
• Trap: Assuming all dicots have secondary growth. Correction: Some dicots remain herbaceous and show little or no secondary growth; not all dicots become woody
• Trap: Thinking monocot stems have no pith. Correction: Monocot stems have undifferentiated ground tissue (no separate cortex and pith); the term "pith" is not used for monocot stems
• Trap: Confusing bundle sheath with pericycle. Clarification: Pericycle is a layer in roots and some stems just inside endodermis; bundle sheath surrounds individual vascular bundles in stems and leaves
• Trap: Assuming stomata are always on lower surface. Correction: Depends on leaf type-dicot (dorsiventral) leaves are hypostomatic; monocot (isobilateral) leaves are amphistomatic; floating leaves may be epistomatic
• Trap: Confusing sclerenchymatous hypodermis of monocot stem with collenchymatous hypodermis of dicot stem. Remember: Dicot stem hypodermis = Collenchyma (flexible); Monocot stem hypodermis = Sclerenchyma (rigid)

Mastering plant anatomy requires understanding tissue organization (epidermal, ground, vascular systems), recognizing distinctive anatomical features of monocots versus dicots in roots, stems, and leaves, and correlating structure with function. Key exam points include: (1) radial exarch arrangement in roots vs conjoint endarch in stems; (2) open vascular bundles in dicot stems vs closed bundles in monocot stems; (3) polyarch monocot roots with large pith vs limited xylem patches in dicot roots; (4) differentiated dorsiventral dicot leaves vs uniform isobilateral monocot leaves; (5) role of Casparian strip, cambium, bulliform cells, and stomatal distribution. Focus on comparative tables, understand the functional significance of each anatomical feature, and practice identifying structures in transverse sections for thorough exam preparation.
