Mnemonics: Atoms

Atomic Models

Types: Thomson, Rutherford, Bohr

Mnemonic: "The Real Beauty"

Breakdown:

• The - Thomson
  Thomson Model: Also known as the "plum pudding" model, where electrons are spread throughout a positively charged sphere. It was the first model to suggest that atoms are made of smaller particles.
  Example: J.J. Thomson's cathode ray experiment led to the discovery of the electron.
• Real - Rutherford
  Rutherford Model: Proposed that the atom consists of a dense, positively charged nucleus with electrons orbiting around it, much like planets orbit the sun.
  Example: Rutherford's gold foil experiment revealed the existence of the atomic nucleus.

• Beauty - Bohr
  Bohr Model: Suggested that electrons move in fixed orbits around the nucleus, and energy is absorbed or emitted when electrons jump between these orbits.
  Example: Bohr's model of the hydrogen atom explained the discrete lines in its emission spectrum.

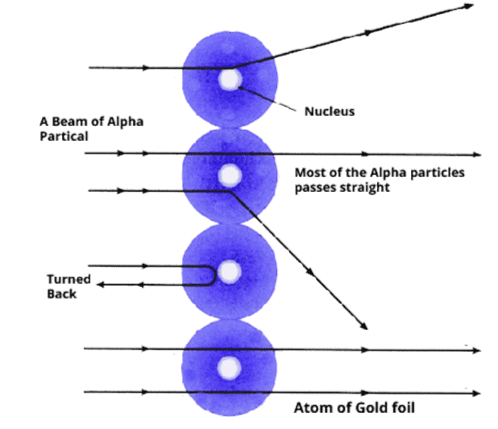

Rutherford Scattering

Mnemonic: "MOST pass, FEW bend, RARE bounce"

MOST - Most α-particles pass straight

Explanation:
In Rutherford's gold foil experiment, it was observed that most α-particles passed straight through the gold foil without any deflection. This indicated that most of the volume of an atom is empty space.

Example:
If atoms were solid throughout, α-particles would have been stopped or heavily deflected. Their straight passage proved that atoms contain large empty regions.

FEW - Few α-particles bend (deflect slightly)

Explanation:
A small fraction of α-particles were deflected through small angles, showing that positive charge is not spread uniformly, but concentrated in a small region inside the atom.

Example:
The slight bending occurred due to electrostatic repulsion between positively charged α-particles and the positively charged nucleus.

RARE - Very rare α-particles bounce back

Explanation:
A very tiny number of α-particles rebounded back, meaning they encountered a very dense and massive positively charged region.

Example:
Rutherford compared this to firing a shell at tissue paper and having it bounce back, proving the existence of a small, heavy nucleus at the centre of the atom.

Ground State & Ionisation Energy

Explanation:
In a hydrogen atom, when the electron is present in the lowest energy orbit (n = 1), the total energy of the atom is -13.6 eV. This state is called the ground state. Example: At room temperature, most hydrogen atoms exist in this ground state with energy -13.6 eV.

To remove the electron completely from the hydrogen atom (i.e., take it to infinity), 13.6 eV of energy must be supplied. This energy is called the ionisation energy of hydrogen. Example: When the electron is just free from the nucleus, its energy becomes 0 eV, indicating complete ionisation.

 Spectral Series

Mnemonic: "Lazy Boys Prefer Big Pizza"

Breakdown:

1. Lazy - Lyman Series (UV)

Explanation:

• Transitions end at n = 1
• Radiation emitted lies in the ultraviolet (UV) region

Example:
Electron transition from n = 2 → 1 produces Lyman-α line.

2. Boys - Balmer Series (Visible)

Explanation:

• Transitions end at n = 2
• Radiation lies in the visible region

Example:
The red Balmer line (H-α) is commonly observed in hydrogen discharge tubes.

3. Prefer - Paschen Series (IR)

Explanation:

• Transitions end at n = 3
• Radiation lies in the infrared region

4. Big - Brackett Series (IR)

Explanation:

• Transitions end at n = 4
• Radiation lies in the infrared region

5. Pizza - Pfund Series (IR)

Explanation:

• Transitions end at n = 5
• Radiation lies in the infrared region

 Limitations of Bohr Model

Types: Applicability, Spectral Explanation

Mnemonic: "Bohr Works SOLO"

Breakdown:

SOLO - Single-Electron Atoms Only

Explanation: Bohr's model works only for hydrogen-like (single-electron) atoms such as hydrogen, He⁺, Li²⁺, etc. Example: It fails for helium and other multi-electron atoms due to electron-electron interactions.

Cannot Explain - Multi-Electron Atoms

Explanation: Bohr's model does not account for repulsion between multiple electrons, making it unsuitable for complex atoms.

Cannot Explain - Intensity of Spectral Lines

Explanation: Although Bohr's model predicts the frequencies of spectral lines correctly, it cannot explain why some lines are brighter and others are weaker.

Cannot Explain - Zeeman & Stark Effects

Explanation:

• Zeeman effect: Splitting of spectral lines in a magnetic field.
• Stark effect: Splitting of spectral lines in an electric field.

Bohr's model cannot explain either phenomenon.
