Circuits and Potential Difference Chapter Notes - Technical Science

Electric Circuit Diagrams and Components

This section introduces electric circuits, their components, and how to represent them using standardized symbols. It explains the role of a cell in transferring energy, the difference between open and closed circuits, and the concept of electric current.

Electric Circuits

Definition: An electric circuit is a closed path along which electrons flow from a voltage source, such as a cell or battery.
Purpose: Circuits allow energy to be transferred from a source to components that use it, like bulbs or motors.
Components: Four basic components are needed to build a circuit:

• Source: Provides power or energy (e.g., cell, battery, generator, photovoltaic cell).
• Conductor: Provides a pathway for current to flow (e.g., copper or aluminium wires).
• Controlling Device: Opens or closes the circuit (e.g., switch, relay; not always present).
• Load: Uses power from the source to operate (e.g., light bulb, heater, motor).

Circuit Diagrams and Symbols

Purpose: Circuit diagrams use simplified symbols to represent components and straight lines for conductors, making complex circuits easier to draw and understand.

Standards: Two main standards exist for symbols: IEEE and IEC, used in countries like South Africa, Europe, and America. Symbols are similar across standards.

Common Symbols (Table):

Open and Closed Circuits

• Closed Circuit: A complete path with no breaks, allowing current to flow (e.g., switch closed, bulb lights up).
• Open Circuit: A path with a break (e.g., switch open), preventing current flow (e.g., bulb stays off).

Switch Operation:

• Closing a switch completes the circuit, allowing current to flow.
• Opening a switch creates an air gap, stopping current flow.

Note: Unlike a water tap (opening lets water flow), opening a switch stops current, as electricity is not like water flowing through a pipe.

Role of a Cell in a Circuit

Structure: A cell has two metal electrodes (positive and negative) with chemical compounds between them, encased in a steel casing (negative electrode) with a brass rod (positive electrode).

The inside of a cell

Function:

• The chemicals react when the electrodes are connected by a conductor, transferring energy to the circuit via electron movement.
• Electrons are pushed out of the negative terminal and pulled into the positive terminal, creating a flow.

Potential Energy: The chemicals store potential energy, released only when the circuit is closed.

Electromotive Force (emf)

Definition: Electromotive force (emf) is the potential difference across a cell's terminals when no current flows (circuit open).
Explanation:

• A cell's emf (e.g., 1.5 volts for a single cell) indicates the maximum energy it can give to charges.
• When current flows, some energy is lost inside the cell, so the actual voltage is slightly less than the emf.

Mechanism:

• The negative terminal pushes electrons into the circuit, while the positive terminal pulls them in.
• All electrons in the circuit move simultaneously, transferring energy to components like bulbs or steel wool.

Electric Current

• Definition: Electric current is the flow of many charges (electrons) moving in one direction through a conductor.
• Conventional Direction: Current is said to flow from the positive terminal to the negative terminal of a cell (though electrons move oppositely).
• Instantaneous Flow: Unlike water through a hose, electrons in a circuit begin moving everywhere at once when the switch is closed, instantly lighting a bulb.
• Duration: Current flows as long as the cell's chemicals can react; when the chemicals are depleted, the current stops.

Energy Transfer in a Circuit

Process:

• A cell provides potential energy to charges, which flow through the circuit.
• Loads like bulbs convert this energy into light or heat (e.g., a filament glows white-hot).

Energy Difference:

• Charges enter a bulb with high energy and exit with less energy, having transferred energy to the bulb.
• This energy difference is the potential difference (voltage) across the bulb, measurable as heat or light output.

Example: In a torch bulb, current flows from the positive solder knob through the filament to the negative screw-contact, heating the filament to glow.

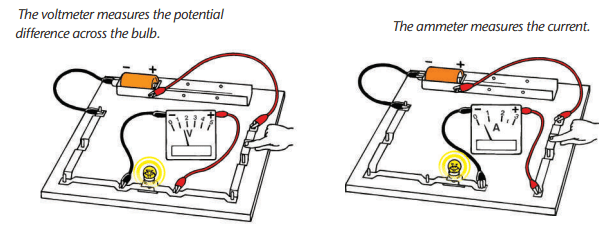

 How to Measure Potential Difference and Current

This section explains how to measure potential difference (voltage) and current using voltmeters and ammeters, including the formulas for calculating these quantities and their physical meanings.

Measuring Potential Difference

Definition: Potential difference (voltage) is the work done by a cell per coulomb of charge, or the energy each coulomb transfers to a component like a bulb.
Formula:
V = W / Q

• V: Potential difference (volts, V).
• W: Work or energy transferred (joules, J).
• Q: Charge (coulombs, C).

Voltmeter:

• Measures potential difference across a component (e.g., bulb).
• Connected in parallel, so current flows through the component, not the voltmeter.
• Example: A voltmeter across a bulb shows ~1.5 V for a single cell, indicating the energy each coulomb gives to the bulb.

Observations:

• Adding cells in series increases the potential difference, making the bulb brighter and hotter.
• Across a good conductor (e.g., brass strip), potential difference is zero, as no energy is transferred (strip stays cool).
• Across an open circuit gap, the voltmeter measures the cell's full emf (e.g., 1.5 V), as no current flows.

Measuring Current

Definition: Current (I) is the rate of flow of charge, measured in amperes (A), where 1 ampere = 1 coulomb per second.
Formula:
I = Q / Δt

• I: Current (amperes, A).
• Q: Charge (coulombs, C).
• Δt: Time (seconds, s).

Ammeter:

• Measures the quantity of charge passing through it per second.
• Connected in series, so the circuit's current flows through the ammeter.
• Example: An ammeter in series with a bulb measures the current driving the bulb's glow.

Observations:

• Adding cells in series increases the current, as more energy pushes more charges.
• A high current indicates many coulombs per second; a low current indicates fewer.

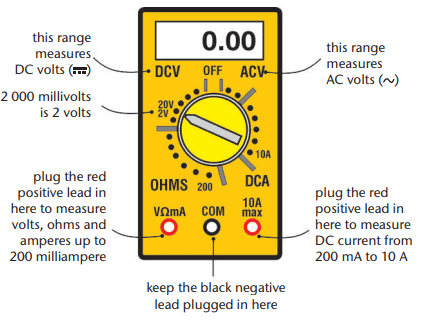

Using a Multimeter

Measuring Voltage:

• Set to a voltage range (e.g., 2 V maximum for a 1.5 V cell).
• Connect red and black leads across the component (parallel).
• Display shows volts (e.g., ~1.5 V for a bulb), without a "V" symbol.

Measuring Current:

• Set to a current range (e.g., 10 A maximum).
• Move the red lead to the "10 A" socket.
• Break the circuit and connect the ammeter in series, so current flows through it.
• Display shows amperes, without an "A" symbol.

Precision:

• The 2 V range is more precise than the 20 V range for small voltages.
• A "1" on the display indicates the voltage exceeds the range, requiring a higher range (e.g., 20 V).

Calculations with Voltage and Current

Example 1: Calculating Current

• Given: 2 C of charge passes in 0.4 s.
• Formula: I = Q / Δt = 2 / 0.4 = 5 A.
• Result: Current is 5 amperes.

Example 2: Calculating Charge

• Given: Current of 2 A flows for 10 s.
• Formula: Q = I × Δt = 2 × 10 = 20 C.
• Result: 20 coulombs of charge pass through.

Points to Remember

• An electric circuit is a closed path for electrons to flow from a voltage source, requiring a source, conductor, controlling device, and load.
• Circuit diagrams use symbols (e.g., cell, bulb, switch) and straight lines for conductors, following IEEE or IEC standards.
• A closed circuit allows current to flow (switch closed); an open circuit stops current (switch open).
• A cell transfers energy to charges via chemical reactions, pushing electrons from the negative terminal and pulling them into the positive terminal.
• Electromotive force (emf) is the potential difference across a cell's terminals when no current flows, typically 1.5 V per cell.
• Current flows instantly when a circuit is closed, from positive to negative terminal (conventional direction).
• Potential difference (voltage) across a bulb is the energy transferred per coulomb, causing it to glow or heat.
• Potential difference is calculated as V = W / Q (volts = joules / coulombs).
• Current is the rate of charge flow, calculated as I = Q / Δt (amperes = coulombs / seconds).
• A voltmeter, connected in parallel, measures potential difference; an ammeter, connected in series, measures current.
• A multimeter measures voltage or current based on settings, with precise ranges (e.g., 2 V for small voltages).
• Adding cells in series increases potential difference and current, making bulbs brighter.

Difficult Words

• Electric Circuit: A closed path for electrons to flow from a voltage source, enabling energy transfer.
• Component: A part of a circuit, such as a cell, conductor, switch, or bulb.
• Conductor: A material (e.g., copper) that allows current to flow easily.
• Load: A device (e.g., bulb, heater) that uses energy from the circuit to operate.
• Switch: A device that opens (stops current) or closes (allows current) a circuit.
• Resistor: A component (e.g., nichrome wire, carbon resistor) that resists current flow, producing heat or limiting current.
• Electromotive Force (emf): The maximum potential difference a cell provides when no current flows, measured in volts.
• Potential Difference (Voltage): The energy transferred per coulomb of charge across a component, measured in volts.
• Current: The rate of flow of electric charge, measured in amperes (coulombs per second).
• Voltmeter: A device connected in parallel to measure potential difference across a component.
• Ammeter: A device connected in series to measure current through a circuit.
• Multimeter: A versatile device that measures voltage, current, or resistance, depending on settings.

Summary

Chapter 13 explores electric circuits and the measurement of potential difference and current. A circuit is a closed path for electron flow, comprising a source (e.g., cell), conductor (e.g., wire), controlling device (e.g., switch), and load (e.g., bulb). Circuit diagrams use standardized symbols to simplify designs. A closed circuit allows current flow, while an open circuit stops it. A cell transfers energy to charges, with electromotive force (emf) indicating its maximum voltage (e.g., 1.5 V). Current, the rate of charge flow, moves instantly from positive to negative terminals (conventional direction). Potential difference (voltage), the energy per coulomb transferred to a load, is measured in parallel with a voltmeter, while current is measured in series with an ammeter. A multimeter adjusts to measure either, with precise settings for accuracy. Formulas V = W / Q and I = Q / Δt calculate voltage and current, respectively. Adding cells increases voltage and current, enhancing a bulb's brightness. These concepts are fundamental to understanding and designing electrical systems.
