Resistors in Series

This section explains series circuits, where resistors are connected in a single path, affecting current and voltage distribution. It covers current conservation, voltage division, and effective resistance.

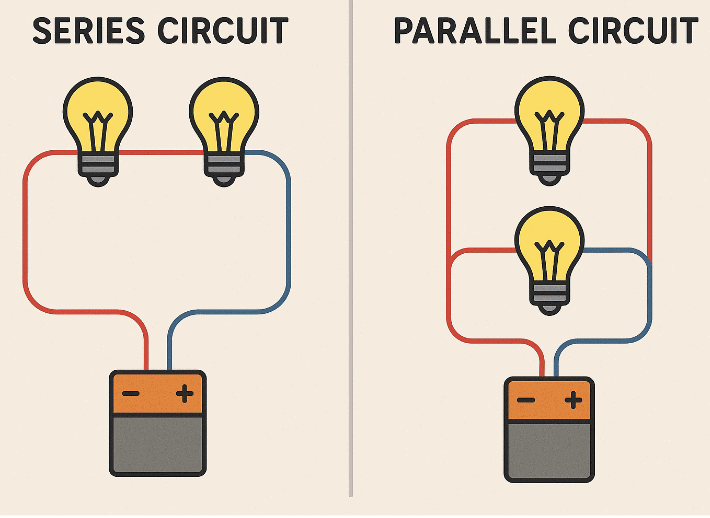

Series Circuits

Definition: A series circuit has only one path for current, so all current flows through each resistor in sequence.
Example: In a circuit with a battery, switch, and multiple bulbs, current flows through each bulb one after another when the switch is closed.
Behavior:

• All resistors (e.g., bulbs) experience the same current.
• Each resistor transfers some energy from the charges, but the current (stream of charges) is not used up.

Current in Series Circuits

Conservation of Charge: The current is the same at all points in a series circuit because charges are not consumed; they transfer energy to resistors.
Formula:
I_total = I₁ = I₂ = I₃

• I_total: Total current in the circuit.
• I₁, I₂, I₃: Current through each resistor (e.g., bulbs).

Observation: In a series circuit with identical bulbs, all bulbs glow with equal brightness, indicating equal current flow.

Voltage in Series Circuits

Potential Difference: The voltage across a resistor is the energy transferred per coulomb of charge as it passes through, measured as the potential difference.

Voltage Division:

• The total battery voltage (emf) splits across all resistors in series.
• The sum of voltages across each resistor equals the total battery voltage (V_total = V₁ + V₂ + V₃).
• Example: For three bulbs with voltages 1.4 V, 1.3 V, and 1.5 V, V_total = 4.2 V, less than the emf (4.5 V for three 1.5 V cells) due to internal energy loss in the battery.

Proportionality:

• The voltage across each resistor is proportional to its resistance.
• The resistor with the highest resistance has the largest voltage across it.

Example: Replacing a bulb with a 60 cm nichrome wire (higher resistance) increases the voltage across it compared to a bulb, altering the voltage distribution.

Voltage Divider

Concept: A series circuit can act as a voltage divider, where the voltage splits based on resistor lengths or values.
Example: In a 90 cm nichrome wire circuit divided at 30 cm (XY) and 60 cm (YZ):

• The 30 cm section (XY) has lower resistance and gets a smaller voltage fraction.
• The 60 cm section (YZ) has higher resistance and gets a larger voltage fraction.
• The total voltage across the 90 cm (XZ) equals the battery voltage.

Application: Voltage dividers are used to allocate specific voltages to components in a circuit.

Effective Resistance in Series Circuits

Definition: The effective resistance (R_eff) is the total resistance the battery "sees" in the circuit, equivalent to a single resistor replacing all series resistors.
Calculation:

• Resistances in series add directly: R_eff = R₁ + R₂ + R₃.
• Example: For resistors of 1 Ω, 2 Ω, and 3 Ω, R_eff = 1 + 2 + 3 = 6 Ω.

Impact: Adding more resistors in series increases R_eff, reducing the total current (I = V / R_eff).

Resistors in Parallel

This section explores parallel circuits, where resistors are connected to provide multiple current paths, affecting voltage, current, and resistance differently from series circuits.

Parallel Circuits

Definition: A parallel circuit has two or more paths for current, with each resistor connected directly to the same two points (e.g., battery terminals).
Example: In a circuit with an indicator bulb and three bulbs connected in parallel, each parallel bulb has its own path to the battery.
Behavior:

• Each parallel resistor has the same potential difference across it.
• The total current splits among the parallel paths, with more current flowing through lower-resistance paths.

Current in Parallel Circuits

Current Splitting:

• The total current from the battery (I_total) divides among parallel branches.
• The branch with the lowest resistance carries the most current, while the highest resistance carries the least.

Effect of Adding Resistors:

• Adding more parallel resistors increases the total current, as more paths allow more charge flow.
• Example: Adding identical 18 Ω bulbs in parallel doubles the current (e.g., from 0.5 A to 1 A for two bulbs).

Indicator Bulb: An indicator bulb in series with parallel resistors brightens as more parallel paths are added, reflecting increased total current.

Voltage in Parallel Circuits

• Constant Voltage: All resistors in parallel have the same potential difference across them, equal to the battery voltage.
• Observation: Parallel bulbs glow with equal brightness (if identical), indicating equal voltage across each.
• Reason: Each parallel branch connects directly to the battery's terminals, receiving the full voltage.

Effective Resistance in Parallel Circuits

Definition: The effective resistance (R_eff) is the equivalent resistance of all parallel resistors, seen by the battery.

Behavior: Adding resistors in parallel decreases R_eff, increasing total current (I = V / R_eff).

Examples:

• One 18 Ω resistor: R_eff = 18 Ω, current = 0.5 A.
• Two 18 Ω resistors in parallel: R_eff = 9 Ω, current = 1 A.
• Three 18 Ω resistors in parallel: R_eff = 6 Ω, current = 1.5 A.

Formula for Two Resistors:
1 / R_eff = 1 / R₁ + 1 / R₂
Or: R_eff = (R₁ × R₂) / (R₁ + R₂)

Formula for Three Resistors:
1 / R_eff = 1 / R₁ + 1 / R₂ + 1 / R₃

Simplification: For multiple resistors, group pairs to simplify calculations (e.g., two 18 Ω resistors = 9 Ω, then combine with a third resistor).

Short Circuits

Definition: A short circuit is a parallel path with near-zero resistance, allowing maximum current flow.

Effect:

• Most current flows through the short circuit (e.g., 99% through a zero-resistance wire), bypassing resistors like bulbs.
• The battery depletes rapidly, overheating and becoming "dead" in minutes.

Example: In a circuit with a bulb and a short-circuit wire, closing the switch diverts current through the wire, extinguishing the bulb.
Dangers:

• In homes, short circuits (e.g., from damaged wire insulation) cause excessive current, heating wires to red-hot temperatures and risking fires.
• Fuses or circuit-breakers stop current flow by melting or tripping when current is too high.

Comparison of Series and Parallel Circuits

Voltage:

• Series: Total voltage splits across resistors; higher resistance gets more voltage.
• Parallel: All resistors have the same voltage, equal to the battery voltage.

Current:

• Series: Same current flows through all resistors; more resistors reduce total current.
• Parallel: Current splits among resistors; lower resistance gets more current; more resistors increase total current.

Resistance:

• Series: R_eff = R₁ + R₂ + R₃ (increases with more resistors).
• Parallel: 1 / R_eff = 1 / R₁ + 1 / R₂ + 1 / R₃ (decreases with more resistors).

Points to Remember

• Series circuits have one current path; all resistors share the same current, and voltages split proportionally to resistance.
• Parallel circuits have multiple current paths; all resistors have the same voltage, and current splits, with lower-resistance paths carrying more.
• In series, the highest resistor has the largest voltage; in parallel, the lowest resistor has the most current.
• Current is conserved in series circuits (I_total = I₁ = I₂ = I₃); charges transfer energy, not quantity.
• Total voltage in series equals the sum of individual voltages (V_total = V₁ + V₂ + V₃), often less than the battery's emf due to internal losses.
• Effective resistance in series adds directly (R_eff = R₁ + R₂ + R₃), reducing current.
• Effective resistance in parallel decreases (1 / R_eff = 1 / R₁ + 1 / R₂ + 1 / R₃), increasing total current.
• A voltage divider in series allocates voltage based on resistance (e.g., longer nichrome wire gets more voltage).
• Short circuits, with near-zero resistance, cause excessive current, depleting batteries and risking fires in homes.
• Fuses and circuit-breakers protect circuits by stopping excessive current flow.
• Parallel circuits with identical resistors share current equally, maintaining equal brightness in bulbs.
• Simplifying parallel circuits involves grouping resistors to calculate R_eff iteratively.

Difficult Words

• Series Circuit: A circuit with one path for current, where all resistors are connected end-to-end.
• Parallel Circuit: A circuit with multiple paths for current, where resistors connect to the same two points.
• Resistor: A component (e.g., bulb, nichrome wire) that opposes current flow, transferring energy as heat or light.
• Potential Difference (Voltage): The energy transferred per coulomb of charge across a resistor, measured in volts.
• Current: The flow of electric charge, measured in amperes; conserved in series circuits, splits in parallel.
• Effective Resistance (R_eff): The equivalent resistance of all resistors in a circuit, seen by the battery.
• Voltage Divider: A series circuit that splits voltage across resistors based on their resistance values.
• Short Circuit: A low-resistance path that allows excessive current, bypassing resistors and risking damage.
• Fuse: A safety device that melts to stop current flow when it becomes too high.
• Circuit-Breaker: A device that trips to stop current flow in case of excessive current, preventing fires.
• Nichrome: A resistive material used in circuits, with higher resistance than copper.

Summary

Chapter 15 explores series and parallel circuits, focusing on how resistors affect current and voltage. In series circuits, a single current path ensures all resistors share the same current, with voltage splitting proportionally to resistance (highest resistance gets the most voltage). The effective resistance (R_eff) is the sum of individual resistances, reducing total current. In parallel circuits, multiple paths allow current to split, with each resistor experiencing the same voltage; lower-resistance paths carry more current. Adding parallel resistors decreases R_eff, increasing total current. Short circuits, with near-zero resistance, cause excessive current, depleting batteries and risking fires, prevented by fuses or circuit-breakers. Voltage dividers in series allocate voltage based on resistance, while parallel circuits maintain equal voltage across branches. These principles are crucial for designing and understanding electrical circuits.
