Cheatsheet: Theory of Computation

2. Regular Expressions and Languages

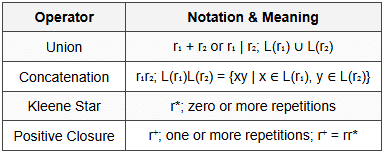

2.1 Regular Expression Operators

2.2 Regular Expression Laws

• Associativity: (r₁ + r₂) + r₃ = r₁ + (r₂ + r₃); (r₁r₂)r₃ = r₁(r₂r₃)
• Commutativity: r₁ + r₂ = r₂ + r₁ (union only, not concatenation)
• Distributivity: r₁(r₂ + r₃) = r₁r₂ + r₁r₃
• Identity: r + ∅ = r; rε = εr = r; r∅ = ∅r = ∅
• Idempotence: r* = (r*)* = ε + r⁺; r** = r*
• Absorption: r*r* = r*; ε* = ε; ∅* = ε

2.3 Arden's Theorem

• If R = Q + RP where ε ∉ L(P), then R = QP*
• Used to convert FA to regular expression

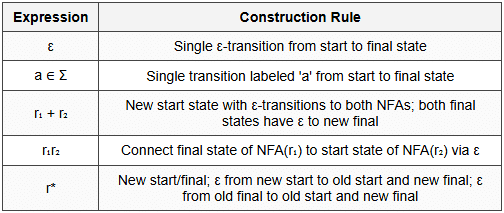

2.4 Regular Expression to NFA (Thompson's Construction)

2.5 Pumping Lemma for Regular Languages

• If L is regular, then ∃ pumping length p ≥ 1 such that:
• Every string s ∈ L with |s| ≥ p can be divided as s = xyz where:
  1. |xy| ≤ p
  2. |y| ≥ 1
  3. ∀ i ≥ 0, xyⁱz ∈ L
• Used to prove languages are NOT regular (proof by contradiction)

2.6 Non-Regular Languages Examples

• L = {aⁿbⁿ | n ≥ 0}
• L = {aⁿ | n is prime}
• L = {ww | w ∈ Σ*}
• L = {aⁿbⁿcⁿ | n ≥ 0}
• L = {aⁿ² | n ≥ 0}

2.7 Myhill-Nerode Theorem

• L is regular iff the number of equivalence classes of ≡_L is finite
• x ≡_L y iff ∀z ∈ Σ*, xz ∈ L ⇔ yz ∈ L
• Number of equivalence classes = number of states in minimal DFA

3. Context-Free Grammars

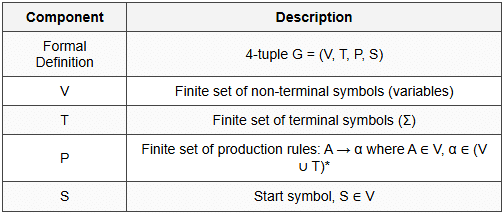

3.1 CFG Definition

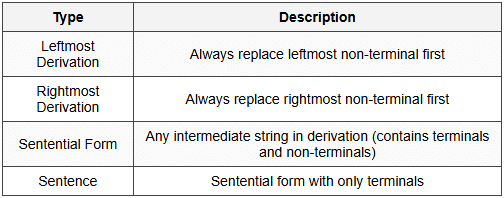

3.2 Derivations

3.3 Parse Trees

• Root: start symbol S
• Internal nodes: non-terminals
• Leaves: terminals or ε
• Yield: concatenation of leaves from left to right
• Each derivation corresponds to a parse tree

3.4 Ambiguity

• Grammar is ambiguous if ∃ string w with two or more distinct parse trees
• Equivalently: two or more distinct leftmost (or rightmost) derivations
• Given a CFG, it is undecidable whether the grammar is ambiguous.
• Some CFLs are inherently ambiguous (all grammars are ambiguous)

3.5 Simplification of CFG

3.5.1 Removal Steps (in order)

• 1. Remove ε-productions: A → ε (except S → ε if ε ∈ L)
• 2. Remove unit productions: A → B where A, B ∈ V
• 3. Remove useless symbols: non-generating and unreachable symbols
• Order matters: first eliminate non-generating, then unreachable

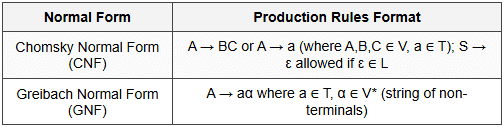

3.5.2 Normal Forms

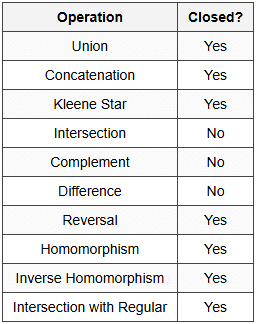

3.6 Closure Properties of CFLs

3.7 Pumping Lemma for CFLs

• If L is CFL, then ∃ pumping length p such that:
• Every string s ∈ L with |s| ≥ p can be divided as s = uvxyz where:
• 1. |vxy| ≤ p
• 2. |vy| ≥ 1
• 3. ∀ i ≥ 0, uvⁱxyⁱz ∈ L
• Used to prove languages are NOT context-free

3.8 Non-CFL Examples

• L = {aⁿbⁿcⁿ | n ≥ 0}
• L = {ww | w ∈ {a,b}*}
• L = {aⁿ | n is prime}
• L = {aⁿ² | n ≥ 0}

4. Pushdown Automata

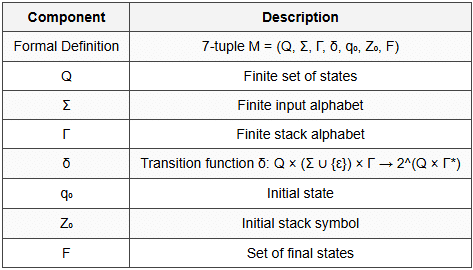

4.1 PDA Definition

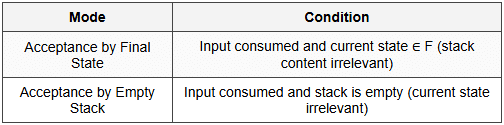

4.2 Acceptance Modes

• Both modes are equivalent in power (can convert between them)

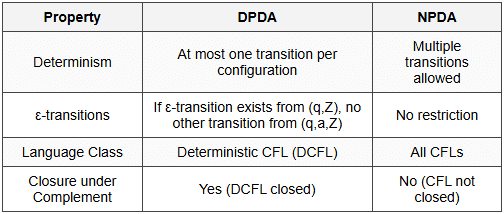

4.3 DPDA vs NPDA

• DPDA recognizes DCFLs, NPDA recognizes CFLs, and DCFL ⊂ CFL.

4.4 CFG and PDA Equivalence

• For every CFG, there exists an equivalent NPDA
• For every NPDA, there exists an equivalent CFG
• PDA accepts exactly the class of context-free languages

5. Turing Machines

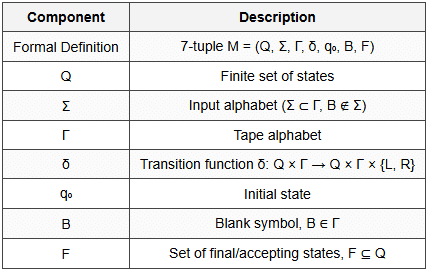

5.1 Turing Machine Definition

5.2 TM Characteristics

• Infinite tape (unbounded on both or one side)
• Can read, write, and move left or right
• Can halt in accepting, rejecting, or non-halting state
• Computation may not halt (loop forever)

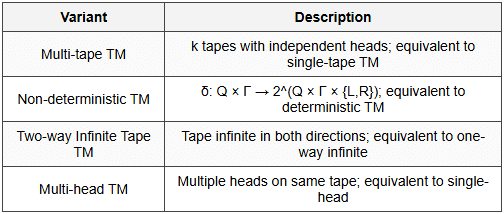

5.3 TM Variants

• All variants are equivalent in computational power

5.4 Church-Turing Thesis

• Any intuitively computable function is Turing-computable
• TM captures the notion of algorithmic computation
• Cannot be proven (thesis, not theorem)

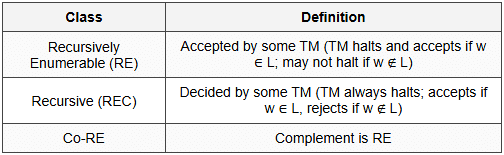

5.5 Language Classification by TM

• REC = RE ∩ Co-RE
• REC ⊂ RE
• RE languages are closed under union, intersection, concatenation, Kleene star
• RE languages are NOT closed under complement
• Recursive languages are closed under complement, union, intersection

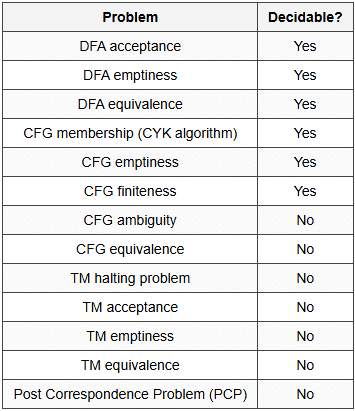

5.6 Decidability

5.7 Halting Problem

• Problem: Given TM M and input w, does M halt on w?
• Undecidable (proven by diagonalization)
• L_H = {⟨M,w⟩ | M halts on w} is RE but not recursive
• Complement of L_H is not RE

5.8 Rice's Theorem

• Any non-trivial property of RE languages is undecidable
• Non-trivial: some RE languages have it, some don't
• Property: depends only on language recognized, not on TM description

6. Chomsky Hierarchy

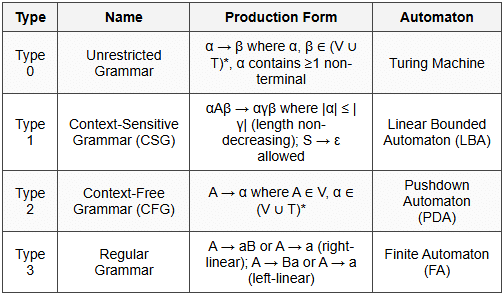

6.1 Grammar Types

6.2 Language Hierarchy

• Type 3 ⊂ Type 2 ⊂ Type 1 ⊂ Type 0
• Regular ⊂ CFL ⊂ CSL ⊂ RE
• All inclusions are strict (proper subsets)

6.3 Linear Bounded Automaton (LBA)

• TM with tape length bounded by c·n where n is input length, c is constant
• Accepts exactly context-sensitive languages
• LBA acceptance problem is decidable
• LBA emptiness problem is undecidable

7. Complexity Classes

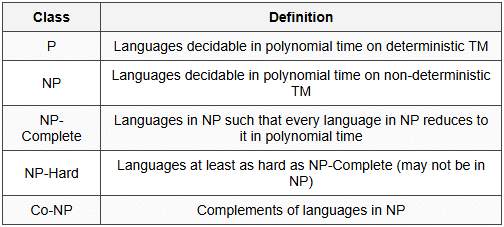

7.1 Time Complexity Classes

7.2 Relationships

• P ⊆ NP
• P ⊆ Co-NP
• NP-Complete ⊆ NP-Hard
• If any NP-Complete problem is in P, then P = NP
• P = NP question remains open

7.3 NP-Complete Problems

• SAT (Boolean Satisfiability) - first proven NP-Complete (Cook's theorem)
• 3-SAT
• Clique
• Vertex Cover
• Hamiltonian Cycle
• Traveling Salesman Problem (decision version)
• Subset Sum
• Knapsack (decision version)
• Graph Coloring

7.4 Polynomial-Time Reduction

• Language L₁ ≤_p L₂ if ∃ polynomial-time computable function f: Σ* → Σ* such that x ∈ L₁ iff f(x) ∈ L₂
• Used to prove NP-Completeness: reduce known NP-Complete problem to new problem

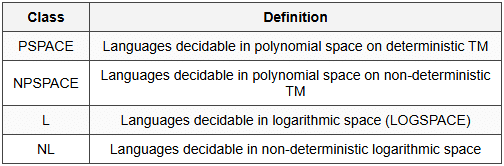

7.5 Space Complexity Classes

7.6 Space-Time Relationships

• L ⊆ NL ⊆ P ⊆ NP ⊆ PSPACE ⊆ NPSPACE ⊆ EXPTIME
• Savitch's Theorem: PSPACE = NPSPACE
• PSPACE-Complete problems exist

8. Key Theorems and Results

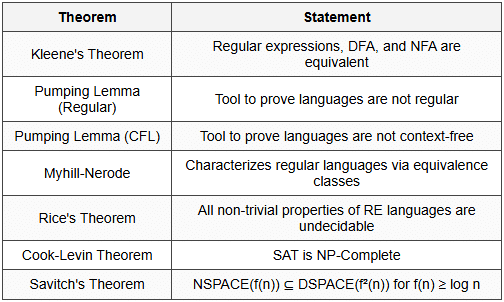

8.1 Fundamental Theorems

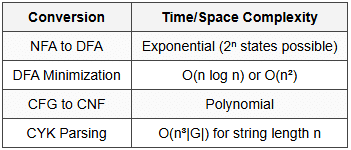

8.2 Conversion Time Complexities

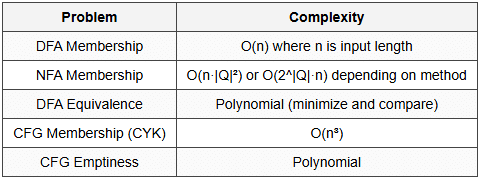

8.3 Decision Algorithm Complexities

9. Important Formulas and Counts

9.1 State and Transition Counts

• DFA transitions: exactly |Q| × |Σ|
• NFA transitions are defined by a transition relation; no fixed upper bound exists.
• Minimal DFA states for L: equals number of Myhill-Nerode equivalence classes
• Product construction (intersection/union): |Q₁| × |Q₂| states

9.2 String and Language Operations

• |Σⁿ| = |Σ|ⁿ (number of strings of length exactly n)
• |Σ≤ⁿ| = (|Σ|^(n+1) - 1)/(|Σ| - 1) (total strings of length ≤ n)
• |wᴿ| = |w| (reversal preserves length)
• |w₁w₂| = |w₁| + |w₂| (concatenation)

9.3 Parse Tree Heights

• CNF grammar: derivation tree height for string of length n is O(log n) minimum, O(n) maximum
• Yield of parse tree with height h in CNF: at most 2^h terminals

9.4 Computation Bounds

• k-tape TM simulating 1-tape TM: time increased by at most O(t²)
• Non-deterministic TM simulating deterministic TM: time remains same
• Deterministic TM simulating non-deterministic TM: exponential time increase possible

10. Exam Tips and Quick Checks

10.1 Proving Non-Regularity

• Use Pumping Lemma: assume regular, derive contradiction
• Use Myhill-Nerode: show infinite equivalence classes
• Use closure properties: if L₁ ∩ L₂ is non-regular and L₂ is regular, then L₁ is non-regular

10.2 Proving Non-CFL

• Use Pumping Lemma for CFLs
• Use closure properties: CFLs not closed under intersection or complement
• Intersection with regular language: if L ∩ R is non-CFL and R is regular, then L is non-CFL

10.3 Grammar Design Strategy

• Regular: use right-linear or left-linear productions
• CFL: use recursive productions; balance with non-terminals
• CNF conversion: eliminate ε-productions, unit productions, then convert

10.4 Automata Design Strategy

• DFA: track necessary information in states (equivalence classes)
• NFA: use non-determinism to guess; verify incrementally
• PDA: use stack for counting/matching; mirror for palindromes

10.5 Reduction Strategy for NP-Completeness

• Choose appropriate known NP-Complete problem
• Define polynomial-time transformation
• Prove: x ∈ L₁ ⟺ f(x) ∈ L₂
• Verify transformation runs in polynomial time
