1. Semiconductor Physics

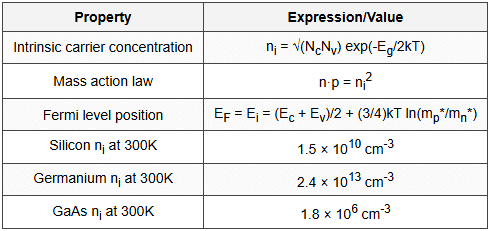

1.1 Intrinsic Semiconductors
1.2 Extrinsic Semiconductors
1.3 Carrier Transport
1.4 Continuity Equations
- Electrons: ∂n/∂t = (1/q)(-∂Jn/∂x) + Gn - Rn
- Holes: ∂p/∂t = -(1/q)(∂Jp/∂x) + Gp - Rp
- Recombination rate: R = Δn/τn = Δp/τp
- Diffusion length: Ln = √(Dnτn), Lp = √(Dpτp)
1.5 Band Gap Values
2. PN Junction Diode
2.1 Junction Formation

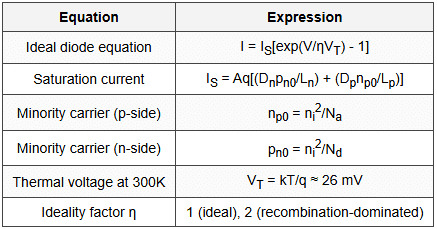

2.2 Diode Current-Voltage Characteristics
2.3 Junction Capacitance

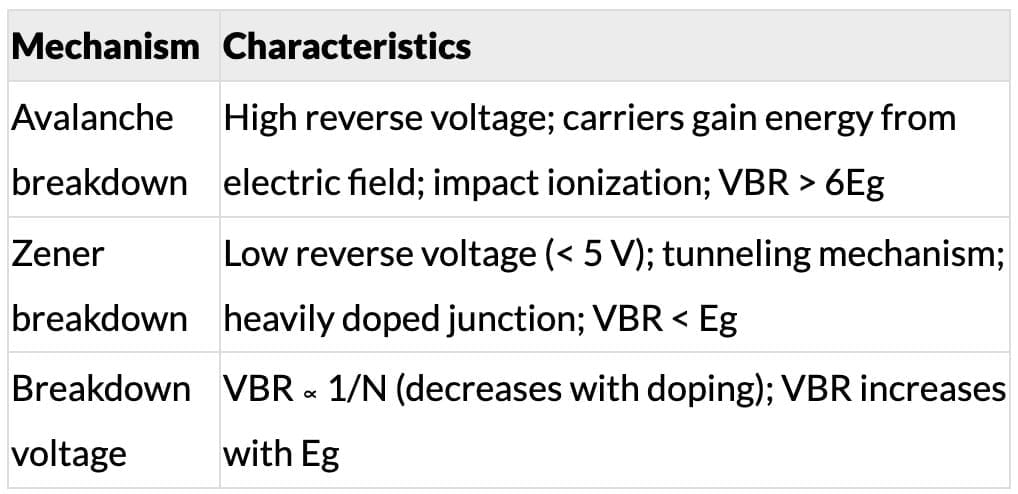

2.4 Breakdown Mechanisms
3. Bipolar Junction Transistor (BJT)
3.1 Structure and Operation Modes
3.2 Ebers-Moll Model

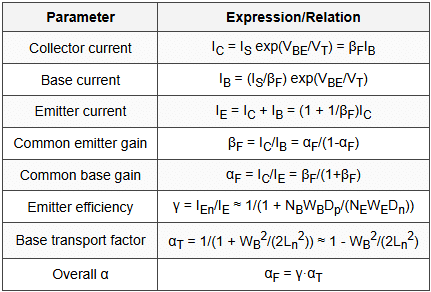

3.3 Active Mode Parameters

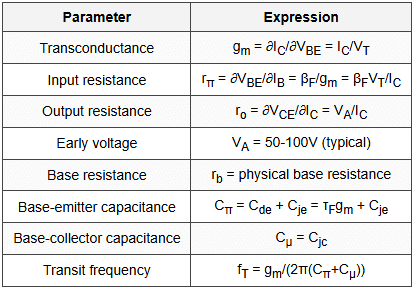

3.4 Small Signal Model (Hybrid-π)
3.5 BJT Design Parameters
- Base width WB: narrow for high αT and βF
- Emitter doping NE >> base doping NB: high emitter efficiency
- Collector doping NC < base doping NB < emitter doping NE.
- Forward transit time: τF = τe + τb + τc
- Base transit time: τb = WB2/(2Dn)
4. MOSFET

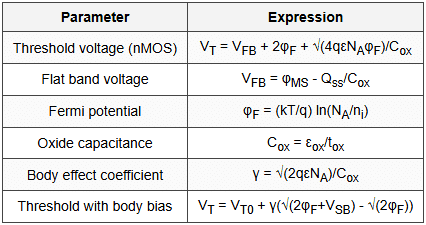

4.1 Structure and Threshold Voltage

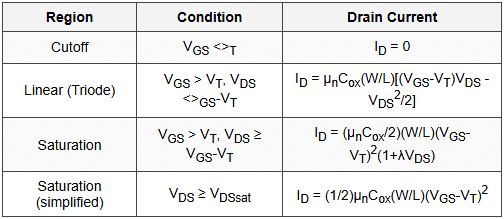

4.2 Current-Voltage Characteristics

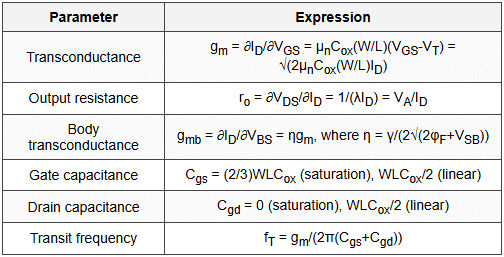

4.3 Small Signal Model

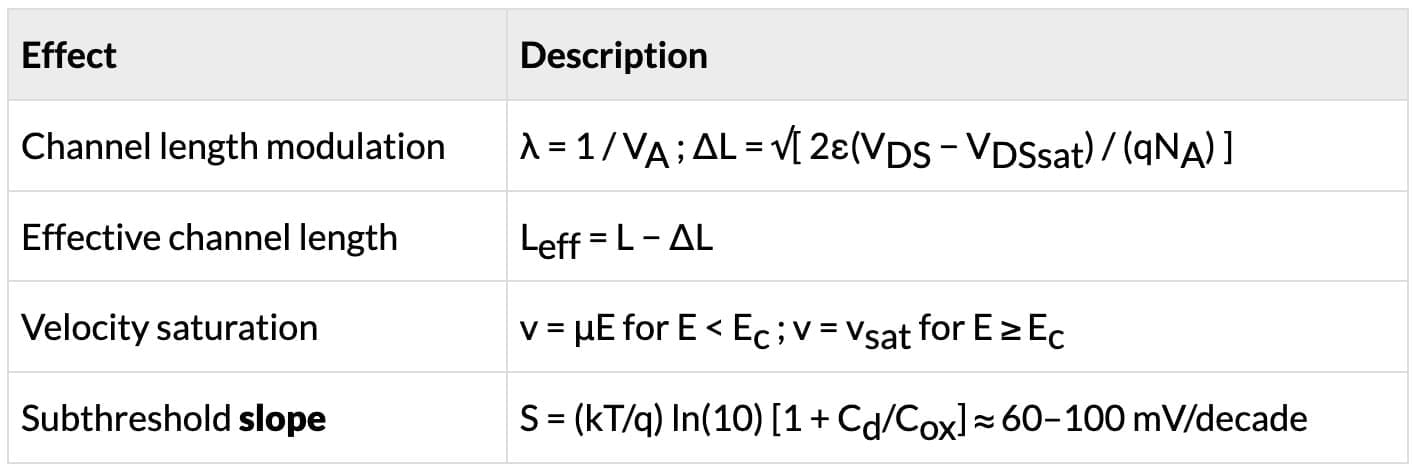

4.4 Channel Length Modulation and Scali
ng
4.5 Types of MOSFETs

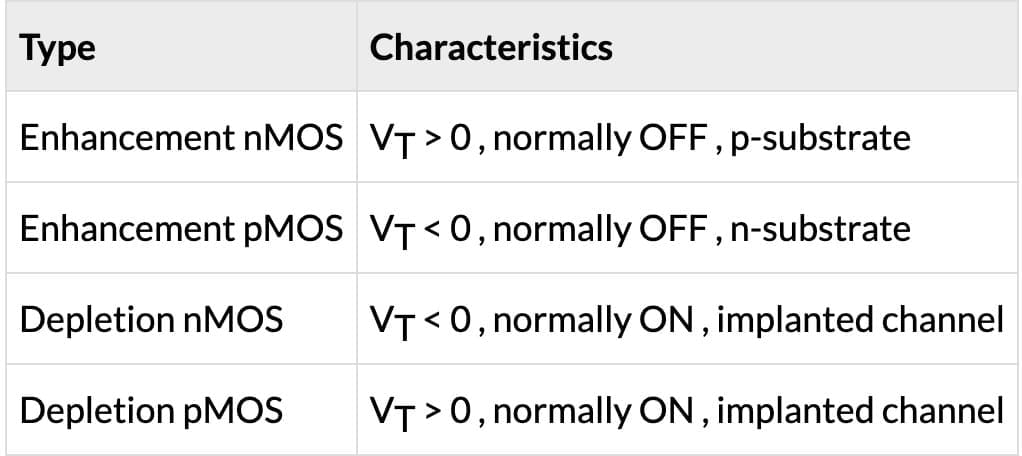

5. Special Diodes
5.1 Zener Diode
- Operated in reverse breakdown region
- Voltage regulation: VZ remains constant over range of IZ
- Dynamic resistance: rz = ΔVZ/ΔIZ
- Temperature coefficient: positive for VZ > 5V, negative for VZ <5V
- Power rating: PZ = VZIZmax

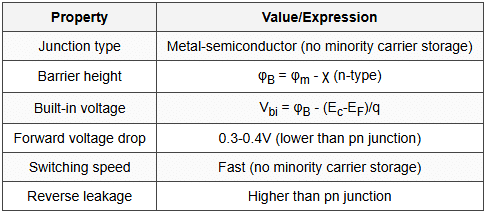

5.2 Schottky Diode
5.3 Tunnel Diode
- Heavily doped pn junction (Nd, Na > 1019 cm-3)
- Exhibits negative differential resistance region
- Peak current IP at peak voltage VP
- Valley current IV at valley voltage VV
- Peak-to-valley ratio: IP/IV (quality factor)
- Quantum tunneling dominant conduction mechanism
- Applications: high-frequency oscillators, fast switching
5.4 Varactor Diode
5.5 LED and Photodiode
6. Advanced Device Concepts

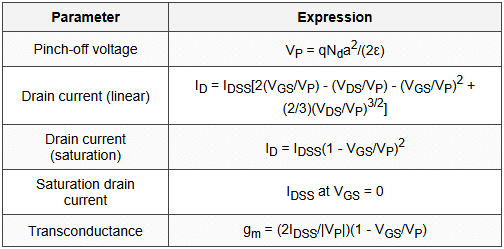

6.1 JFET
6.2 MESFET
- Metal-semiconductor FET (Schottky barrier gate)
- Used in GaAs technology for high-frequency applications
- VT = φB - Vbi
- Similar I-V characteristics to JFET
- Depletion mode operation
6.3 High Electron Mobility Transistor (HEMT)
- Heterojunction structure (AlGaAs/GaAs)
- 2DEG (two-dimensional electron gas) at interface
- High mobility due to spatial separation of carriers from dopants
- Applications: millimeter-wave, microwave amplifiers
- Mobility ~ 6×10⁴ cm²/V·s at low temperatures; ~8000 cm²/V·s at 300 K
6.4 Thyristor (SCR)

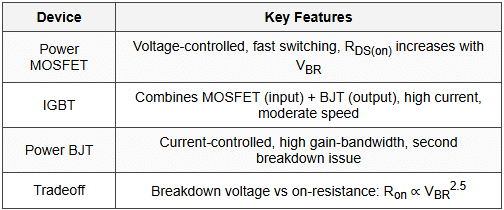

6.5 Power Devices
7. Device Physics Key Relations

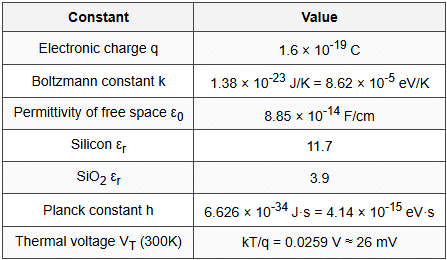

7.1 Important Constants
7.2 Mobility Values at 300K
7.3 Generation-Recombination
7.4 Important Approximations
- Low-level injection: Δn <>0 or Δp <>0
- High-level injection: Δn >> n0 and Δp >> p0
- One-sided junction: Na >> Nd or Nd >> Na
- Debye length: LD = √(εVT/(qN))
- Built-in voltage at 300K: Vbi ≈ 0.026 ln(NaNd/2.25×1020) for Si
8. Device Characterization Parameters
8.1 Figure of Merit Comparisons
8.2 Noise Parameters
- Thermal noise: vn2 = 4kTRΔf
- Shot noise: in2 = 2qIΔf
- Flicker (1/f) noise: SV ∝ 1/f
- BJT noise figure dominated by shot noise
- MOSFET noise dominated by 1/f noise at low f, thermal noise at high f.
8.3 Temperature Effects
8.4 Breakdown Voltage Relations
The document Cheatsheet: Electronic Devices is a part of the Electronics and Communication Engineering (ECE) Course RRB JE for Electronics & Communication Engineering.
All you need of Electronics and Communication Engineering (ECE) at this link: Electronics and Communication Engineering (ECE)
FAQs on Cheatsheet: Electronic Devices
| 1. What is the principle of operation of a PN junction diode? |  |
Ans. A PN junction diode operates on the principle of semiconductor physics, where p-type and n-type materials are joined together. The p-type region has an abundance of holes (positive charge carriers), while the n-type region has an excess of electrons (negative charge carriers). When the diode is forward-biased, electrons from the n-type region recombine with holes from the p-type region, allowing current to flow. In reverse bias, the depletion region widens, preventing current flow.
| 2. What are the key characteristics of a Bipolar Junction Transistor (BJT)? | |
Ans. A Bipolar Junction Transistor (BJT) consists of three layers of semiconductor material, forming two pn junctions. It has three terminals: the emitter, base, and collector. The key characteristics include current amplification, where a small base current controls a larger collector current, and the ability to operate in different configurations such as common emitter, common base, and common collector. BJTs are known for their high gain and frequency response.
| 3. How does a MOSFET differ from a BJT? | |
Ans. A Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET) differs from a Bipolar Junction Transistor (BJT) primarily in its operation. MOSFETs are voltage-controlled devices, meaning that the gate voltage controls the conductivity of a channel between the source and drain terminals. In contrast, BJTs are current-controlled devices. MOSFETs generally offer higher input impedance, faster switching speeds, and lower power consumption compared to BJTs, making them suitable for digital and analog applications.
| 4. What are special diodes, and what are their applications? | |
Ans. Special diodes include devices such as Zener diodes, Schottky diodes, and light-emitting diodes (LEDs). Zener diodes are designed for voltage regulation by allowing reverse current flow at a specified breakdown voltage. Schottky diodes have a low forward voltage drop and fast switching speed, making them ideal for rectification in power supplies. LEDs emit light when current passes through them, and they are widely used in displays and indicators. Each type serves specific applications based on its unique properties.
| 5. What are the important device characterization parameters in semiconductor devices? | |
Ans. Important device characterization parameters include current-voltage (I-V) characteristics, threshold voltage, transconductance, and output conductance. I-V characteristics illustrate how the current through a device varies with applied voltage. Threshold voltage is critical in MOSFETs, indicating the minimum gate voltage required to create a conductive channel. Transconductance measures the change in output current concerning input voltage changes, while output conductance indicates how the output current varies with output voltage, influencing the device's performance in circuits.
