Mind Map: Stress Strain Diagrams for Engineering Materials
The document Mind Map: Stress Strain Diagrams for Engineering Materials is a part of the Mechanical Engineering Course Engineering Materials.
All you need of Mechanical Engineering at this link: Mechanical Engineering
FAQs on Mind Map: Stress Strain Diagrams for Engineering Materials
| 1. What is a stress-strain diagram? |  |
Ans. A stress-strain diagram is a graphical representation that illustrates the relationship between the stress applied to a material and the resulting strain experienced by that material. It is crucial for understanding the mechanical properties of materials, such as elasticity, yield strength, and ultimate tensile strength.
| 2. What are the key regions of a stress-strain curve? | |
Ans. The key regions of a stress-strain curve include the elastic region, where the material deforms elastically and returns to its original shape upon unloading; the yield point, which marks the transition from elastic to plastic deformation; the plastic region, where permanent deformation occurs; and the fracture point, where the material ultimately fails.
| 3. How do different materials behave in a stress-strain diagram? | |
Ans. Different materials exhibit distinct behaviours in a stress-strain diagram. For example, ductile materials like steel show a significant plastic region before fracture, indicating they can undergo substantial deformation. In contrast, brittle materials like glass tend to fracture with little plastic deformation, showing a steep curve with a sudden drop after reaching their ultimate strength.
| 4. What is the significance of the modulus of elasticity in a stress-strain diagram? | |
Ans. The modulus of elasticity, also known as Young's modulus, is a measure of a material's stiffness and is represented by the slope of the initial linear portion of the stress-strain diagram. It quantifies how much a material will deform under a given stress and is crucial for designing structures to ensure they can withstand applied loads without excessive deformation.
| 5. How can stress-strain diagrams be used in engineering applications? | |
Ans. Stress-strain diagrams are vital in engineering applications as they help engineers select appropriate materials for specific applications based on their mechanical properties. They are used to predict how materials will behave under different loading conditions, to design safe structures, and to assess material performance in various environments.
About this Document
4.65/5 Rating
Apr 22, 2026 Last updated
Related Exams
Document Description: Mind Map: Stress Strain Diagrams for Engineering Materials for Mechanical Engineering 2026 is part of Engineering Materials preparation. The notes and questions for Mind Map: Stress Strain Diagrams for Engineering Materials have been prepared according to the Mechanical Engineering exam syllabus. Information about Mind Map: Stress Strain Diagrams for Engineering Materials covers topics like and Mind Map: Stress Strain Diagrams for Engineering Materials Example, for Mechanical Engineering 2026 Exam. Find important definitions, questions, notes, meanings, examples, exercises and tests below for Mind Map: Stress Strain Diagrams for Engineering Materials.
Introduction of Mind Map: Stress Strain Diagrams for Engineering Materials in English is available as part of our Engineering Materials for Mechanical Engineering & Mind Map: Stress Strain Diagrams for Engineering Materials in Hindi for Engineering Materials course. Download more important topics related with notes, lectures and mock test series for Mechanical Engineering Exam by signing up for free. Mechanical Engineering: Mind Map: Stress Strain Diagrams for Engineering Materials
Description

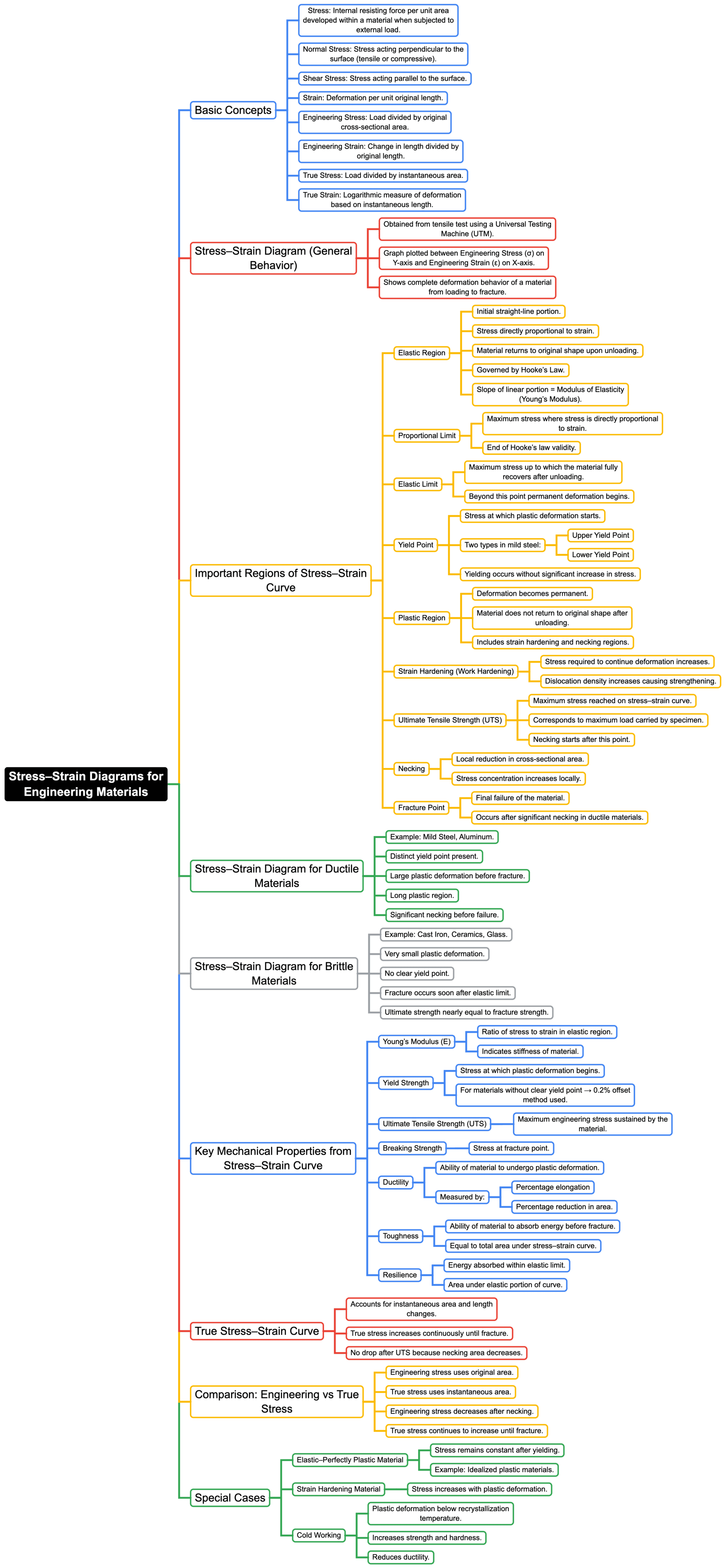

Mind Map: Stress Strain Diagrams for Engineering Materials of Engineering Materials provides you one-page visual summary of the chapter covering all the important topics. Download the PDF from EduRev.
