Earth's Energy and Matter Flow

Introduction

Life on Earth depends on a continuous flow of energy and matter. The Sun is the primary energy source. Additionally, the Earth's hot interior and chemical reactions in the air, water, and rocks also contribute to this flow.

The Earth System

The Earth is made up of interacting "spheres":

• Geosphere: Includes solid rocks, soil, and landforms like the Deccan plateau and the Thar desert, as well as the Earth's interior.
• Hydrosphere: Contains liquid water, including oceans, rivers like the Ganga-Brahmaputra river system, lakes, and groundwater.
• Cryosphere: Represents solid water forms, such as ice and snow, including Himalayan glaciers, snow in Ladakh, and polar ice caps.
• Atmosphere: The air around the Earth that we breathe, often cleaner in mountainous areas and forests.
• Biosphere: Comprises all living organisms and their environments, including mangroves, forests, farms, ocean plankton, and coral reefs.

These spheres are constantly interacting. If one sphere is disturbed, it can affect the others. For instance, warmer water in the Arabian Sea increases evaporation, which can change the southwest monsoon, causing floods in some areas and drought in others. Rising temperatures can also speed up the melting of glaciers and polar ice, leading to flooding in low-lying areas and raising sea levels, which threatens coastal cities and disrupts ecosystems.

1. Uneven Heating of the Earth

The Sun's radiation is the main energy source for Earth. It travels as electromagnetic (EM) waves at light speed (3 × 10⁸ m/s).

EM waves vary in frequency:

• High frequency / short wavelength: gamma rays and X-rays
• Low frequency / long wavelength: infrared and radio waves
• High frequency EM waves (gamma rays and X-rays) have high energy and can be harmful to life.

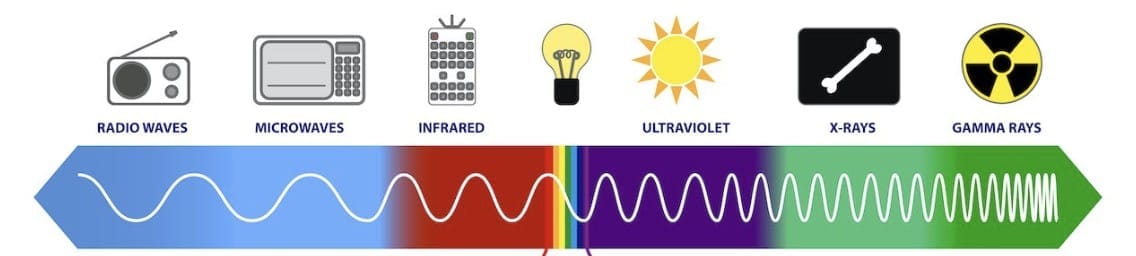

The entire range of electromagnetic radiation is termed the electromagnetic spectrum. Most of the Sun's energy that reaches Earth is in the ultraviolet (UV), visible, and infrared (IR) ranges, accounting for about 99% of its total energy.

Gamma rays and X-rays are mostly blocked by the Earth's upper atmosphere. Microwaves and radio waves carry little energy to heat the Earth significantly. UV radiation is mainly absorbed by the ozone layer, which protects life and contributes to some atmospheric heating. Visible light from the Sun reaches the surface and provides energy for photosynthesis, which is essential for most life forms, and also warms the land and water. Infrared radiation heats the Earth's surface, which then emits this heat back into the atmosphere. Some of this outgoing heat is trapped by greenhouse gases like carbon dioxide (CO₂), methane (CH₄), and water vapor, keeping the Earth warm enough for life.

Ready to Go Beyond
UV rays have wavelengths between 100 nm and 400 nm and carry more energy than visible light. Prolonged exposure can harm the eyes and skin and increase cancer risk, so protection like UV glasses and sunscreen is important. UV rays are also useful for killing germs in water purifiers and are used in fluorescent lights.

Insolation and Solar Constant

Insolation: The amount of solar radiation that reaches the Earth's surface is known as insolation, which warms the surface and atmosphere.

Solar Constant: The average solar energy received per unit time per unit area, perpendicular to the Sun's rays at the top of the atmosphere, is called the solar constant, approximately 1.4 kilowatts per square meter (1.4 kW/m²), or about 1400 joules per second per square meter (1400 J/s/m²). This represents the Sun's energy available on Earth before it is absorbed, scattered, or reflected by the atmosphere.

The maximum insolation reaching the Earth's surface is lower than the solar constant, around 1 kW/m² under clear skies.

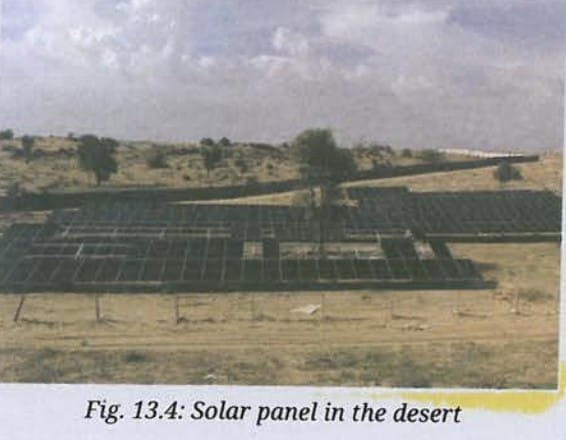

India, located in tropical and subtropical regions, receives plenty of sunlight year-round. This makes solar insolation crucial as it drives the southwest monsoon, affects the climate and agriculture, and presents significant opportunities for harnessing solar energy as a renewable resource.

Bridging Science and Society
Anna Mani was a pioneering atmospheric scientist who mapped solar insolation across India in the 1950s. She published Solar Radiation Over India in 1981, creating the country's first insolation atlas. Her work revealed India's vast solar energy potential, which is now being realised through large-scale solar power projects, helping build a sustainable and solar-powered future.

Example:How much solar energy will a 1 m² area receive in one hour if insolation on the surface of Earth were is 1 kW/m²?

•  Answer: E = Intensity × area × time
• E = 1 × 1000 J/s/m² × 1 m² × 3600 s
• E = 3600000 J = 3.6 × 10⁶ J

This energy is roughly enough to melt 5 kg of ice and heat the resulting water to 100 °C, equivalent to the electricity used in a household for one unit.

Think as a Scientist
Huge amount of energy received from the Sun by estimating how much land is needed to generate electricity using solar panels. By considering solar insolation and energy conversion efficiency, we find that only a small fraction of land is required. In fact, even a part of the Thar Desert could generate enough electricity to meet India's energy needs, showing the vast potential of solar power.

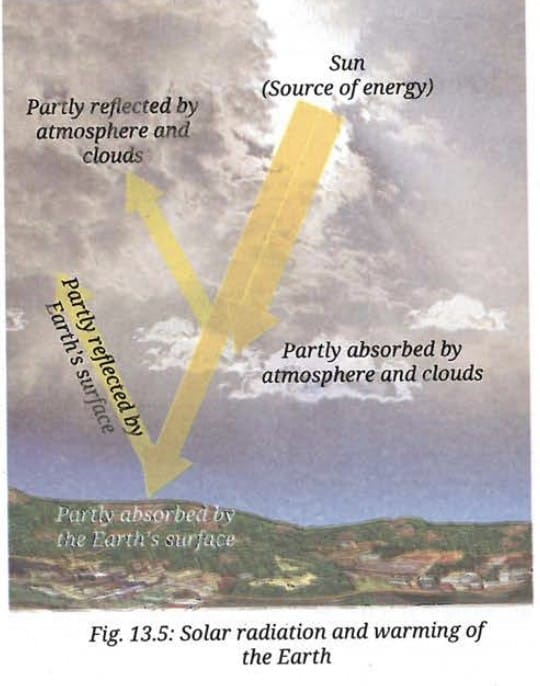

1.1 Interaction of Solar Radiation on the Earth's Surface

Different materials absorb and heat up differently when exposed to sunlight.

• Dark surfaces absorb more sunlight, while light-colored surfaces reflect more and stay cooler.
• Example: Dark roads heat up faster than light-colored surfaces.
• Albedo: The fraction of solar radiation reflected by a surface is called its albedo (from Latin meaning whiteness).

High albedo surfaces remain cool because they reflect more light, while low albedo surfaces heat up quickly by absorbing more light.

Table: Reflection of Solar Radiation by Surfaces

Snow and ice have high albedo, reflecting much of the solar radiation, which keeps polar regions cold. In contrast, surfaces like black soil and ocean water absorb more solar radiation, making them warmer.

Urban Heat Island Effect

Cities tend to be warmer than rural areas, especially in summer and at night. This is due to buildings made of steel, concrete, and asphalt that absorb solar radiation and retain heat. The heat released from these materials raises temperatures in cities compared to surrounding rural areas, increasing energy demand for air conditioning and stressing urban ecosystems. In contrast, rural areas and forests have more vegetation, which helps keep them cooler through shade and plant transpiration.

1.2 Latitude and Earth's Shape

The Earth is round, causing the Sun's rays to hit different latitudes at varying angles.

• At the equator, sunlight is concentrated over a smaller area, keeping it warm throughout the year.
• At the poles, sunlight spreads over a larger area, resulting in much colder conditions.

This uneven heating creates temperature differences between the equator and the poles.

The Earth's round shape and axial tilt lead to seasons and varying day lengths. Solar radiation is not evenly distributed, driving global winds and ocean currents.

1.3 Role of the Atmosphere

The atmosphere is the air surrounding Earth, held by gravity. It mainly consists of nitrogen (78%) and oxygen (21%) along with small amounts of argon, carbon dioxide, water vapor, and other gases.

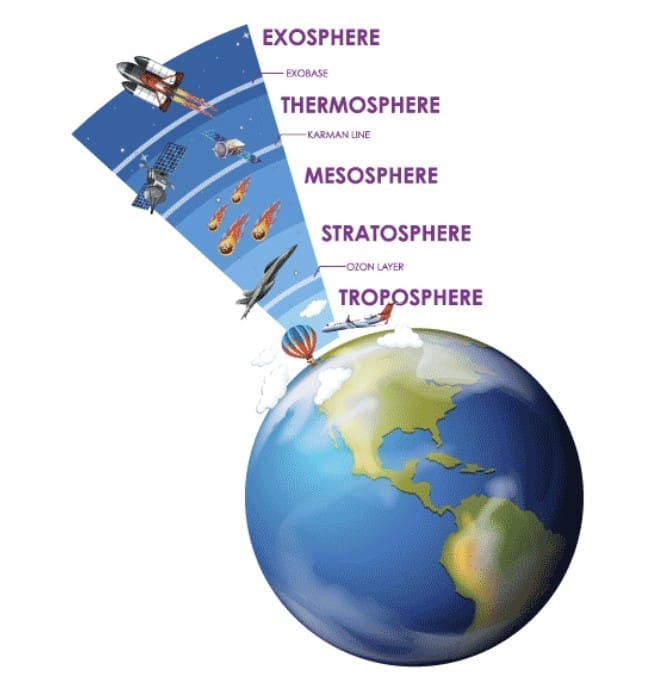

Layers of the Atmosphere

In the troposphere (0-12 km):

• Most weather occurs here.
• Heated by the Earth's surface.
• Temperature decreases with height (~6.5 °C/km).
• Warm air rising drives winds and storms.
• The troposphere is thickest over the equator and thinnest over the poles.

In the stratosphere (12-50 km):

• Contains the ozone layer.
• Ozone absorbs UV rays and warms the atmosphere, causing temperature to rise with height.
• This temperature increase prevents vertical mixing of air, keeping weather confined to the troposphere.
• At around 100 km above Earth is where outer space begins.

Two Critical Roles of the Atmosphere

• Partly absorbs incoming solar radiation-the ozone layer blocks harmful UV rays, and clouds and gases also absorb some sunlight before it reaches the surface.
• Traps outgoing heat-the Earth's surface absorbs sunlight and re-emits it as infrared radiation. Greenhouse gases like CO₂, CH₄, and water vapor absorb this heat, preventing it from escaping into space. Without the atmosphere, Earth would be too cold for life. However, excess CO₂ from human activities increases the greenhouse effect, leading to global warming.

Importance of the Ozone Layer

The ozone layer protects life by absorbing harmful UV radiation from the Sun. In the late 20th century, chemicals called chlorofluorocarbons (CFCs), used in refrigerators and aerosols, caused significant ozone depletion over Antarctica, known as the ozone hole. Increased UV radiation can harm living organisms and ecosystems. A global agreement called the Montreal Protocol has reduced CFC use, and the ozone layer is gradually recovering.

2. Uneven Heating Causes Wind and Ocean Currents

Wind is air movement from high-pressure areas to low-pressure areas. These pressure differences mainly result from the uneven heating of the Earth's surface by the Sun.

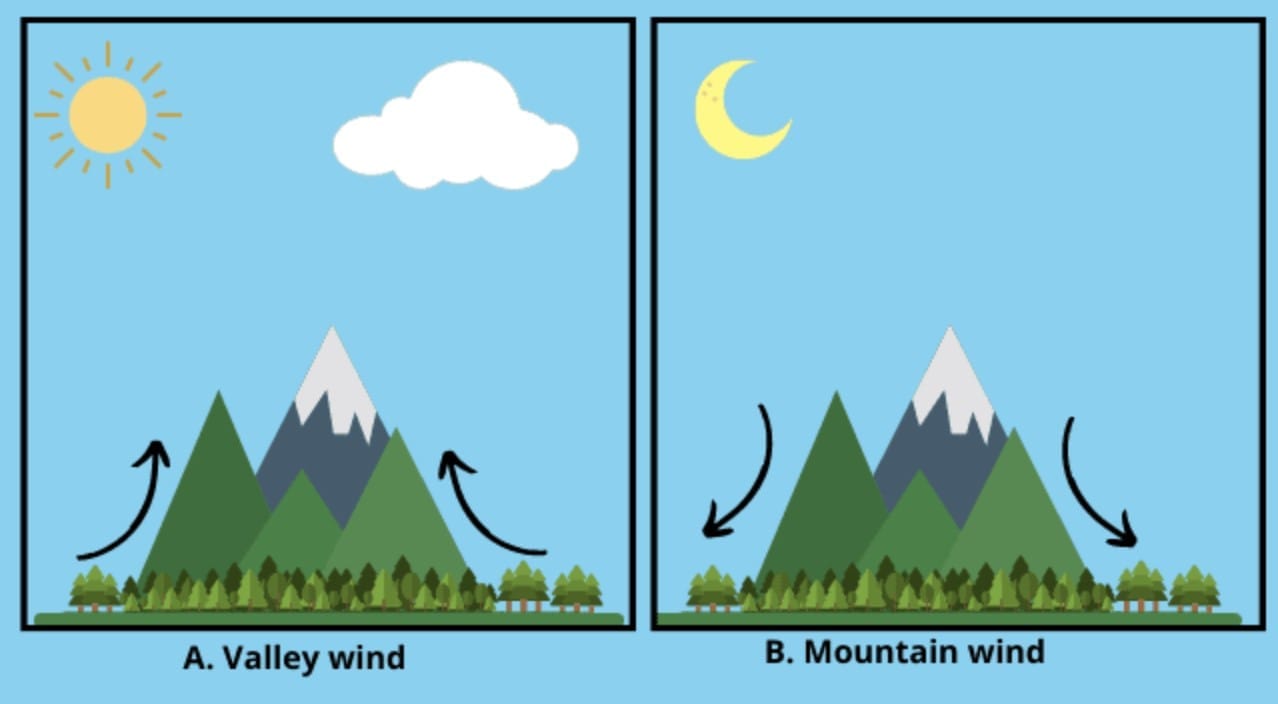

2.1 Local Winds

Uneven heating causes local winds, such as valley and mountain breezes.

• Valley Breeze (Daytime): During the day, mountain slopes heat up faster than the valley floor. The warm air over the slopes rises, creating low pressure. Cooler air from the valley moves up the slopes to replace the rising warm air.
• Mountain Breeze (After Sunset): After sunset, mountain slopes cool faster than the valley floor. The cooler, denser air over the slopes flows down into the valley.

These daily wind changes are common in hilly areas like Shimla and Dehradun, affecting weather, agriculture, and daily life by regulating temperatures and moisture conditions.

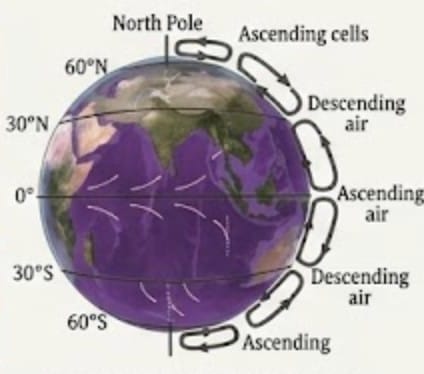

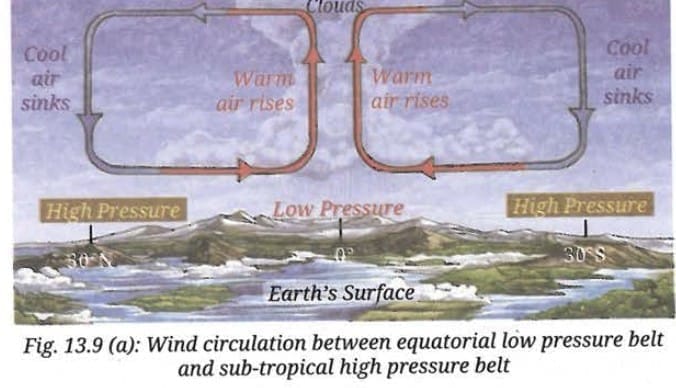

2.2 Planetary Winds

Uneven heating between the equator and poles creates high and low-pressure belts, which move air over long distances, forming planetary winds.

How Planetary Winds Form:

• Near the equator, warm air rises, forming an equatorial low pressure belt, and moves poleward at higher altitudes.
• This air cools, becomes denser, and sinks around 30° North and South latitudes, creating sub-tropical high pressure belts.
• From these high pressure areas, air flows back toward the equator near the Earth's surface, completing one circulation cycle.
• Some sinking air moves toward the poles and rises again around 60° North and South latitudes, meeting cold air from polar regions and forming sub-polar low pressure belts.
• In polar regions (around 90° North and South), cold air sinks, creating polar high pressure belts, with air flowing toward sub-polar belts, completing another cycle.

The Earth's rotation causes these winds to curve:

• In the Northern Hemisphere: Winds curve to the right.
• In the Southern Hemisphere: Winds curve to the left.


2.3 Ocean Currents

Ocean currents are the ongoing movement of large water masses in the ocean. Like winds, planetary pressure differences also drive ocean currents. Strong planetary winds drag surface ocean water, creating surface currents.

Factors Influencing Ocean Currents

• Differences in temperature and salinity
• The Earth's rotation
• The layout of land masses

Temperature and Salinity:

• Warm equatorial waters move toward the poles, while colder, denser waters flow back toward the equator at deeper levels.
• Water with lower salinity (less dense) stays near the surface, while higher salinity (denser) water sinks and moves deeper.

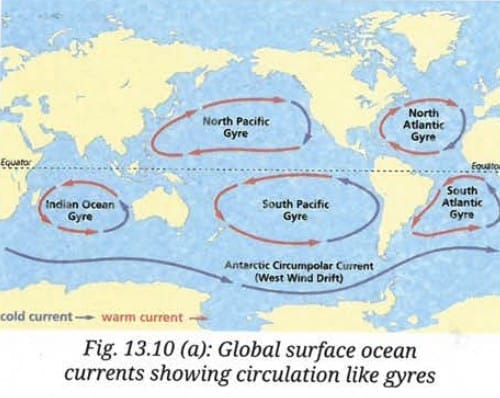

Gyres: The Earth's rotation alters these water movements, forming large circular patterns called gyres, which rotate clockwise in the Northern Hemisphere and counterclockwise in the Southern Hemisphere. Continents also affect these paths by blocking and redirecting currents.

Role of Ocean Currents

• They regulate the Earth's climate and support life.
• By moving heat from the equator to the poles, they reduce temperature differences across the planet.

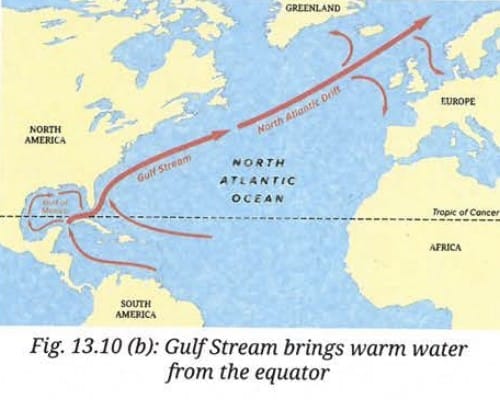

• For example, the North Atlantic Drift, an extension of the Gulf Stream, carries warm water from the southern North American east coast to northwestern Europe, keeping many ports ice-free in winter, even at high latitudes.
• Ocean currents also transport nutrients, supporting vast ecosystems.

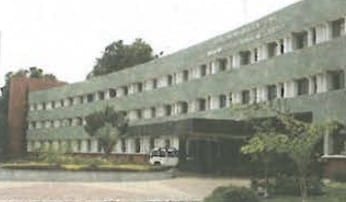

India's Scientific Contributions
Scientists at Indian Institute of Tropical Meteorology use advanced computer models to simulate the Indian monsoon by studying energy exchanges between the atmosphere, oceans, land, and ice. These models rely on data from satellites, ocean buoys, and Antarctic stations to improve seasonal forecasts and understand how global warming may affect monsoon patterns in India.

3. Biogeochemical Cycles

Living organisms constantly exchange matter and energy with their surroundings, including air, water, soil, and rocks. This ongoing interaction between non-living (abiotic) and living (biotic) components leads to the transfer of matter and energy across Earth's spheres. This process ensures that essential nutrients like carbon, nitrogen, and oxygen are recycled and remain available to support life.

This cyclical movement of matter and energy between abiotic and biotic components is known as the biogeochemical cycle. There is a dynamic relationship among different ecosystems, which helps them recover from disturbances and maintain environmental balance.

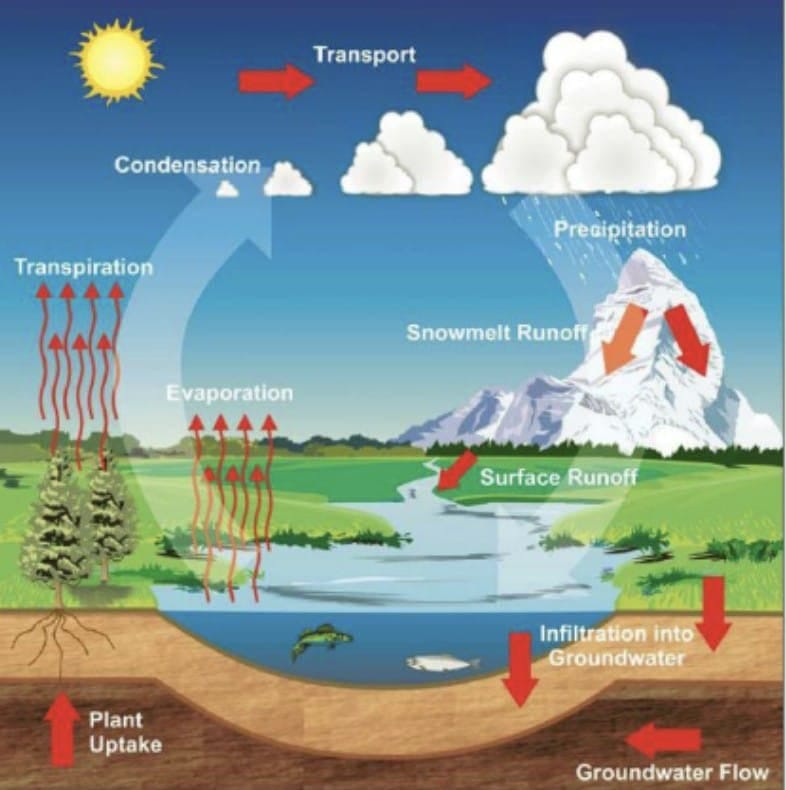

3.1 Water Cycle

The water cycle involves:

• Evaporation
• Transpiration
• Condensation
• Precipitation
• Infiltration
• Groundwater

Process:

• Water evaporates from rivers, lakes, oceans, etc.
• It condenses to form clouds.
• It returns as precipitation (rain, hail, or snow) to the surface.
• Water then flows back to the ocean.
• Some water seeps through soil and rocks underground.
• Water dissolves minerals from soil and rocks, supporting terrestrial organisms and transporting these nutrients to oceans, which sustain marine life.

Effect of Climate Change on the Water Cycle

• A warmer atmosphere holds more moisture, leading to heavier rainfall in some regions and droughts in others.
• Melting glaciers increase river water and contribute to rising sea levels, threatening coastal cities like Mumbai and Chennai.
• Intense rainfall causes more runoff, leading to soil erosion.
• Reduced infiltration decreases groundwater recharge.
• This makes agriculture difficult, especially during dry periods.
• The water cycle connects different Earth systems-cryosphere (glaciers), hydrosphere (rivers, oceans), atmosphere (moisture), geosphere (soil), and biosphere (living organisms)-all affected by global warming.

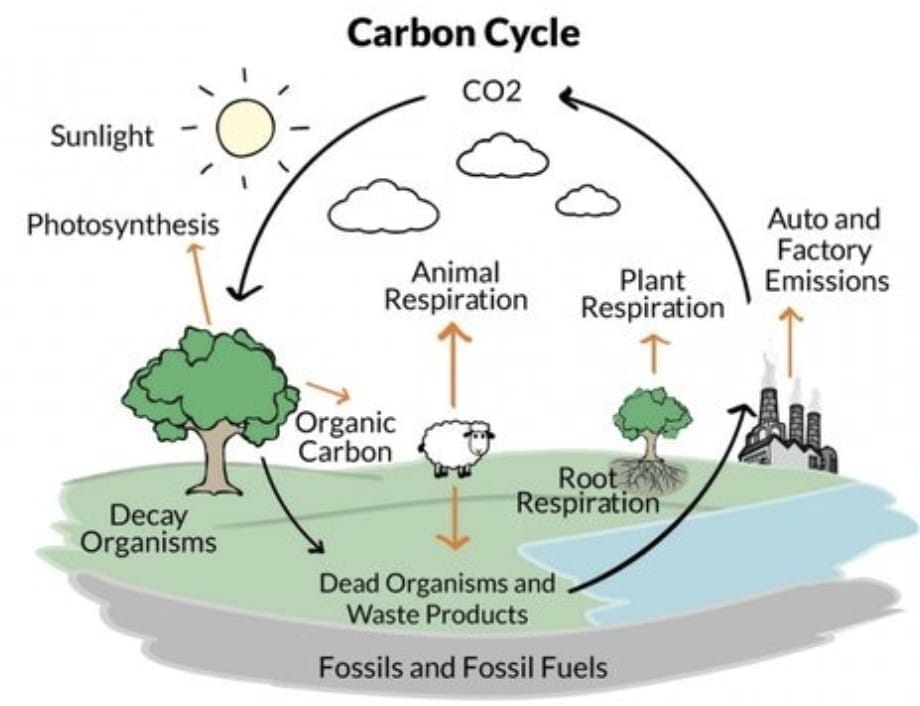

3.2 Carbon cycle

Carbon forms the backbone of life. Every protein, carbohydrate, fat and DNA molecule contains carbon. It circulates continuously between:

• Atmosphere (CO₂ gas)
• Biosphere (plants and animals)
• Geosphere (carbonate rocks and fossil fuels, such as coal and oil)
• Hydrosphere (dissolved CO₂ and marine shells)

Fast Cycle (days to years):

• Plants convert atmospheric CO₂ into glucose using sunlight through photosynthesis.
• CO₂ is released back into the atmosphere through respiration.
• Animals eat plants and/or other animals.
• When they die, CO₂ returns to air because of decomposition.

Slow Cycle (millions of years):

• Dead plants and animals get buried and are converted to fossil fuels, such as coal, oil and gas.
• These fuels are burnt to provide energy for heating, cooking, transportation and industrial purposes.
• When fossil fuels are burnt, carbon is released back as CO₂ on a very short time scale.
• The atmosphere and ocean water continuously exchange CO₂.
• The ocean water absorbs atmospheric CO₂ to form carbonate and bicarbonate ions.
• Phytoplankton use them for photosynthesis; some marine organisms use them to form shells.
• When organisms die, they sink to the ocean floor and their organic matter is stored as carbon for a long period.

Human Impact on Carbon Cycle:

• Human activities like burning fossil fuels and deforestation have raised atmospheric CO₂ by about 35% since 1960 (315 ppm to 420 ppm) - an unprecedented rise in the history of human civilisation.
• Excessive amounts of CO₂ intensify the greenhouse effect leading to global warming, melting of glaciers and Arctic sea ice, rising of sea level and more extreme weather conditions.
• In India, this may lead to more intense monsoons and threats to agriculture.
• India is rapidly increasing renewable energy sources to help minimise the carbon released into the atmosphere.

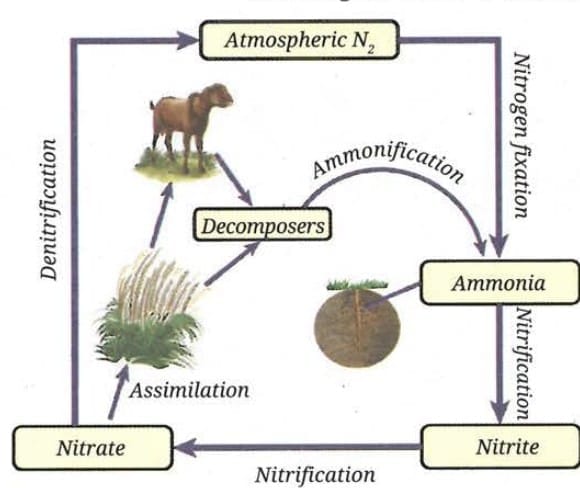

3.3 Nitrogen Cycle

Nitrogen is an essential element for the synthesis of proteins and nucleic acids in all living organisms. The largest reservoir of nitrogen is in our atmosphere. However, nitrogen gas (N₂) is rather non-reactive and cannot be directly used by plants and animals. It must first be converted to soluble compounds that living beings can absorb.

The overall movement of nitrogen between air, soil, water and organisms is called the nitrogen cycle.

Steps of the Nitrogen Cycle:

1. Nitrogen Fixation:Nitrogen-fixing bacteria, such as Rhizobium in the root nodules of legumes and Azotobacter in the soil, convert atmospheric N₂ into ammonia (NH₃).

2. Nitrification:Nitrifying bacteria like Nitrosomonas convert ammonia into nitrite (NO₂⁻), while Nitrobacter convert nitrite into nitrate (NO₃⁻). This process is known as nitrification.

3. Assimilation:Plants assimilate these nitrogen compounds from the soil, whereas animals obtain nitrogen by consuming plants or other animals.

4. Ammonification:When plants and animals die or produce waste, decomposers like bacteria and fungi break the organic matter, returning nitrogen compounds like ammonia to the soil. This process is known as ammonification.

5. Denitrification:Denitrifying bacteria, such as Pseudomonas, convert some nitrates back into nitrogen gas. This process is known as denitrification. This completes the cycle and maintains a balance of nitrogen in ecosystems.

Lightning also contributes to the fixation of nitrogen oxides.

Haber-Bosch Process: Today most of the nitrogen is fixed artificially via the Haber-Bosch process (early 1900s) of making ammonia from atmospheric nitrogen, which produces most of the fertilisers used today. This 'Bread from Air' revolutionised agriculture, enabling India's Green Revolution and feeding billions. However, this reaction is energy intensive (uses ~1-2% of global energy), and the overuse of fertilisers has degraded soil and water.

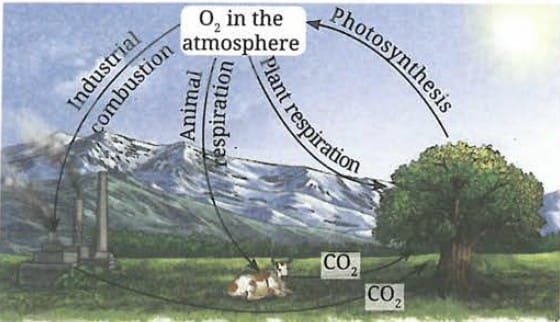

3.4 Oxygen Cycle

Oxygen is one of the Earth's most abundant elements. About 21% of the atmosphere consists of free oxygen gas (O₂). It is an essential component of most biological molecules like carbohydrates, proteins, nucleic acids and fats. Oxygen also exists in combined forms - in the Earth's crust as metal oxides and minerals, and in the air as carbon dioxide.

Processes regulating the oxygen level in the atmosphere:

• Organisms like plants and animals use oxygen for respiration, and release CO₂.
• Combustion of fuels uses oxygen and releases CO₂.
• Plants restore oxygen through photosynthesis using sunlight, water and CO₂ to form glucose and release O₂.

This balance between consumption (respiration and combustion) and production (photosynthesis) circulates oxygen between the atmosphere, land, oceans and living organisms, sustaining life across all spheres of the Earth.

4. Human Impact on Earth's Processes

Human actions disrupt the biogeochemical cycles across the Earth's spheres.

Impact on Carbon Cycle:

• Rising CO₂ levels from the use of fossil fuels leads to extreme weather and biodiversity loss.
• Excess atmospheric CO₂ increases ocean absorption, making sea water more acidic (ocean acidification). This could threaten tiny plankton and coral reefs, disrupting the marine ecosystems.
• Warmer ocean water reduces the ocean's capacity to absorb CO₂ as an effective carbon sink.
• Burning of fossil fuels and deforestation saturate natural carbon sinks like forests and oceans.

Impact on Nitrogen Cycle:

• The overuse of fertilisers in agriculture adds excessive nitrogen via nitrates to rivers and lakes, causing widespread growth of algae (algal blooms) that deplete oxygen and kill fish. This process is called eutrophication, which threatens water bodies and coastal fisheries.

Impact of Deforestation:

• Decreased photosynthesis and reduced transpiration, which can lead to decline in the local rainfall.
• It also alters surface albedo.
• Without tree roots to hold the soil together, soil erosion could increase.
• Over time, habitats could be destroyed, leading to a decline in biodiversity as many species lose their natural homes.

Air Pollution:

• Vehicular emissions react with sunlight to form ground level smog.
• This also leads to the formation of ground level ozone, which is harmful for health (ozone in the stratosphere blocks UV radiation and is protective of life).
• These pollutants make city air unhealthy.

Steps Towards Restoration:

• The Montreal Protocol has started the process of recovery of the ozone layer through global cooperation.
• The Kyoto Protocol and the Paris Agreement in which countries were supposed to reduce their CO₂ emissions have been less successful.
• Conserving energy, switching to renewable energy resources (like solar and wind), planting trees, saving water and practising sustainable farming can help restore the balance.
• India has planted billions of trees, expanded energy from solar and renewable sources significantly, and also promoted sustainable farming practices.
• Mission LiFE (Lifestyle for Environment): An India-led global initiative introduced at the United Nations Climate Change Conference in 2021, encourages people to adopt mindful, eco-friendly lifestyles. It highlights how the actions of individuals and communities can help build a sustainable future.

At a Glance (Summary Points)

• The electromagnetic radiation received from the Sun is the primary source of energy on the Earth.
• Most weather processes like evaporation, condensation and precipitation occur in the troposphere.
• The shape of the Earth, latitude and tilt of the Earth's axis are primarily responsible for variations in insolation, and hence, for the uneven heating of the Earth's surface.
• Uneven heating of the Earth's surface is responsible for the generation of winds and ocean currents.
• Matter and energy are continuously cycled between the living (biotic) and the non-living (abiotic) systems.
• Atmospheric oxygen is used in combustion, respiration and oxide formation, and is restored mainly through photosynthesis.
• On the Earth, water, carbon, nitrogen and oxygen continuously cycle between the atmosphere, oceans, land and living organisms.
• Biogeochemical cycles make nutrients available to living organisms, sustain life, regulate climate and balance ecosystems.
