DATA REPRESENTATION
IN COMPUTER MEMORY

SUMMARY: This topic introduces the numbering systems: decimal, binary, octal and hexadecimal. The topic covers the conversion between numbering systems, binary arithmetic, one's complement, two's complement, signed number and coding system. This topic also covers the digital logic components.
CLO 2:apply appropriate method to solve arithmetic problem in numbering system (C3).

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

2.1 Understand data representation on CPU.
2.1.1 Define decimal, binary, octal and hexadecimal number.
2.1.2 Perform arithmetic operation (addition and subtraction) in different number bases.
2.1.3 Convert decimal, binary, octal and hexadecimal numbers to different bases and vice-versa

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

INTRODUCTION

The binary system and decimal system is most important in digital system.
Decimal - Universally used to represent quantities outside a digital system.
Its means, there will be situations decimal values must be converted to binary values before entered to digital system.
Example : Calculator / Computer

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

DECIMAL NUMBERING SYSTEM

Decimal system is composed of 10 numerals or symbols.
These 10 sysmbols are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9.
Using these symbols as digits of a number, it can express any quantity.

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Base number = 10
Basic number = 0,1,2,3,4,5,6,7,8,9

23410
Basic number
Base number

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

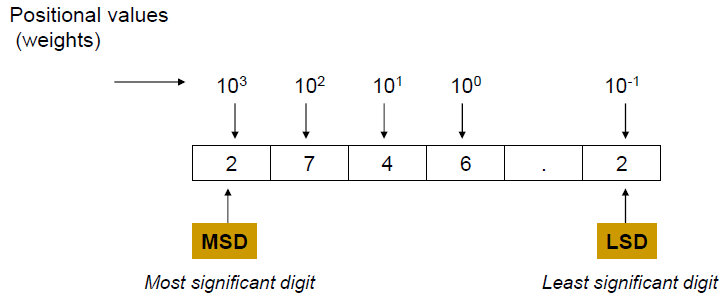

Positional Values (weights)

2746.210 is from calculation below:
2746.2 = (2x103) + (7x102) + (4x101) + (6x100) + (2x10-1) = 2000 + 700 + 40 +6 +0.2 = 2746.2

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

BINARY NUMBERING SYSTEM

Define Binary numbers
Binary numbers representing number in which only digits 0 or 1.
ADDITION BINARY NUMBERS
Basic binary addition rule :
0 + 0 = 0 0 + 1 = 1 1 + 0 = 1 1 + 1 = 10
1 + 1 + 1 = 11
Example : 101 + 101 = 1010
1011 + 1011 = ?

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Exercise

Ex 1:
110112 + 100012 = 1011002
Ex 2:
101112 + 1112 = ________

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Subtraction

Four conditions in binary subtraction
0 - 0 = 0
0 - 1 = 1 borrow 1
1 - 0 = 1
1 - 1 = 0
10 - 1 = 1
If a 10 being borrow a 1, what‟s left with that 10 is a 1

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Ex 1:
10012 – 102 = 1112

Ex 2:
1010112 – 11112 =__________

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Conversions of Binary Numbers

Binary to Decimal conversions

Example : 1 1 0 1 12
 24 + 23 + 22 + 21 + 20 = 16 + 8 + 2 + 1
= 2710

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Decimal to Binary conversions

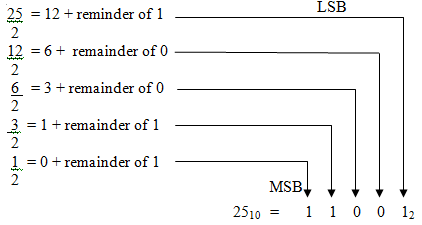

Convert 2510 to binary number

Exercise: Convert 3010 to binary number

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

OCTAL NUMBERING SYSTEM

The octal number system has a base of eight, meaning that it has eight possible digits: 0,1,2,3,4,5,6 and 7.
The digit positions in an octal number have weights as follows :

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Octal number - (Subtraction - Pengurangan)

Ex:

524₈ – 167₈ = 335₈
167₈ – 24₈ = _________

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Octal –to-decimal conversion

Convert 3728 to decimal number
3728 = 3 x (82) + 7 x (81) + 2 x (80)
= (3 x 64) + (7x 8) + (2 x 1)
= 25010

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Decimal-to-Octal Conversion

Decimal integer can be converted to octal by using the same repeated-division method with a division factor of 8.

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

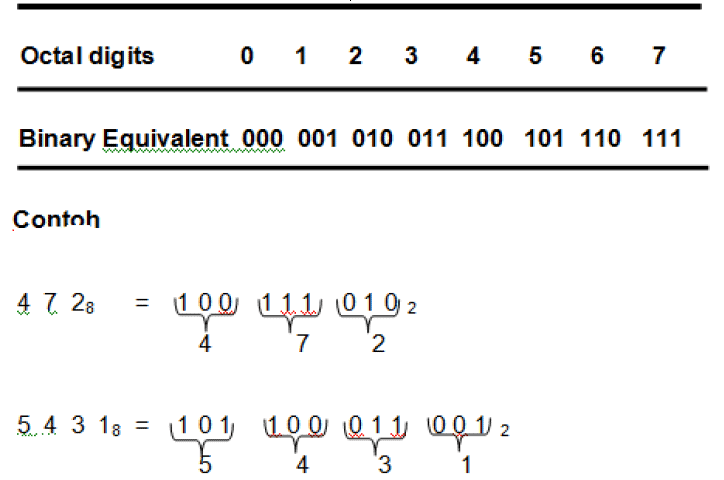

Octal –to- Binary conversion

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

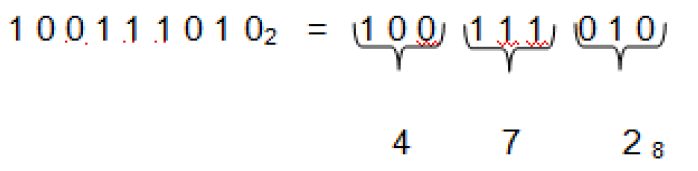

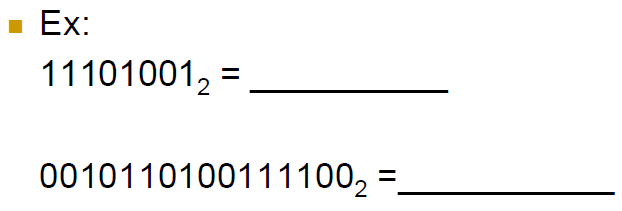

Binary to Octal conversion

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

HEXADECIMAL NUMBERING SYSTEM

The hexadecimal number system uses base 16.
It has 16 possible digit symbols.
It uses the digits 0 through 9 plus the letters A, B, C, D, E and F as the 16 digit symbols.

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

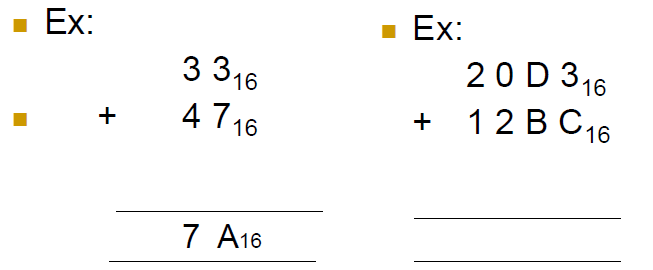

Hexadecimal number - Addition (Penambahan)

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

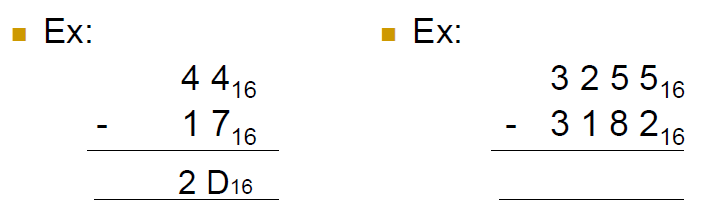

Hexadecimal number - Subtraction (Pengurangan)

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

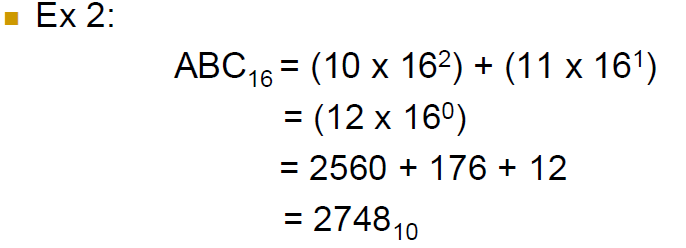

Hexadecimal-To-Decimal Conversion

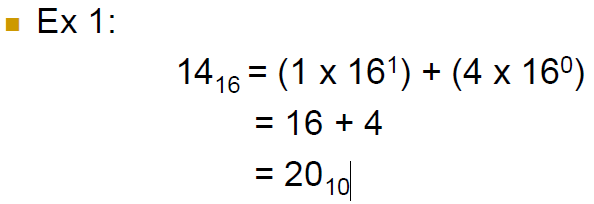

A hexadecimal number can be converted to its decimal equivalent by using the fact that each hex digit position has a weight that is a power of 16.

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Decimal-To-Hexadecimal Conversion

Decimal to hex conversion can be done using repeated division by 16.

Ex: Convert 2010 to hex

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

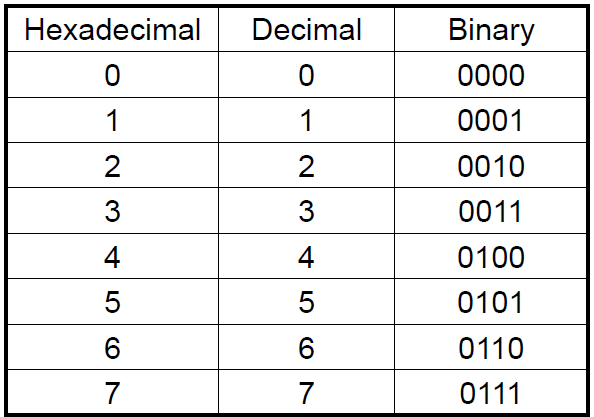

Hexadecimal-to-Binary Conversion

Like the octal number system, the hexadecimal number system is used primarily as a “shorthand” method for representing binary numbers.
It is a relatively simple matter to convert a hex number to binary .
Each hex digit is converted to its four-bit binary equivalent.

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Binary-to-Hexadecimal Conversion

The binary number is grouped into groups of four bits, and each group is converted to its equivalent hex digit.
Zero are added, as needed to complete a four-bit group.

Ex:
101₂ = 0101
= 5₁₆

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Summary

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

2.1.4 Describe the coding system

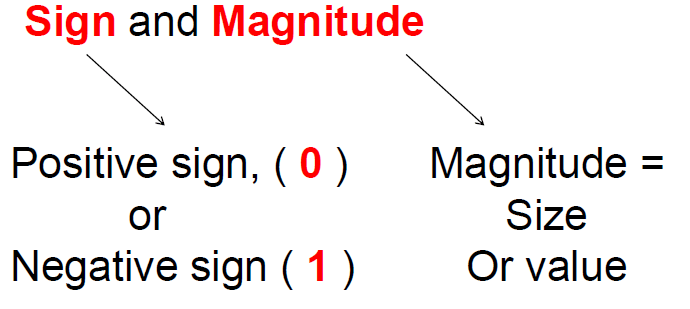

a.Sign and magnitude b. 1‟s Complement and 2‟s Complement c. Binary Coded Decimal (BCD system) d. ASCII and EBCDIC

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Describe the coding system

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

One’s Complements and Two’s Complements

One‟s Complements
One‟s complements is used in binary number.
The one‟s complement of a binary number is obtained by changing each 0 to 1 and 1 to a 0.
Only change negative number
In other words, change each bit in the number to its complement.

DATA REPRESENTATION IN COMPUTER MEMORY ------------------------------------------ Next Slide

Exp:

10011001 – original binary number
01100110 – complement each bit to form 1‟s complement
Thus, we say that the 1‟s complement of 10011001 is 01100110.
