# Symmetry Class 7 Notes Maths Chapter 12

## Symmetry

Symmetry is a crucial concept found in nature and utilized across various fields. From art and design to manufacturing and architecture, symmetry plays a significant role. The word symmetry comes from the Greek word 'symmetros', which means even.

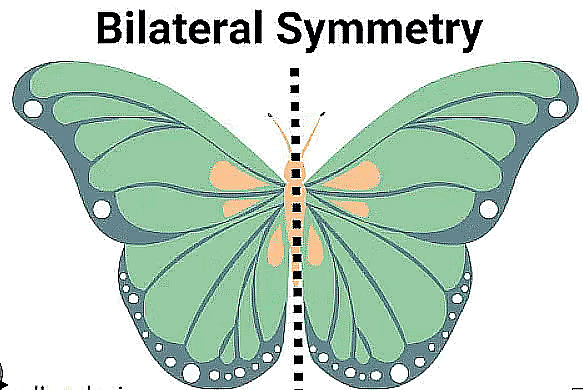

## Line Symmetry

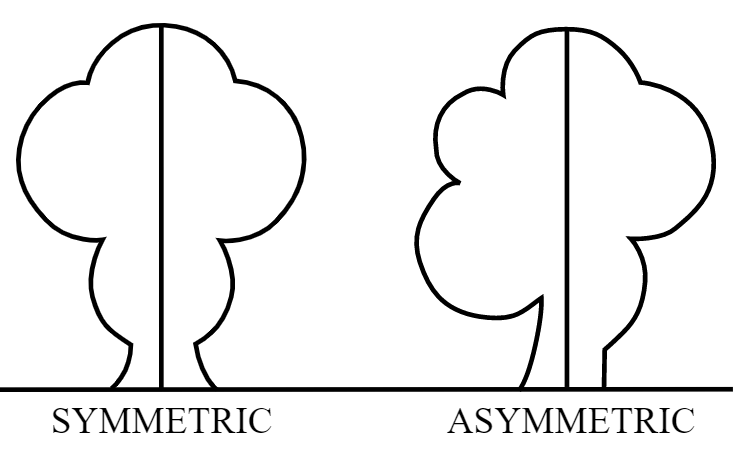

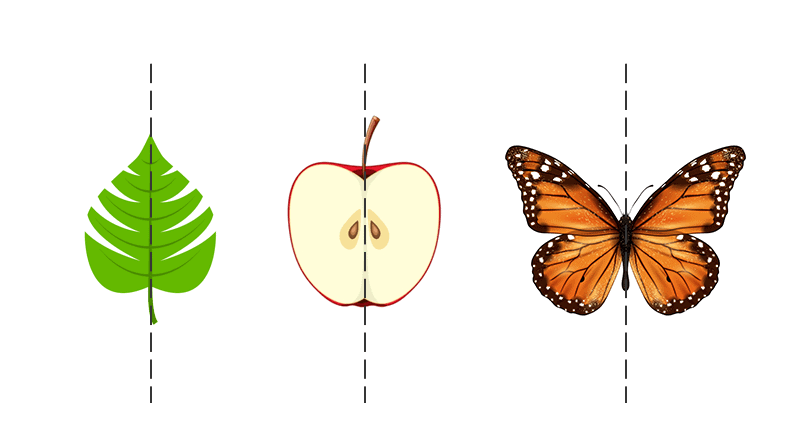

A figure has line symmetry if a line can be drawn dividing the figure into two identical parts.The line is called the line of symmetry or axis of symmetry.

Line Symmetry Line symmetry is also known as 'reflection symmetry' because a mirror line resembles the line of symmetry, where one half is the mirror image of the other half.

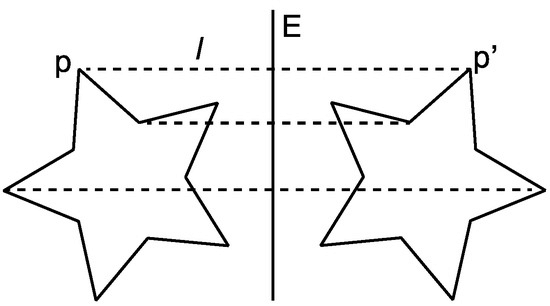

Mirror Symmetry

Remember, while looking at a mirror, an object placed on the right appears to be on the left, and vice versa.

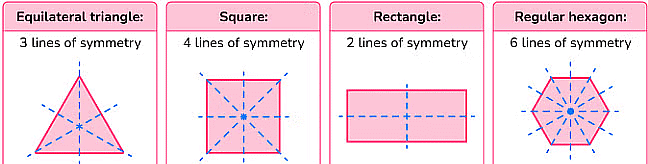

1. For a line segment, the perpendicular bisector is the line of symmetry.
2. For an equilateral triangle, the bisectors of the internal angles are the lines of symmetry.
3. For a square, the lines of symmetry are the diagonals and the lines joining the mid-points of the opposite sides.
4. The lines of symmetry of a rectangle are the lines joining the mid-points of the opposite sides.
5. The line of symmetry of an isosceles triangle is the perpendicular bisector of the non-equal side.

A scalene triangle, in which all the sides are of different lengths, doesn't have any line of symmetry.

Question for Chapter Notes: Symmetry
Try yourself:
What is line symmetry also known as?

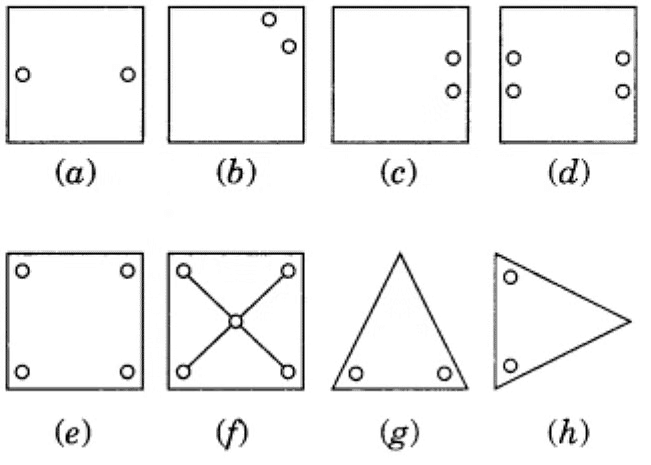

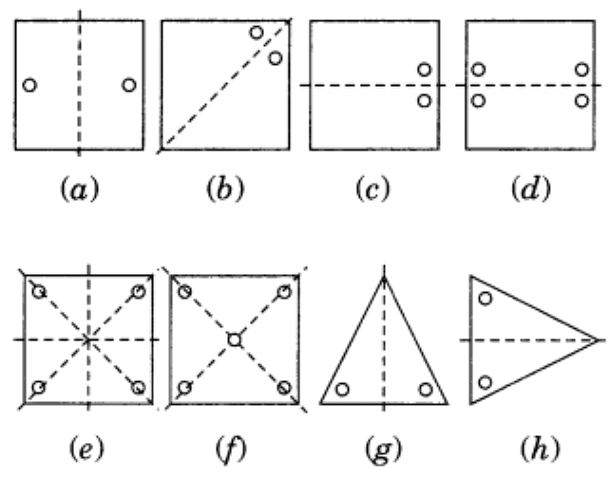

Example: Copy the figures with punched holes and find the axis of symmetry for the following:

Ans: The axis of symmetry is shown by the following line.

Example: Give three examples of shapes with no line of symmetry.
Ans:

1. A scalene triangle has no line of symmetry.
2. Quadrilateral has no line of symmetry.
3. Alphabet R has no line of symmetry.

## Line Symmetry of Regular Polygon

### Regular Polygons

A polygon is said to be a regular polygon if: all its sides are equal in length and all its angles are equal in measure. Only regular polygons have lines of symmetry.

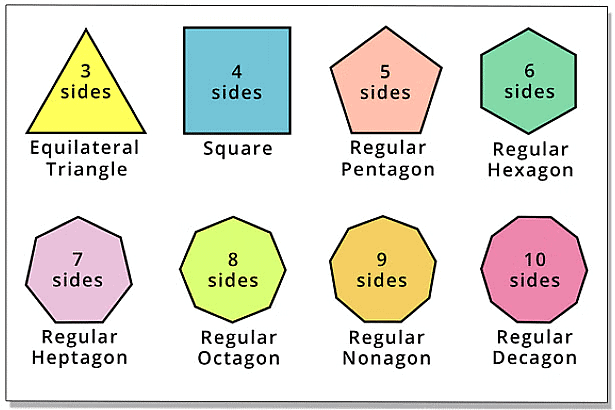

Regular Polygons

An equilateral triangle is regular because each of its sides has the same length, and each of its angles measures sixty degrees.

The number of lines of symmetry in a regular polygon is equal to the number of sides that it has.

A rectangle has two lines of symmetry, and an isosceles triangle has one line of symmetry.

A pentagon has five lines of symmetry.

Similarly, a regular octagon has eight sides, and therefore, it will have eight lines of symmetry, while a regular decagon has ten sides, so it will have ten
lines of symmetry.

Question for Chapter Notes: Symmetry
Try yourself:
Which of the following shapes does not have a line of symmetry?

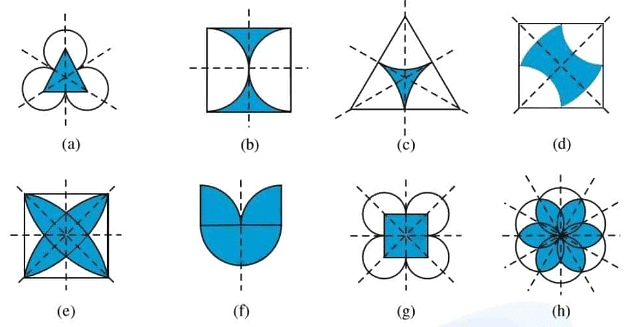

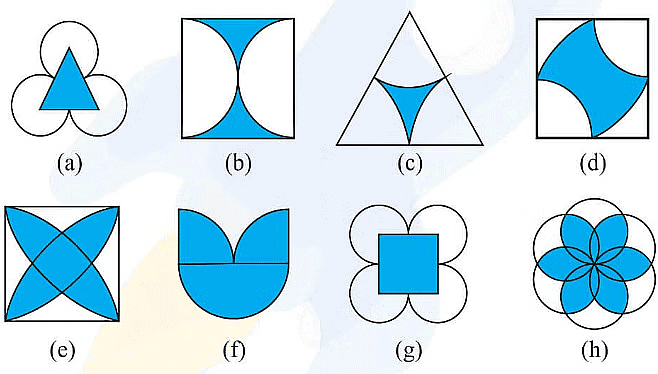

Example: Identify multiple lines of symmetry, if any, in each of the following figures:

Ans:  (a) It has 3 lines of symmetry.
(b) It has 2 lines of symmetry.
(c) It has 3 lines of symmetry.
(d) It has 2 lines of symmetry.
(e) It has 4 lines of symmetry.
(f) It has 1 line of symmetry.
(g) It has 4 lines of symmetry.
(h) It has 6 lines of symmetry.

Example: What letters of the English alphabet have reflectional symmetry (i.e. symmetry related to mirror reflection) about
(а) a vertical mirror
(b) a horizontal mirror
(c) both horizontal and vertical mirrors.
Ans:
(a) Alphabet of vertical mirror reflection symmetry are A, H, I, M, O, T, U, V, W, X, Y
(b) Alphabet of horizontal mirror reflection symmetry are B, C, D, E, H, I, K, O, X
(c) Alphabet of both horizontal and vertical mirror reflection symmetry are H, I, O, X.

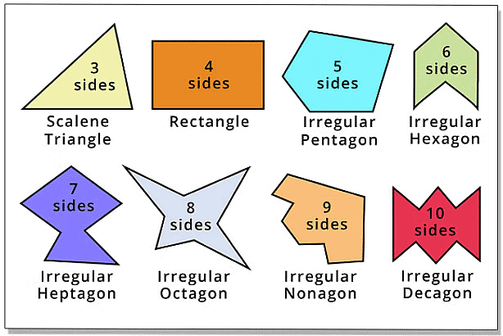

### Irregular polygons

If a polygon is not a regular polygon, then it is said to be an irregular polygon. Most irregular polygons do not have line symmetry. However, some of them do.

Irregular polygons

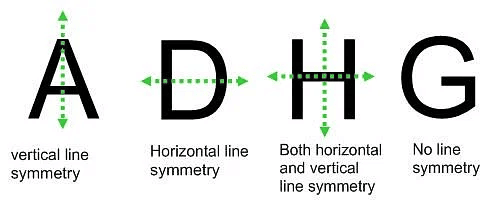

Some letters also have line symmetry.

1. The letters A, B, C, D, E, I, K, M, T, U, V, W and Y have one line of symmetry.
2. The letter H overlaps perfectly both vertically and horizontally. So it has two lines of symmetry. Similarly, the letter X has two lines of symmetry.
3. The letters F, G, J, L, N, P, Q, R, S and Z have no line of symmetry.
Some of the letters' lines of symmetry

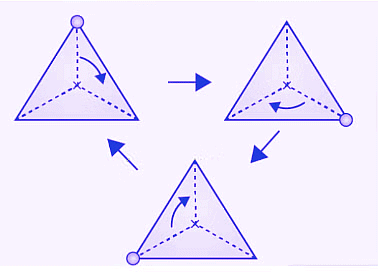

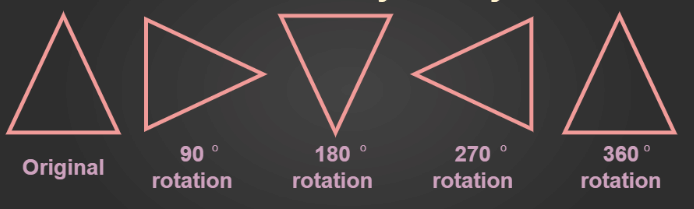

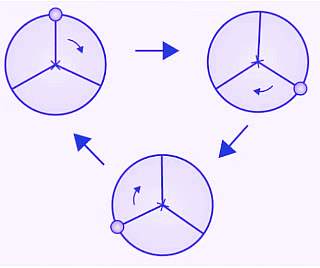

## Rotational Symmetry

Any object or shape is said to have rotational symmetry if it looks exactly the same at least once during a complete rotation through 360o .

Rotation may be clockwise or anti-clockwise.

• A full turn refers to a rotation of 360o.
• A half turn refers to a rotation of 180o.
• A quarter turn refers to a rotation of 90o.

When identifying rotational symmetry, consider:

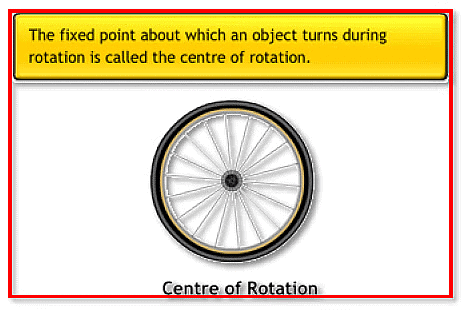

(i) Center of rotation: During the rotation, the object rotates around a fixed point. Its shape and size do not change. This fixed point is called the centre of rotation.

(ii) Angle of rotation: It is the angle at which a shape or an object looks exactly the same during rotation.

(iii) Direction of rotation: The direction of rotation is also referred to as the sense of rotation and indicates the direction (clockwise or anti-clockwise) in which bodies rotate around an axis.

(iv) Order of rotational symmetry: It can be defined as the number of times that a shape appears exactly the same during a full 360o rotation.

Question for Chapter Notes: Symmetry
Try yourself:Which of the following letters has one line of symmetry?

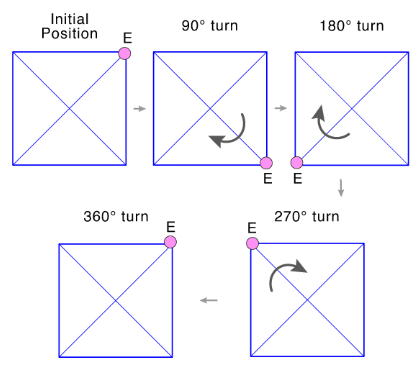

The centre of rotation of a square is its centre. The angle of rotation of a square is 90 degrees, and its order of rotational symmetry is 4.

Rotation of a square

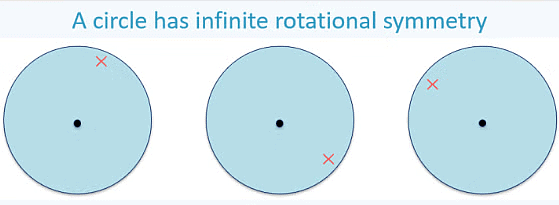

The circle is the most symmetrical figure. It has an infinite number of lines of symmetry, as any line passing through its center serves as a line of symmetry. Additionally, the circle has rotational symmetry around its center for every possible angle. The centre of rotation of a circle is the centre of the circle.

Rotation of a circle

• There are many shapes that have only line symmetry and no rotational symmetry at all.
• Some objects and shapes have both, line symmetry as well as rotational symmetry.

The Ashok Chakra in the Indian national flag has both, line symmetry and rotational symmetry.

Ashok Chakra

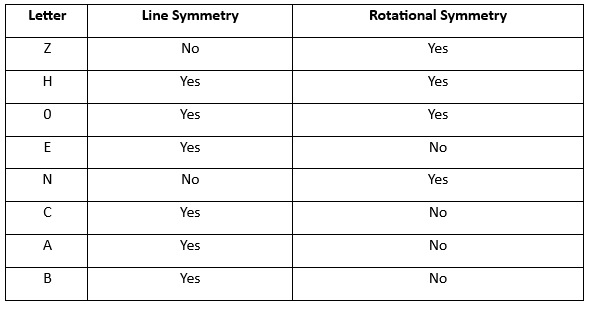

 Letter Line Symmetry Rotational Symmetry Z No Yes H Yes Yes 0 Yes Yes E Yes No N No Yes C Yes No A Yes No B Yes No

Question for Chapter Notes: Symmetry
Try yourself:
Which shape has both line symmetry and rotational symmetry?

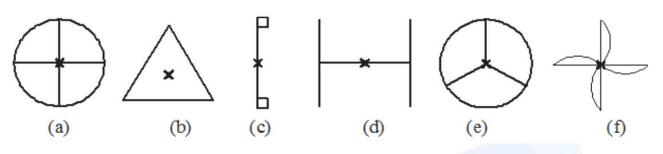

Example: Which of the following figures have rotational symmetry of order more than 1:

Ans:
(a) The given figure can be rotated four times at 90o angles each to produce the symmetrical figures. The above figure has a rotational symmetry of order 4

(b) The given figure can be rotated three times at 120o angles each to produce the symmetrical figures. The above figure has a rotational symmetry of order 3

(c)  The given figure can be rotated once at 180o angles each to produce the symmetrical figures. The above figure has a rotational symmetry of order 1

(d) The given figure can be rotated two times at 180o angles each to produce the symmetrical figures. The above figure has a rotational symmetry of order 2

(e)  The given figure can be rotated three times at 120o angles each to produce the symmetrical figures. The above figure has a rotational symmetry of order 3

(f) The given figure can be rotated four times at 90o angles each to produce the symmetrical figures. The above figure has a rotational symmetry of order 4

The document Symmetry Class 7 Notes Maths Chapter 12 is a part of the Class 7 Course Mathematics (Maths) Class 7.
All you need of Class 7 at this link: Class 7

## Mathematics (Maths) Class 7

76 videos|345 docs|39 tests

## FAQs on Symmetry Class 7 Notes Maths Chapter 12

 1. What is line symmetry?
Ans. Line symmetry refers to a type of symmetry where a figure can be divided into two equal halves by a line. The two halves are mirror images of each other.
 2. What is the concept of line symmetry in regular polygons?
Ans. In regular polygons, line symmetry means that the polygon can be divided into two equal halves by a line passing through its center. Each half will be a mirror image of the other.
 3. What is rotational symmetry?
Ans. Rotational symmetry is a type of symmetry where a figure can be rotated by a certain angle around a fixed point and still appear the same. The figure will have multiple positions that coincide with each other after rotation.
 4. How is rotational symmetry related to regular polygons?
Ans. Regular polygons exhibit rotational symmetry because they can be rotated by certain angles around their center and still look the same. The number of positions in which a regular polygon coincides with itself after rotation is equal to the number of sides it has.
 5. What are some examples of figures that have line symmetry and rotational symmetry?
Ans. Some examples of figures that have both line symmetry and rotational symmetry are squares, equilateral triangles, and circles.
